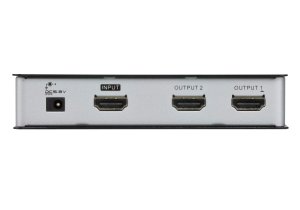

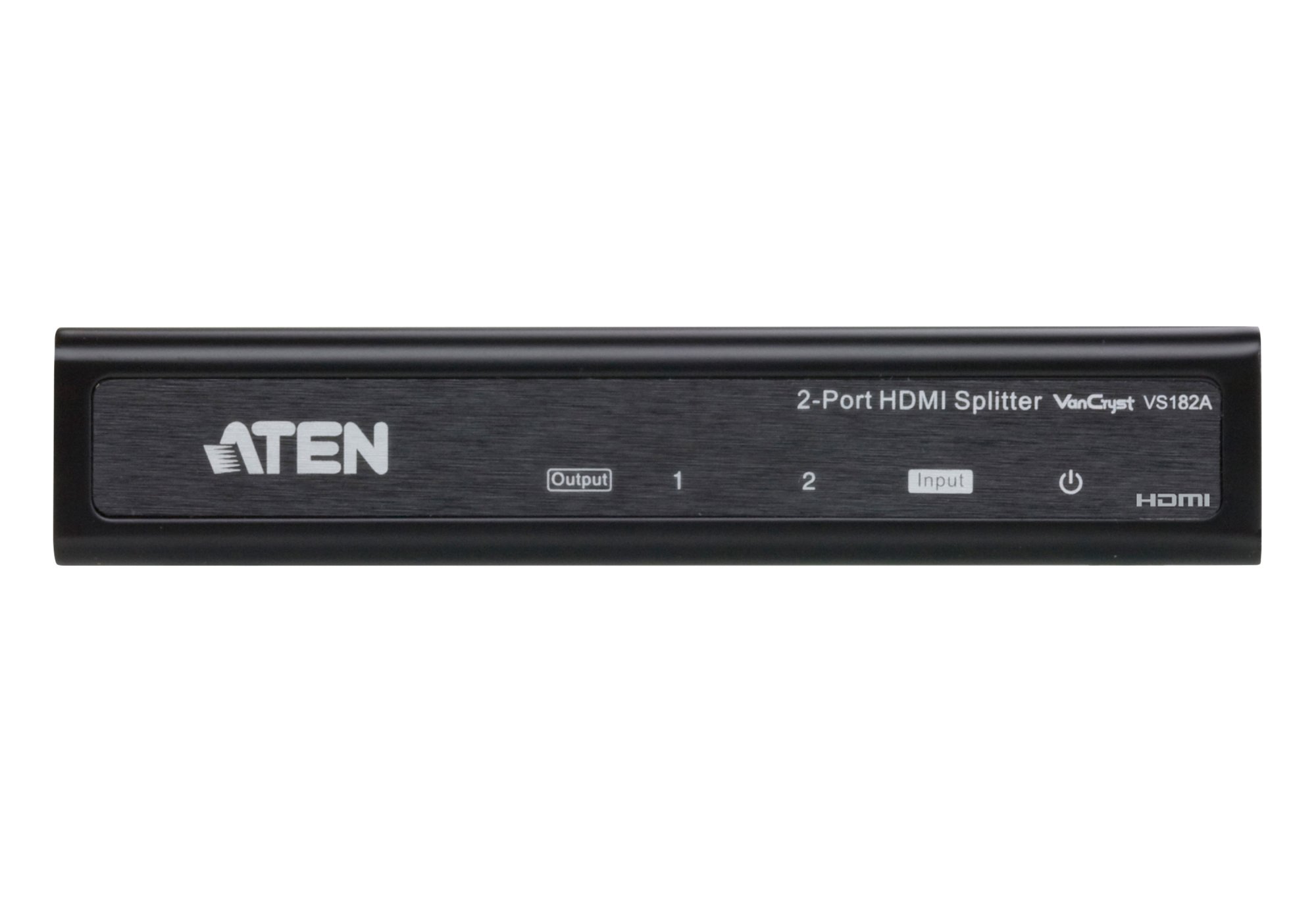

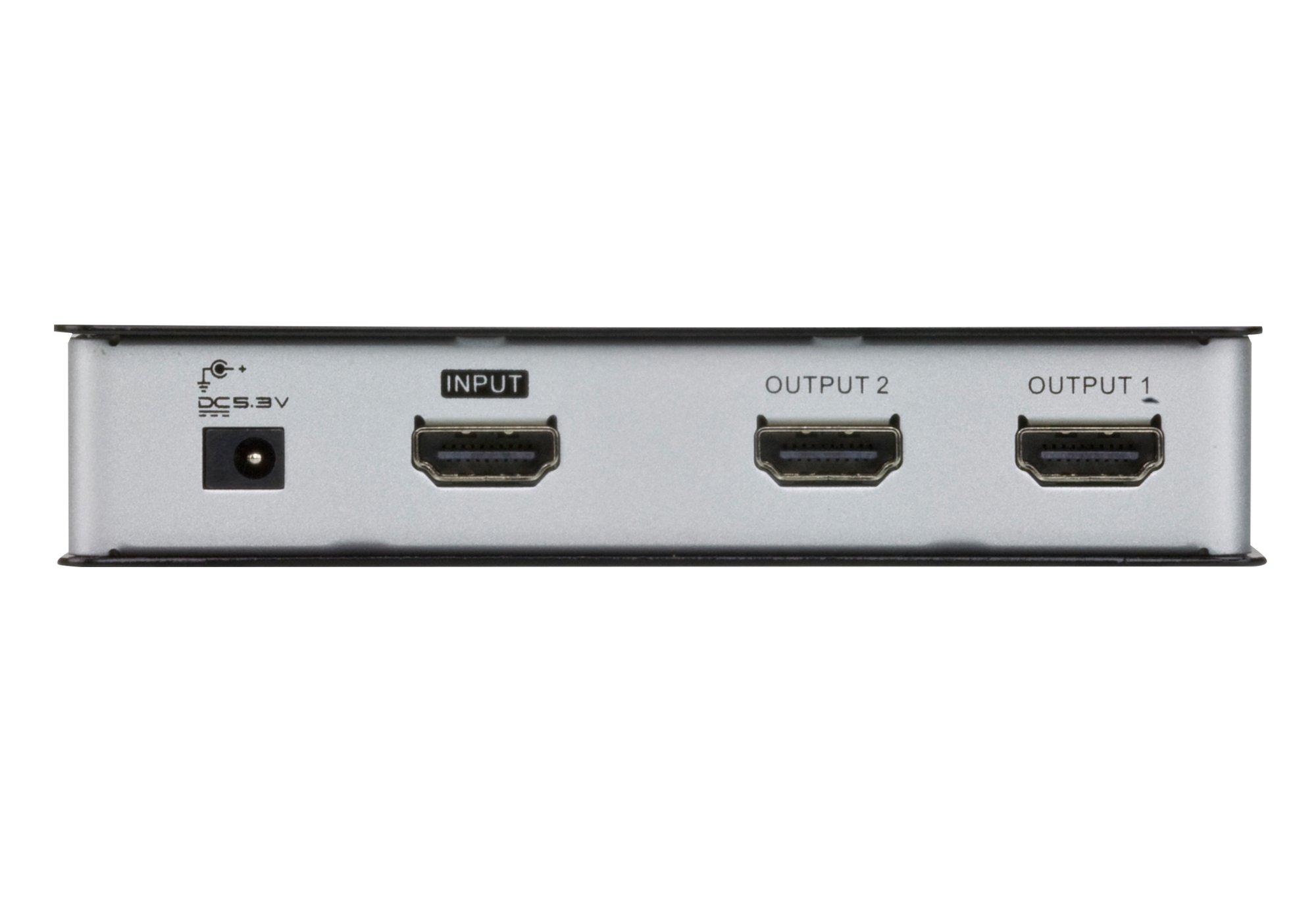

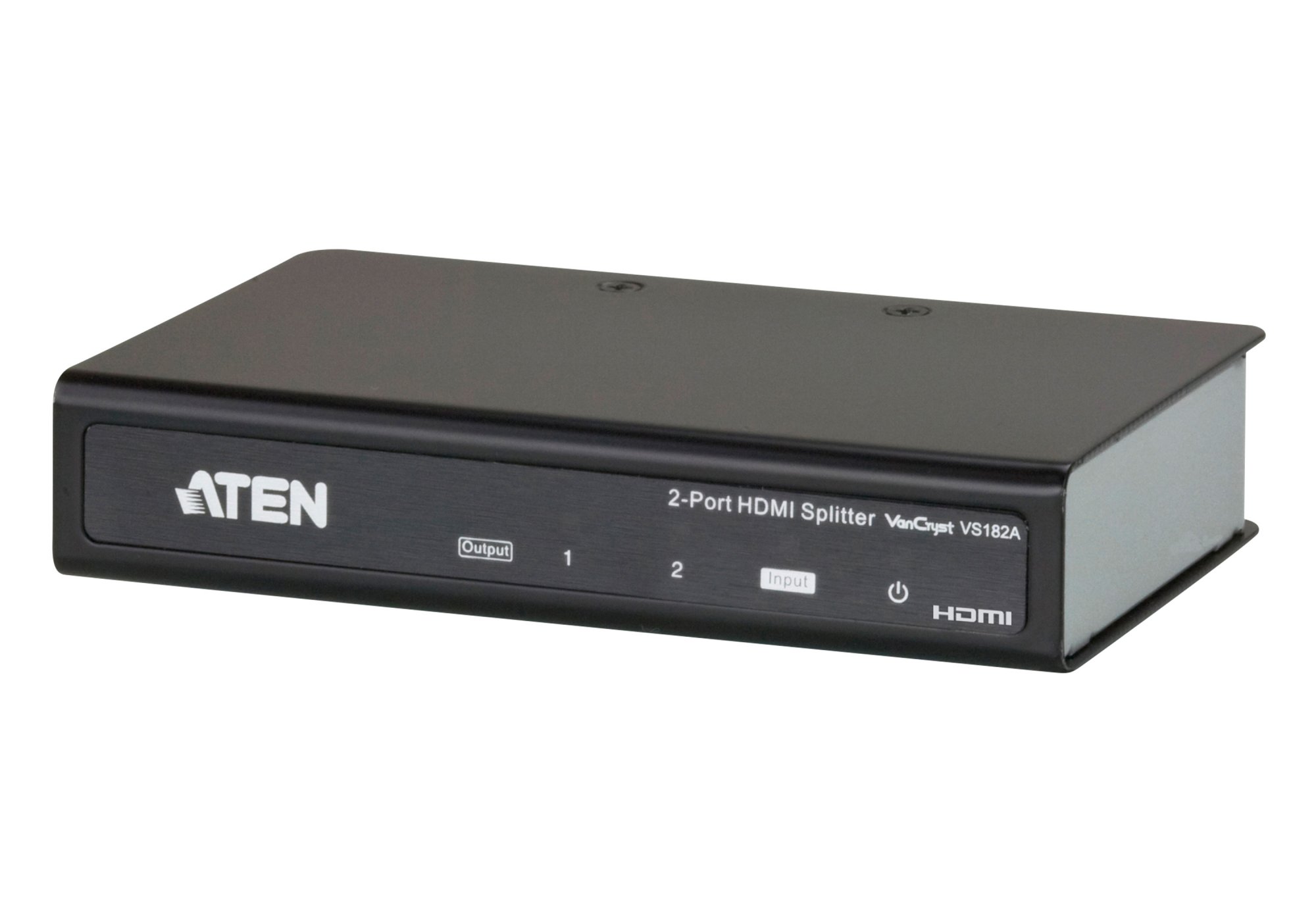

ATEN 2-Port HDMI Audio/Video Splitter 4Kx2K
Roll over image to zoom inClick to Open expanded view
ATEN 2-Port HDMI Audio/Video Splitter 4Kx2K
ATEN 2-Port HDMI Audio/Video Splitter 4Kx2K
ATEN 2-Port HDMI Audio/Video Splitter 4Kx2K
Print
Model: VS182A
EAN: 4710423775138

ATEN 2-Port HDMI Audio/Video Splitter 4Kx2K

Manufacturer:
Aten
ATEN 2-Port HDMI Audio/Video Splitter 4Kx2K, HDMI, 2x HDMI, 1 x HDMI Type A Female (Black), 4096 x 2160 pixels, Black, Metal
Please log in to see your price
Related products
Cables & Connectivity

Description

ATEN 2-Port HDMI Audio/Video Splitter 4Kx2K. Video port type: HDMI, Video out: 2x HDMI, Video in: 1 x HDMI Type A Female (Black). Maximum resolution: 4096 x 2160 pixels, Product colour: Black, Housing material: Metal. AC input voltage: 5 V, Power consumption (typical): 3.12 W. Width: 80 mm, Depth: 125 mm, Height: 25 mm. Quantity per pack: 1 pc(s), Package width: 59 mm, Package depth: 239 mm
  • Connects one HDMI source to two HDMI displays at the same time
  • HDMI (3D, Deep Color, 4kx2k); HDCP 1.4 Compliant
  • Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
  • Supports Dolby True HD and DTS HD Master Audio
  • Long distance transmission – up to 15 m (24 AWG)
  • Supports up to 340MHz bandwidth for high performance video
  • Plug-and-play – no software installation required

Product Properties

  • Model
  • VS182A
  • EAN
  • 4710423775138
  • Bullet points
  • Point
  • Connects one HDMI source to two HDMI displays at the same time
    HDMI (3D, Deep Color, 4kx2k); HDCP 1.4 Compliant
    Long distance transmission – up to 15 m (24 AWG)
    Plug-and-play – no software installation required
    Supports Dolby True HD and DTS HD Master Audio
    Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
    Supports up to 340MHz bandwidth for high performance video
  • Features
  • 3D
  • Yes
  • Bandwidth
  • 340 MHz
  • Dolby technologies
  • DTS-HD Master Audio, Dolby TrueHD
  • HD type
  • 4K Ultra HD
  • HDCP
  • Yes
  • HDCP version
  • 1.4
  • Housing material
  • Metal
  • LED indicators
  • Yes
  • Mac compatibility
  • Yes
  • Mac operating systems supported
  • Yes
  • Maximum operating distance
  • 15 m
  • Maximum refresh rate
  • 60 Hz
  • Maximum resolution
  • 4096 x 2160 pixels
  • Plug and Play
  • Yes
  • Product colour
  • Black
  • Supported graphics resolutions
  • 3840 x 2160, 4096 x 2160
  • Supported video modes
  • 2160i, 2160p
  • Windows operating systems supported
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 0 - 80%
  • Operating temperature (T-T)
  • 0 - 50 °C
  • Storage relative humidity (H-H)
  • 0 - 80%
  • Storage temperature (T-T)
  • -20 - 60 °C
  • Packaging content
  • AC adapter included
  • Yes
  • Cables included
  • HDMI
  • Manual
  • Yes
  • User guide
  • Yes
  • Packaging data
  • Package depth
  • 239 mm
  • Package height
  • 160 mm
  • Package weight
  • 642 g
  • Package width
  • 59 mm
  • Quantity per pack
  • 1 pc(s)
  • Ports & interfaces
  • DC-in jack
  • Yes
  • Video in
  • 1 x HDMI Type A Female (Black)
  • Video out
  • 2x HDMI
  • Video port type
  • HDMI
  • Video ports quantity
  • 3
  • Power
  • AC input voltage
  • 5 V
  • Power consumption (typical)
  • 3.12 W
  • Weight & dimensions
  • Depth
  • 125 mm
  • Height
  • 25 mm
  • Weight
  • 504 g
  • Width
  • 80 mm
