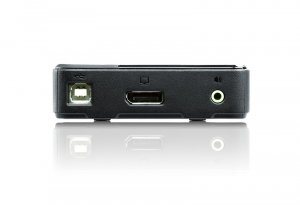

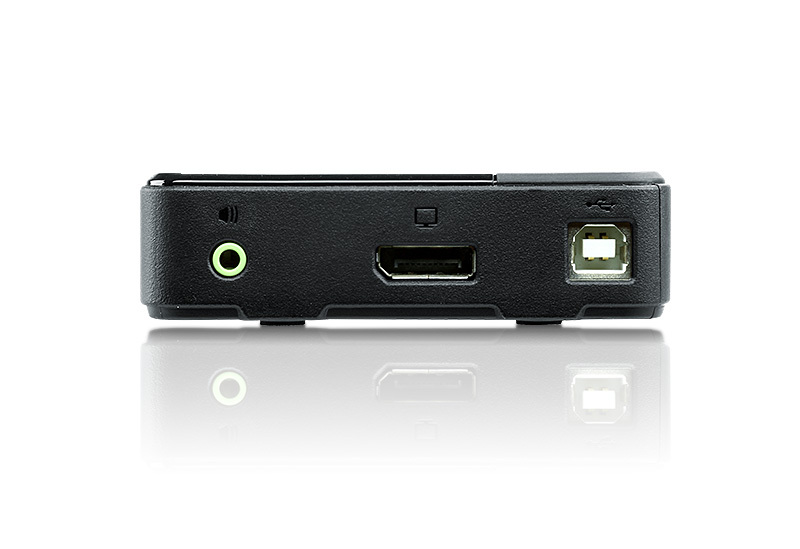

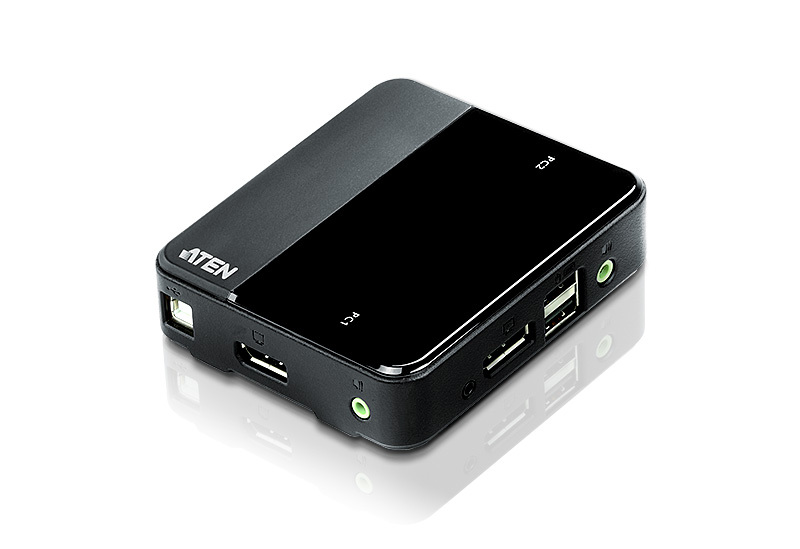

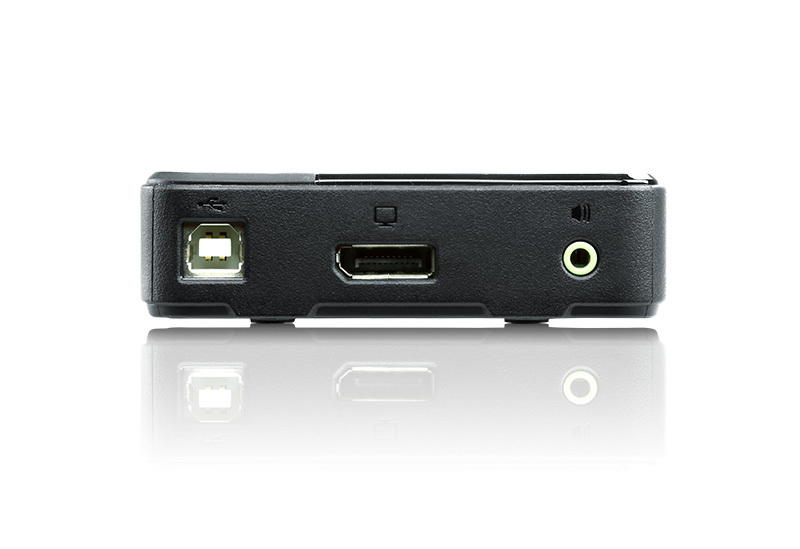

ATEN 2-Port USB 4K DisplayPort 1.2 KVM Switch (KVM cables included)
Roll over image to zoom inClick to Open expanded view
ATEN 2-Port USB 4K DisplayPort 1.2 KVM Switch (KVM cables included)
ATEN 2-Port USB 4K DisplayPort 1.2 KVM Switch (KVM cables included)
ATEN 2-Port USB 4K DisplayPort 1.2 KVM Switch (KVM cables included)
Print
Model: CS782DP
EAN: 4719264643644

ATEN 2-Port USB 4K DisplayPort 1.2 KVM Switch (KVM cables included)

Manufacturer:
Aten
ATEN 2-Port USB 4K DisplayPort 1.2 KVM Switch (KVM cables included), 4096 x 2160 pixels, 4K Ultra HD, 2.18 W, Black
Please log in to see your price
Related products

Description

ATEN 2-Port USB 4K DisplayPort 1.2 KVM Switch (KVM cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Plastic. Power source: DC, Input voltage: 5 V, Power consumption (typical): 2.18 W. Width: 93 mm, Depth: 93.7 mm, Height: 26.8 mm
  • Superior video quality – 4K UHD (3840 × 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)
  • Computer selection via remote port selector, hotkeys, and USB mouse; bus-powered design
  • Supports MST (Multi-Stream Transport)2, enabling multiple monitors to be used via a single DisplayPort connector
  • Multiplatform support – Windows, Mac, Sun, and Linux

Product Properties

  • Model
  • CS782DP
  • EAN
  • 4719264643644
  • Bullet points
  • Point
  • Computer selection via remote port selector, hotkeys, and USB mouse; bus-powered design
    Multiplatform support – Windows, Mac, Sun, and Linux
    Superior video quality – 4K UHD (3840 × 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)
  • Design
  • Hot keys
  • Yes
  • Housing material
  • Plastic
  • LED indicators
  • Yes
  • Product colour
  • Black
  • Rack mounting
  • No
  • Display
  • Built-in display
  • No
  • Logistics data
  • Harmonized System (HS) code
  • 85176200
  • Master (outer) case gross weight
  • 7.71 kg
  • Master (outer) case height
  • 196 mm
  • Master (outer) case length
  • 497 mm
  • Master (outer) case net weight
  • 5.43 kg
  • Master (outer) case width
  • 328 mm
  • Products per master (outer) case
  • 10 pc(s)
  • Operational conditions
  • Operating relative humidity (H-H)
  • 0 - 80%
  • Operating temperature (T-T)
  • 0 - 50 °C
  • Storage relative humidity (H-H)
  • 0 - 80%
  • Storage temperature (T-T)
  • -20 - 60 °C
  • Packaging content
  • Manual
  • Yes
  • Quick installation guide
  • Yes
  • Packaging data
  • Package depth
  • 239 mm
  • Package height
  • 175 mm
  • Package weight
  • 687 g
  • Package width
  • 59 mm
  • Performance
  • HD type
  • 4K Ultra HD
  • Maximum resolution
  • 4096 x 2160 pixels
  • Scan interval
  • 3,5,10,20 s
  • Video bandwidth
  • 60 Hz
  • Ports & interfaces
  • Audio connections
  • Yes
  • Console ports
  • 3.5mm headphone, DisplayPort, USB A
  • DisplayPorts quantity
  • 2
  • Headphone outputs
  • 1
  • Keyboard port type
  • USB
  • Mouse port type
  • USB
  • Number of computers controlled
  • 2
  • Number of microphone inputs
  • 1
  • USB 2.0 Type-B ports quantity
  • 2
  • USB connector type
  • USB Type-A, USB Type-B
  • Video port type
  • DisplayPort
  • Power
  • Input voltage
  • 5 V
  • Power consumption (typical)
  • 2.18 W
  • Power source
  • DC
  • Weight & dimensions
  • Depth
  • 93.7 mm
  • Height
  • 26.8 mm
  • Weight
  • 543 g
  • Width
  • 93 mm
