Description

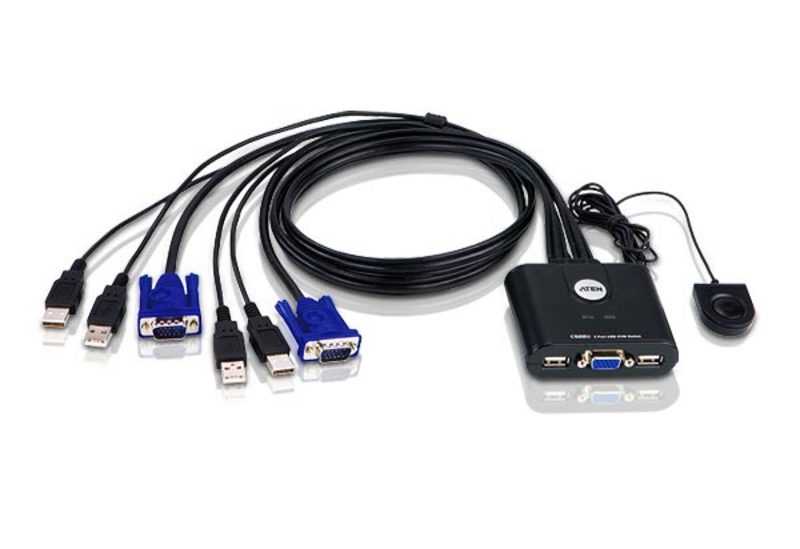

ATEN 2-Port USB VGA KVM Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels. Product colour: Black, Housing material: Plastic. Power source: DC, DC input voltage: 5 V, Power consumption (typical): 0.14 W. Width: 82.4 mm, Depth: 70.1 mm, Height: 24.6 mm

Superior video quality - up to 2048 x 1536; DDC2B
Computer Selection via a Remote Port Selector
Multiplatform support - Windows, Mac, Linux and Sun
Bus-powered design

Product Properties

Manufacturer
Aten

Model
CS22U

EAN
4710423775978

Bullet points

Point
Bus-powered design

Computer Selection via a Remote Port Selector

Multiplatform support - Windows, Mac, Linux and Sun

Superior video quality - up to 2048 x 1536; DDC2B

Design

Housing material
Plastic

LED indicators
Y

Product colour
Black

Rack mounting
N

Display

Built-in display
N

Logistics data

Harmonized System (HS) code
85176200

Master (outer) case gross weight
8.48 kg

Master (outer) case height
330 mm

Master (outer) case length
389 mm

Master (outer) case net weight
6.04 kg

Master (outer) case width
328 mm

Products per master (outer) case
20 pc(s)

Operational conditions

Operating relative humidity (H-H)
0 - 80%

Operating temperature (T-T)
0 - 50 °C

Storage relative humidity (H-H)
0 - 80%

Storage temperature (T-T)
-20 - 60 °C

Packaging content

Quick installation guide
Y

Packaging data

Package depth
155 mm

Package height
223 mm

Package weight
400 g

Package width
55 mm

Performance

DDC2B support
Y

HD type
QXGA

Maximum resolution
2048 x 1536 pixels

Ports & interfaces

Console ports
USB A, VGA (D-Sub)

Keyboard port type
USB

Mouse port type
USB

Number of computers controlled
2

USB 2.0 Type-A hub ports quantity
2

USB connector type
USB Type-A

USB hub
Y

VGA (D-Sub) ports quantity
2

Video port type
VGA

Power

DC input voltage
5 V

Power consumption (typical)
0.14 W

Power source
DC

Weight & dimensions

Depth
70.1 mm

Height
24.6 mm

Weight
302 g

Width
82.4 mm
