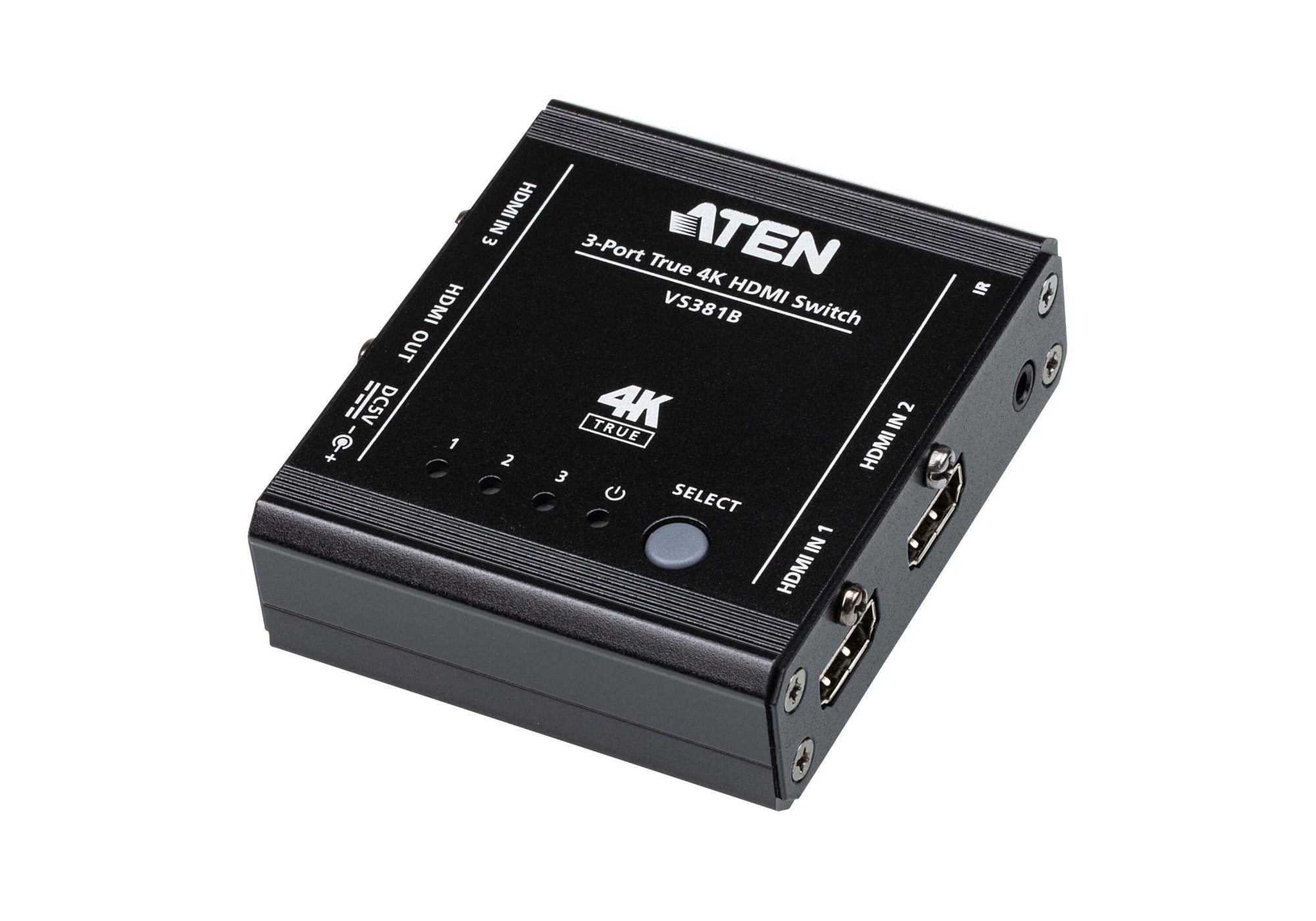

ATEN 3-Port True 4K HDMI Switch
Roll over image to zoom inClick to Open expanded view
ATEN 3-Port True 4K HDMI Switch
ATEN 3-Port True 4K HDMI Switch
ATEN 3-Port True 4K HDMI Switch
Print
Model: VS381B
EAN: 4710469340383

ATEN 3-Port True 4K HDMI Switch

Manufacturer:
Aten
ATEN 3-Port True 4K HDMI Switch, HDMI, Metal, Black, 60 Hz, 5 m, 3840 x 2160, 4096 x 2160
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

ATEN 3-Port True 4K HDMI Switch. Video port type: HDMI. Material: Metal, Product colour: Black, Maximum refresh rate: 60 Hz. Power consumption (typical): 1.46 W. Width: 71.6 mm, Depth: 79 mm, Height: 25.5 mm
  • Allows up to 3 HDMI input sources to be transmitted to 1 HDMI output display
  • Superior video quality – True 4K resolution of 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) up to 5m; HDR supported
  • HDMI (3D, Deep Color, 4K, HDR10+, Dolby Vision, HLG); HDCP 2.2 compliant
  • Auto switching mode for auto port selection

Product Properties

  • Model
  • VS381B
  • EAN
  • 4710469340383
  • Bullet points
  • Point
  • Allows up to 3 HDMI input sources to be transmitted to 1 HDMI output display
    Auto switching mode for auto port selection
    HDMI (3D, Deep Color, 4K, HDR10+, Dolby Vision, HLG); HDCP 2.2 compliant
    Superior video quality – True 4K resolution of 4096 x 2160 / 3840 x 2160 @ 60Hz (4
  • Features
  • 3D
  • Yes
  • Bandwidth
  • 18 Gbit/s
    600 MHz
  • Dolby technologies
  • Dolby Vision
  • External power adapter
  • Yes
  • HD type
  • 4K Ultra HD
  • HDCP
  • Yes
  • HDCP version
  • 2.2
  • Input impedance
  • 100 Ω
  • Material
  • Metal
  • Maximum operating distance
  • 5 m
  • Maximum refresh rate
  • 60 Hz
  • Maximum resolution
  • 4096 x 2160 pixels
  • Plug and Play
  • Yes
  • Product colour
  • Black
  • Supported graphics resolutions
  • 3840 x 2160, 4096 x 2160
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Operational conditions
  • Operating relative humidity (H-H)
  • 0 - 80%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 0 - 80%
  • Storage temperature (T-T)
  • -20 - 60 °C
  • Packaging content
  • AC adapter included
  • Yes
  • Ports & interfaces
  • 3.5 mm (1/8-inch) in
  • Yes
  • DC-in jack
  • Yes
  • HDMI in
  • 3
  • HDMI ports
  • 4
  • Number of HDMI outputs
  • 1
  • Video port type
  • HDMI
  • Power
  • Power consumption (typical)
  • 1.46 W
  • Weight & dimensions
  • Depth
  • 79 mm
  • Height
  • 25.5 mm
  • Weight
  • 150 g
  • Width
  • 71.6 mm
