ATEN CS1914 KVM switch Black, Grey
Roll over image to zoom inClick to Open expanded view
ATEN CS1914 KVM switch Black, Grey
ATEN CS1914 KVM switch Black, Grey
ATEN CS1914 KVM switch Black, Grey
ATEN CS1914 KVM switch Black, Grey
Print
Model: CS1914
EAN: 4719264645044

ATEN CS1914 KVM switch Black, Grey

Manufacturer:
Aten
ATEN CS1914, 3840 x 2160 pixels, 3.3 W, Black, Grey
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

ATEN CS1914. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. Maximum resolution: 3840 x 2160 pixels, Scan interval: 1,5,99 s. Product colour: Black, Grey, Housing material: Metal, Plastic, LED indicators: Status, USB. Output voltage: 5 V, Power consumption (typical): 3.3 W. Compliance certificates: RoHS
  • 4-port DisplayPort KVMP™ Switch with USB 3.1 Gen 1 hub and 2.1 surround sound audio
  • One USB console controls 4 computers and 2 USB peripherals
  • Computer selection via front panel pushbuttons, hotkeys and mouse1
  • Independent switching of KVM, USB, and Audio focus
  • Superior video quality – up to 3840 x 2160 @ 30 Hz
  • 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps transfer rates
  • DisplayPort 1.1 compliant, HDCP compliant2
  • Supports HD audio through DisplayPort3
  • Full bass response for high-quality 2.1 channel surround sound systems
  • Power On Detection – if a computer is powered off, the CS1914 automatically switches to the next powered-on computer
  • DisplayPort Dual-Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter4
  • Hot pluggable – add or remove computers without powering down the switch
  • Keyboard emulation/bypass feature supports most gaming keyboards
  • Mouse emulation/bypass feature supports most mouse drivers and multifunction mice
  • Multi-platform support – Windows, Mac, and Linux
  • Multilingual keyboard mapping supports English, Japanese, French and German keyboards
  • Mac keyboard support and emulation5
  • Auto Scan Mode for monitoring all computers
  • Firmware upgradable
  • Note:
  • 1. Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel.
  • 2. For DisplayPort 1.4 compliant display device, make sure to configure the device setting to be compatible with DisplayPort 1.1 to avoid compatibility issue.
  • 3. HD audio through DisplayPort cannot be switched independently.
  • 4. DisplayPort Dual-Mode technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source's DP++ compatibility.
  • 5. PC keyboard combinations emulate Mac keyboards. Mac keyboards only work with their own operating system.

Product Properties

  • Model
  • CS1914
  • EAN
  • 4719264645044
  • Bullet points
  • Point
  • 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps transfer rates
    3. HD audio through DisplayPort cannot be switched independently.
    4-port DisplayPort KVMP™ Switch with USB 3.1 Gen 1 hub and 2.1 surround sound audio
    Auto Scan Mode for monitoring all computers
    Computer selection via front panel pushbuttons, hotkeys and mouse1
    DisplayPort 1.1 compliant, HDCP compliant2
    Firmware upgradable
    Full bass response for high-quality 2.1 channel surround sound systems
    Hot pluggable – add or remove computers without powering down the switch
    Independent switching of KVM, USB, and Audio focus
    Keyboard emulation/bypass feature supports most gaming keyboards
    Mac keyboard support and emulation5
    Mouse emulation/bypass feature supports most mouse drivers and multifunction mice
    Multi-platform support – Windows, Mac, and Linux
    Multilingual keyboard mapping supports English, Japanese, French and German keyboards
    Note:
    One USB console controls 4 computers and 2 USB peripherals
    Superior video quality – up to 3840 x 2160 @ 30 Hz
    Supports HD audio through DisplayPort3
  • Design
  • Housing material
  • Metal, Plastic
  • LED indicators
  • Status, USB
  • Product colour
  • Black, Grey
  • Push button
  • Yes
  • Rack mounting
  • No
  • Display
  • Built-in display
  • No
  • Logistics data
  • Harmonized System (HS) code
  • 85176200
  • Operational conditions
  • Operating relative humidity (H-H)
  • 0 - 80%
  • Operating temperature (T-T)
  • 0 - 50 °C
  • Storage temperature (T-T)
  • -20 - 60 °C

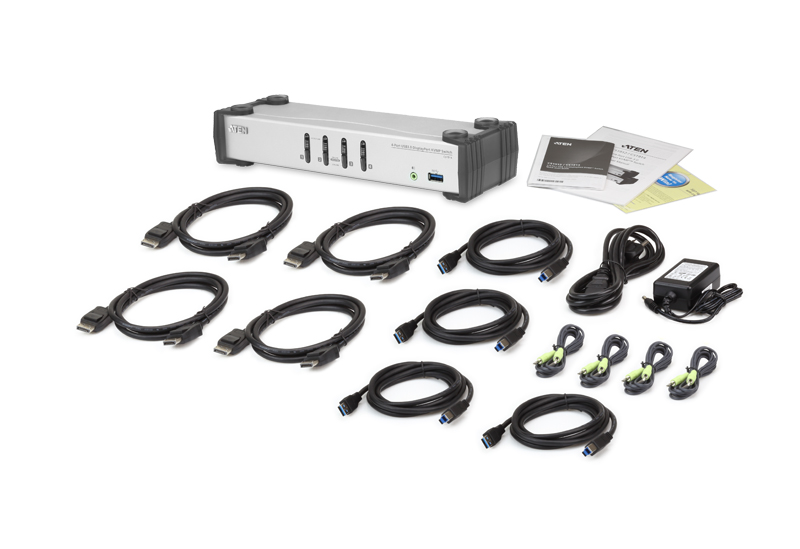

  • Packaging content
  • AC adapter included
  • Yes
  • Cables included
  • Audio (3.5mm), DisplayPort, USB
  • Manual
  • Yes
  • Performance
  • Automatic switching
  • Yes
  • HDCP
  • Yes
  • Hot-Plug support
  • Yes
  • Maximum resolution
  • 3840 x 2160 pixels
  • Scan interval
  • 1,5,99 s
  • Ports & interfaces
  • Audio connections
  • Yes
  • Console ports
  • USB A
  • Console USB ports quantity
  • 2
  • DC-in jack
  • Yes
  • Headphone outputs
  • 6
  • Keyboard port type
  • USB
  • Mouse port type
  • USB
  • Number of computers controlled
  • 4
  • USB connector type
  • USB Type-A, USB Type-B
  • USB hub
  • Yes
  • USB version
  • 3.2 Gen 1 (3.1 Gen 1)
  • Video port type
  • DisplayPort
  • Power
  • External power adapter
  • Yes
  • Output voltage
  • 5 V
  • Power consumption (typical)
  • 3.3 W
  • Sustainability
  • Compliance certificates
  • RoHS
  • System requirements
  • Mac operating systems supported
  • Yes
  • Weight & dimensions
  • Depth
  • 270 mm
  • Height
  • 55.5 mm
  • Weight
  • 910 g
  • Width
  • 88 mm
