Model: CS22DP
EAN: 4719264645525

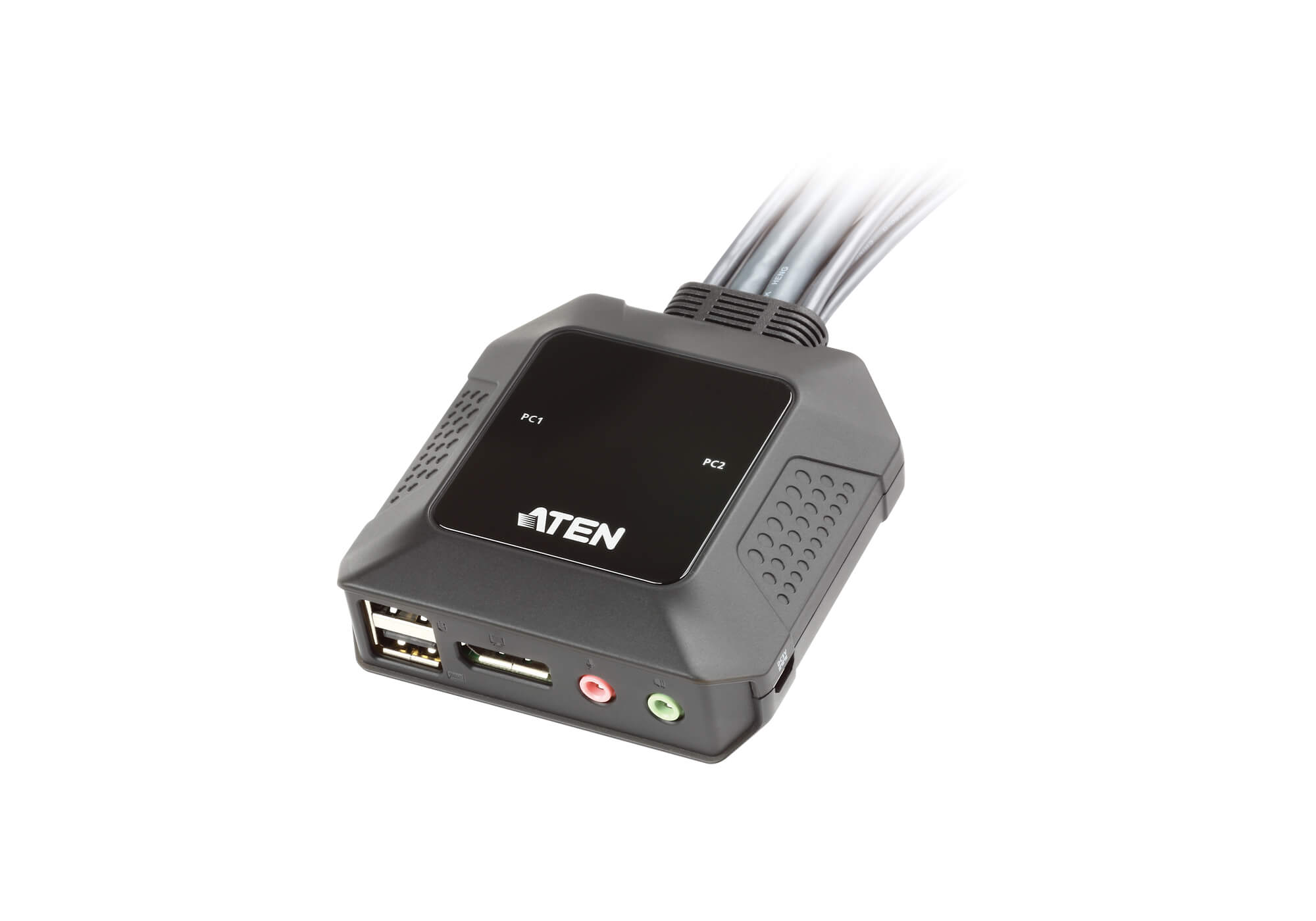

ATEN CS22DP KVM switch Black

Manufacturer:
Aten
ATEN CS22DP, 4096 x 2160 pixels, 4K Ultra HD, 1.38 W, Black
Please log in to see your price
Related products

Description

ATEN CS22DP. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 30 Hz. Product colour: Black, Housing material: Plastic, Cable length: 1.2 m. Power source: DC, Input voltage: 5 V, Power consumption (typical): 1.38 W. Compliance certificates: RoHS

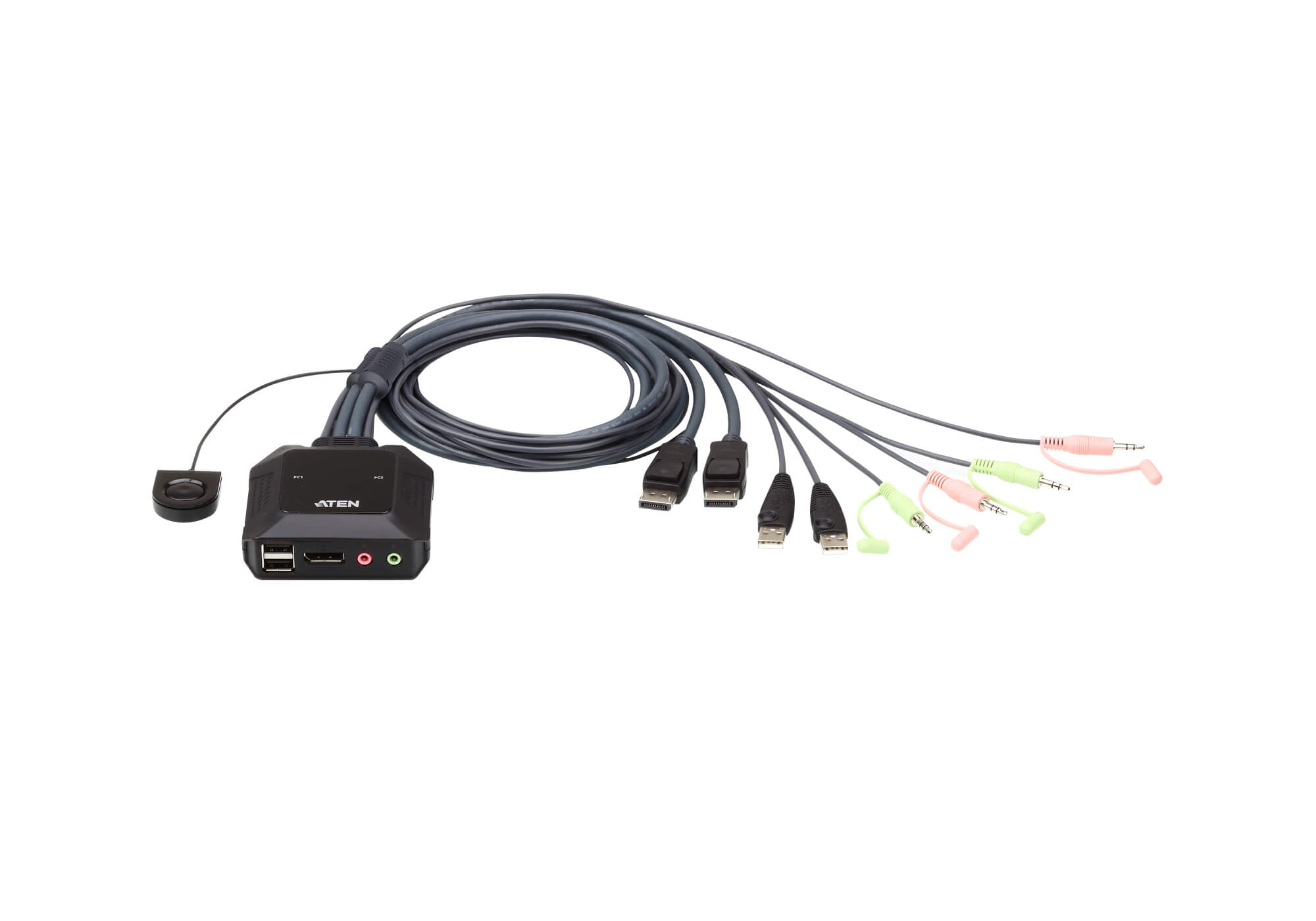

  • One KVM console controls two USB DisplayPort computers
  • Superior video quality – up to 4096 x 2160 @ 30 Hz
  • Multiplatform support – Windows, Mac, and Linux
  • Bus-powered design

Product Properties

  • Model
  • CS22DP
  • EAN
  • 4719264645525
  • Bullet points
  • Point
  • Bus-powered design
    Multiplatform support – Windows, Mac, and Linux
    One KVM console controls two USB DisplayPort computers
    Superior video quality – up to 4096 x 2160 @ 30 Hz
  • Design

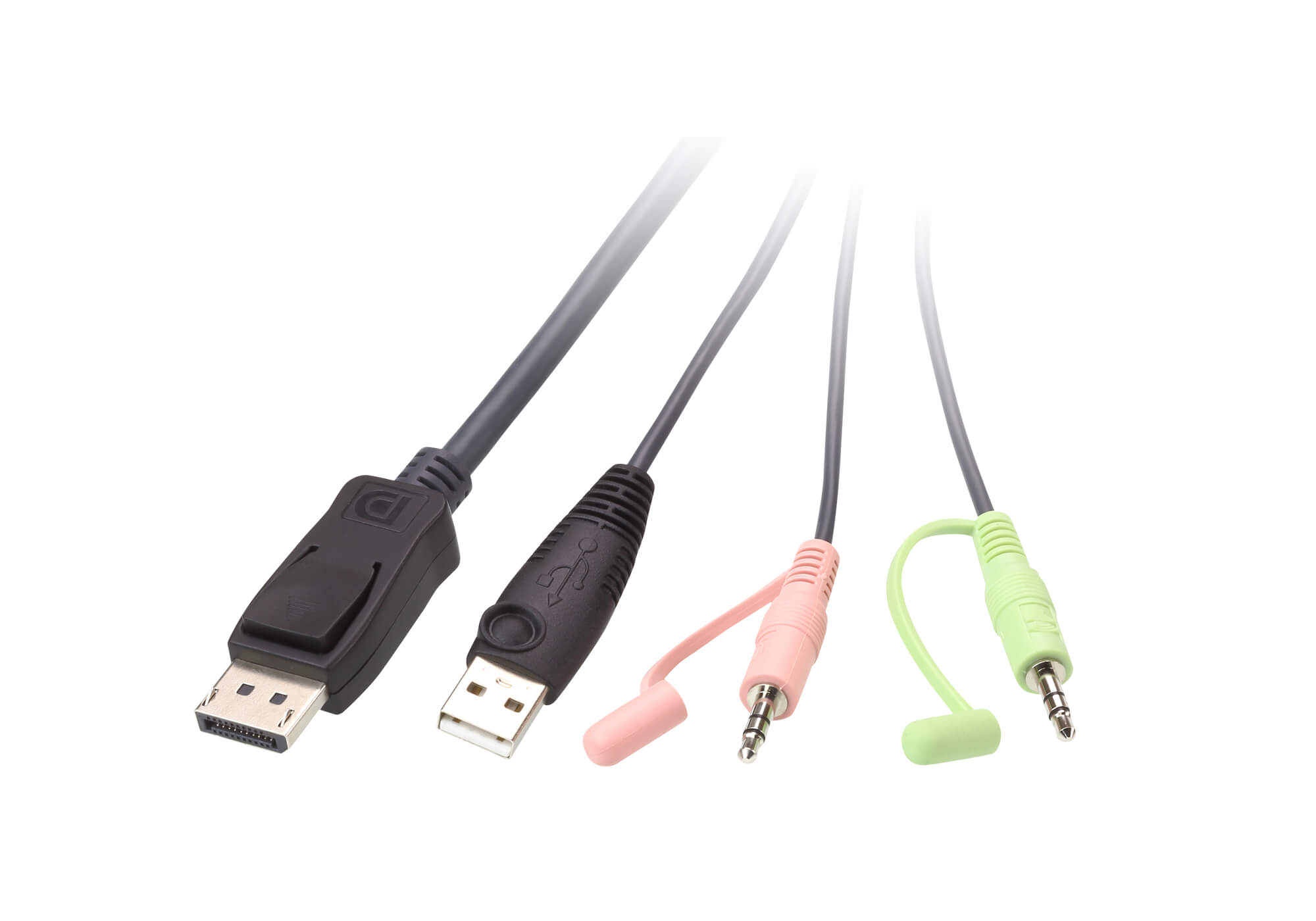

  • Cable length
  • 1.2 m
  • Housing material
  • Plastic
  • LED indicators
  • Yes
  • Product colour
  • Black
  • Rack mounting
  • No
  • Remote switch cable length
  • 1.8 m
  • Wired remote switch
  • Yes
  • Display
  • Built-in display
  • No
  • Network
  • Ethernet LAN
  • No
  • Operational conditions
  • Operating relative humidity (H-H)
  • 0 - 80%
  • Operating temperature (T-T)
  • 0 - 50 °C
  • Storage temperature (T-T)
  • -20 - 60 °C
  • Packaging content
  • Manual
  • Yes
  • Performance
  • HD type
  • 4K Ultra HD
  • HDCP
  • Yes
  • Hot-Plug support
  • Yes
  • Maximum resolution
  • 4096 x 2160 pixels
  • Video bandwidth
  • 30 Hz
  • Ports & interfaces
  • Audio connections
  • Yes
  • Console DisplayPorts ports quantity
  • 1

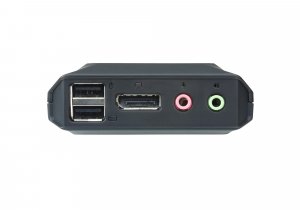

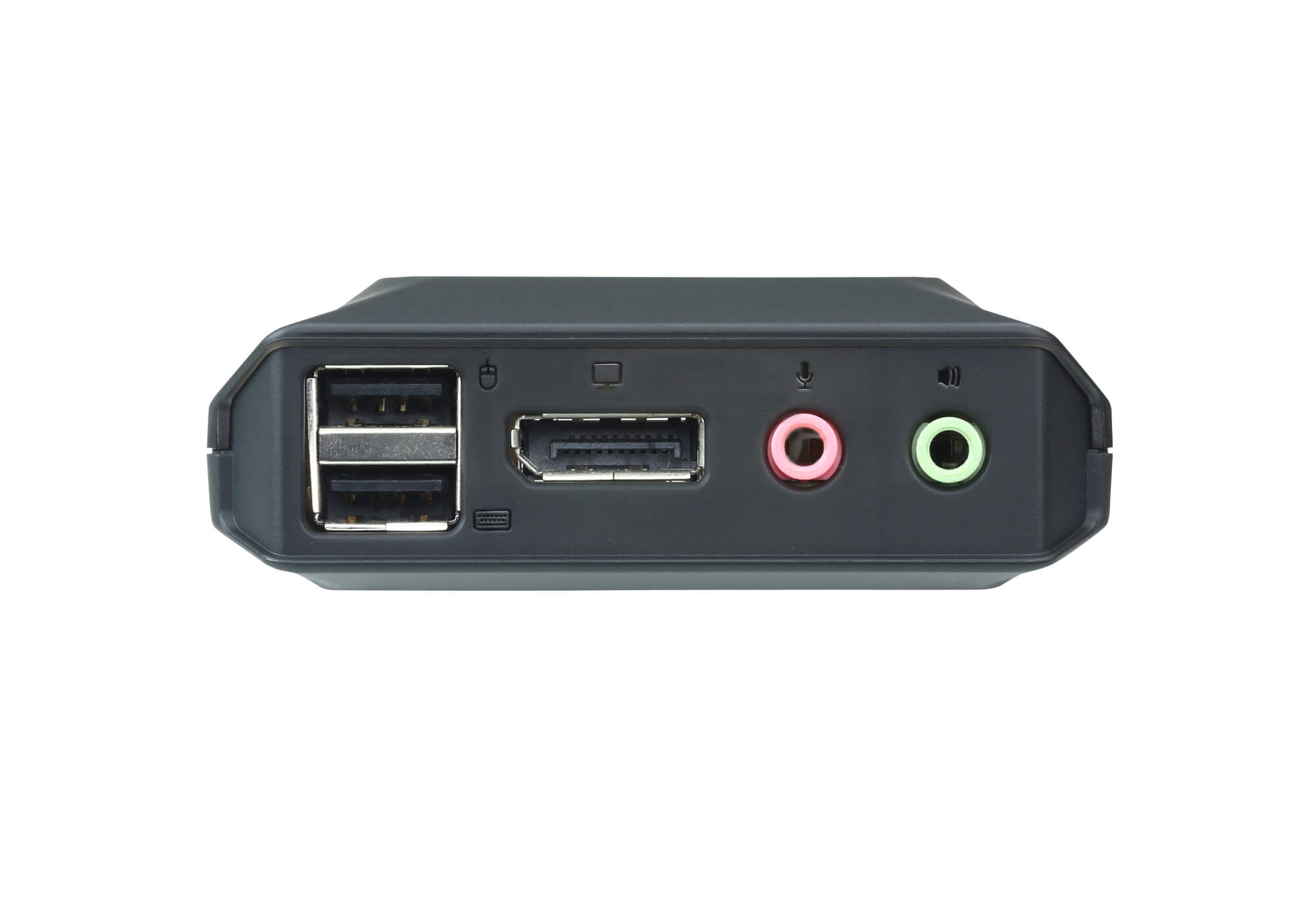

  • Console ports
  • 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
  • Console USB ports quantity
  • 2
  • DisplayPort version
  • 1.1
  • DisplayPorts quantity
  • 2
  • Headphone outputs
  • 1
  • Keyboard port type
  • USB
  • Mouse port type
  • USB
  • Number of computers controlled
  • 2
  • Number of microphone inputs
  • 1
  • USB 2.0 Type-A hub ports quantity
  • 2

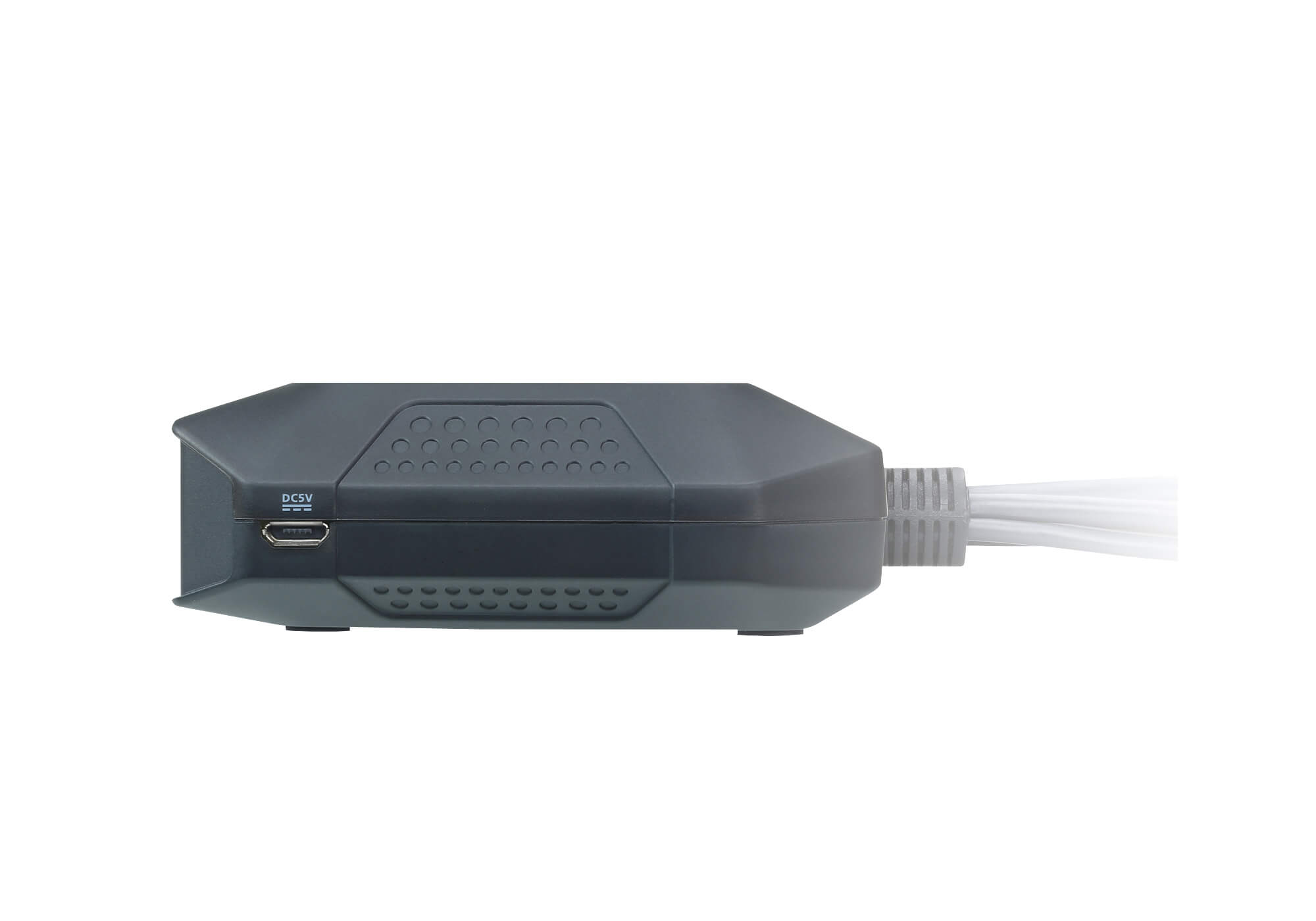

  • USB connector type
  • Micro-USB B, USB Type-A
  • Video port type
  • DisplayPort
  • Power
  • Input voltage
  • 5 V
  • Power consumption (typical)
  • 1.38 W
  • Power source
  • DC
  • Sustainability
  • Compliance certificates
  • RoHS
  • System requirements
  • Linux operating systems supported
  • Yes
  • Mac operating systems supported
  • Yes
  • Windows operating systems supported
  • Yes
  • Weight & dimensions
  • Depth
  • 83.4 mm
  • Height
  • 30.4 mm
  • Weight
  • 350 g
  • Width
  • 84.2 mm
