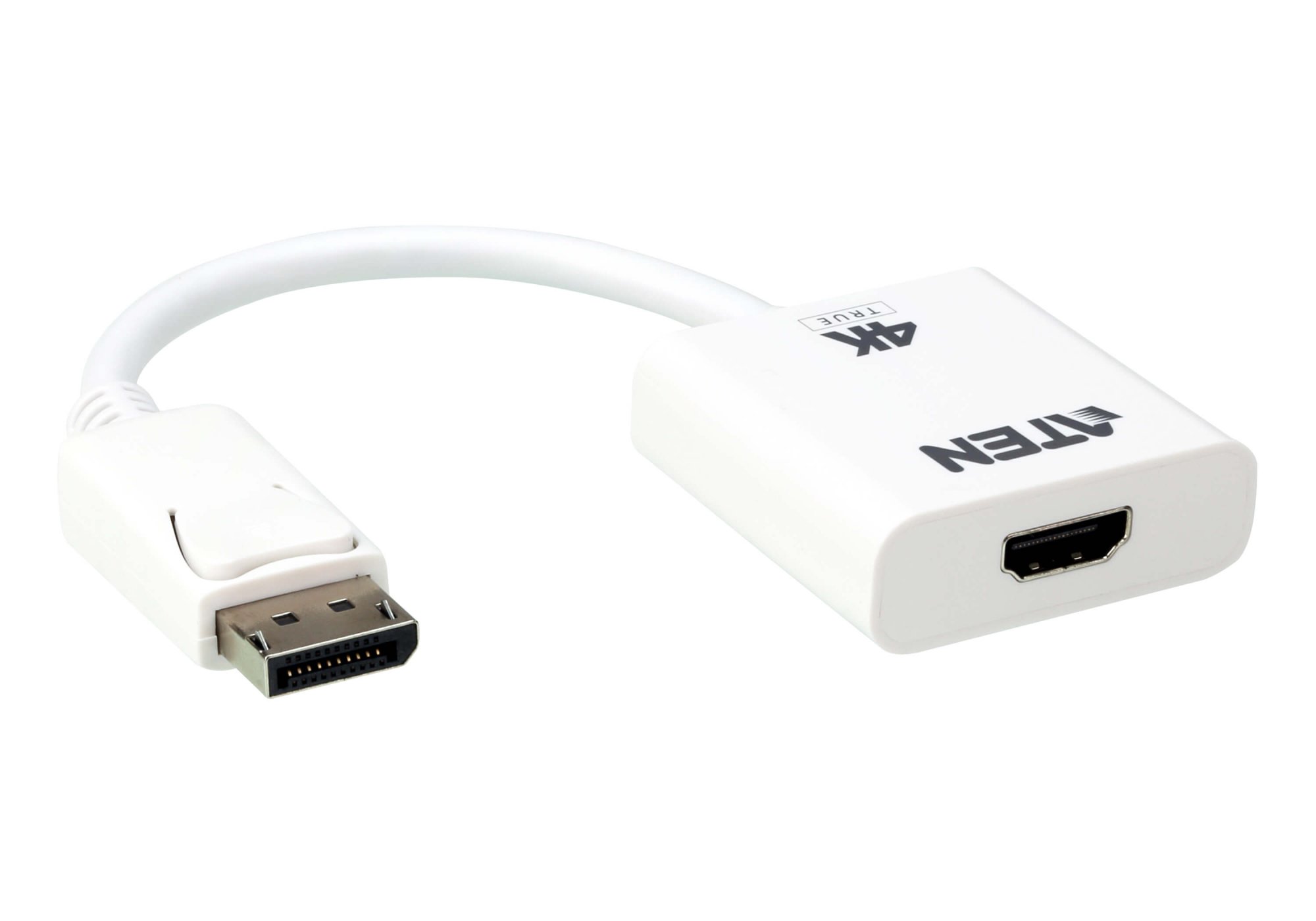

ATEN VC986B video cable adapter DisplayPort HDMI White
Roll over image to zoom inClick to Open expanded view
ATEN VC986B video cable adapter DisplayPort HDMI White
ATEN VC986B video cable adapter DisplayPort HDMI White
ATEN VC986B video cable adapter DisplayPort HDMI White
ATEN VC986B video cable adapter DisplayPort HDMI White
ATEN VC986B video cable adapter DisplayPort HDMI White
Print
Model: VC986B
EAN: 4719264649530

ATEN VC986B video cable adapter DisplayPort HDMI White

Manufacturer:
Aten
ATEN VC986B, DisplayPort, HDMI, Male, Female, Straight, Straight
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

ATEN VC986B. Connector 1: DisplayPort, Connector 2: HDMI, Connector 1 gender: Male. Weight: 40 g, Width: 45 mm, Depth: 180 mm. Quantity per pack: 1 pc(s)

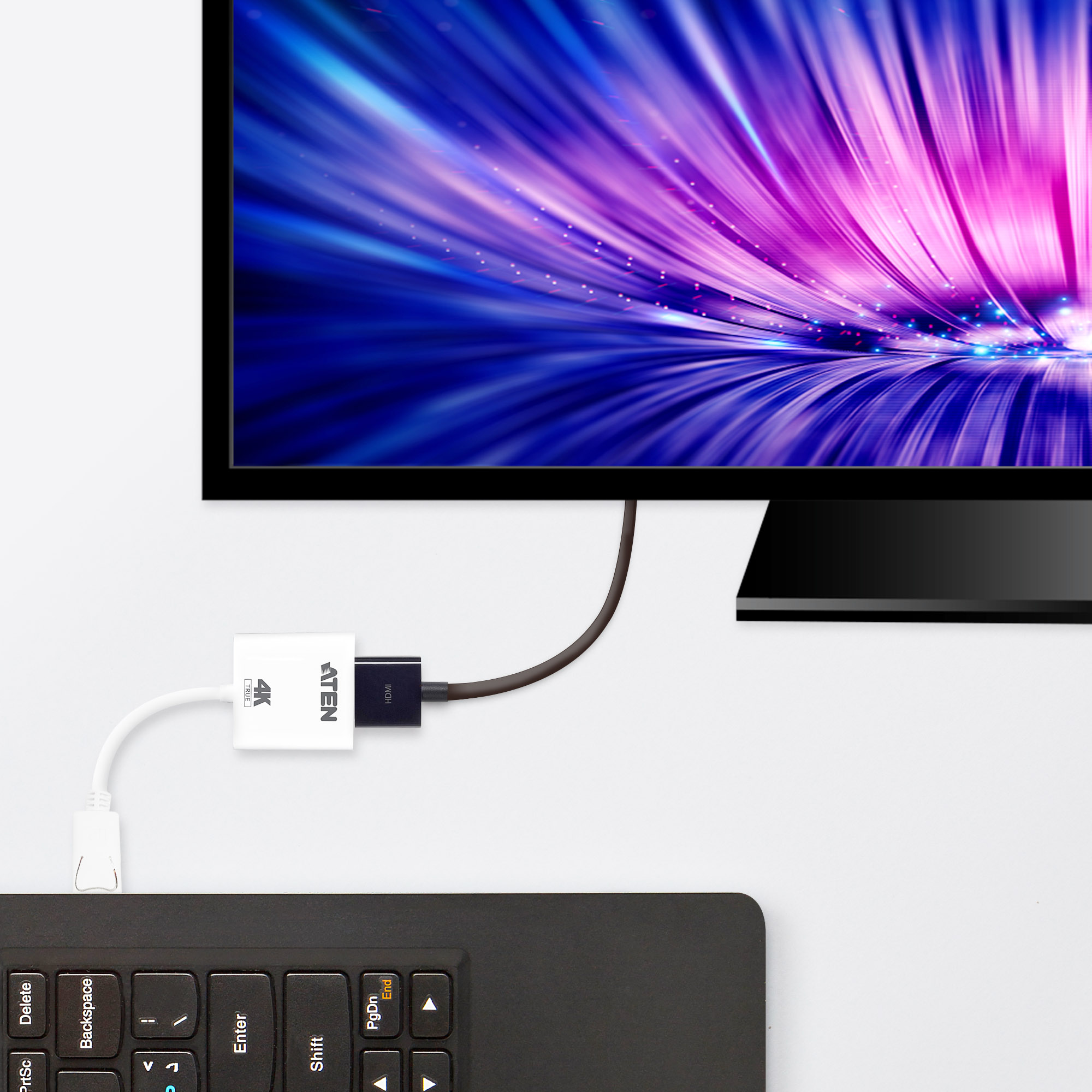

  • Converts DisplayPort signals to HDMI output

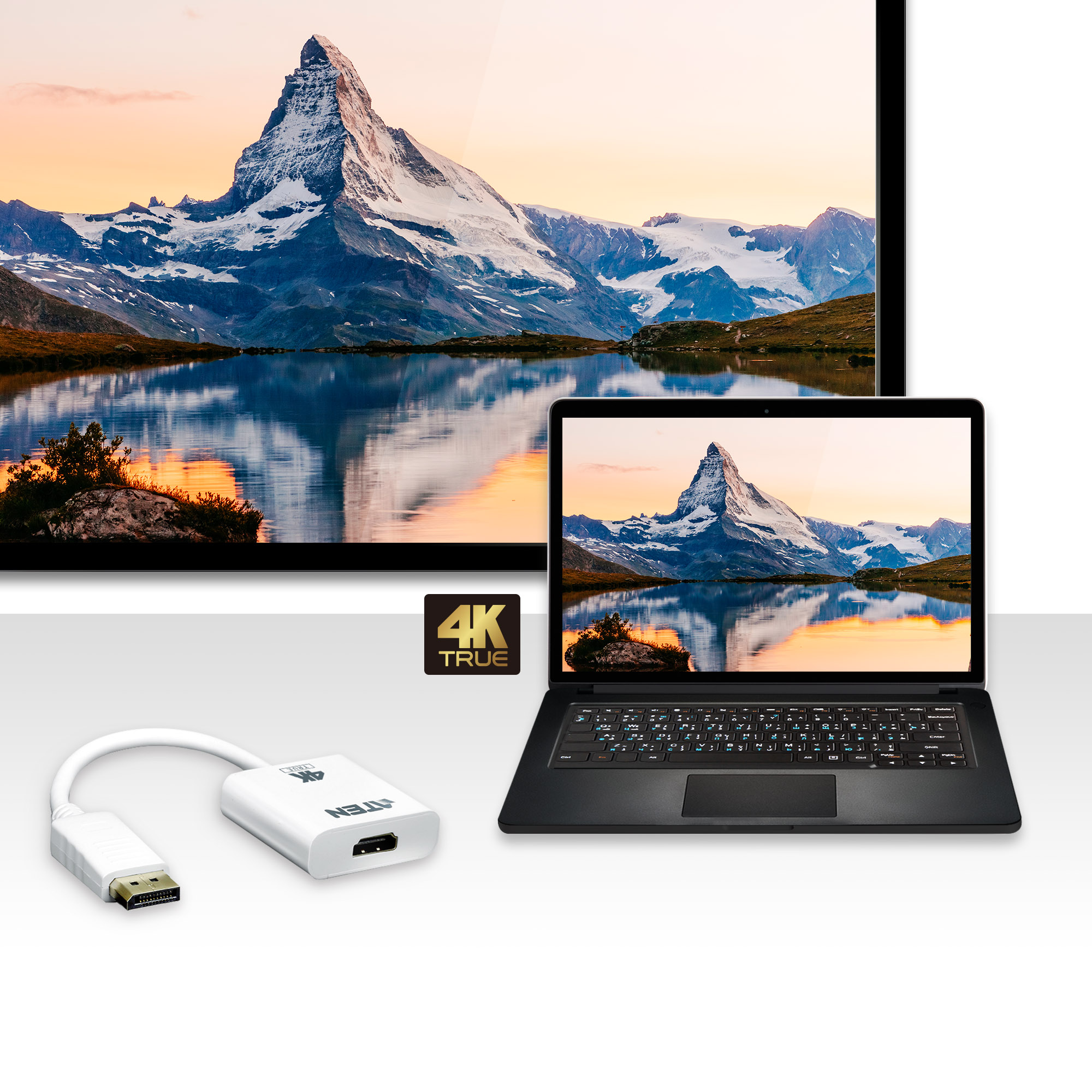

  • Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to True 4K

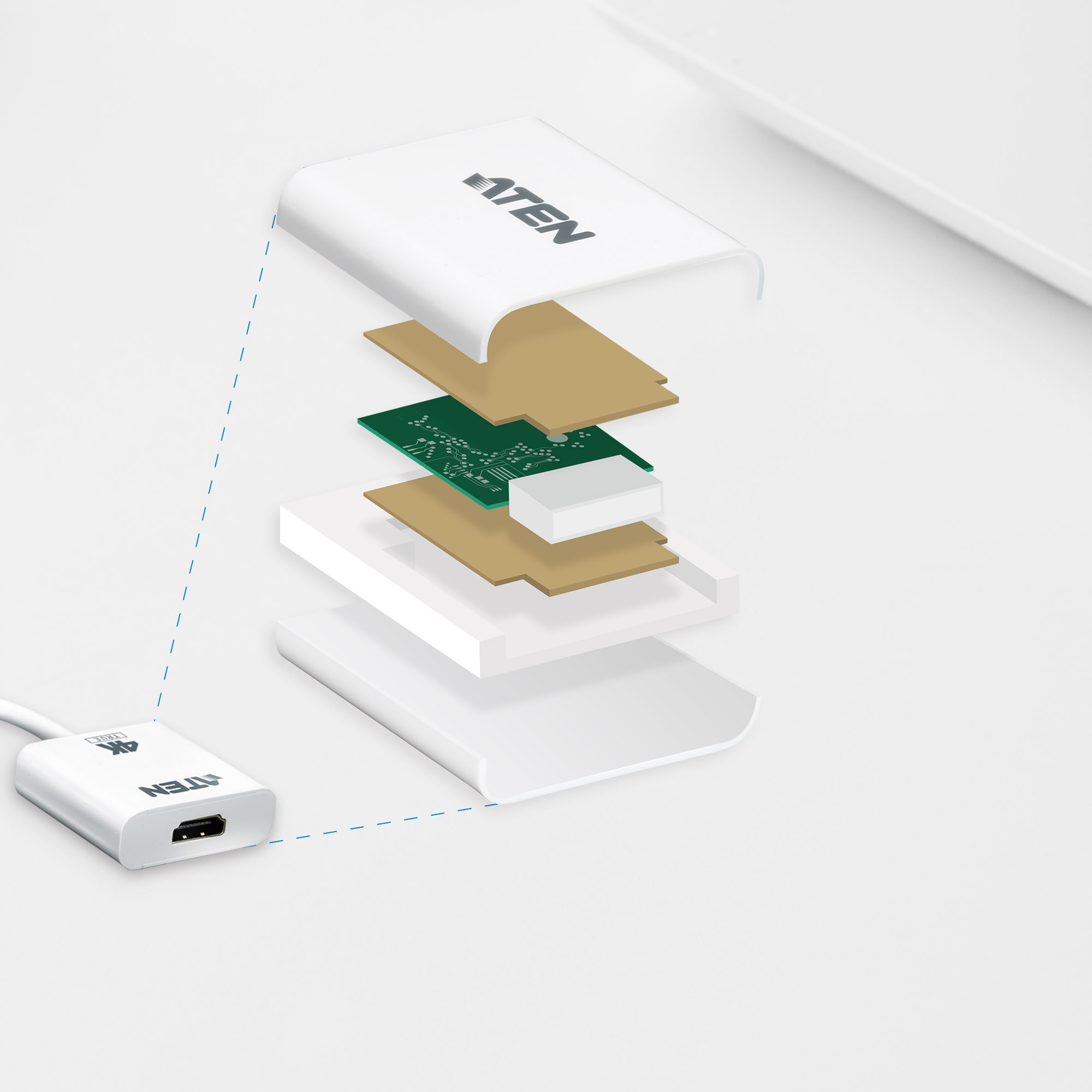

  • Active adapter – features an advanced chip which ensures stable video signal conversion even when the video source does not support Dual-Mode DisplayPort (DP++)

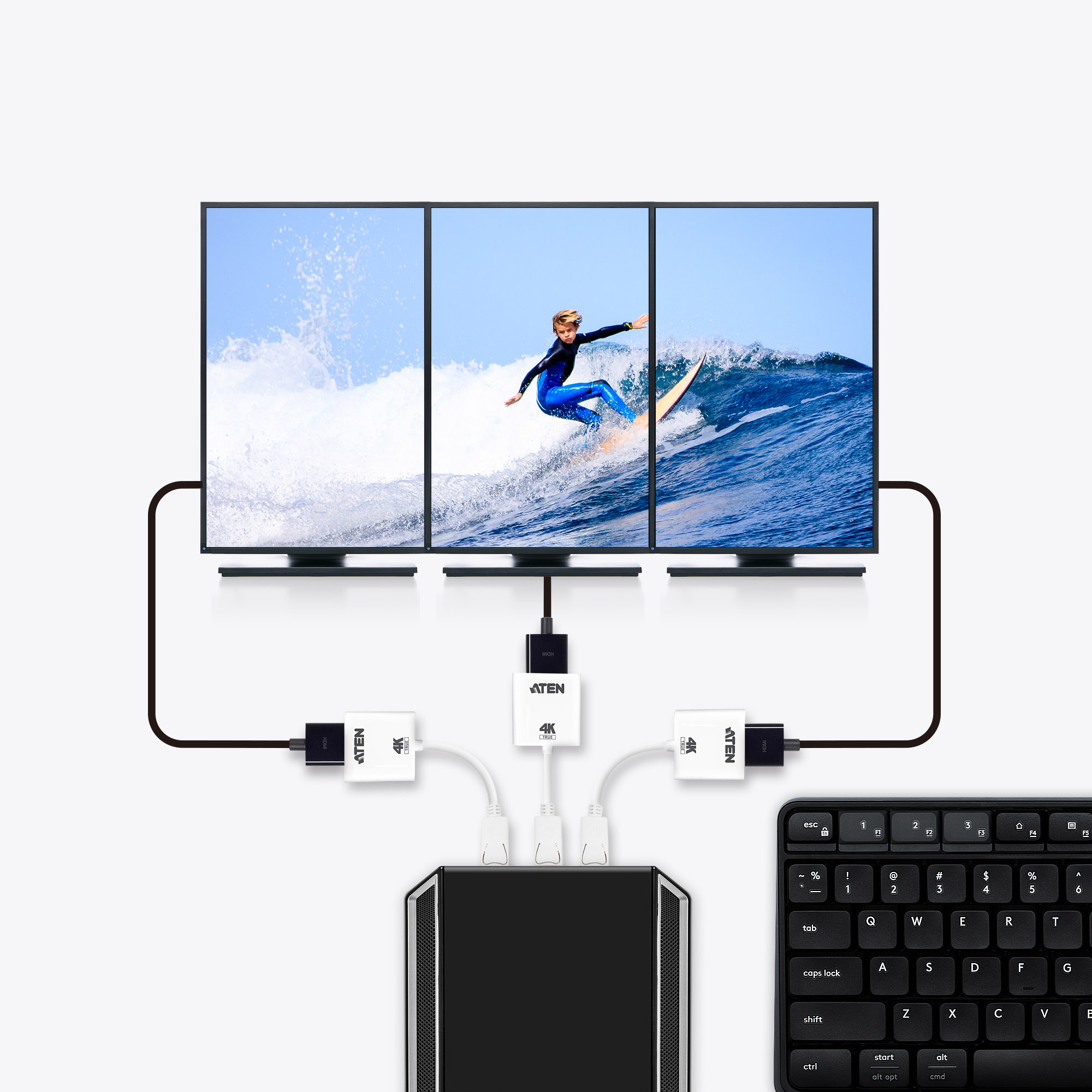

  • Supports AMD Eyefinity™ Technology (multi-screen setups)
  • Audio supported
  • No software or driver installation required
  • DisplayPort 1.2 compliant

Product Properties

  • Model
  • VC986B
  • EAN
  • 4719264649530
  • Bullet points
  • Point
  • Audio supported
    Converts DisplayPort signals to HDMI output
    DisplayPort 1.2 compliant
    No software or driver installation required
    Supports AMD Eyefinity™ Technology (multi-screen setups)
    Supports VGA, SVGA, XGA, SXGA, UXGA, 1080p and resolutions up to True 4K
  • Features
  • 3D
  • Yes
  • Bandwidth
  • 600 MHz
  • Cable type
  • Round cable
  • Connector 1
  • DisplayPort
  • Connector 1 form factor
  • Straight
  • Connector 1 gender
  • Male
  • Connector 2
  • HDMI
  • Connector 2 form factor
  • Straight
  • Connector 2 gender
  • Female
  • Connector housing material
  • Plastic
  • Data transfer rate
  • 18 Gbit/s
  • DisplayPort version
  • 1.2a
  • HDCP
  • Yes
  • HDCP version
  • 2.2
  • HDMI version
  • 2.0
  • Maximum refresh rate
  • 60 Hz
  • Maximum resolution
  • 4096 x 2160 pixels
  • Plug and Play
  • Yes
  • Product colour
  • White
  • Refresh rate at maximum resolution
  • 60 Hz
  • Supported graphics resolutions
  • 3840 x 2160, 4096 x 2160
  • Operational conditions
  • Operating relative humidity (H-H)
  • 0 - 80%
  • Operating temperature (T-T)
  • 0 - 50 °C
  • Storage temperature (T-T)
  • -20 - 60 °C
  • Packaging content
  • Quantity per pack
  • 1 pc(s)
  • Weight & dimensions
  • Depth
  • 180 mm
  • Height
  • 15 mm
  • Weight
  • 40 g
  • Width
  • 45 mm
