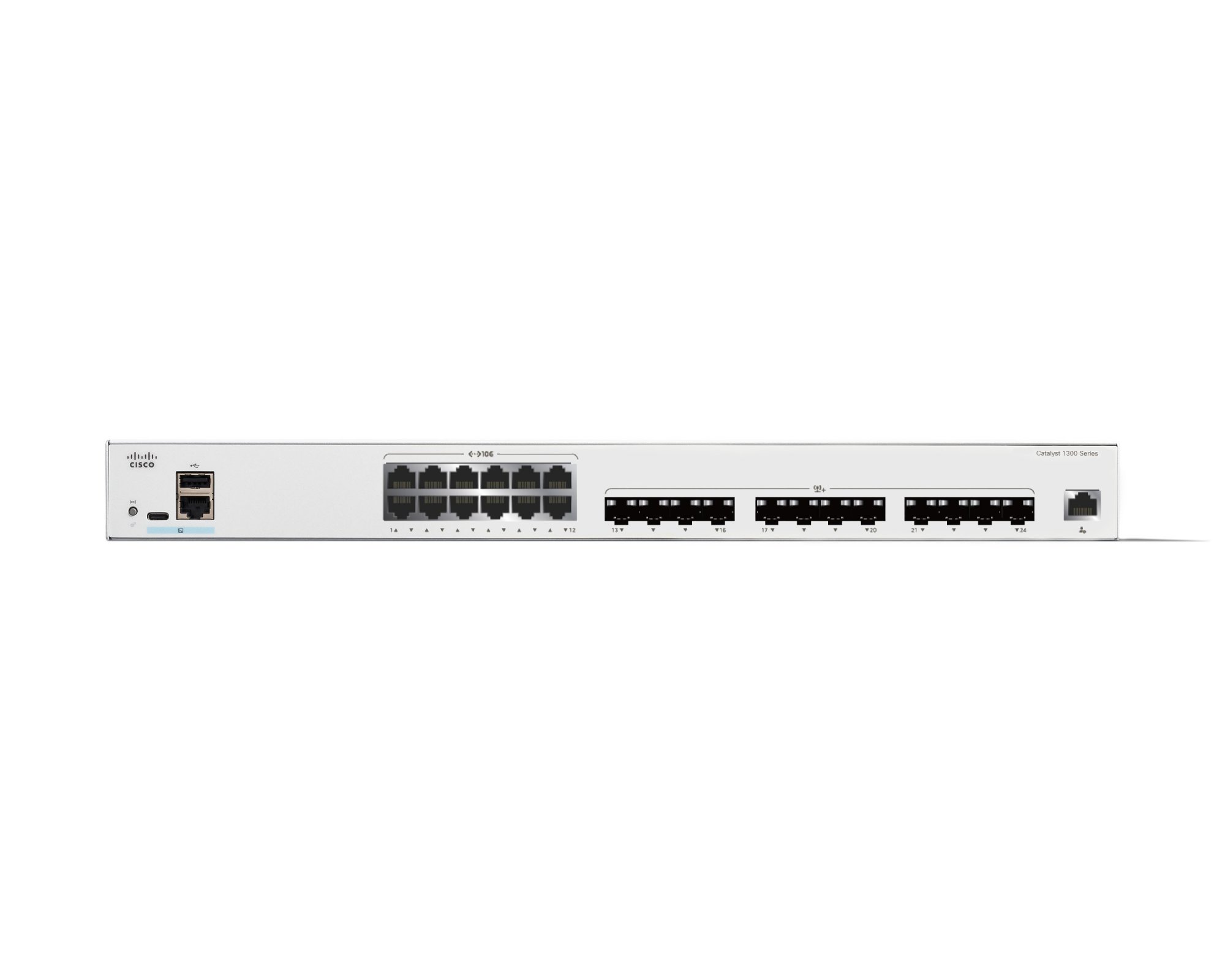

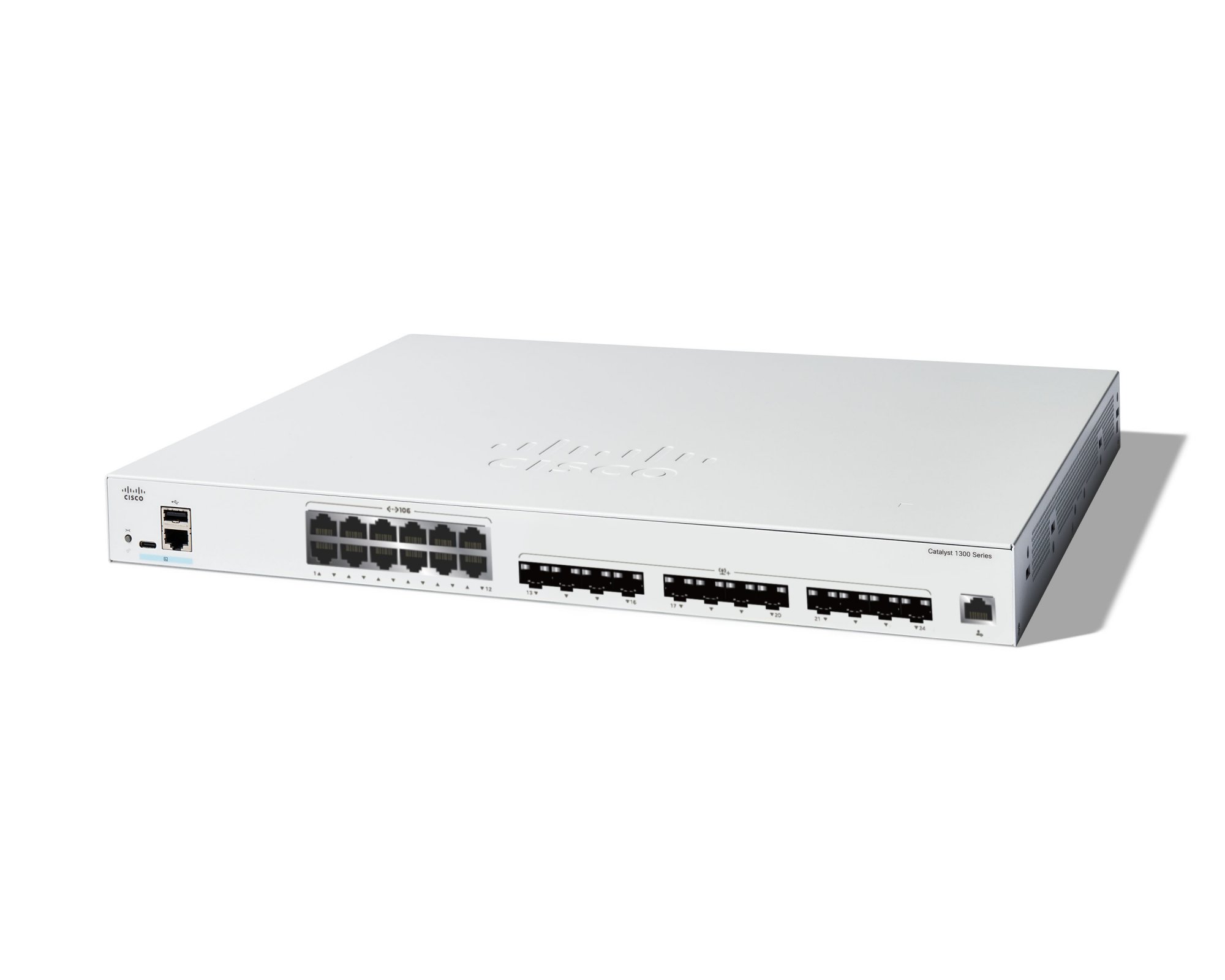

Cisco Catalyst 1300-24FP-4X Managed Switch, 24 Port GE, Full PoE, 4x10GE SFP+, Limited Lifetime Protection (C1300-24FP-4X)
Roll over image to zoom inClick to Open expanded view
Cisco Catalyst 1300-24FP-4X Managed Switch, 24 Port GE, Full PoE, 4x10GE SFP+, Limited Lifetime Protection (C1300-24FP-4X)
Cisco Catalyst 1300-24FP-4X Managed Switch, 24 Port GE, Full PoE, 4x10GE SFP+, Limited Lifetime Protection (C1300-24FP-4X)
Print
Model: C1300-24XTS

Cisco Catalyst 1300-24FP-4X Managed Switch, 24 Port GE, Full PoE, 4x10GE SFP+, Limited Lifetime Protection (C1300-24FP-4X)

Manufacturer:
Cisco
Cisco Catalyst 1300-24FP-4X Managed Switch, 24 Port GE, Full PoE, 4x10GE SFP+, Limited Lifetime Protection (C1300-24FP-4X), Managed, L2/L3, 10G Ethernet (100/1000/10000), Rack mounting
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Catalyst 1300-24FP-4X Managed Switch, 24 Port GE, Full PoE, 4x10GE SFP+, Limited Lifetime Protection (C1300-24FP-4X). Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 12, Console port: RJ-45/USB Type-C. MAC address table: 16000 entries, Switching capacity: 480 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Rack mounting

Product Properties

  • Model
  • C1300-24XTS
  • Certificates
  • Certification
  • UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
  • Data transmission
  • Jumbo frames
  • 9000
  • Jumbo frames support
  • Yes
  • MAC address table
  • 16000 entries
  • Number of queues
  • 8
  • Number of static routes
  • 990
  • Packet buffer memory
  • 8 MB
  • Static route
  • Yes
  • Switching capacity
  • 480 Gbit/s
  • Design
  • Product colour
  • Grey
  • Rack mounting
  • Yes
  • Reset button
  • Yes
  • Logistics data
  • Country of origin
  • China
  • Management features
  • Configuring Location Settings (CLI)
  • Yes
  • MIB support
  • Y
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2/L3
  • Switch type
  • Managed
  • Web-based management
  • Yes
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • Broadcast storm control
  • Yes
  • Cable types supported
  • Cat5e
  • Head-of-line (HOL) blocking
  • Yes
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • Policy-based routing
  • Yes
  • Port mirroring
  • Yes
  • QinQ implementation
  • Selective QinQ
  • Rate limiting
  • Yes
  • Spanning tree protocol
  • Yes
  • Virtual LAN features
  • Private VLAN, Voice VLAN
  • VLAN support
  • Yes
  • Operational conditions
  • Heat dissipation
  • 300.76 BTU/h
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • -5 - 50 °C
  • Storage relative humidity (H-H)
  • 10 - 90%
  • Storage temperature (T-T)
  • -25 - 70 °C
  • Other features
  • Packaging content
  • Switch, power cable, USB Type C cable and mounting hardware
  • Packaging data
  • Package depth
  • 574.7 mm
  • Package height
  • 105.9 mm
  • Package weight
  • 5.6 kg
  • Package width
  • 430 mm
  • Performance
  • Built-in processor
  • Yes
  • Flash memory
  • 512 MB
  • Internal memory
  • 1000 MB
  • Mean time between failures (MTBF)
  • 427188 h
  • Memory type
  • DDR4-SDRAM
  • Noise level
  • 39 dB
  • Plug and Play
  • Yes
  • Processor frequency
  • 1.4 MHz
  • Ports & interfaces
  • Console port
  • RJ-45/USB Type-C
  • SFP+ module slots quantity
  • 12
  • Switch Number of Ports
  • 12
  • Switch Port Speed
  • 10G Ethernet (100/1000/10000)
  • Power
  • AC input frequency
  • 50/60 Hz
  • AC input voltage
  • 100 - 220 V
  • Power consumption (typical)
  • 88.2 W
  • Power plug type
  • Type C
  • Power source
  • AC
  • Protocols
  • GARP VLAN Registration Protocol (GVRP)
  • Yes
  • IPv4 & IPv6 features
  • ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet
  • Security
  • Access Control List (ACL)
  • Yes
  • Access Control List (ACL) rules
  • 1024
  • Authentication
  • MAC-based authentication, Web-based authentication
  • Authentication type
  • RADIUS, TACACS+
  • DHCP features
  • DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping
  • DoS attack prevention
  • Yes
  • IGMP proxy
  • Yes
  • IGMP snooping
  • Yes
  • Queue scheduling algorithms
  • Weighted Round Robin (WRR)
  • Security algorithms
  • HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2
  • SSH/SSL support
  • Yes
  • Weight & dimensions
  • Depth
  • 350 mm
  • Height
  • 44 mm
  • Weight
  • 4.2 kg
  • Width
  • 445 mm
