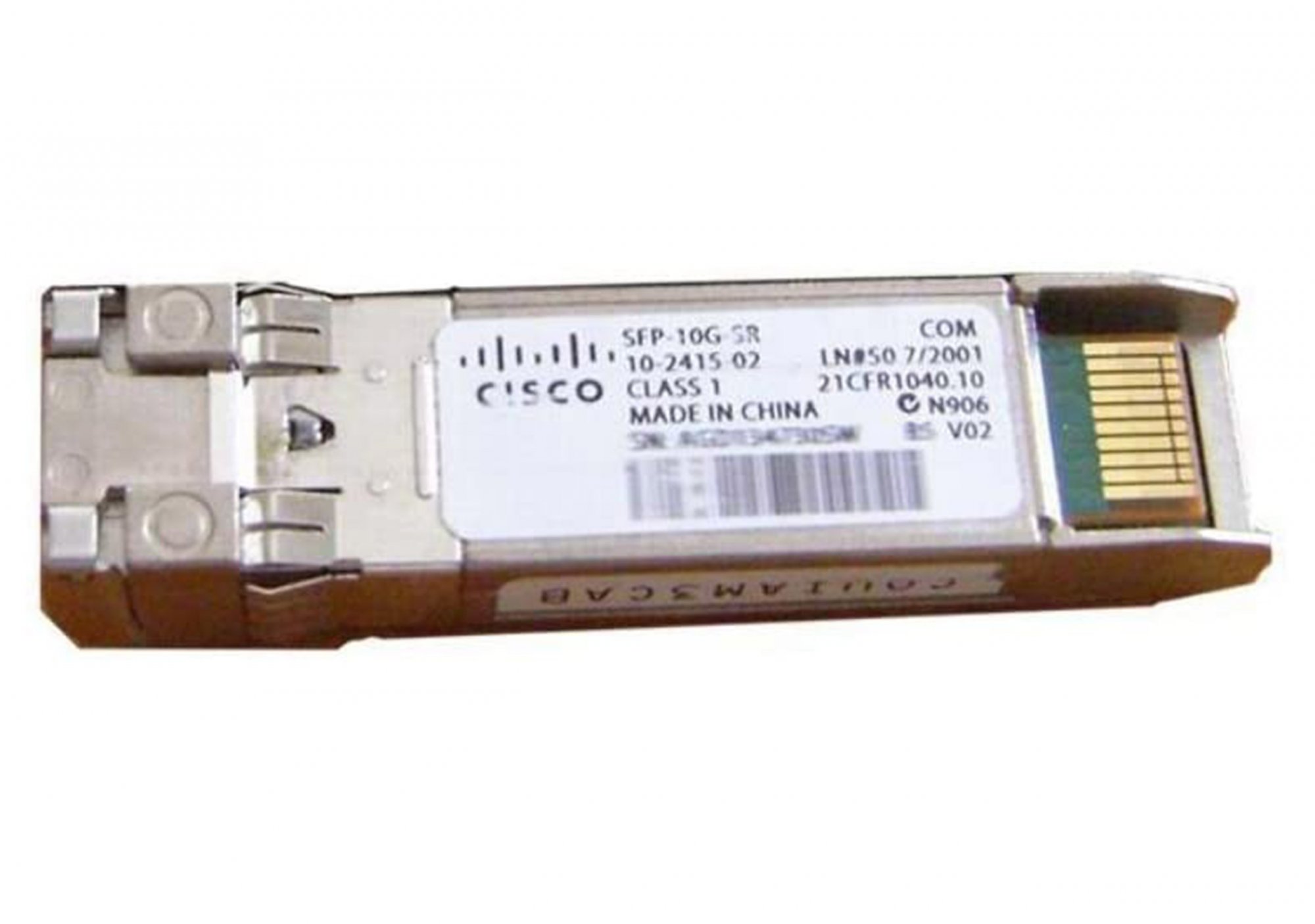

Cisco 10GBASE-SR S-Class SFP Module for 10 Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-SR-S=)
Roll over image to zoom inClick to Open expanded view
Cisco 10GBASE-SR S-Class SFP Module for 10 Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-SR-S=)
Cisco 10GBASE-SR S-Class SFP Module for 10 Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-SR-S=)
Print
Model: SFP-10G-SR-S=
EAN: 882658782466

Cisco 10GBASE-SR S-Class SFP Module for 10 Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-SR-S=)

Manufacturer:
Cisco
Cisco 10GBASE-SR S-Class SFP Module for 10 Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-SR-S=), Fiber optic, 10000 Mbit/s, SFP+, LC, PC, SR, 850 nm
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco 10GBASE-SR S-Class SFP Module for 10 Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-SR-S=). SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Country of origin: China, Certification: MSA. Width: 13.4 mm, Depth: 56.5 mm, Height: 8.5 mm. Number of products included: 1 pc(s), Package width: 143 mm, Package depth: 158.8 mm. Quantity per pack: 1 pc(s)
  • LINK LENGTH: Supports link lengths of 26 m on standard FDDI-grade multimode fiber; up to 300 m link lengths possible using OM3 and 400 m using OM4 (this model does not support Fiber Channel over Ethernet [FCoE])
  • COMPACT: Industry-smallest 10G form factor for greatest density per chassis
  • HOT SWAPPABLE: Plugs into an Ethernet SFP+ port of a Cisco switch with no need to shut down if installing or replacing
  • VERSATILITY: SFP receiver/transceiver module supports ‘pay-as-you-populate’ model for investment protection and ease of technology migration
  • PEACE OF MIND: 5-year standard replacement warranty

Product Properties

  • Model
  • SFP-10G-SR-S=
  • EAN
  • 882658782466
  • Bullet points
  • Point
  • COMPACT: Industry-smallest 10G form factor for greatest density per chassis
    HOT SWAPPABLE
    LINK LENGTH
    PEACE OF MIND: 5-year standard replacement warranty
    VERSATILITY
  • Features
  • Certification
  • MSA
  • Country of origin
  • China
  • Hot-Plug support
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85369010
  • Quantity per pack
  • 1 pc(s)
  • Operational conditions
  • Operating relative humidity (H-H)
  • 0 - 95%
  • Operating temperature (T-T)
  • -40 - 85 °C
  • Storage relative humidity (H-H)
  • 0 - 95%
  • Storage temperature (T-T)
  • -40 - 85 °C
  • Packaging data
  • Number of products included
  • 1 pc(s)
  • Package depth
  • 158.8 mm
  • Package height
  • 44.5 mm
  • Package weight
  • 90.7 g
  • Package width
  • 143 mm
  • Performance
  • Auto MDI/MDI-X
  • Yes
  • Cabling technology
  • 10GBase-SR
  • Duplex system
  • Full
  • Fiber optic connector
  • LC, PC
  • Interface type
  • SFP+
  • Maximum data transfer rate
  • 10000 Mbit/s
  • Multi-mode fiber (MMF) supported
  • Yes
  • Networking standards
  • IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u
  • SFP transceiver standard
  • SR
  • SFP transceiver type
  • Fiber optic
  • Wavelength
  • 850 nm
  • Weight & dimensions
  • Depth
  • 56.5 mm
  • Height
  • 8.5 mm
  • Width
  • 13.4 mm
