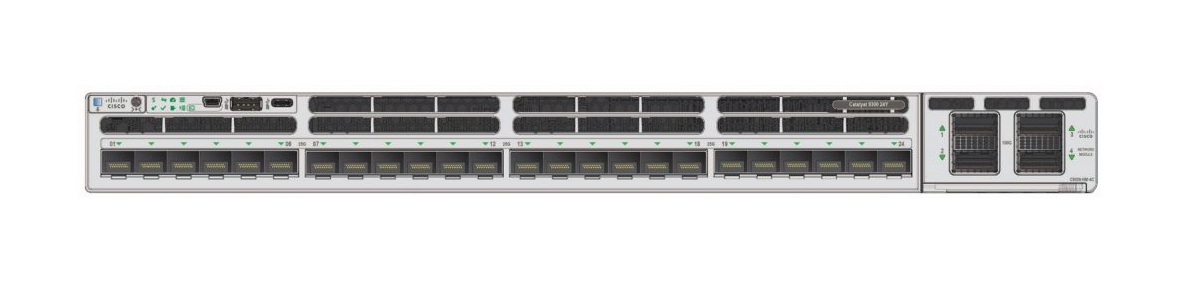

Cisco 9300X Managed L3 1U
Roll over image to zoom inClick to Open expanded view
Print
Model: C9300X-24HX-E

Cisco 9300X Managed L3 1U

Manufacturer:
Cisco
Cisco 9300X, Managed, L3, Full duplex, Rack mounting, 1U
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco 9300X. Switch type: Managed, Switch layer: L3. Installed SFP modules quantity: 24. Full duplex. MAC address table: 32000 entries, Switching capacity: 1000 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Rack mounting, Form factor: 1U

Product Properties

  • Model
  • C9300X-24HX-E
  • Data transmission
  • Forwarding rate
  • 1488 Mpps
  • Jumbo frames
  • 9198
  • Jumbo frames support
  • Yes
  • MAC address table
  • 32000 entries
  • Packet buffer memory
  • 32 MB
  • Static route
  • Yes
  • Switching capacity
  • 1000 Gbit/s
  • Design
  • Form factor
  • 1U
  • LED indicators
  • Yes
  • Rack mounting
  • Yes
  • Stackable
  • Yes
  • Management features
  • ARP inspection
  • Yes
  • Configuring Location Settings (CLI)
  • Yes
  • MIB support
  • Y
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L3
  • Switch type
  • Managed
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • 10G support
  • Yes
  • Full duplex
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
  • VLAN support
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 90%
  • Operating temperature (T-T)
  • -5 - 45 °C
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Performance
  • Flash memory
  • 16000 MB
  • Internal memory
  • 16000 MB
  • Ports & interfaces
  • Installed SFP modules quantity
  • 24
  • Installed SFP+ modules quantity
  • 0
  • Power
  • AC input frequency
  • 50/60 Hz
  • AC input voltage
  • 100 - 240 V
  • Power source
  • AC
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • No
  • Security
  • Access Control List (ACL)
  • Yes
  • IGMP snooping
  • Yes
