Description

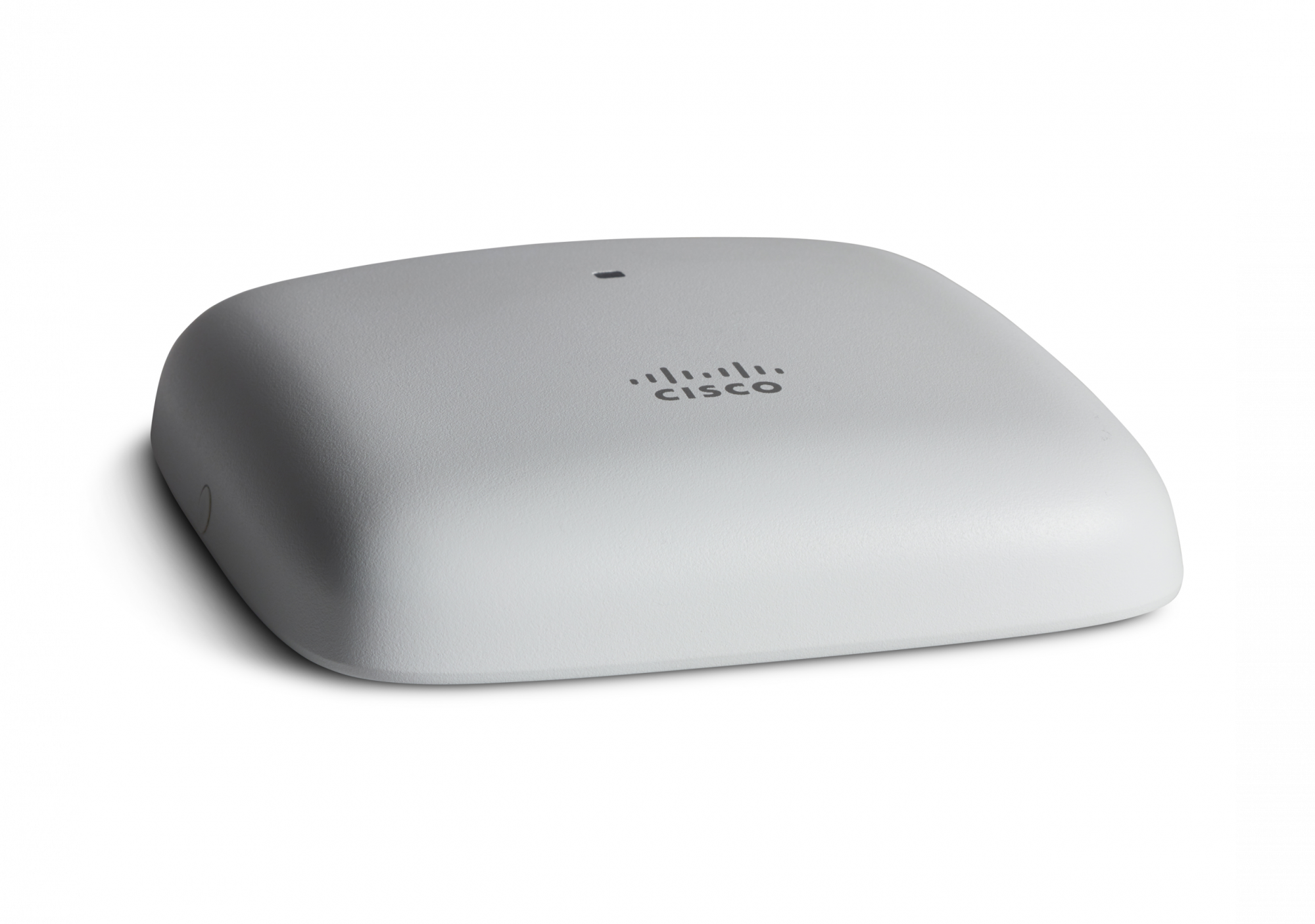

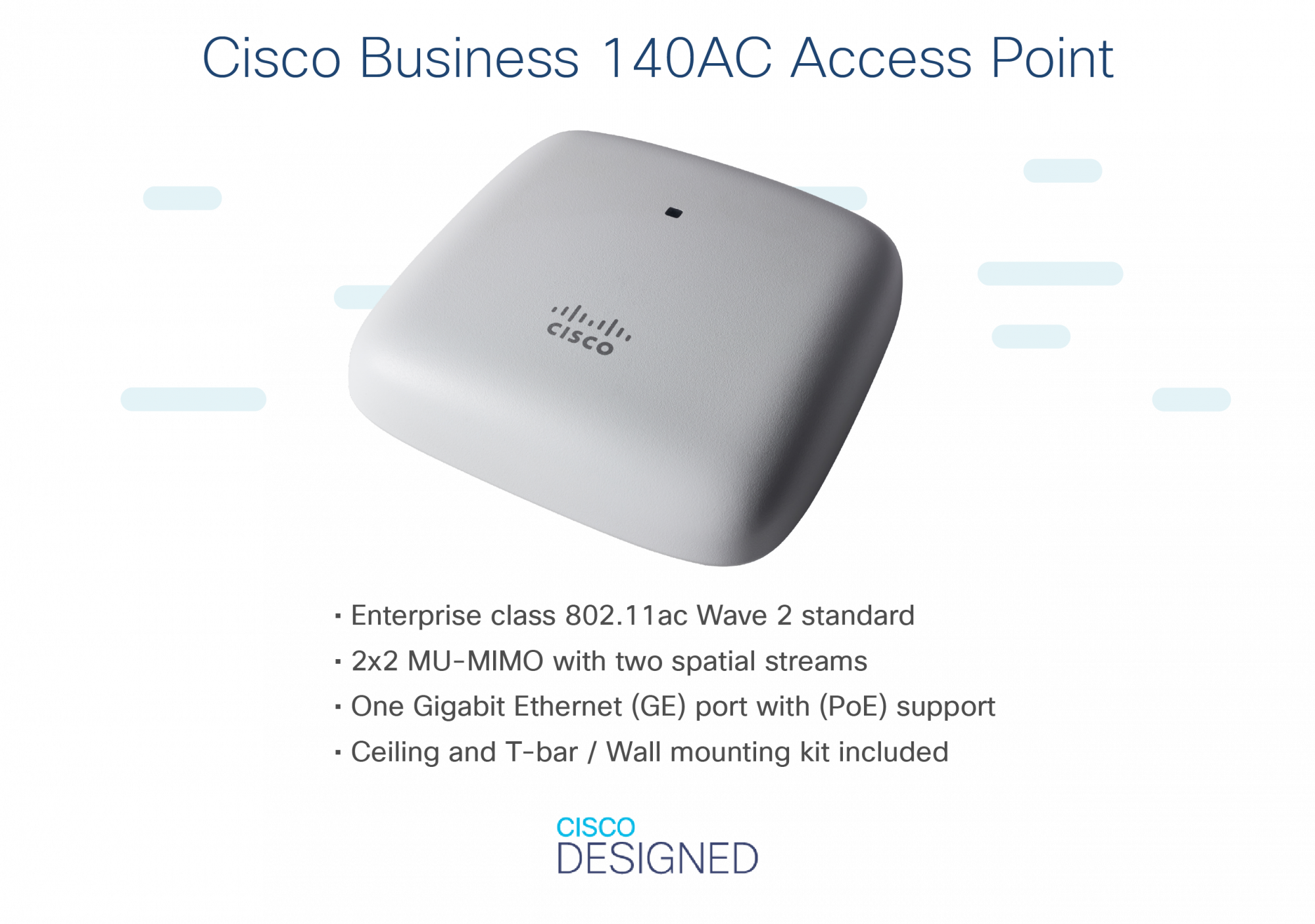

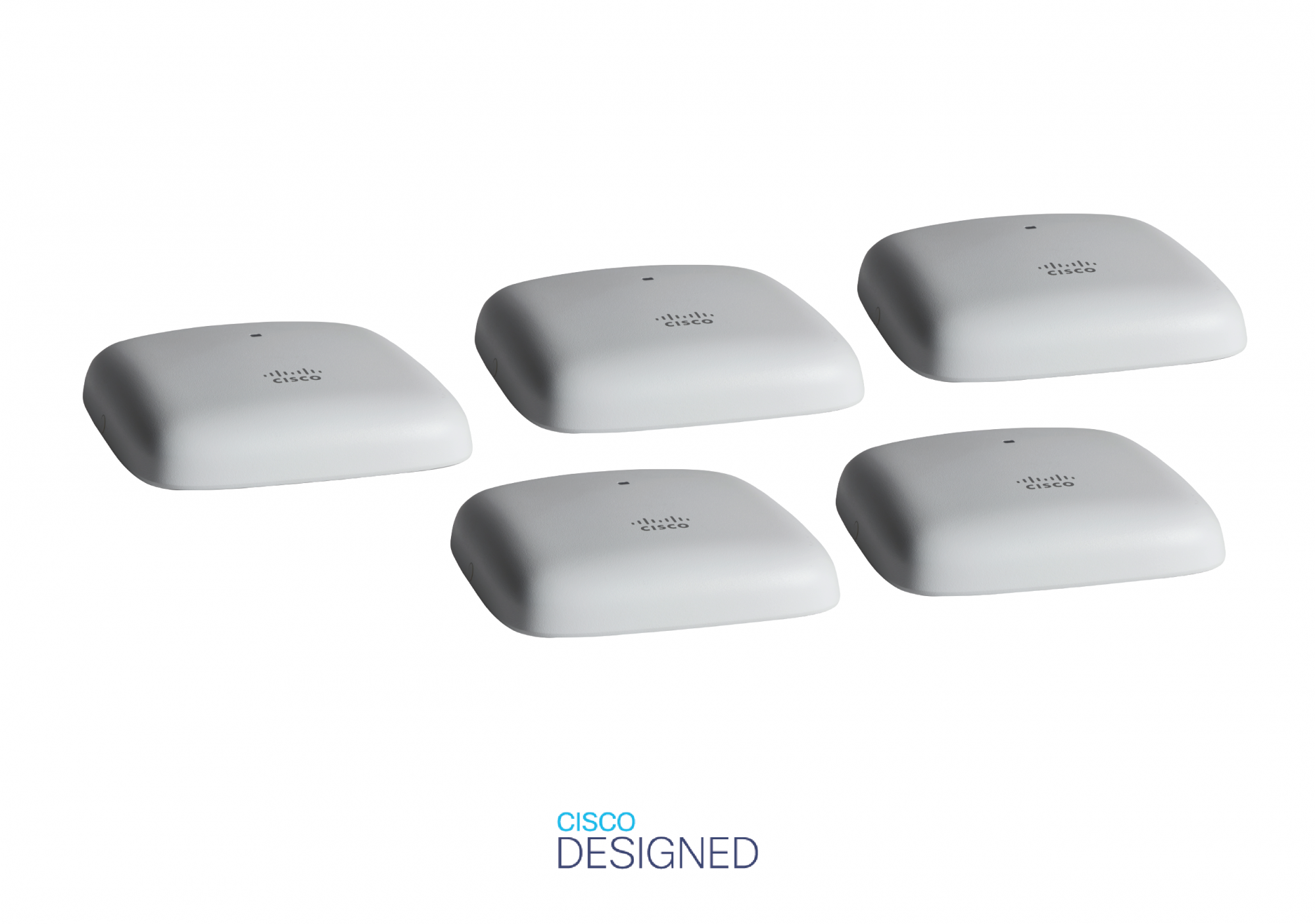

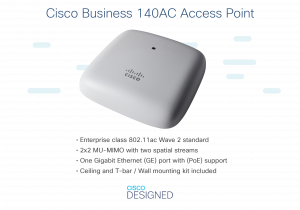

Cisco Business 140AC 802.11ac 2x2 Wave 2 Access Point 1 GbE Port - Ceiling Mount - 5 Pack Bundle, Limited Lifetime Protection (5-CBW140AC-E). 2.4 GHz, 5 GHz, Maximum data transfer rate: 867 Mbit/s. Security algorithms: WPA, WPA2, WPA3, WPA2-Enterprise. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

PERFORMANCE: Enterprise-grade MU-MIMO (2x2) performance of five access points delivers a highly secured and reliable wireless connectivity
DEPLOYMENT: Flexible deployment wall or celling mount (brackets included) with Power over Ethernet (PoE) support
FLEXIBILITY: Mix and match Cisco Business Wireless access points and mesh extenders to increase your Wi-Fi coverage
SET UP IN MINUTES: Simplify management and monitor your network from the Cisco Business Mobile app or Web browser
ADVANCED SECURITY: Enterprise-class security prevent malware, phishing, and other threats from compromising your network via Cisco Umbrella integration
NETWORK ACCESS: Prioritize network access based on use cases (i.e. point of sales system, surveillance) or guest privileges
PEACE OF MIND: One-year technical support and limited lifetime warranty

Product Properties

Manufacturer
Cisco

Model
5-CBW140AC-E

EAN
889728279628

Antenna

Antenna features
Integrated antenna

Antenna gain level (max)
4 dBi

Antenna type
Internal

Bullet points

Point
Advanced Security

DEPLOYMENT

FLEXIBILITY

NETWORK ACCESS

PEACE OF MIND: One-year technical support and limited lifetime warranty

PERFORMANCE

SET UP IN MINUTES

Certificates

Certification
UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 IEC 60950-1 EN 60950-1 FCC Part 15.247, 15.407 RSS-247 (Canada) EN 300.328, EN 301.893 (Europe) ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) EMI and susceptibility (Class B) FCC Part 15.107 and 15.109 ICES-003 (Canada) VCCI (Japan) EN 301.489-1 and -17 (Europe) EN 50385 FCC OET-65C RSS-102

Design

LED indicators
Yes

Market segment
Business

Placement
Ceiling, Wall

Product colour
White

Features

2.4 GHz
Yes

5 GHz
Yes

Cabling technology
10/100/1000Base-T(X)

Channels quantity
29 channels

Dynamic Frequency Selection (DFS)
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Frequency band
2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.7 GHz

Maximum data transfer rate
867 Mbit/s

Maximum data transfer rate (2.4 GHz)
300 Mbit/s

Maximum data transfer rate (5 GHz)
867 Mbit/s

MIMO
Yes

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Number of users
400 user(s)

Transmitting power
20 dBmW

VLAN support
Yes

Wi-Fi Multimedia (WMM)/(WME)
Yes

Logistics data

Country of origin
China

Harmonized System (HS) code
85176990

Products per master (outer) case
5 pc(s)

Operational conditions

Non-operating altitude
0 - 4500 m

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 50 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-30 - 70 °C

Other features

Antenna
2X2:2SS – 80 MHz

Packaging content

Mounting kit
Yes

Quantity per pack
5 pc(s)

Packaging data

Package depth
258.8 mm

Package height
234.9 mm

Package weight
3.99 kg

Package width
328.7 mm

Performance

Built-in processor
Yes

Compatible operating systems
filter

Flash memory
256 MB

Internal memory
1000 MB

Processor frequency
710 MHz

Ports & interfaces

Ethernet LAN (RJ-45) ports
1

Power

AC input frequency
50 Hz

AC input voltage
100 - 240 V

Power over Ethernet (PoE)
Yes

Power plug type
Type C

Security

MAC address filtering
Yes

Remote Authentication Dial-In User Service (RADIUS)
Yes

Security algorithms
WPA, WPA2, WPA3, WPA2-Enterprise

Technical details

Products per shipping (inner) case
5 pc(s)

Weight & dimensions

Depth
150.8 mm

Height
33 mm

Weight
373 g

Width
150.8 mm
