Description

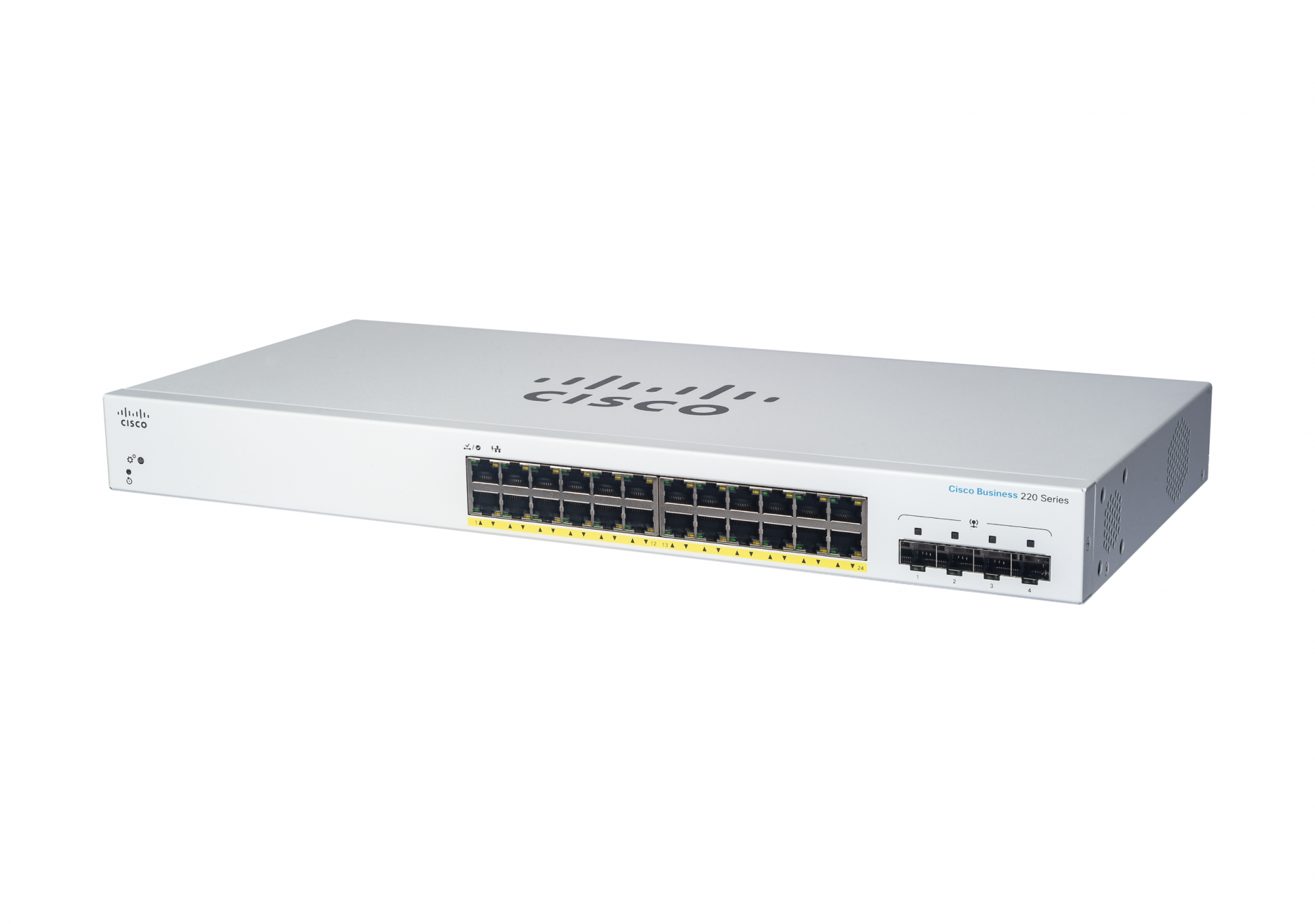

Cisco Business CBS220-24T-4G Smart Switch | 24 Port GE | 4x1G SFP | 3-Year Limited Hardware Warranty (CBS220-24T-4G-UK). Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8192 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Rack mounting, Form factor: 1U

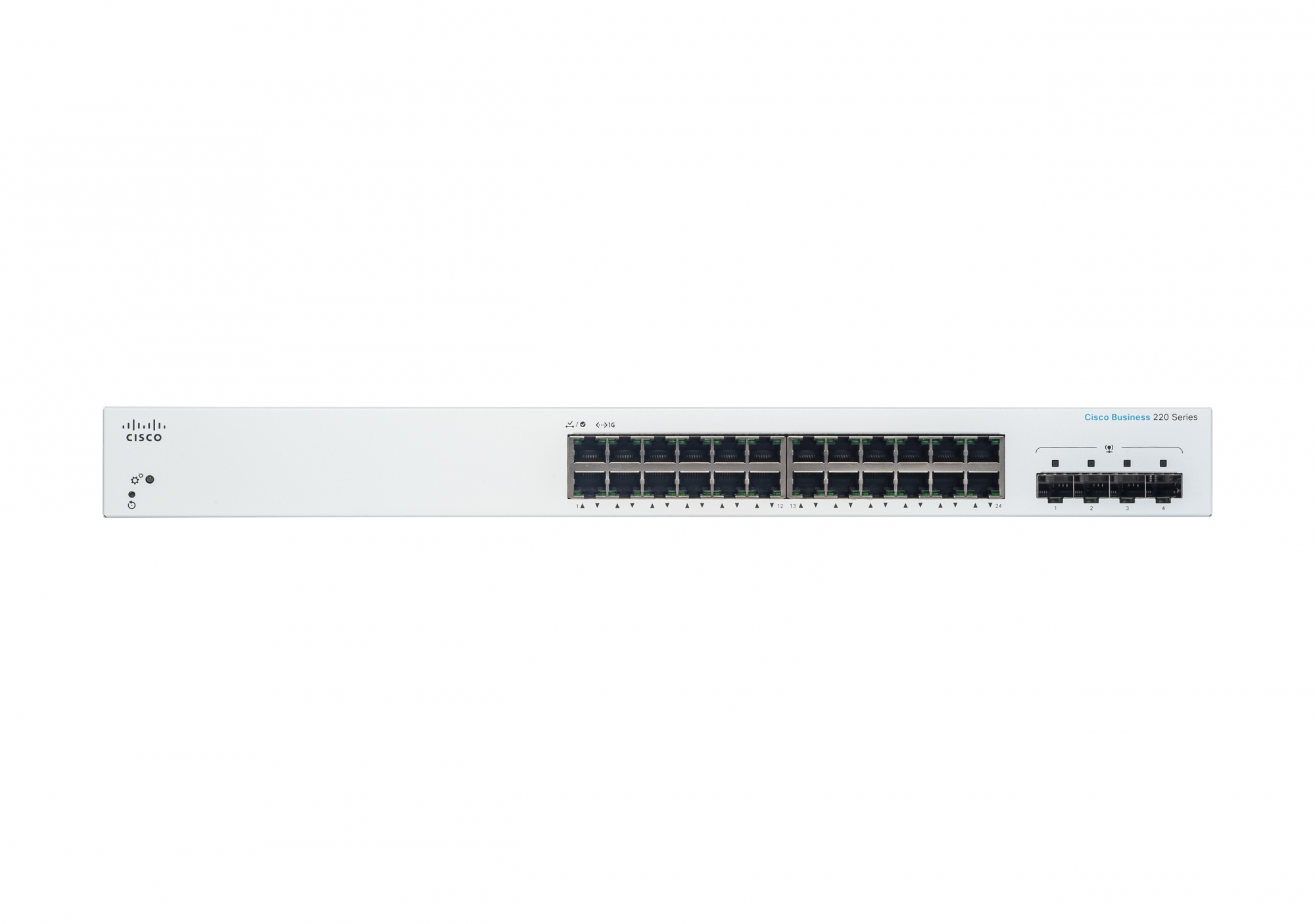

SWITCH PORTS: 24-Port 10/100/1000 + 4 x 1G SFP

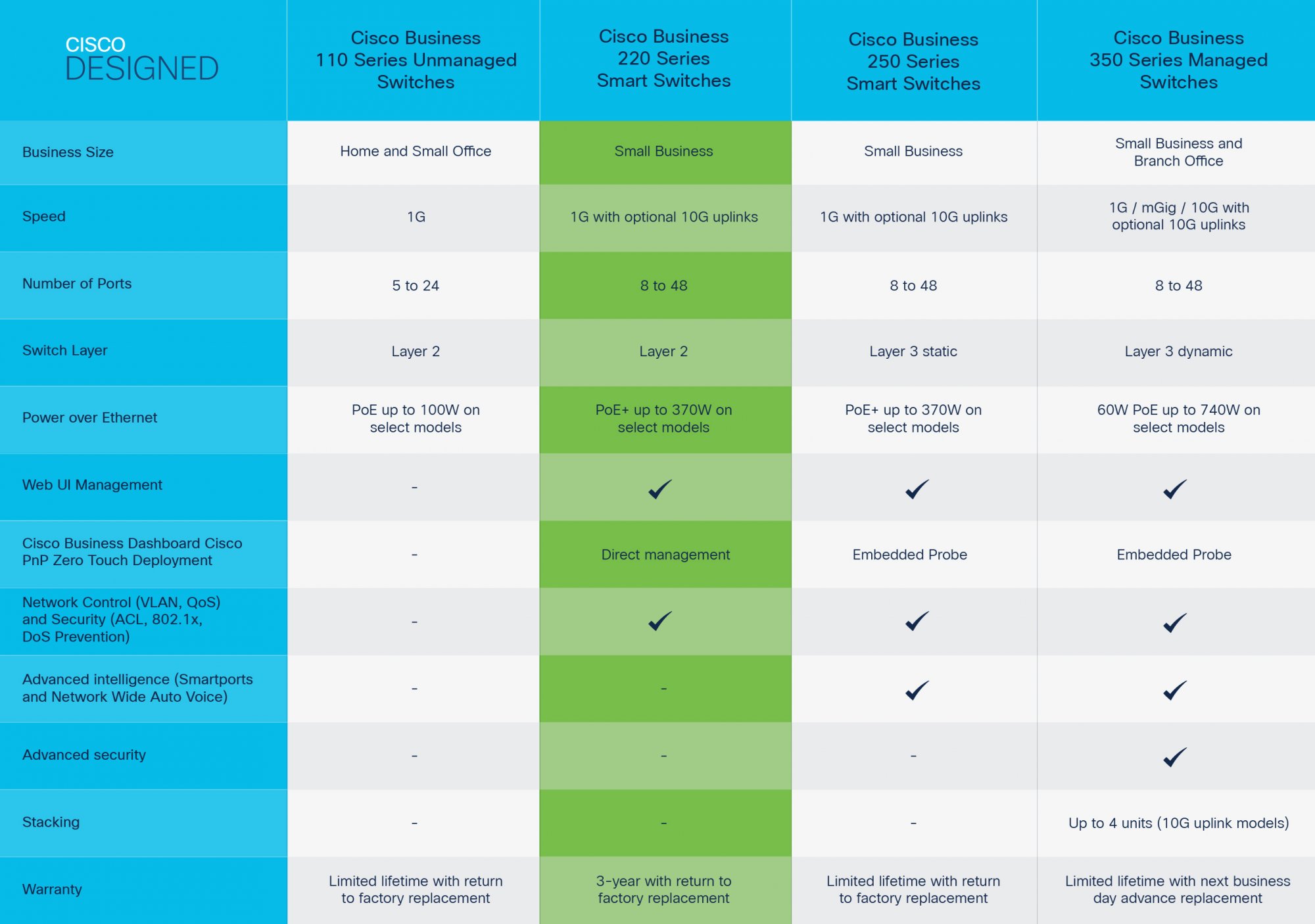

FLEXIBLE: Extensive portfolio provides ultimate flexibility from 8 to 48 ports and PoE+ combinations

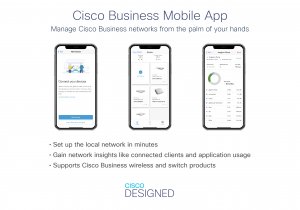

SIMPLE: Intuitive on-box UI, mobile app and Cisco Business Dashboard simplifies network operations and automates lifecycle management
SECURITY: Integrated with IEEE 802.1X to control access to your network, Denial-of- Service (DoS) attack prevention increases network uptime during an attack, while Access Control Lists (ACLs) protect the network from unauthorized users
INNOVATIVE DESIGN: Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
ENERGY EFFICIENT: Optimizes power usage to lower operational cost. Compliant with IEEE802.3az Energy Efficient Ethernet. Fanless in select models
PEACE OF MIND: 3-year limited hardware warranty with return-to-factory replacement and one-year technical support

Product Properties

Manufacturer
Cisco

Model
CBS220-24T-4G-UK

EAN
889728344838

Bullet points

Point
ENERGY EFFICIENT

FLEXIBLE: Extensive portfolio provides ultimate flexibility from 8 to 48 ports and PoE+ combinations

INNOVATIVE DESIGN

PEACE OF MIND

SECURITY

SIMPLE

SWITCH PORTS: 24-Port 10/100/1000 + 4 x 1G SFP

Data transmission

Forwarding rate
41.66 Mpps

Jumbo frames
9216

Jumbo frames support
Yes

MAC address table
8192 entries

Number of queues
8

Packet buffer memory
4.1 MB

Switching capacity
56 Gbit/s

Design

Country of origin
China

Form factor
1U

LED indicators
Yes

Product colour
White

Rack mounting
Yes

Reset button
Yes

Logistics data

Harmonized System (HS) code
85176990

Quantity per pack
1 pc(s)

Management features

Quality of Service (QoS) support
Yes

Switch layer
L2

Switch type
Managed

System event log
Yes

Web-based management
Yes

Multicast features

Multicast MAC address table
8192 entries

Multicast support
Yes

Network

10G support
Yes

Auto MDI/MDI-X
Yes

Broadcast storm control
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Flow control support
Yes

Head-of-line (HOL) blocking
Yes

IP routing
Yes

Link aggregation
Yes

Networking standards
IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Number of VLANs
256

Port mirroring
Yes

Spanning tree protocol
Yes

VLAN support
Yes

Operational conditions

Heat dissipation
61.42 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 50 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-20 - 70 °C

Other features

Packaging content
Switch, Power cord or adapter, Mounting hardware, and Quick Start Guide

Packaging data

Package depth
535.9 mm

Package height
106.7 mm

Package weight
6.01 kg

Package width
320 mm

Performance

Built-in processor
Yes

Firmware upgradeable
Yes

Flash memory
64 MB

Internal memory
256 MB

Ports & interfaces

SFP module slots quantity
4

Switch Number of Ports
24

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Protocols

Management protocols
SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP

Security

Access Control List (ACL)
Yes

Authentication type
IEEE 802.1x, RADIUS

BPDU filtering/protection
Yes

DHCP features
DHCP client

IGMP snooping
Yes

Loop protection
Yes

MAC address filtering
Yes

Queue scheduling algorithms
Weighted Round Robin (WRR)

Security algorithms
SNMP, SNMPv2, SNMPv3

SSH/SSL support
Yes

Weight & dimensions

Depth
439.9 mm

Height
43.9 mm

Weight
4.51 kg

Width
202.4 mm
