Description

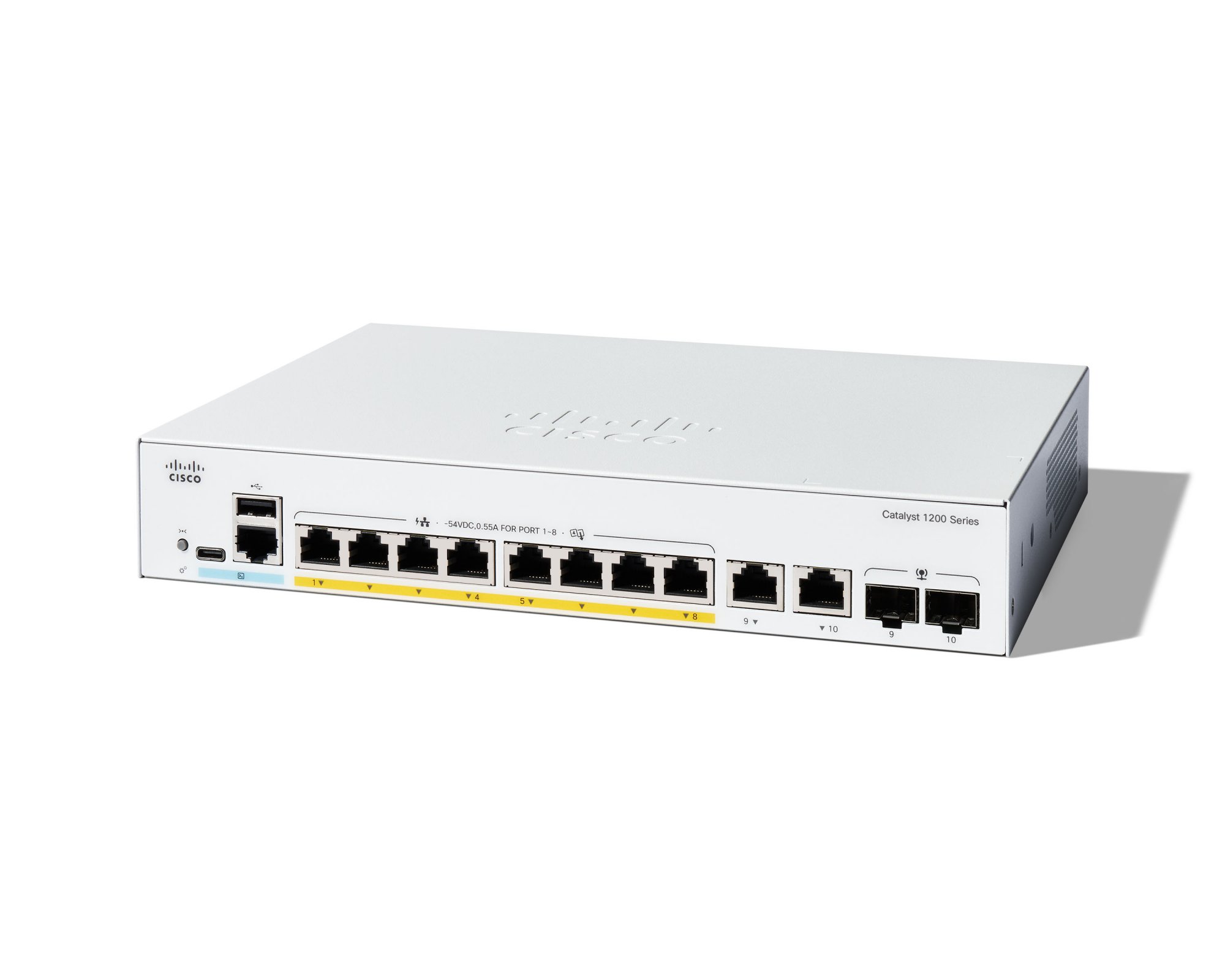

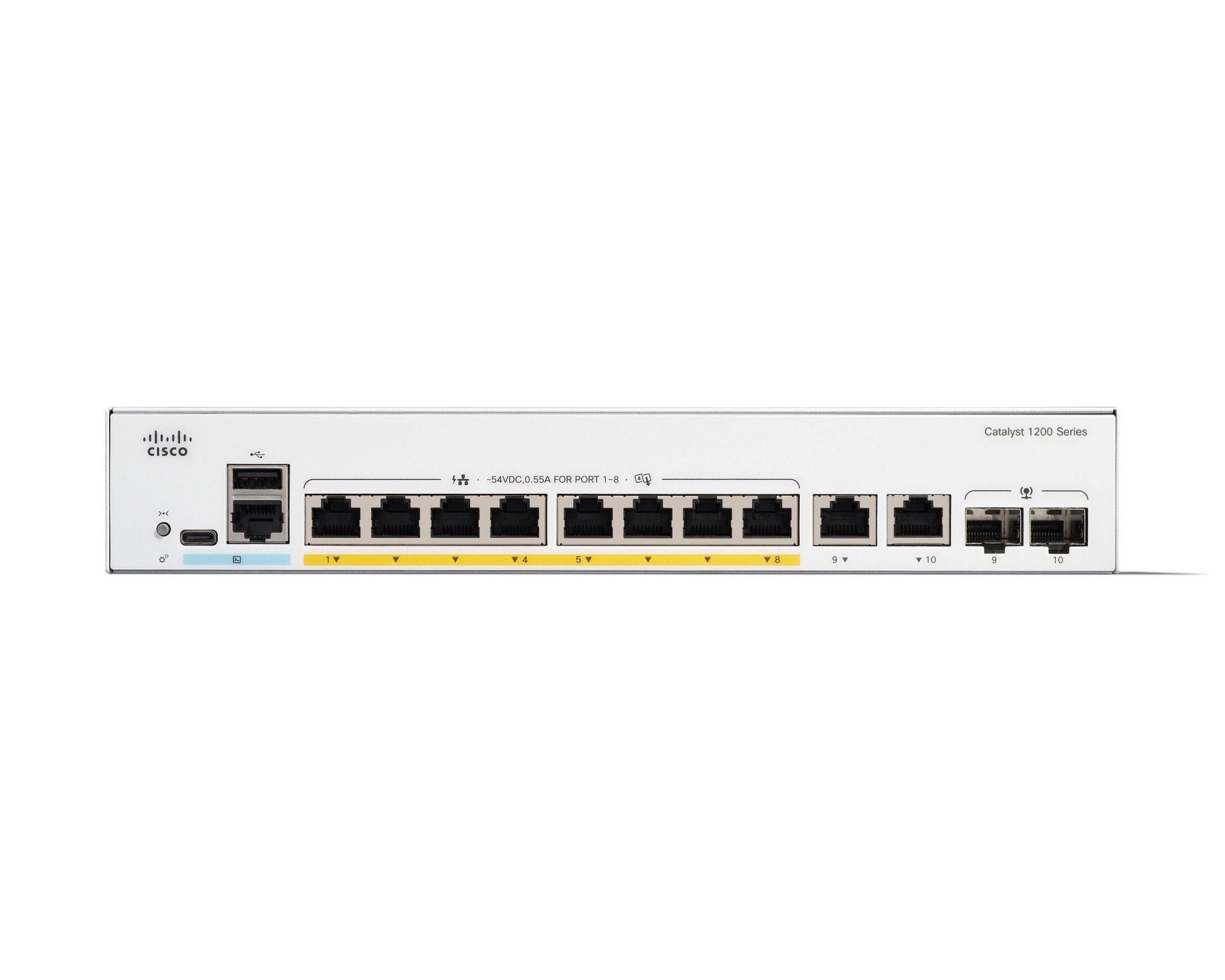

Cisco Catalyst 1200-8P-E-2G Smart Switch, 8 Port GE, PoE, Ext PS, 2x1GE Combo, Limited Lifetime Protection (C1200-8P-E-2G). Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE...

SWITCH PORTS: 8 ports 10/100/1000 + 2x 1GE copper/SFP combo (total PoE power budget: 67W, PoE, PoE+)
SIMPLE: Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
SECURITY: Integrated with IEEE 802.1X port security to control access to your network, denial-of-service (DoS) attack prevention increases network uptime during an attack, while access control lists (ACLs) protect the network from unauthorised users
ENERGY EFFICIENT: Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
PERFECT FOR SMALL BUSINESS: Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support

Product Properties

Manufacturer
Cisco

Model
C1200-8P-E-2G

Bullet points

Point
ENERGY EFFICIENT

PERFECT FOR SMALL BUSINESS

SECURITY

SIMPLE

SWITCH PORTS: 8 ports 10/100/1000 + 2x 1GE copper/SFP combo (total PoE power budget: 67W, PoE, PoE+)

Data transmission

Jumbo frames
9000

Jumbo frames support
Yes

Static route
Yes

Design

Housing material
Metal

LED indicators
Yes

Product colour
White

Reset button
Yes

Logistics data

Country of origin
China

Management features

ARP inspection
Yes

Configuring Location Settings (CLI)
Yes

MIB support
Y

Quality of Service (QoS) support
Yes

Switch layer
L2/L3

Switch type
Managed

Web-based management
Yes

Multicast features

Multicast support
Yes

Network

Broadcast storm control
Yes

Ethernet LAN data rates
1000 Mbit/s

Flow control support
Yes

Head-of-line (HOL) blocking
Yes

Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Port mirroring
Yes

Spanning tree protocol
Yes

VLAN support
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 50 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-25 - 70 °C

Other features

Packaging content
Switch, power cable, USB Type C cable and mounting hardware

Packaging data

Package depth
544.8 mm

Package height
103.9 mm

Package weight
3.07 kg

Package width
299 mm

Performance

Flash memory
512 MB

Internal memory
1024 MB

Processor frequency
1400 MHz

Ports & interfaces

Combo SFP ports quantity
2

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

Switch Number of Ports
8

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

Power plug type
Type C

Power source
AC

Power supply included
Yes

Security

Access Control List (ACL)
Yes

IGMP snooping
Yes

MAC address filtering
Yes

Security algorithms
HTTPS, SSH, SSL/TLS

SSH/SSL support
Yes

Weight & dimensions

Depth
268.2 mm

Height
43.9 mm

Width
184.9 mm
