Description

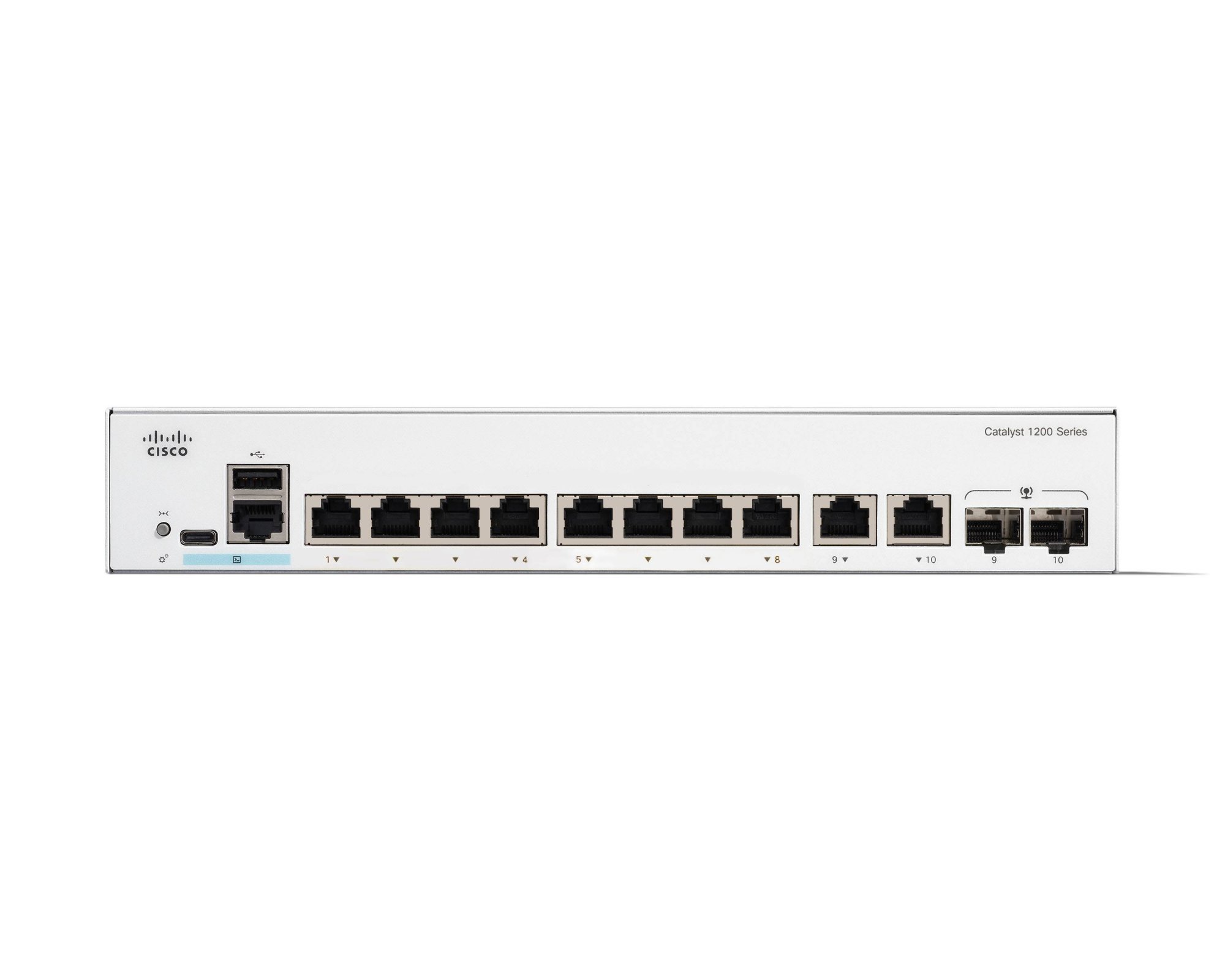

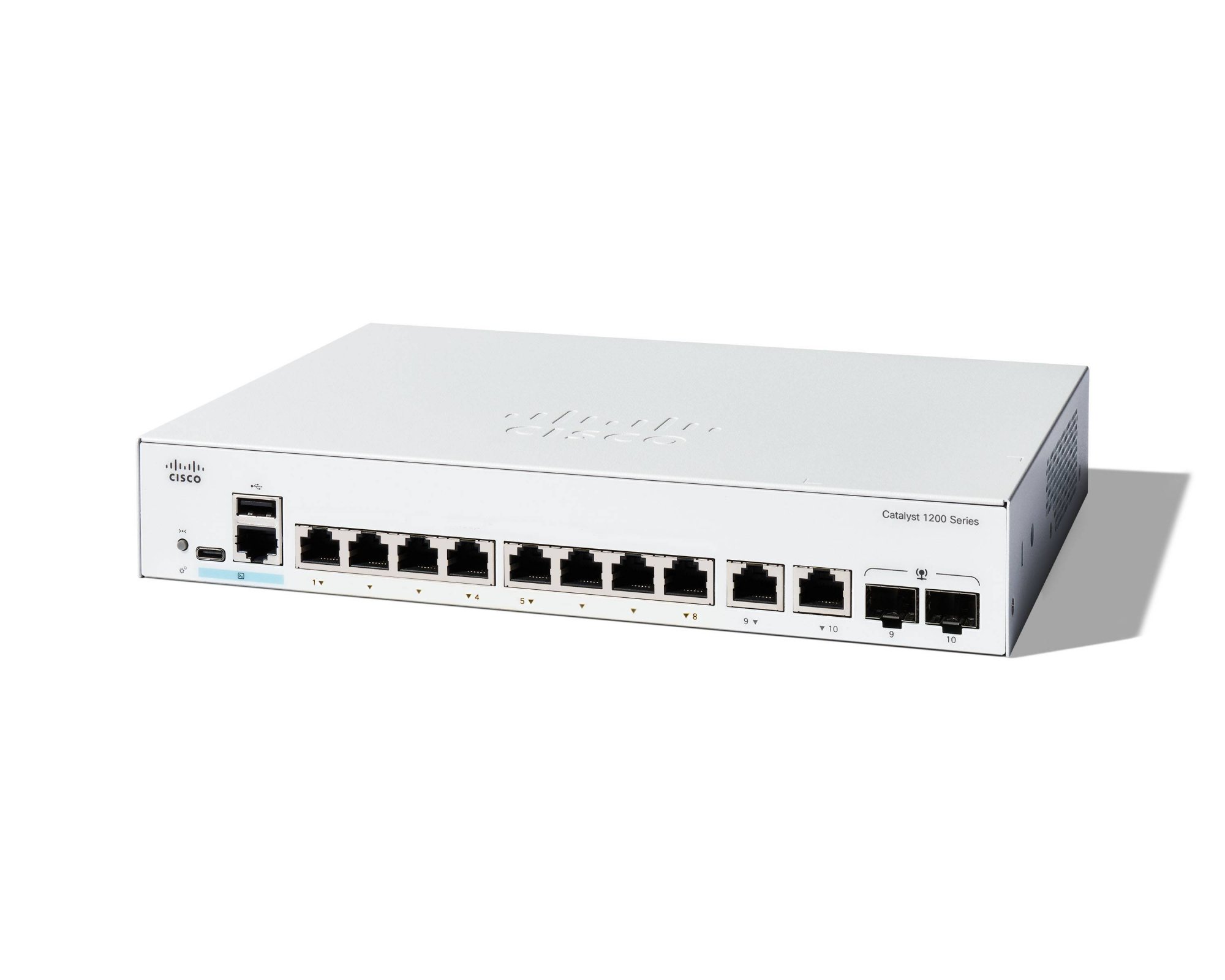

Cisco Catalyst 1200-8T-E-2G Smart Switch, 8 Port GE, Ext PS, 2x1GE Combo, Limited Lifetime Protection (C1200-8T-E-2G). Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10, Console port: RJ-45/USB Type-C. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Rack mounting, Form factor: 1U

SWITCH PORTS: 8 ports 10/100/1000 + 2x 1GE copper/SFP combo
SIMPLE: Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
SECURITY: Integrated with IEEE 802.1X port security to control access to your network, denial-of-service (DoS) attack prevention increases network uptime during an attack, while access control lists (ACLs) protect the network from unauthorised users
ENERGY EFFICIENT: Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
PERFECT FOR SMALL BUSINESS: Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support

Product Properties

Manufacturer
Cisco

Model
C1200-8T-E-2G

Bullet points

Point
ENERGY EFFICIENT

PERFECT FOR SMALL BUSINESS

SECURITY

SIMPLE

SWITCH PORTS: 8 ports 10/100/1000 + 2x 1GE copper/SFP combo

Certificates

Certification
UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Data transmission

Forwarding rate
14.88 Mpps

Jumbo frames
9000

Jumbo frames support
Yes

MAC address table
8000 entries

Number of queues
8

Packet buffer memory
1.5 MB

Switching capacity
20 Gbit/s

Design

Form factor
1U

LED indicators
Yes

Product colour
White

Rack mounting
Yes

Reset button
Yes

Logistics data

Country of origin
China

Management features

Configuring Location Settings (CLI)
Yes

MIB support
Y

Quality of Service (QoS) support
Yes

Switch layer
L2

Switch type
Managed

Web-based management
Yes

Multicast features

Multicast support
Yes

Network

10G support
No

Broadcast storm control
Yes

Head-of-line (HOL) blocking
Yes

Link aggregation
Yes

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az

Number of VLANs
255

Port mirroring
Yes

Spanning tree protocol
Yes

VLAN support
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
-5 - 50 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-25 - 70 °C

Other features

Packaging content
Switch, power cable, USB Type C cable and mounting hardware

Packaging data

Package depth
544.8 mm

Package height
103.9 mm

Package weight
2.45 kg

Package width
299 mm

Performance

Built-in processor
Yes

Firmware upgradeable
Yes

Flash memory
512 MB

Internal memory
1000 MB

Mean time between failures (MTBF)
2171669 h

Memory type
DDR4-SDRAM

Processor frequency
1.4 MHz

Ports & interfaces

Console port
RJ-45/USB Type-C

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

SFP module slots quantity
2

Switch Number of Ports
10

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50/60 Hz

AC input voltage
100 - 240 V

Power consumption (typical)
10.65 W

Power plug type
Type C

Power source
AC

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Protocols

GARP VLAN Registration Protocol (GVRP)
Yes

Security

Access Control List (ACL) rules
512

DoS attack prevention
Yes

Loop protection
Yes

Queue scheduling algorithms
Weighted Round Robin (WRR)

Security algorithms
802.1x RADIUS

Weight & dimensions

Depth
268.2 mm

Height
43.9 mm

Weight
1.39 kg

Width
184.9 mm
