Description

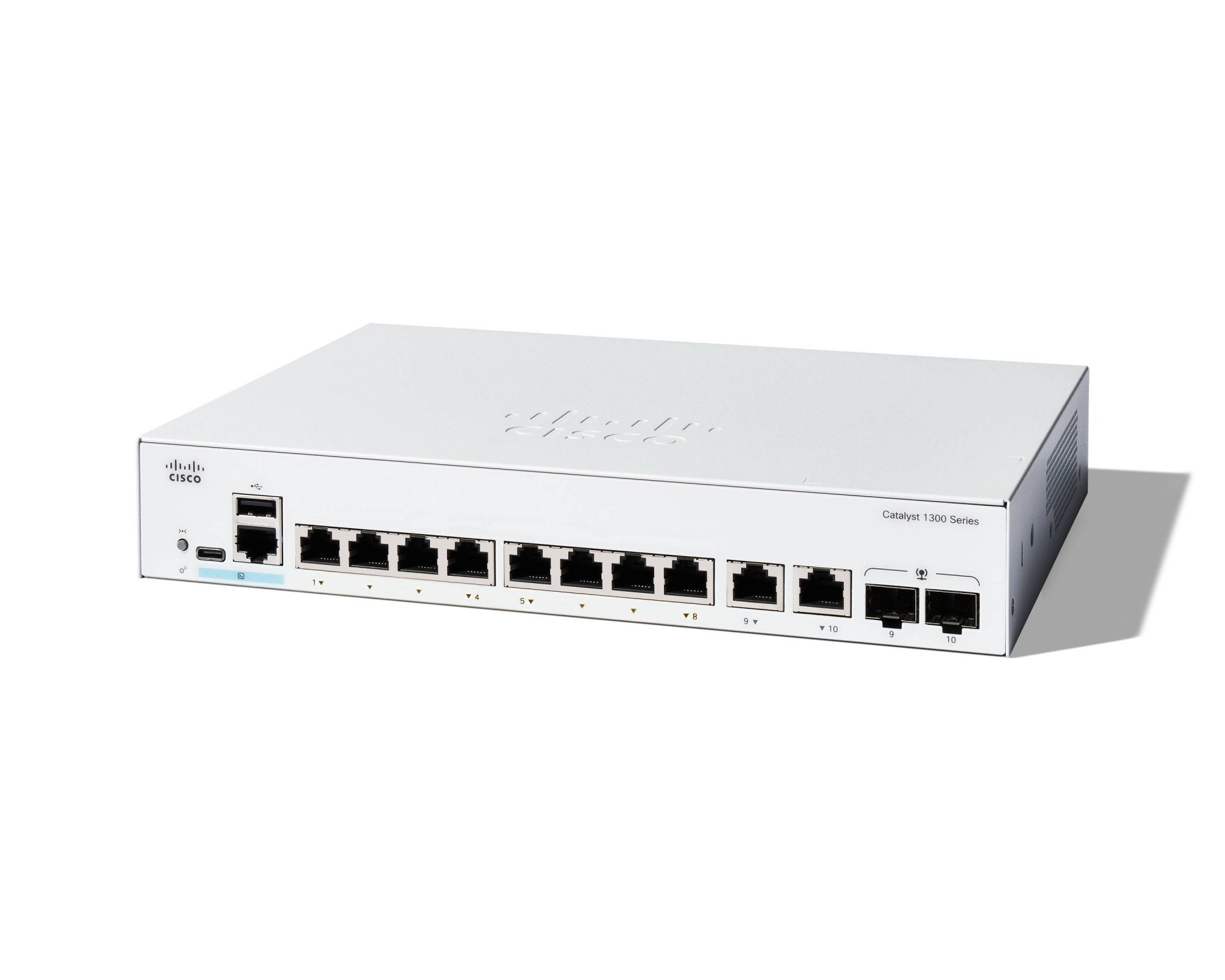

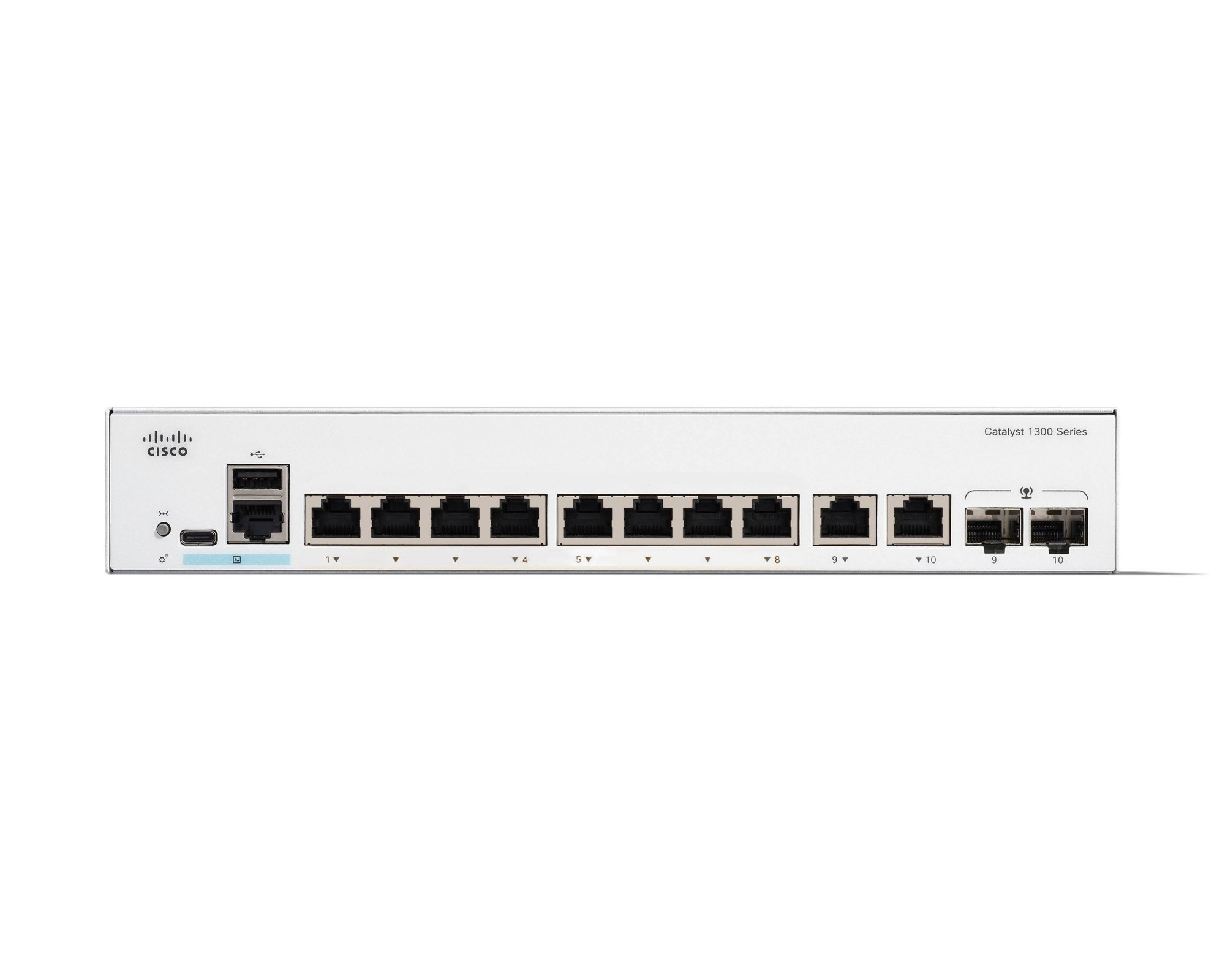

Cisco Catalyst 1300-8T-E-2G Managed Switch, 8 Port GE, Ext PS, 2x1GE Combo, Limited Lifetime Protection (C1300-8T-E-2G). Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45/USB Type-C. MAC address table: 16000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting

SWITCH PORTS: 8 ports 10/100/1000 + 2x 1GE copper/SFP combo
SIMPLE: Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
ENHANCED SECURITY: IP-MAC port binding detects and blocks deliberate network attacks. IPv6 First Hop Security provides unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks
ENERGY EFFICIENT: Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
PERFECT FOR SMALL BUSINESS: Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support

Product Properties

Manufacturer
Cisco

Model
C1300-8T-E-2G

Bullet points

Point
ENERGY EFFICIENT

ENHANCED SECURITY

PERFECT FOR SMALL BUSINESS

SIMPLE

SWITCH PORTS: 8 ports 10/100/1000 + 2x 1GE copper/SFP combo

Data transmission

Forwarding rate
14.88 Mpps

Jumbo frames
9000

Jumbo frames support
Yes

MAC address table
16000 entries

Number of static routes
990

Packet buffer memory
1.5 MB

Static route
Yes

Switching capacity
20 Gbit/s

Design

LED indicators
Yes

Product colour
Grey

Rack mounting
Yes

Logistics data

Country of origin
China

Management features

Configuring Location Settings (CLI)
Yes

MIB support
Y

Quality of Service (QoS) support
Yes

Switch layer
L2

Switch type
Managed

Web-based management
Yes

Multicast features

Multicast support
Yes

Network

Broadcast storm control
Yes

Link aggregation
Yes

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Number of VLANs
4093

Port mirroring
Yes

Spanning tree protocol
Yes

VLAN support
Yes

Operational conditions

Heat dissipation
42.86 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
-5 - 50 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-25 - 70 °C

Other features

Packaging content
Switch, power cable, USB Type C cable and mounting hardware

Packaging data

Package depth
544.8 mm

Package height
103.9 mm

Package weight
2.47 kg

Package width
299 mm

Performance

Mean time between failures (MTBF)
2171669 h

Ports & interfaces

Combo SFP ports quantity
2

Console port
RJ-45/USB Type-C

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

Switch Number of Ports
8

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50/60 Hz

AC input voltage
110 - 220 V

Power consumption (max)
12.56 W

Power plug type
Type C

Power source
AC

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Security

Access Control List (ACL)
Yes

Authentication
MAC-based authentication, Web-based authentication

Authentication type
RADIUS

DHCP features
DHCP Option 82, DHCP client, DHCP server

IGMP entries
2000

IGMP snooping
Yes

Loop protection
Yes

SSH/SSL support
Yes

Weight & dimensions

Depth
268.2 mm

Height
43.9 mm

Weight
1.39 kg

Width
184.9 mm
