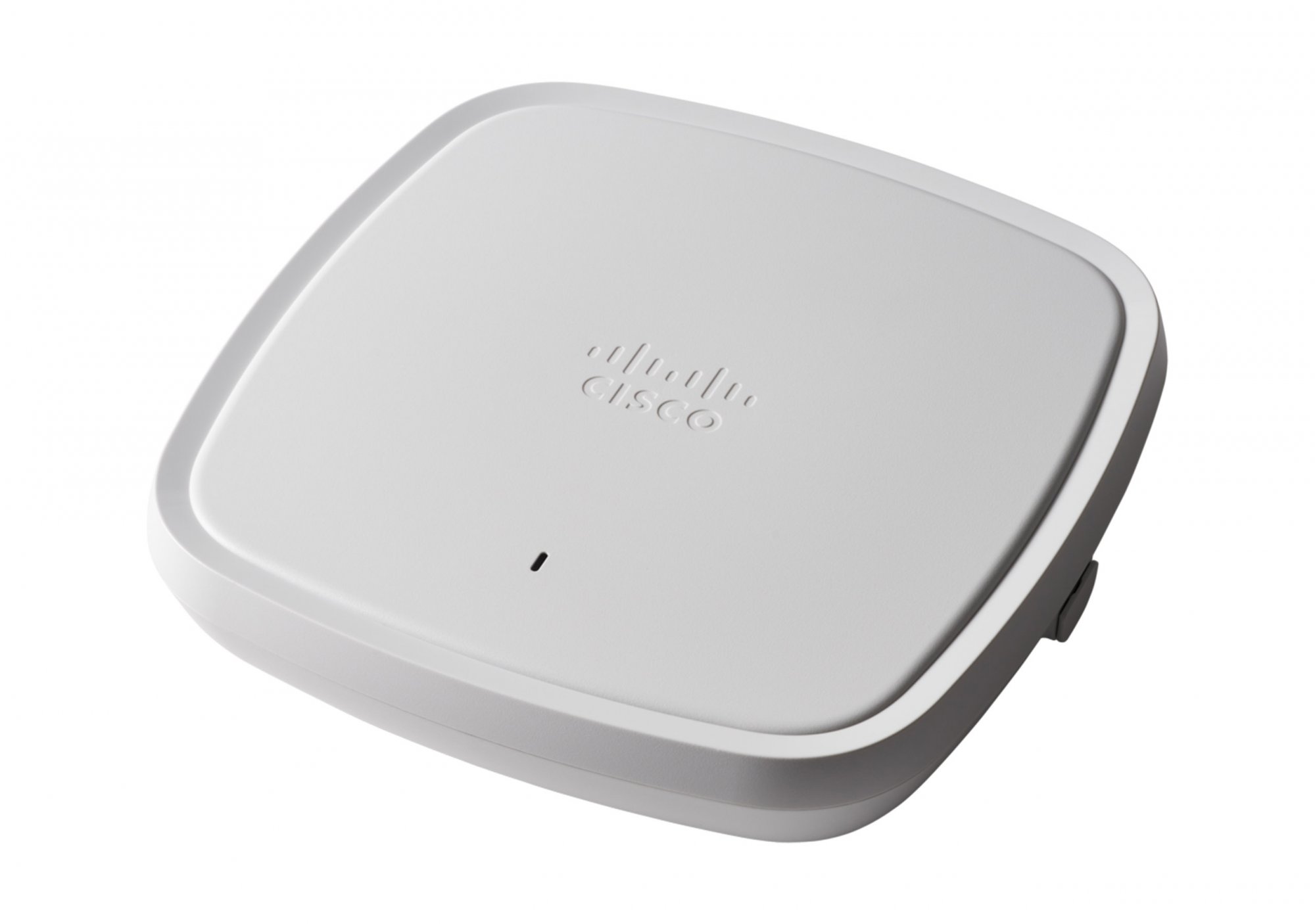

Cisco Catalyst 9105AXI-E Wireless Access Point, Wi-Fi 6, 2x2 MU-MIMO, Controller Managed, PoE, Internal antenna, Ceiling or Desk Mount (C9105AXI-E)
Roll over image to zoom inClick to Open expanded view
Cisco Catalyst 9105AXI-E Wireless Access Point, Wi-Fi 6, 2x2 MU-MIMO, Controller Managed, PoE, Internal antenna, Ceiling or Desk Mount (C9105AXI-E)
Cisco Catalyst 9105AXI-E Wireless Access Point, Wi-Fi 6, 2x2 MU-MIMO, Controller Managed, PoE, Internal antenna, Ceiling or Desk Mount (C9105AXI-E)
Print
Model: C9105AXI-E
EAN: 889728329149

Cisco Catalyst 9105AXI-E Wireless Access Point, Wi-Fi 6, 2x2 MU-MIMO, Controller Managed, PoE, Internal antenna, Ceiling or Desk Mount (C9105AXI-E)

Manufacturer:
Cisco
Cisco Catalyst 9105AXI-E Wireless Access Point, Wi-Fi 6, 2x2 MU-MIMO, Controller Managed, PoE, Internal antenna, Ceiling or Desk Mount (C9105AXI-E), 1488 Mbit/s, 10,100,1000 Mbit/s, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, Multi User MIMO, Type C, Grey
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Catalyst 9105AXI-E Wireless Access Point, Wi-Fi 6, 2x2 MU-MIMO, Controller Managed, PoE, Internal antenna, Ceiling or Desk Mount (C9105AXI-E). Maximum data transfer rate: 1488 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g. Power plug type: Type C. Product colour: Grey, Country of origin: Mexico. Antenna type: Internal, Antenna direction type: Omni-directional, Antenna gain level (max): 5 dBi. Width: 150 mm, Depth: 150 mm, Height: 30 mm
  • COMPACT AND POWERFUL: 2x2 MU-MIMO Wi-Fi 6, up to 1.49 Gbps data rate, optimised power consumption
  • IOT-READY: Embedded IoT radios enabling BLE 5.0 and Zigbee, custom IoT app hosting with Docker-style containers
  • DEPLOYMENT OPTIONS: Two form factors to choose from. Ceiling mount for best coverage (C9105AXI) and wall mount for ease of installation and expanding wired connections (C9105AXW)
  • PEACE OF MIND: 90-day software and limited lifetime hardware warranty

Product Properties

  • Model
  • C9105AXI-E
  • EAN
  • 889728329149
  • Antenna
  • Antenna direction type
  • Omni-directional
  • Antenna gain level (max)
  • 5 dBi
  • Antenna type
  • Internal
  • Bullet points
  • Point
  • COMPACT AND POWERFUL: 2x2 MU-MIMO Wi-Fi 6, up to 1.49 Gbps data rate, optimised power consumption
    DEPLOYMENT OPTIONS
    IOT-READY
    PEACE OF MIND: 90-day software and limited lifetime hardware warranty
  • Design
  • Country of origin
  • Mexico
  • Product colour
  • Grey
  • Features
  • 2.4 GHz
  • Yes
  • 5 GHz
  • Yes
  • Cyclic Shift Diversity (CSD)
  • Yes
  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Maximal-Ratio Combining (MRC)
  • Yes
  • Maximum data transfer rate
  • 1488 Mbit/s
  • MIMO
  • Yes
  • MIMO type
  • Multi User MIMO
  • Networking standards
  • IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Products per master (outer) case
  • 1 pc(s)
  • Quantity per pack
  • 1 pc(s)
  • Operational conditions
  • Non-operating altitude
  • 0 - 4600 m
  • Operating altitude
  • 0 - 3000 m
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 50 °C
  • Storage temperature (T-T)
  • -30 - 70 °C
  • Packaging content
  • Number of products included
  • 1 pc(s)
  • Packaging data
  • Package depth
  • 239.8 mm
  • Package height
  • 69.8 mm
  • Package weight
  • 907.03 g
  • Package width
  • 220.7 mm
  • Ports & interfaces
  • Ethernet LAN (RJ-45) ports
  • 1
  • USB 2.0 ports quantity
  • 1
  • Power
  • Power over Ethernet (PoE)
  • Yes
  • Power plug type
  • Type C
  • Technical details
  • Products per shipping (inner) case
  • 1 pc(s)
  • Weight & dimensions
  • Depth
  • 150 mm
  • Height
  • 30 mm
  • Weight
  • 329.5 g
  • Width
  • 150 mm
