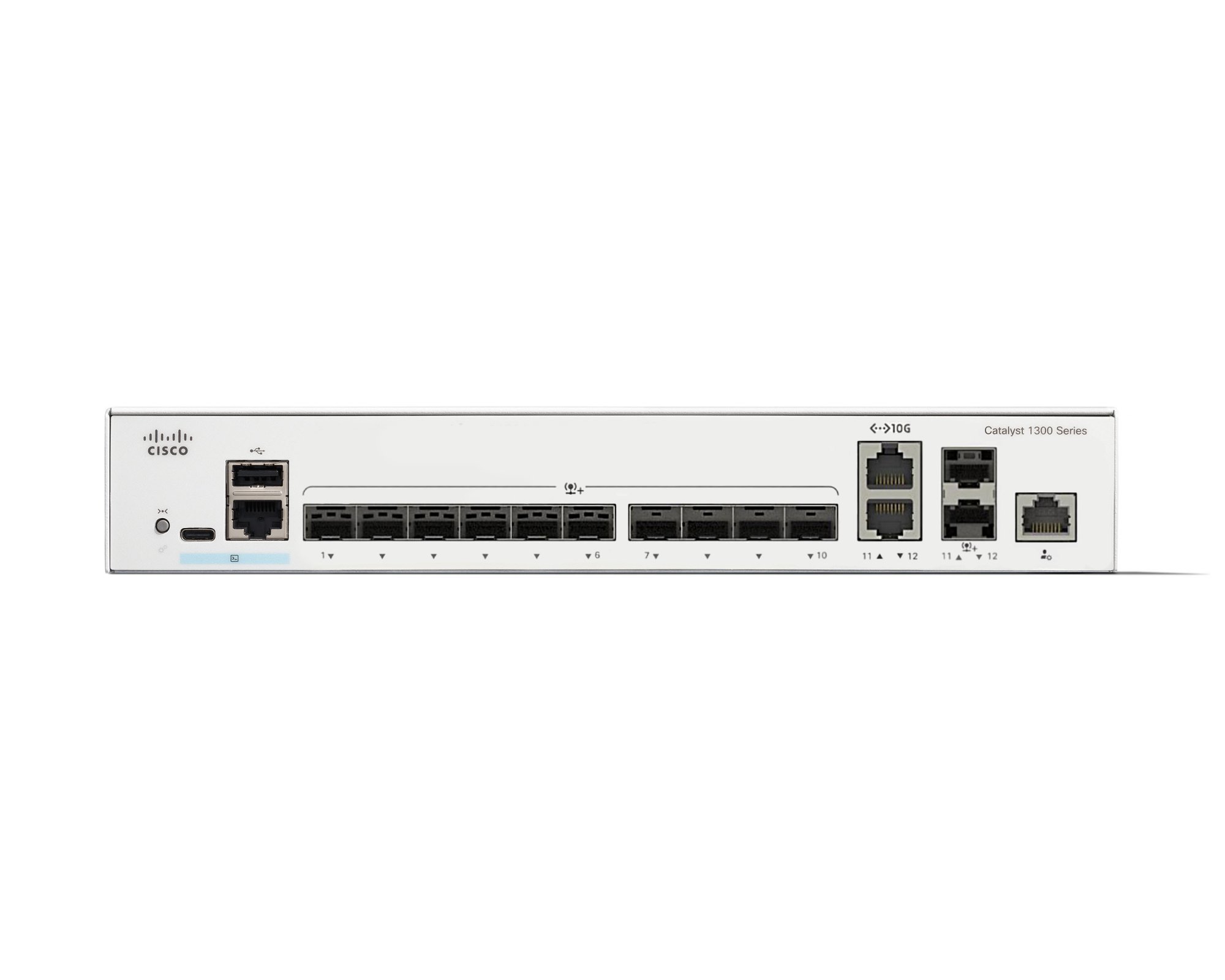

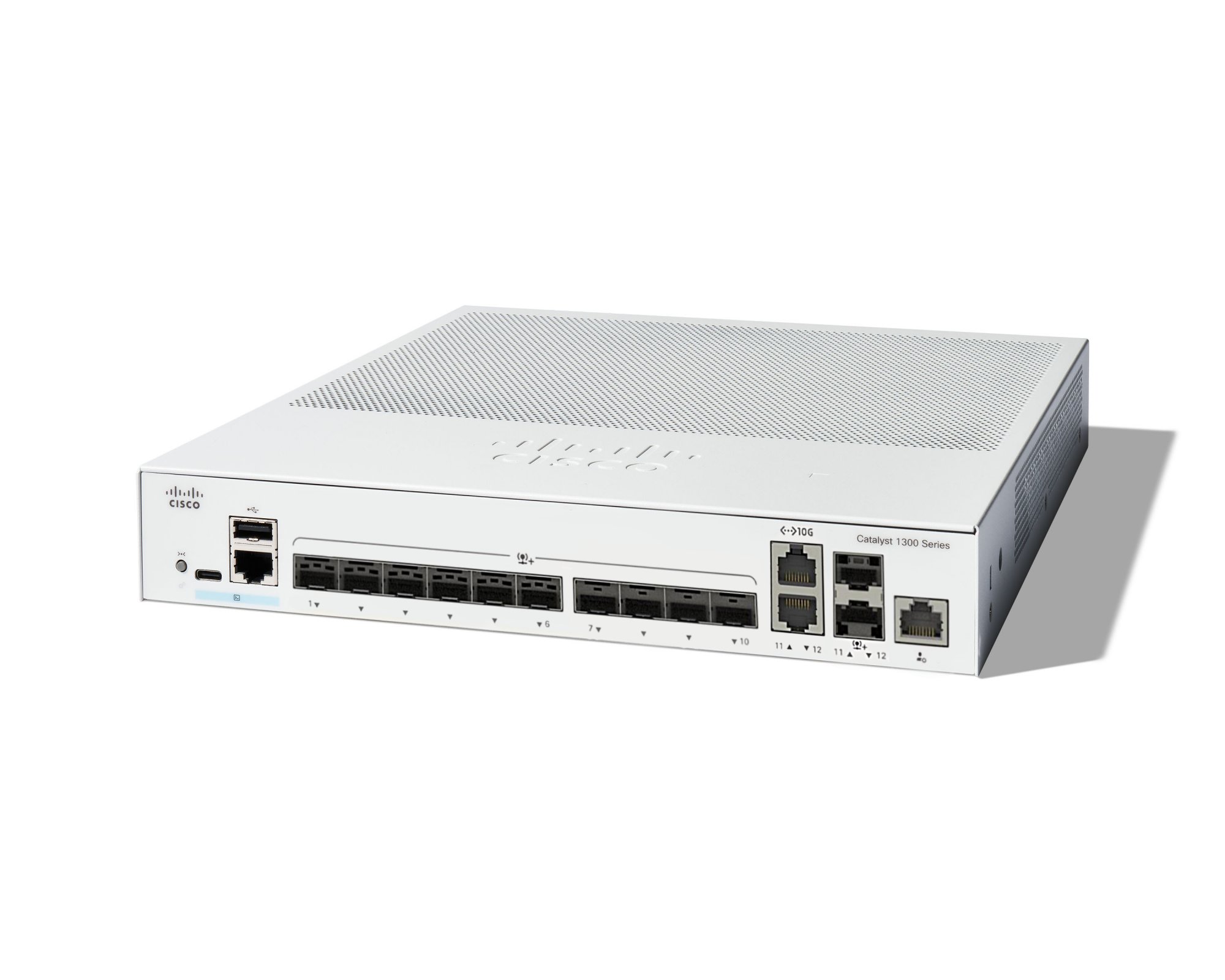

Cisco Catalyst C1300-12XS network switch Managed L2/L3 Grey
Roll over image to zoom inClick to Open expanded view
Cisco Catalyst C1300-12XS network switch Managed L2/L3 Grey
Cisco Catalyst C1300-12XS network switch Managed L2/L3 Grey
Print
Model: C1300-12XS

Cisco Catalyst C1300-12XS network switch Managed L2/L3 Grey

Manufacturer:
Cisco
Cisco Catalyst C1300-12XS, Managed, L2/L3, Rack mounting
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Catalyst C1300-12XS. Switch type: Managed, Switch layer: L2/L3. MAC address table: 16000 entries, Switching capacity: 240 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Rack mounting

Product Properties

  • Model
  • C1300-12XS
  • Data transmission
  • Jumbo frames
  • 9000
  • Jumbo frames support
  • Yes
  • MAC address table
  • 16000 entries
  • Number of queues
  • 8
  • Packet buffer memory
  • 3 MB
  • Static route
  • Yes
  • Switching capacity
  • 240 Gbit/s
  • Design
  • LED indicators
  • Yes
  • Product colour
  • Grey
  • Rack mounting
  • Yes
  • Reset button
  • Yes
  • Logistics data
  • Country of origin
  • China
  • Management features
  • Configuring Location Settings (CLI)
  • Yes
  • MIB support
  • Y
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2/L3
  • Switch type
  • Managed
  • Web-based management
  • Yes
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • Broadcast storm control
  • Yes
  • Head-of-line (HOL) blocking
  • Yes
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • Policy-based routing
  • Yes
  • Port mirroring
  • Yes
  • Rate limiting
  • Yes
  • Spanning tree protocol
  • Yes
  • Virtual LAN features
  • Private VLAN, Voice VLAN
  • VLAN support
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • -5 - 50 °C
  • Storage relative humidity (H-H)
  • 10 - 90%
  • Storage temperature (T-T)
  • -25 - 70 °C
  • Packaging data
  • Package depth
  • 402.3 mm
  • Package height
  • 103.7 mm
  • Package weight
  • 3.55 kg
  • Package width
  • 355.9 mm
  • Performance
  • Built-in processor
  • Yes
  • Ports & interfaces
  • 10G Ethernet (copper) ports quantity
  • 2
  • SFP+ module slots quantity
  • 10
  • Power
  • AC input frequency
  • 50/60 Hz
  • AC input voltage
  • 100 - 220 V
  • Power plug type
  • Type C
  • Power source
  • AC
  • Protocols
  • GARP VLAN Registration Protocol (GVRP)
  • Yes
  • IPv4 & IPv6 features
  • ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet
  • Security
  • Access Control List (ACL)
  • Yes
  • Access Control List (ACL) rules
  • 1024
  • Authentication
  • MAC-based authentication, Web-based authentication
  • Authentication type
  • RADIUS, TACACS+
  • DHCP features
  • DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping
  • IGMP proxy
  • Yes
  • IGMP snooping
  • Yes
  • Queue scheduling algorithms
  • Weighted Round Robin (WRR)
  • Security algorithms
  • HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2
  • SSH/SSL support
  • Yes
  • Weight & dimensions
  • Depth
  • 268 mm
  • Height
  • 44 mm
  • Weight
  • 2.67 kg
  • Width
  • 300 mm
