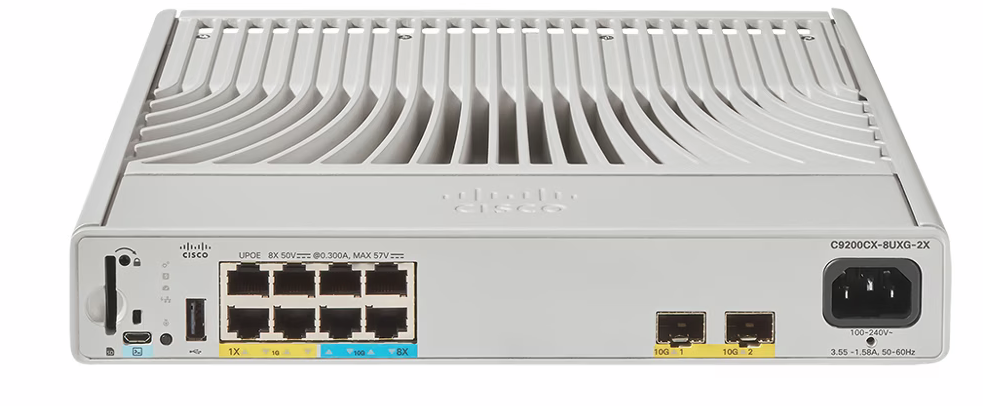

Cisco Catalyst C9200CX-8UXG-2X-E network switch Managed L2/L3 Power over Ethernet (PoE) Grey
Roll over image to zoom inClick to Open expanded view
Print
Model: C9200CX-8UXG-2X-E

Cisco Catalyst C9200CX-8UXG-2X-E network switch Managed L2/L3 Power over Ethernet (PoE) Grey

Manufacturer:
Cisco
Cisco Catalyst C9200CX-8UXG-2X-E, Managed, L2/L3, Full duplex, Power over Ethernet (PoE), Rack mounting
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Catalyst C9200CX-8UXG-2X-E. Switch type: Managed, Switch layer: L2/L3. Installed SFP+ modules quantity: 2, USB 2.0 ports quantity: 1. Full duplex. MAC address table: 32000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting

Product Properties

  • Model
  • C9200CX-8UXG-2X-E
  • Data transmission
  • Forwarding rate
  • 95.23 Mpps
  • Jumbo frames
  • 9198
  • Jumbo frames support
  • Yes
  • MAC address table
  • 32000 entries
  • Packet buffer memory
  • 6 MB
  • Switching capacity
  • 128 Gbit/s
  • Design
  • LED indicators
  • Yes
  • Product colour
  • Grey
  • Rack mounting
  • Yes
  • Stackable
  • Yes
  • Management features
  • MIB support
  • Y
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2/L3
  • Switch type
  • Managed
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • 10G support
  • Yes
  • Full duplex
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • Number of VLANs
  • 4096
  • VLAN support
  • Yes
  • Performance
  • Fanless
  • Yes
  • Flash memory
  • 8000 MB
  • Internal memory
  • 4000 MB
  • Memory type
  • DRAM
  • Ports & interfaces
  • Compatible memory cards
  • SD
  • Installed SFP modules quantity
  • 0
  • Installed SFP+ modules quantity
  • 2
  • USB 2.0 ports quantity
  • 1
  • Power
  • AC input voltage
  • 115 - 230 V
  • Power source
  • AC
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Security
  • Access Control List (ACL)
  • Yes
  • IGMP snooping
  • Yes
  • Security algorithms
  • 256-bit AES
  • Weight & dimensions
  • Depth
  • 244 mm
  • Height
  • 44 mm
  • Weight
  • 3.18 kg
  • Width
  • 269 mm
