Model: CW9166I-MR

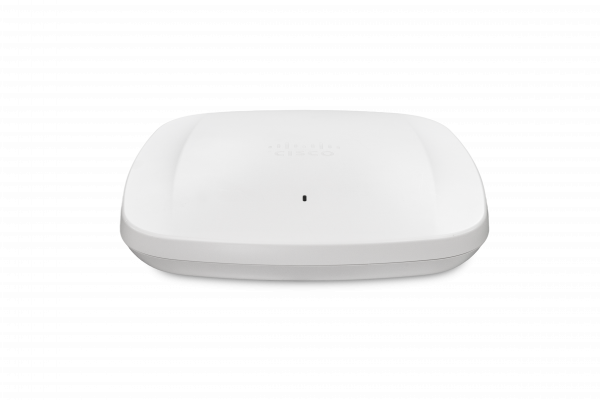

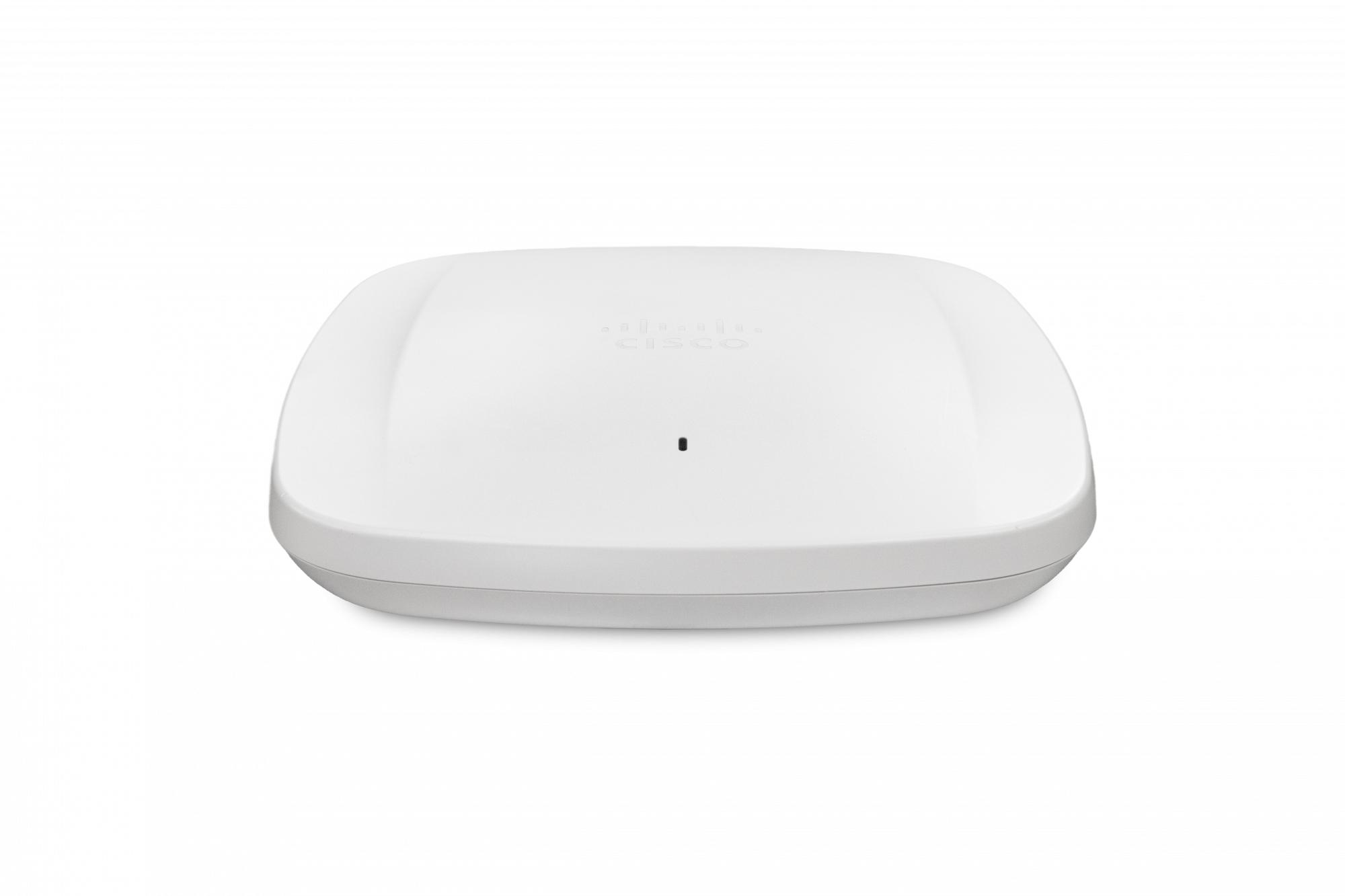

Cisco Meraki CW9166I-MR wireless access point White Power over Ethernet (PoE)

Manufacturer:
Cisco
Cisco Meraki CW9166I-MR, 2.4 GHz, 5 GHz, 6 GHz, 128-bit AES, WPA, WPA3, 100,1000,2500,50000 Mbit/s
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Meraki CW9166I-MR. 2.4 GHz, 5 GHz, 6 GHz. Security algorithms: 128-bit AES, WPA, WPA3. Ethernet LAN data rates: 100,1000,2500,50000 Mbit/s. Power over Ethernet (PoE). Product colour: White

Product Properties

  • Model
  • CW9166I-MR
  • Antenna
  • Antenna gain level (max)
  • 5 dBi
  • Antenna type
  • Internal
  • Design
  • Cable lock slot
  • Yes
  • Cable lock slot type
  • Kensington
  • LED indicators
  • Yes
  • Placement
  • Wall
  • Product colour
  • White
  • Features
  • 2.4 GHz
  • Yes
  • 5 GHz
  • Yes
  • 6 GHz
  • Yes
  • Bluetooth Low Energy (BLE)
  • Yes
  • Bluetooth version
  • 5.1
  • Cyclic Shift Diversity (CSD)
  • Yes
  • Dynamic Frequency Selection (DFS)
  • Yes
  • Ethernet LAN data rates
  • 100,1000,2500,50000 Mbit/s
  • Maximal-Ratio Combining (MRC)
  • Yes
  • Maximum outdoor range
  • 25 m
  • MIMO
  • Yes
  • MIMO type
  • Multi User MIMO
  • Networking standards
  • IEEE 802.11a, IEEE 802.11ax, IEEE 802.11g, IEEE 802.11n
  • Spread spectrum method
  • OFDMA
  • Operational conditions
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 50 °C
  • Storage temperature (T-T)
  • -30 - 70 °C
  • Packaging content
  • Bundled software
  • Cisco IOS XE Software Release 17.9.1 or later
  • Performance
  • Flash memory
  • 1024 MB
  • Internal memory
  • 2048 MB
  • Ports & interfaces
  • Ethernet LAN (RJ-45) ports
  • 1
  • Switch Number of Ports
  • 2
  • USB 2.0 ports quantity
  • 1
  • Power
  • Power over Ethernet (PoE)
  • Yes
  • Security
  • Access Control List (ACL)
  • Yes
  • Security algorithms
  • 128-bit AES, WPA, WPA3
  • Weight & dimensions
  • Depth
  • 241.3 mm
  • Height
  • 56.9 mm
  • Weight
  • 1.6 kg
  • Width
  • 241.3 mm
