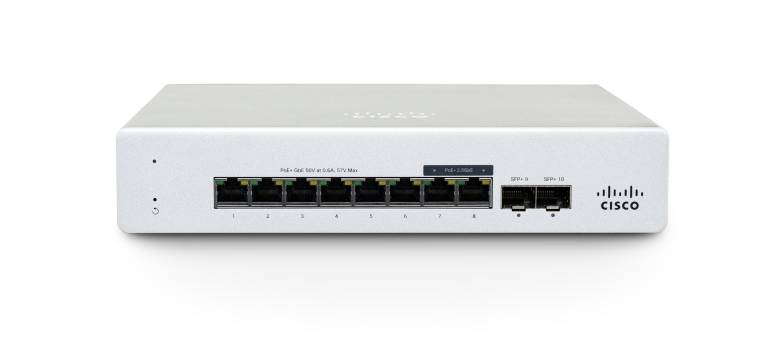

Cisco Meraki MS130 compact Managed 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Aluminium
Roll over image to zoom inClick to Open expanded view
Print
Model: MS130-8X-HW

Cisco Meraki MS130 compact Managed 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Aluminium

Manufacturer:
Cisco
Cisco Meraki MS130 compact, Managed, 2.5G Ethernet (100/1000/2500), Power over Ethernet (PoE), Rack mounting, 1U
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Cisco Meraki MS130 compact. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Switching capacity: 62 Gbit/s. Networking standards: IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad. DC input voltage: 54 V. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Product Properties

  • Model
  • MS130-8X-HW
  • Certificates
  • Certification
  • CSA-US, FCC, IC, CE, RCM, RoHS
  • Data transmission
  • Jumbo frames support
  • Yes
  • Static route
  • Yes
  • Switching capacity
  • 62 Gbit/s
  • Design
  • Form factor
  • 1U
  • Product colour
  • Aluminium
  • Rack mounting
  • Yes
  • Stackable
  • Yes
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch type
  • Managed
  • System event log
  • Yes
  • Web-based management
  • Yes
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • 10G support
  • No
  • Broadcast storm control
  • Yes
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad
  • Port mirroring
  • Yes
  • Spanning tree protocol
  • Yes
  • VLAN support
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Packaging data
  • Screws included
  • Yes
  • Performance
  • Firmware upgradeable
  • Yes
  • Physical stacking (units)
  • 8
  • Ports & interfaces
  • Console port
  • RJ-45
  • Fiber optic connector
  • SFP+
  • Fiber ports quantity
  • 2
  • Switch Number of Ports
  • 8
  • Switch Port Speed
  • 2.5G Ethernet (100/1000/2500)
  • Power
  • DC input voltage
  • 54 V
  • Power consumption (max)
  • 136 W
  • Power consumption (typical)
  • 16 W
  • Power source
  • DC
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Protocols
  • Switching protocols
  • LLDP, CDP, RSTP, STP
  • Security
  • Access Control List (ACL)
  • Yes
  • Authentication
  • MAC-based authentication
  • Authentication type
  • RADIUS
  • BPDU filtering/protection
  • Yes
  • DHCP features
  • DHCP snooping, DHCP relay, DHCP client
  • IGMP snooping
  • Yes
  • Password protection
  • Yes
  • Security algorithms
  • SNMP
  • Weight & dimensions
  • Depth
  • 230 mm
  • Height
  • 44 mm
  • Weight
  • 960 g
  • Width
  • 230 mm
