Description

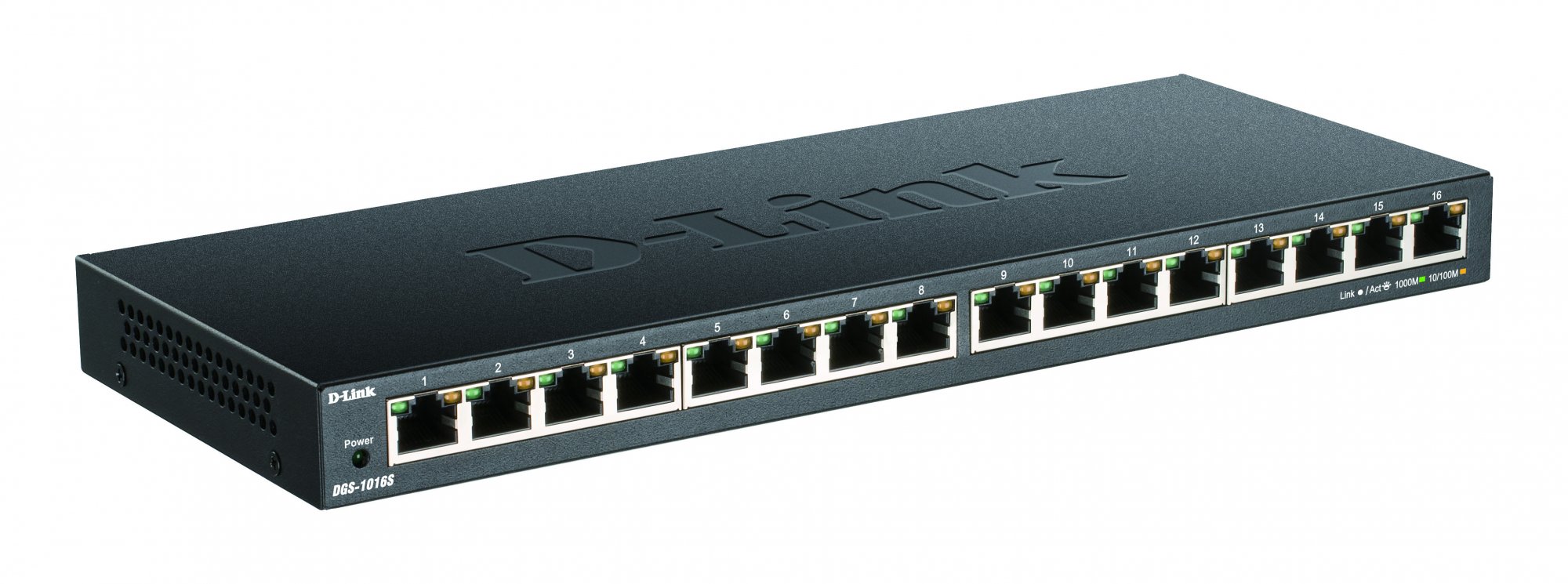

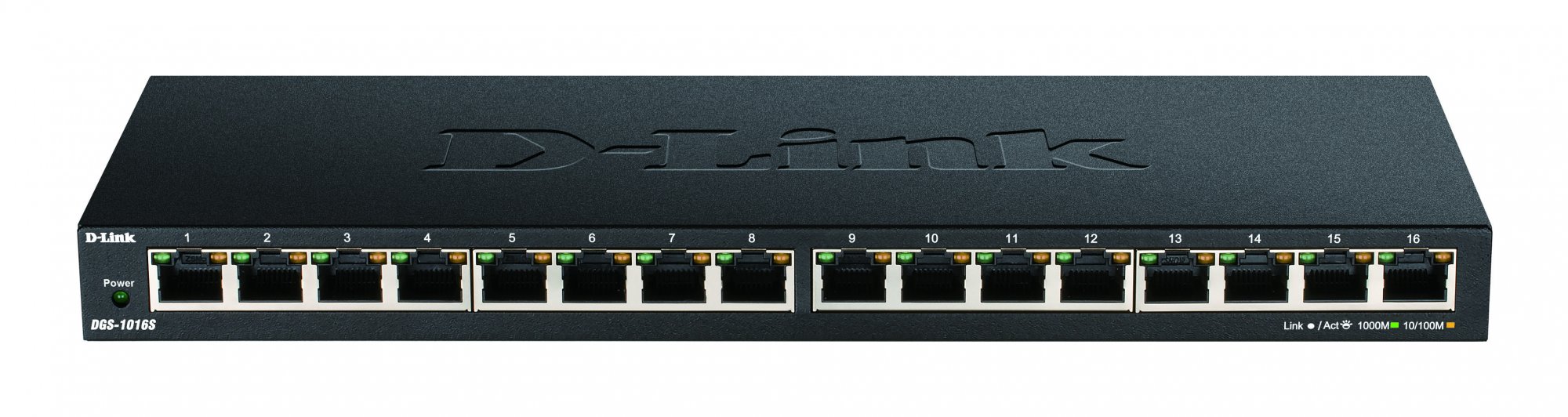

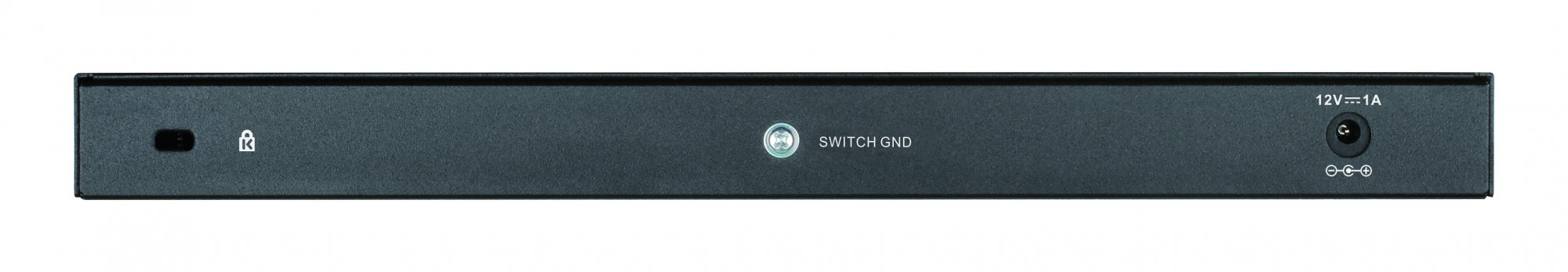

D-Link 16‑Port Gigabit Unmanaged Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3az, IEEE 802.3x. DC input voltage: 12 V

16 x Gigabit ports
Slim, low profile design for desktop or wall mount
Plug & Play simplicity for easy installation
Silent operation with fanless design

Product Properties

Manufacturer
D-Link

Model
DGS-1016S/B

EAN
790069464256

Bullet points

Point
16 x Gigabit ports

Plug & Play simplicity for easy installation

Silent operation with fanless design

Slim, low profile design for desktop or wall mount

Certificates

Certification
CE, FCC, ICES 003, RCM

Data transmission

Jumbo frames
9216

Jumbo frames support
Yes

MAC address table
8000 entries

Number of queues
8

Packet buffer memory
0.512 MB

Packet forwarding rate (1 Gbps)
1488000 pps

Packet forwarding rate (10 Mbps)
14880 pps

Packet forwarding rate (100 Mbps)
148800 pps

Store-and-forward
Yes

Switching capacity
32 Gbit/s

Design

LED indicators
Activity, Link, Power, Speed

Product colour
Black

Safety
LVD

Logistics data

Harmonized System (HS) code
85176990

Management features

Quality of Service (QoS) support
Yes

Switch type
Unmanaged

Network

10G support
No

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Cable length detection
Yes

Copper ethernet cabling technology
1000BASE-T

Flow control support
Yes

Full duplex
Yes

Half duplex
Yes

Networking standards
IEEE 802.1p, IEEE 802.3az, IEEE 802.3x

Operational conditions

Heat dissipation
30.32 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-40 - 70 °C

Performance

Fanless
Yes

Mean time between failures (MTBF)
564658 h

Plug and Play
Yes

Ports & interfaces

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

Switch Number of Ports
16

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

DC input voltage
12 V

Input current
1 A

Power consumption (max)
8.89 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Weight & dimensions

Depth
110 mm

Height
25 mm

Weight
770 g

Width
280 mm
