Description

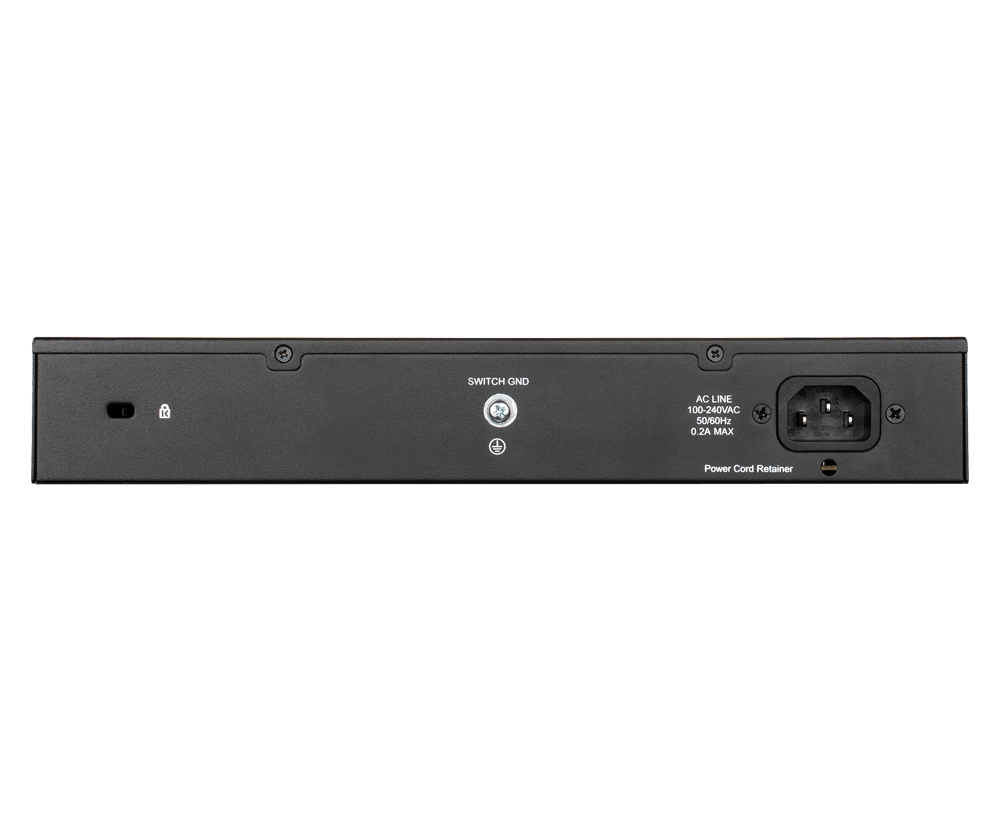

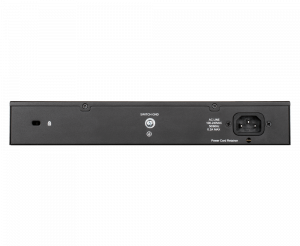

D-Link 24-Port PoE Gigabit Smart Managed Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting

Fanless design for silent operation
Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
Innovative energy saving features are good for your budget, as well as the environment
Get up and going quickly with streamlined first-time setup and ongoing management

Product Properties

Manufacturer
D-Link

Model
DGS-1100-24PV2

EAN
790069451782

Bullet points

Point
Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs

Fanless design for silent operation

Get up and going quickly with streamlined first-time setup and ongoing management

Innovative energy saving features are good for your budget, as well as the environment

Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery

Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security

Certificates

Certification
EMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC cUL, CE LVD, CB, BSMI, CCC

Data transmission

Forwarding rate
35.71 Mpps

Jumbo frames
9216

Jumbo frames support
Yes

MAC address table
8000 entries

Number of queues
4

Packet buffer memory
4.1 MB

Store-and-forward
Yes

Switching capacity
48 Gbit/s

Design

LED indicators
Yes

Product colour
Black

Rack mounting
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

Quality of Service (QoS) support
Yes

Switch layer
L2

Switch type
Managed

System event log
Yes

Web-based management
Yes

Multicast features

Multicast support
Yes

Network

10G support
No

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Broadcast storm control
Yes

Copper ethernet cabling technology
10BASE-T, 10BASE-TX, 1000BASE-T

Flow control support
Yes

Full duplex
Yes

Head-of-line (HOL) blocking
Yes

Link aggregation
Yes

Networking standards
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Number of VLANs
128

Port mirroring
Yes

Rate limiting
Yes

Spanning tree protocol
Yes

Virtual LAN features
Port-based VLAN, Voice VLAN

VLAN support
Yes

Operational conditions

Heat dissipation
107.5 BTU/h

Operating altitude
0 - 2000 m

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
-5 - 50 °C

Storage relative humidity (H-H)
0 - 95%

Storage temperature (T-T)
-40 - 70 °C

Performance

Built-in processor
Yes

Fanless
Yes

Flash memory
16 MB

Mean time between failures (MTBF)
255003 h

Memory type
DRAM

Noise level
0 dB

Processor frequency
125 MHz

Ports & interfaces

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

Switch Number of Ports
24

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input voltage
100 - 240 V

Power consumption (max)
19.5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) power per port
30 W

Power over Ethernet plus (PoE+) ports quantity
12

Total Power over Ethernet (PoE) budget
100 W

Security

DHCP features
DHCP client

IGMP snooping
Yes

Queue scheduling algorithms
SPQ, Weighted Round Robin (WRR)

Security algorithms
SNMP, SSL/TLS

Weight & dimensions

Depth
230 mm

Height
44 mm

Weight
2.2 kg

Width
280 mm
