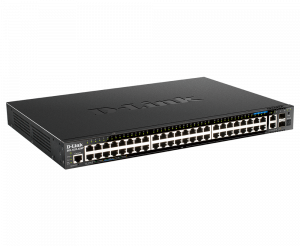

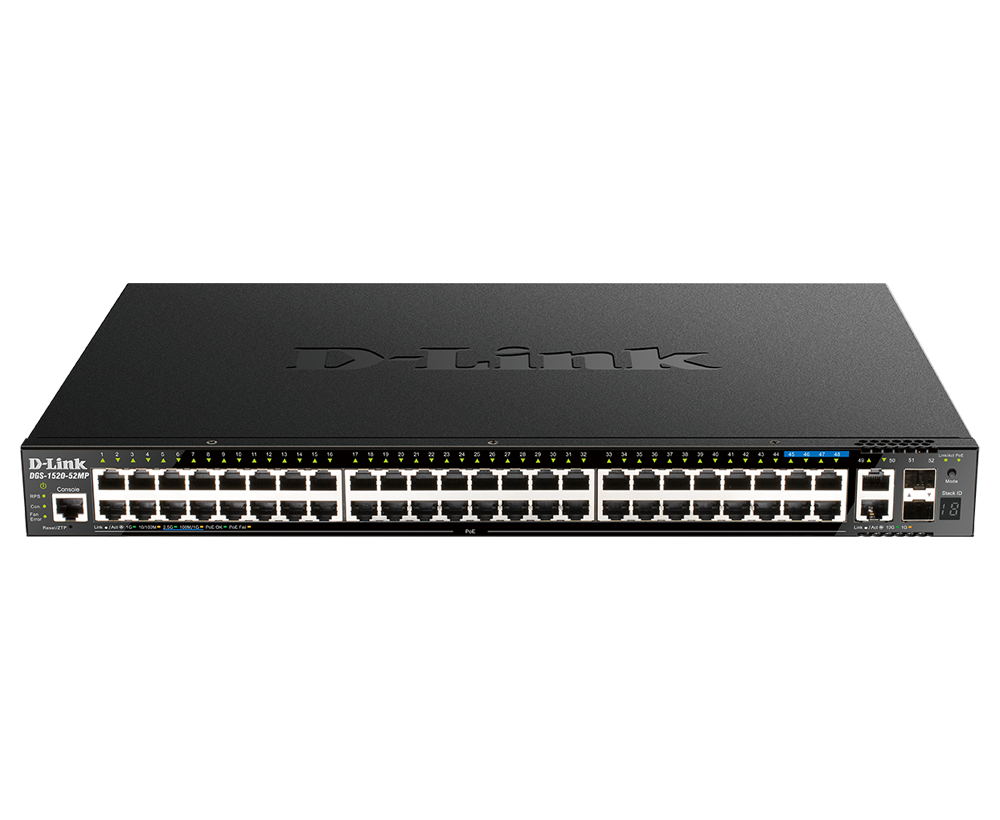

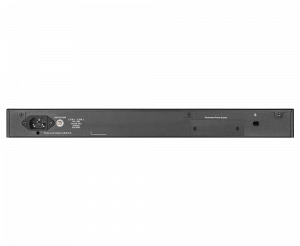

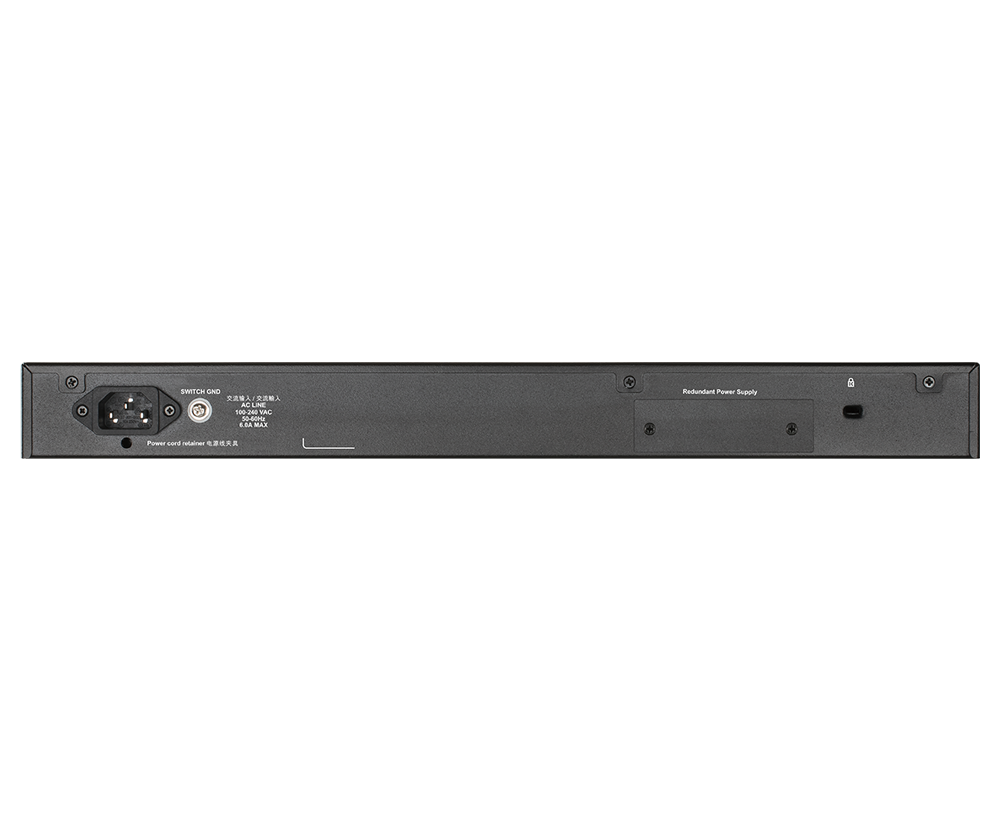

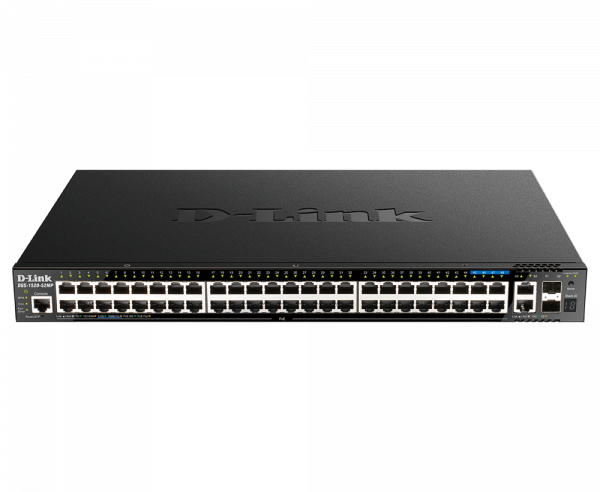

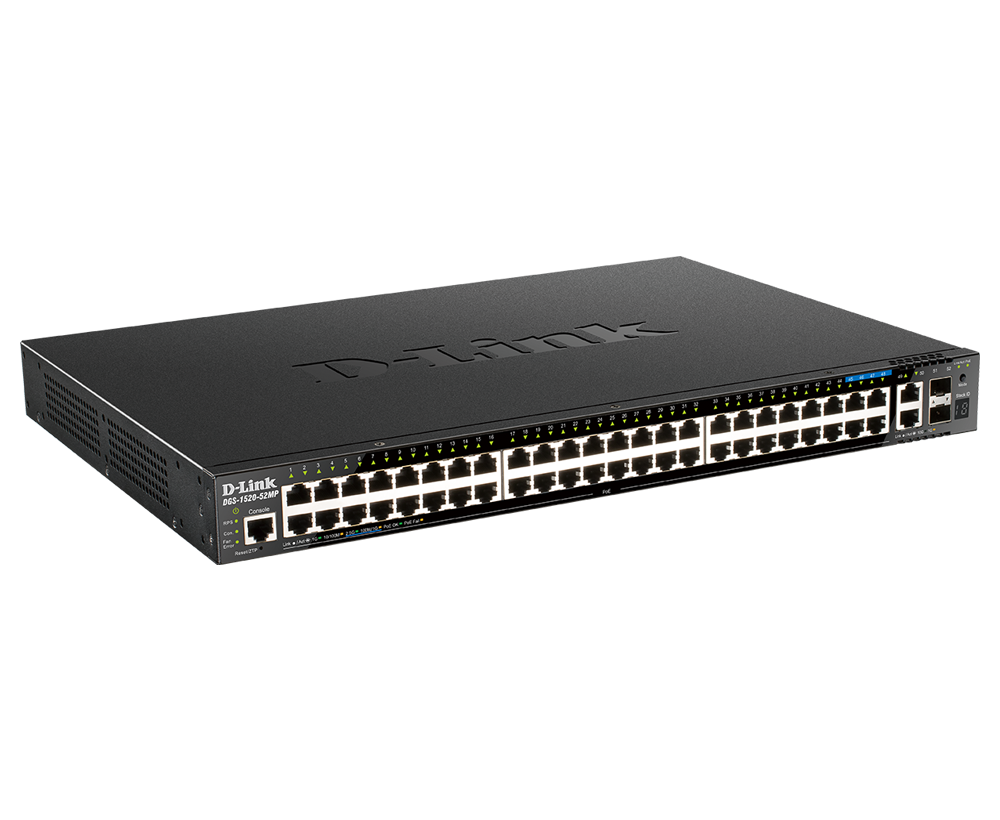

D-Link 44 x 10/100/1000BASE-T PoE Ports, 4 x 2.5GBase-T PoE Ports, 2 x 10GBASE-T Ports and 2 x 10G SFP+ Ports Smart Managed Switch
Roll over image to zoom inClick to Open expanded view
D-Link 44 x 10/100/1000BASE-T PoE Ports, 4 x 2.5GBase-T PoE Ports, 2 x 10GBASE-T Ports and 2 x 10G SFP+ Ports Smart Managed Switch
D-Link 44 x 10/100/1000BASE-T PoE Ports, 4 x 2.5GBase-T PoE Ports, 2 x 10GBASE-T Ports and 2 x 10G SFP+ Ports Smart Managed Switch
D-Link 44 x 10/100/1000BASE-T PoE Ports, 4 x 2.5GBase-T PoE Ports, 2 x 10GBASE-T Ports and 2 x 10G SFP+ Ports Smart Managed Switch
Print
Model: DGS-1520-52MP
EAN: 790069454806

D-Link 44 x 10/100/1000BASE-T PoE Ports, 4 x 2.5GBase-T PoE Ports, 2 x 10GBASE-T Ports and 2 x 10G SFP+ Ports Smart Managed Switch

Manufacturer:
D-Link
D-Link 44 x 10/100/1000BASE-T PoE Ports, 4 x 2.5GBase-T PoE Ports, 2 x 10GBASE-T Ports and 2 x 10G SFP+ Ports Smart Managed Switch, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

D-Link 44 x 10/100/1000BASE-T PoE Ports, 4 x 2.5GBase-T PoE Ports, 2 x 10GBASE-T Ports and 2 x 10G SFP+ Ports Smart Managed Switch. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 44. MAC address table: 16384 entries, Switching capacity: 188 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz,.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
  • Effortless deployment with Zero Touch Provisioning
  • Multi-site management via Web GUI
  • Perfect for SMB access & aggregation layers
  • Quickly add 10 GB Ethernet upgrade to infrastructure
  • Power over Ethernet and fiber options with various port combinations

Product Properties

  • Model
  • DGS-1520-52MP
  • EAN
  • 790069454806
  • Bullet points
  • Point
  • Effortless deployment with Zero Touch Provisioning
    Multi-site management via Web GUI
    Perfect for SMB access & aggregation layers
    Power over Ethernet and fiber options with various port combinations
    Quickly add 10 GB Ethernet upgrade to infrastructure
  • Certificates
  • Certification
  • CE Class A, FCC Class A, IC Class A, RCM Class A, VCCI Class A, BSMI Class A
  • Data transmission
  • Forwarding rate
  • 139.88 Mpps
  • Jumbo frames
  • 12288
  • Jumbo frames support
  • Yes
  • MAC address table
  • 16384 entries
  • Static route
  • Yes
  • Store-and-forward
  • Yes
  • Switching capacity
  • 188 Gbit/s
  • Design
  • Form factor
  • 1U
  • LED indicators
  • Activity, Link, Power, Speed
  • Product colour
  • Black
  • Rack mounting
  • Yes
  • Stackable
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Switch layer
  • L3
  • Switch type
  • Managed
  • Web-based management
  • Yes
  • Multicast features
  • Multicast Listener Discovery (MLD) snooping
  • v1/v2
  • Network
  • 10G support
  • Yes
  • Auto MDI/MDI-X
  • Yes
  • Copper ethernet cabling technology
  • 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T
  • Flow control support
  • Yes
  • Head-of-line (HOL) blocking
  • Yes
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • Spanning tree protocol
  • Yes
  • VLAN support
  • Yes
  • Operational conditions
  • Heat dissipation
  • 1635.1 BTU/h
  • Operating relative humidity (H-H)
  • 10 - 95%
  • Operating temperature (T-T)
  • -5 - 50 °C
  • Storage relative humidity (H-H)
  • 5 - 95%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Performance
  • Mean time between failures (MTBF)
  • 328174 h
  • Noise level
  • 56.7 dB
  • Physical stacking (units)
  • 8
  • Virtual stacking (units)
  • 32
  • Ports & interfaces
  • 10G Ethernet (copper) ports quantity
  • 2
  • 2.5G Ethernet (copper) ports quantity
  • 4
  • Fiber optic connector
  • SFP+
  • Fiber ports quantity
  • 2
  • SFP+ module slots quantity
  • 2
  • Switch Number of Ports
  • 44
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input voltage
  • 100 - 240 V
  • Power consumption (max)
  • 459.5 W
  • Power source
  • AC
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet plus (PoE+) ports quantity
  • 44
  • Total Power over Ethernet (PoE) budget
  • 370 W
  • Protocols
  • GARP VLAN Registration Protocol (GVRP)
  • Yes
  • Routing protocols
  • OSPF, RIP, RIPng, VRRP
  • Security
  • BPDU filtering/protection
  • Yes
  • DHCP features
  • DHCP snooping
  • IGMP snooping
  • Yes
  • Loop protection
  • Yes
  • MAC address entries
  • Static MAC address entries
  • Weight & dimensions
  • Depth
  • 308.5 mm
  • Height
  • 44 mm
  • Weight
  • 4.8 kg
  • Width
  • 441 mm
