Description

D-Link 4G LTE M2M WiFi Router DWM-312W. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n). Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Mobile network generation: 4G, 2G standards: Edge, GPRS, GSM, 3G standards: DC-HSDPA, HSPA, UMTS. Security algorithms: 128-bit AES

Dual-SIM card for always-on Internet at 4G or 3G/LTE
Blazing fast download speeds of up to 150 Mbps1
Plug-and-Play with Wi-Fi and Ethernet interface
Integrated advanced VPN options

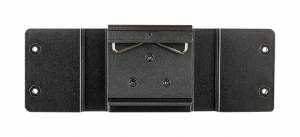

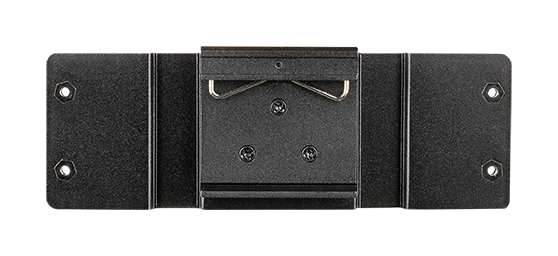

Rapid deployment anywhere with simple DIN/wall-mount
Rugged design to handle any environment

Product Properties

Manufacturer
D-Link

Model
DWM-312W

EAN
790069453045

Antenna

Antenna connector type
SMA

Antenna design
External

Antenna type
1x1

Antennas quantity
3

Bullet points

Point
Blazing fast download speeds of up to 150 Mbps1

Dual-SIM card for always-on Internet at 4G or 3G/LTE

Integrated advanced VPN options

Plug-and-Play with Wi-Fi and Ethernet interface

Rapid deployment anywhere with simple DIN/wall-mount

Rugged design to handle any environment

Certificates

Compliance certificates
CE, RoHS

Design

LED indicators
Activity, Power, Status

Product colour
Black

Product type
Desktop/pole router

Wall mountable
Yes

Features

Firmware upgradeable
Yes

Management features

Quality of Service (QoS) support
Yes

Web-based management
Yes

Wi-Fi Multimedia (WMM)/(WME)
Yes

WPS push button
Yes

Mobile network

2G standards
Edge, GPRS, GSM

3G standards
DC-HSDPA, HSPA, UMTS

Dual SIM support
Yes

Mobile network generation
4G

Network

Cabling technology
10/100Base-T(X)

Dynamic DNS (DDNS)
Yes

Ethernet LAN
Yes

Ethernet LAN data rates
10,100 Mbit/s

Ethernet LAN interface type
Fast Ethernet

Flow control support
Yes

Networking standards
IEEE 802.3i, IEEE 802.3u

VPN Passthrough
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
-20 - 60 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-30 - 80 °C

Packaging content

AC adapter included
Yes

Antenna included
Yes

Cables included
LAN (RJ-45)

Packaging data

Screws included
Yes

Ports & interfaces

DC-in jack
Yes

Ethernet LAN (RJ-45) ports
1

USB port
No

Power

Output current
2 A

Output voltage
9 - 36 V

Power source type
DC

Protocols

DHCP client
Yes

Routing protocols
BGP, OSPFv2

Security

DMZ support
Yes

Filtering
Yes

Guest access
Yes

IP address filtering
Yes

MAC address filtering
Yes

Security algorithms
128-bit AES

Stateful Packet Inspection (SPI)
Yes

URL filtering
Yes

WAN connection

3G/4G USB modem compatibility
Yes

DSL WAN
No

Ethernet WAN
Yes

SIM card slot
Yes

WAN connection type
RJ-45

Weight & dimensions

Depth
76 mm

Height
32 mm

Weight
500 g

Width
134 mm

Wireless LAN features

Top Wi-Fi standard
Wi-Fi 4 (802.11n)

Wi-Fi band
Single-band (2.4 GHz)

Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)
