Description

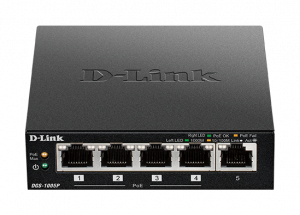

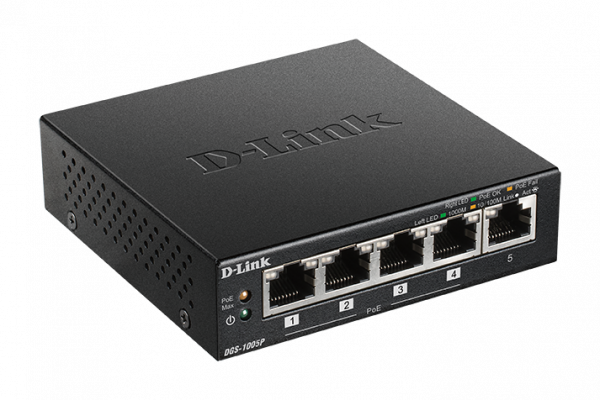

D-Link 5-Port Desktop Gigabit PoE+ Switch. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE.... Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable

Product Properties

Manufacturer
D-Link

Model
DGS-1005P/B

EAN
790069464270

Certificates

Certification
CE, BSMI, FCC , VCCI, RCM, cUL, CB, LVD, BSMI

Data transmission

Jumbo frames support
Yes

MAC address table
2000 entries

Store-and-forward
Yes

Switching capacity
10 Gbit/s

Design

Housing material
Metal

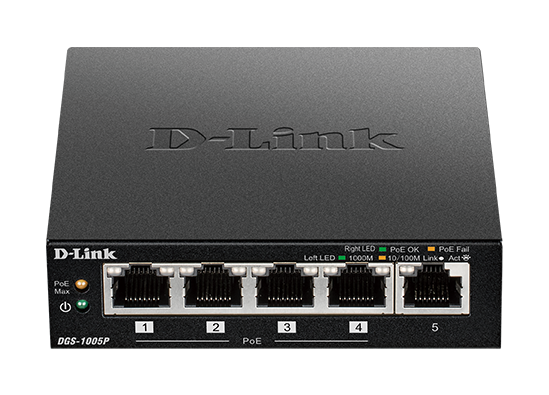

LED indicators
Activity, Link, PoE, Power, Speed, Status

Product colour
Black

Rack mounting
No

Wall mountable
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

Quality of Service (QoS) support
Yes

Switch layer
L2

Switch type
Unmanaged

Network

10G support
No

Auto MDI/MDI-X
Yes

Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T

Full duplex
Yes

MAC address auto-learning supported
Yes

Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

Operational conditions

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
0 - 95%

Storage temperature (T-T)
-10 - 70 °C

Performance

Buffer size
64 KB

Plug and Play
Yes

Ports & interfaces

Gigabit Ethernet (copper) ports quantity
5

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

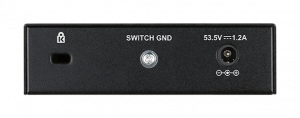

Power connector
DC-in jack

Switch Number of Ports
5

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) ports quantity
4

Power over Ethernet (PoE) power per port
30 W

Total Power over Ethernet (PoE) budget
60 W

Security

Packet filtering
7.44 Mpps

Weight & dimensions

Depth
98 mm

Height
28 mm

Weight
260 g

Width
100 mm
