Description

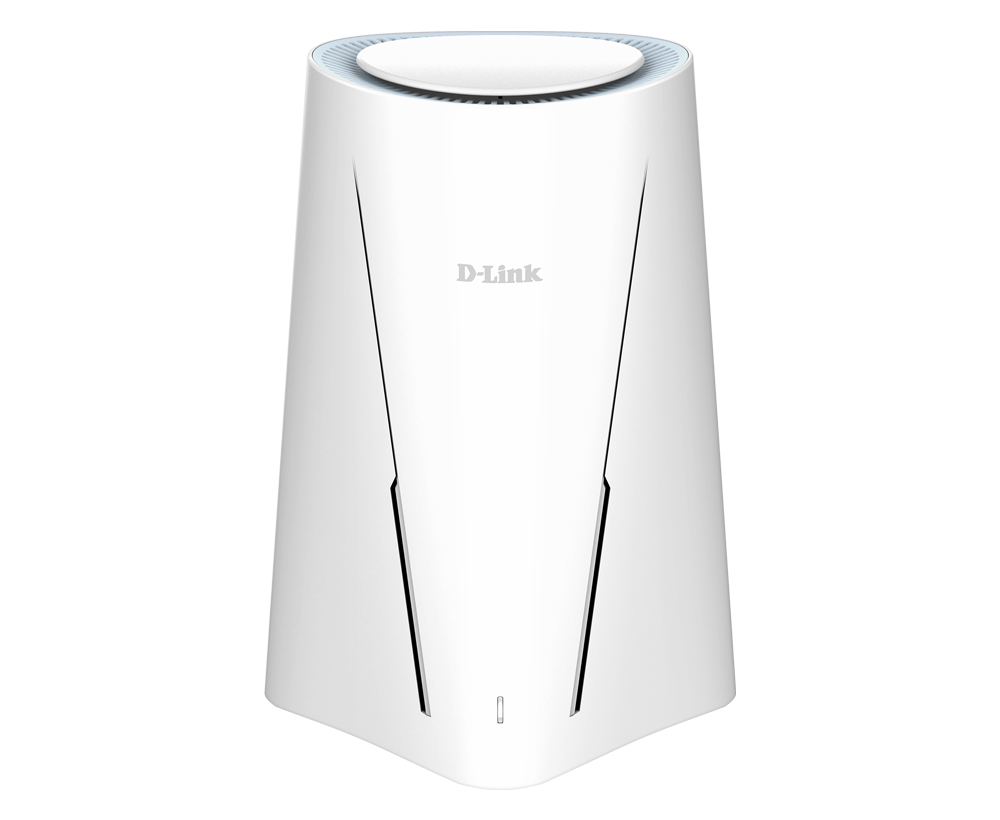

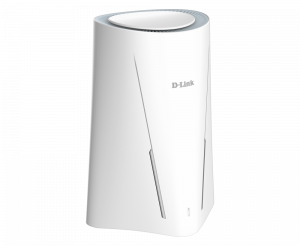

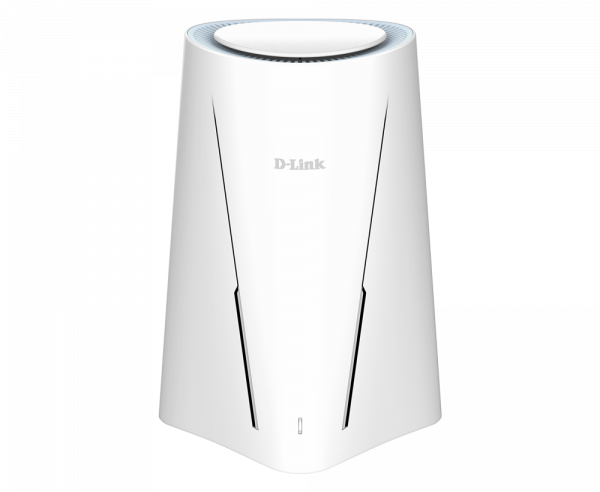

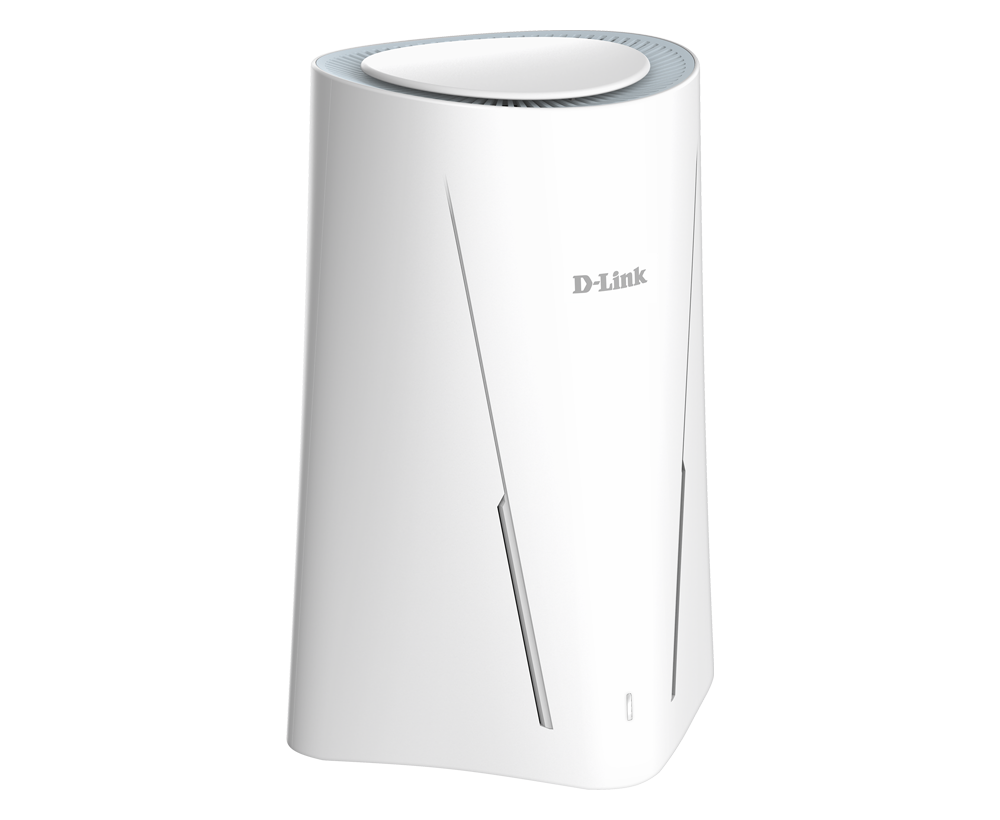

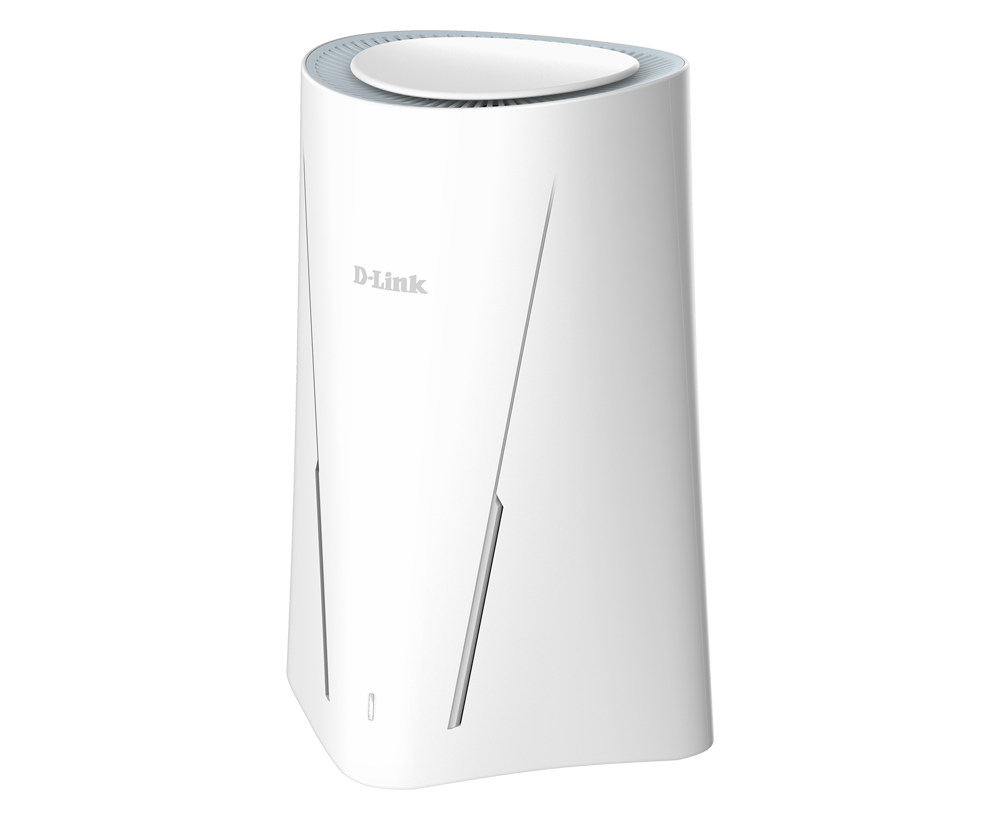

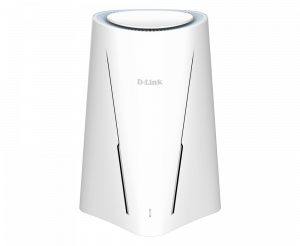

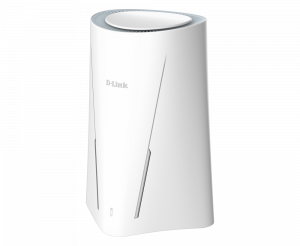

D-Link 5G NR AX3000 Wi-Fi 6 Router. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 3400 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 5G, 3G standards: WCDMA, 4G standard: LTE-TDD & LTE-FDD. Security algorithms: WPA-PSK, WPA2-PSK, WPA3-PSK

Ultra-fast 5G NR, AX3000 Wi-Fi 6 speed
Support 5G NSA/SA and 4G LTE
5G connectivity speeds up to 3.4 Gbps
Built-in SIM card slot for 5G network
Network protection:

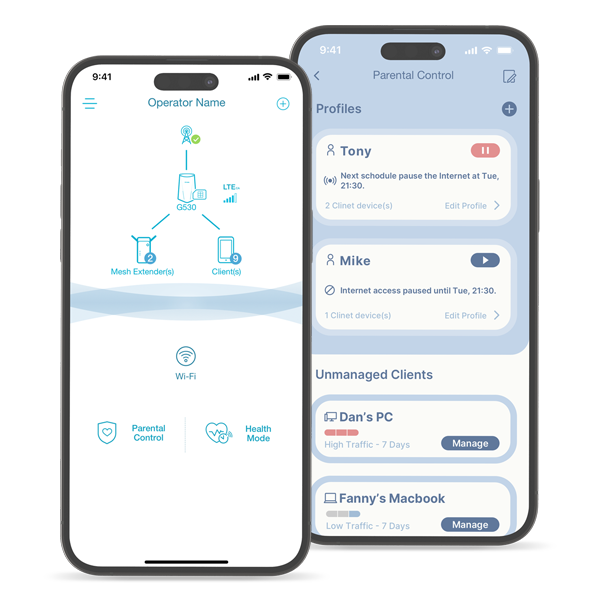

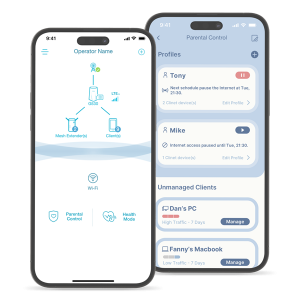

Parental Control, Guest Wi-Fi
Security protection:
WPA3 encryption, EN 303 645/IEC 62443-4-1 certifications

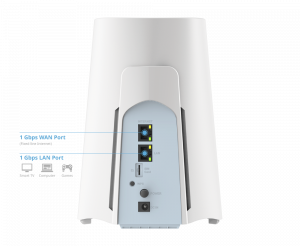

Wired connectivity:

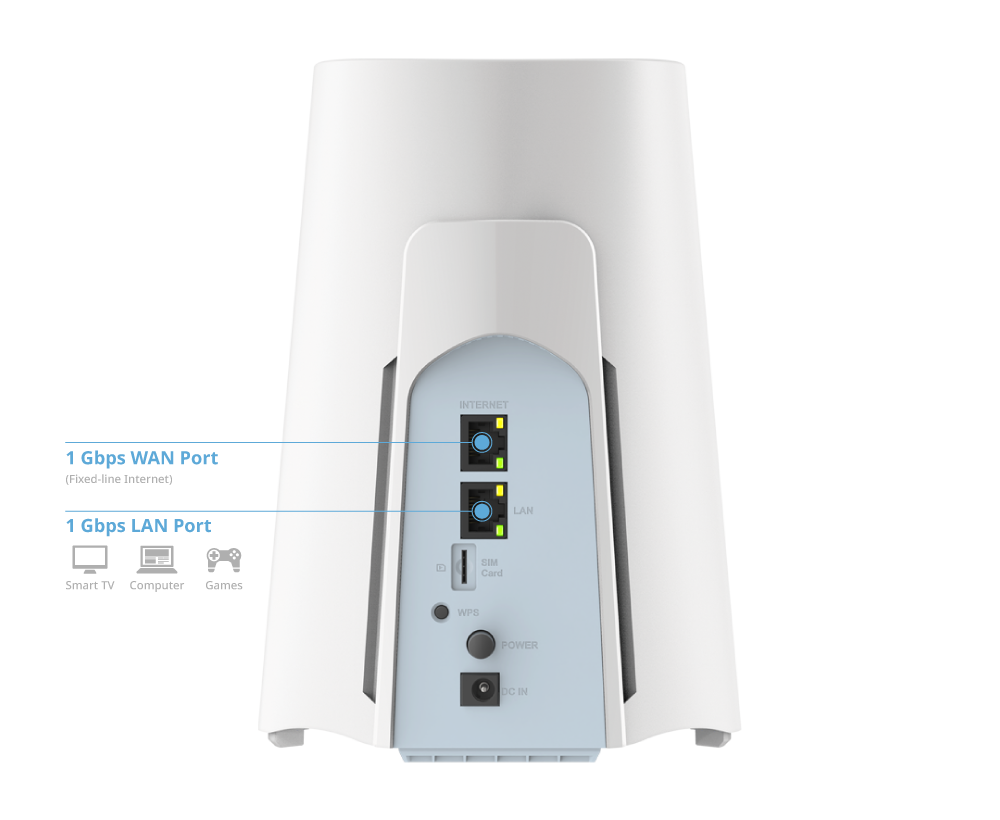

1 Gigabit WAN port and 1 Gigabit LAN port
Flexible network access:
auto failover for fixed-line and mobile Internet
Easy setup and management

Product Properties

Manufacturer
D-Link

Model
G530

EAN
790069476020

Antenna

Antenna design
Internal

Antennas quantity
8

Bullet points

Point
1 Gigabit WAN port and 1 Gigabit LAN port

5G connectivity speeds up to 3.4 Gbps

auto failover for fixed-line and mobile Internet

Built-in SIM card slot for 5G network

Easy Setup and management

Flexible network access:

Network protection:

Parental Control, Guest Wi-Fi

Security protection:

Support 5G NSA/SA and 4G LTE

Ultra-fast 5G NR, AX3000 Wi-Fi 6 speed

Wired connectivity:

WPA3 encryption, EN 303 645/IEC 62443-4-1 certifications

Certificates

Compliance certificates
Federal Communications Commission (FCC), Industry Canada (IC), PTCRB

Design

LED indicators
Power, Status, WPS

On/off switch
Yes

Product colour
White

Product type
Desktop/pole router

Features

Plug and Play
Yes

Management features

Reset button
Yes

Web-based management
Yes

WPS push button
Yes

Mobile network

3G standards
WCDMA

4G standard
LTE-TDD & LTE-FDD

5G standard
NR

Mobile network generation
5G

Network

Cabling technology
10/100/1000Base-T(X)

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Ethernet LAN interface type
Gigabit Ethernet

Networking standards
IEEE 802.3ab, IEEE 802.3u

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
0 - 95%

Storage temperature (T-T)
-20 - 65 °C

Packaging content

AC adapter included
Yes

Manual
Yes

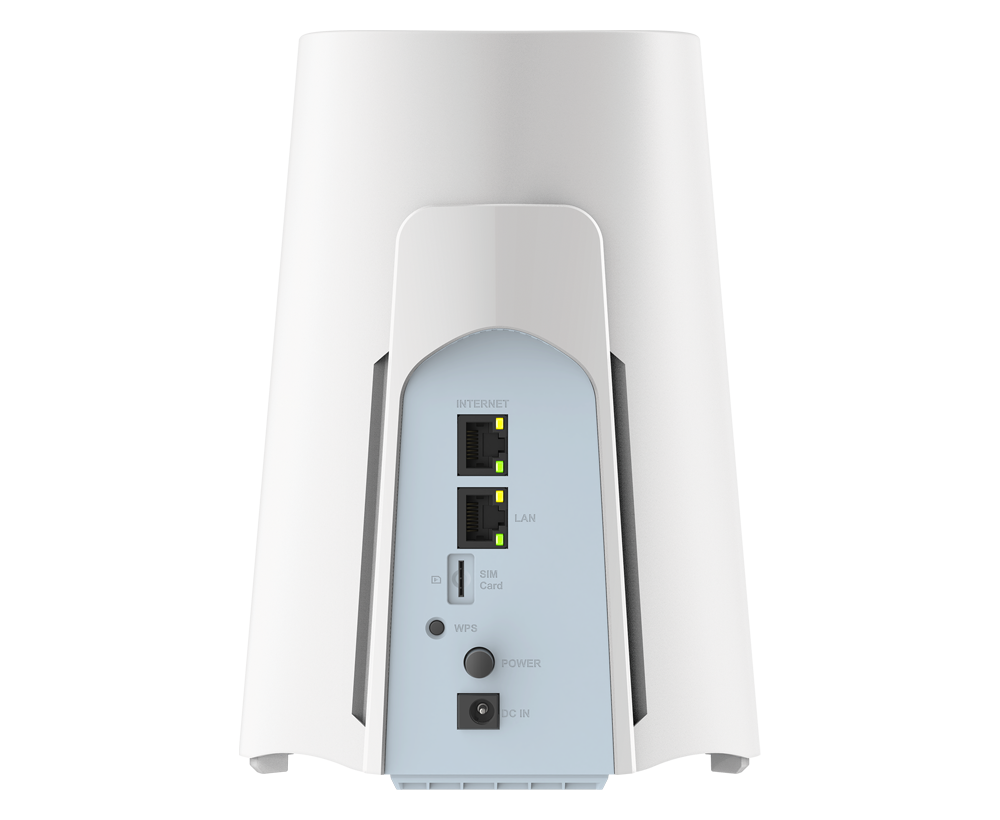

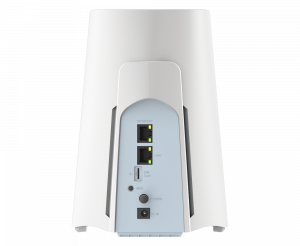

Ports & interfaces

DC-in jack
Yes

Ethernet LAN (RJ-45) ports
1

USB port
No

Power

Output current
2.5 A

Output voltage
12 V

Power source type
DC

Security

DMZ support
Yes

Filtering
Yes

Guest access
Yes

IP address filtering
Yes

MAC address filtering
Yes

Parental control
Yes

Security algorithms
WPA-PSK, WPA2-PSK, WPA3-PSK

Stateful Packet Inspection (SPI)
Yes

System requirements

Mobile operating systems supported
Android, iOS

WAN connection

3G/4G USB modem compatibility
Yes

DSL WAN
No

Ethernet WAN
Yes

SIM card slot
Yes

WAN connection type
RJ-45

Weight & dimensions

Depth
146 mm

Height
205 mm

Weight
623 g

Width
137 mm

Wireless LAN features

Top Wi-Fi standard
Wi-Fi 6 (802.11ax)

Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

WLAN data transfer rate (max)
3400 Mbit/s
