Description

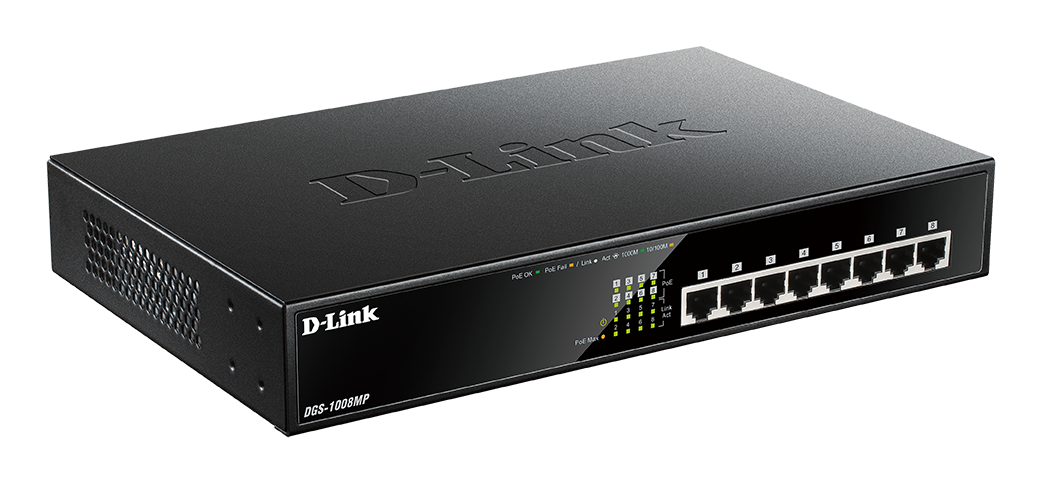

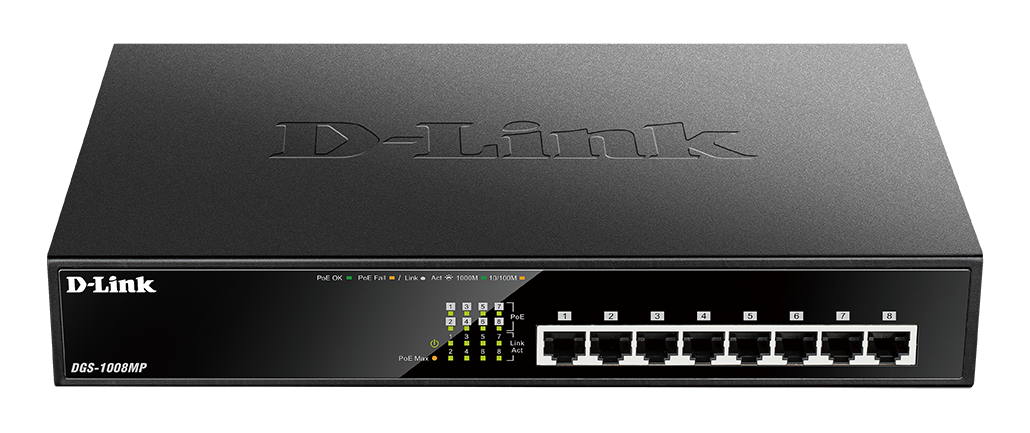

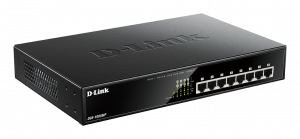

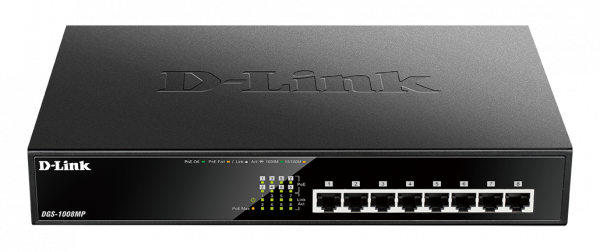

D-Link DGS-1008MP 8-Port Desktop Gigabit Max PoE Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

High-Speed Networking
Eight 10/100/1000 Mbps Ethernet ports
Full/half-duplex for 10/100 Mbps Ethernet and full-duplex for 1000 Mbps Ethernet Reliability
IEEE 802.3x Flow Control
Store-and-forward switching scheme
RoHS compliant Easy Setup
Plug-and-play installation
Auto MDI/MDI-X crossover on all ports Desktop and Rackmount Design
Rack-mountable 11” metal casing (1U)
Fanless design PoE Functionality
IEEE 802.3at-compliant
125 W total power budget
Up to 30 W power output per port

Product Properties

Manufacturer
D-Link

Model
DGS-1008MP

EAN
790069420337

Bullet points

Point
125 W total power budget

Auto MDI/MDI-X crossover on all ports Desktop and Rackmount Design

Eight 10/100/1000 Mbps Ethernet ports

Fanless design PoE Functionality

Full/half-duplex for 10/100 Mbps Ethernet and full-duplex for 1000 Mbps Ethernet Reliability

High-Speed Networking

IEEE 802.3at-compliant

IEEE 802.3x Flow Control

Plug-and-play installation

Rack-mountable 11” metal casing (1U)

RoHS compliant Easy Setup

Store-and-forward switching scheme

Up to 30 W power output per port

Data transmission

MAC address table
8000 entries

Packet buffer memory
0.192 MB

Packet forwarding rate (1 Gbps)
14880 pps

Packet forwarding rate (10 Mbps)
1488000 pps

Packet forwarding rate (100 Mbps)
148800 pps

Store-and-forward
Yes

Switching capacity
16 Gbit/s

Design

Form factor
1U

LED indicators
Yes

Product colour
Black

Rack mounting
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

Switch type
Unmanaged

Network

Auto MDI/MDI-X
Yes

Full duplex
Yes

Networking standards
IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Operational conditions

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-10 - 70 °C

Packaging data

Package depth
391 mm

Package height
102 mm

Package weight
2.85 kg

Package width
262 mm

Ports & interfaces

Installed SFP modules quantity
0

Switch Number of Ports
8

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

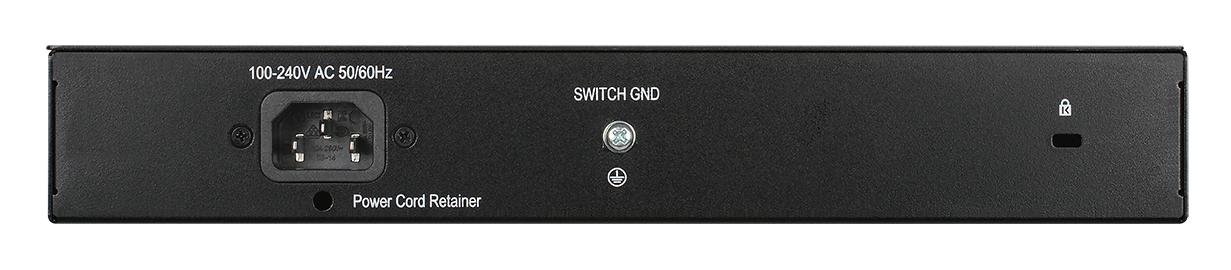

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power consumption (typical)
13.5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet plus (PoE+) ports quantity
8

Total Power over Ethernet (PoE) budget
140 W

Technical details

Master (outer) cases per pallet (air)
36 pc(s)

Master (outer) cases per pallet (sea)
36 pc(s)

Pallet gross length
110 cm

Pallet gross weight (air)
563.8 kg

Pallet gross weight (sea)
563.8 kg

Pallet gross width
120 cm

Pallet height (air)
193.5 cm

Pallet height (sea)
193.5 cm

Products per pallet (air)
180 pc(s)

Products per pallet (sea)
180 pc(s)

Products per shipping (inner) case
5 pc(s)

Shipping (inner) case gross weight
15.3 kg

Shipping (inner) case height
28.5 cm

Shipping (inner) case length
54.5 cm

Shipping (inner) case net weight
14.2 kg

Shipping (inner) case width
40.6 cm

Weight & dimensions

Depth
180 mm

Height
44 mm

Weight
1.84 kg

Width
280 mm
