Description

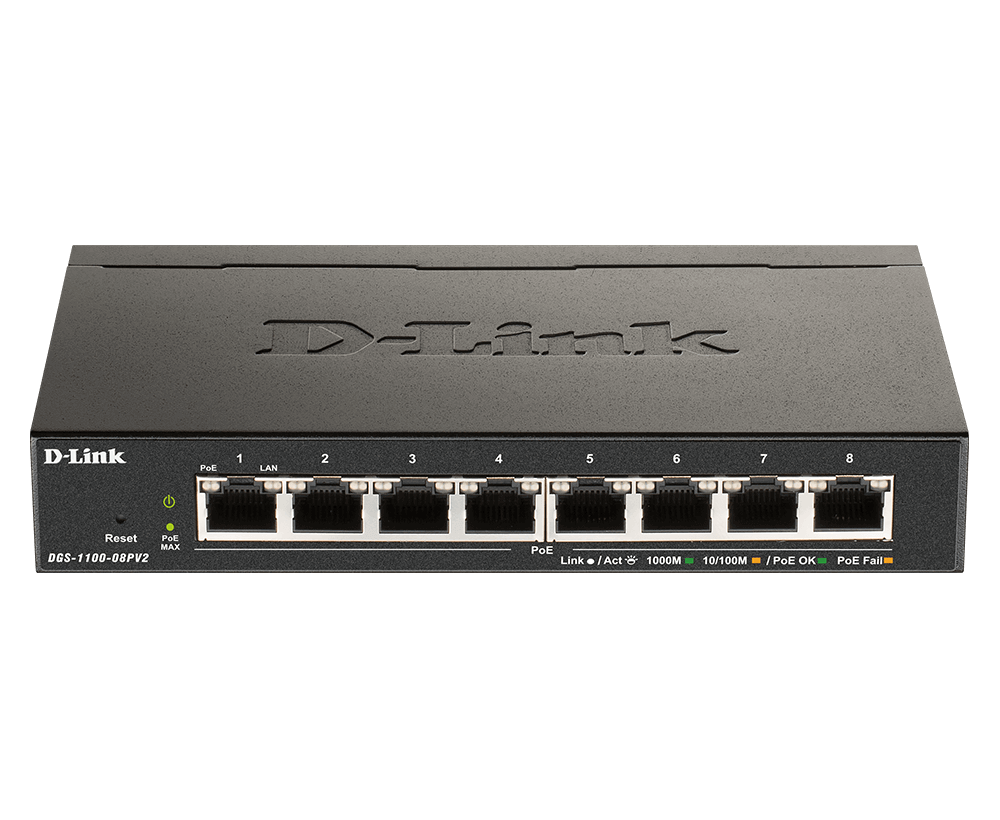

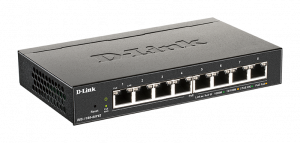

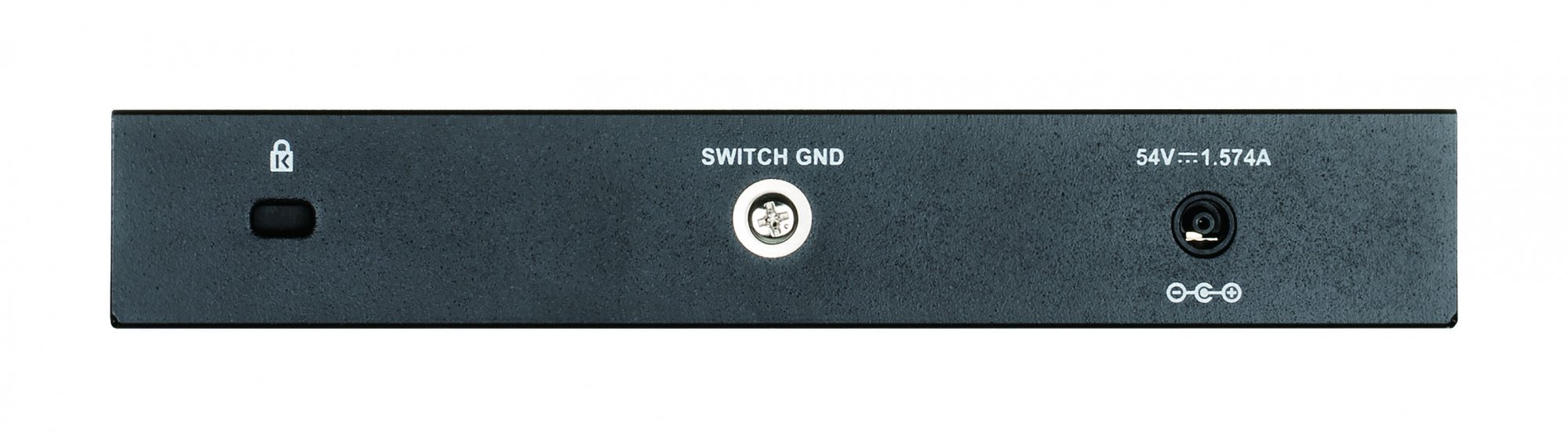

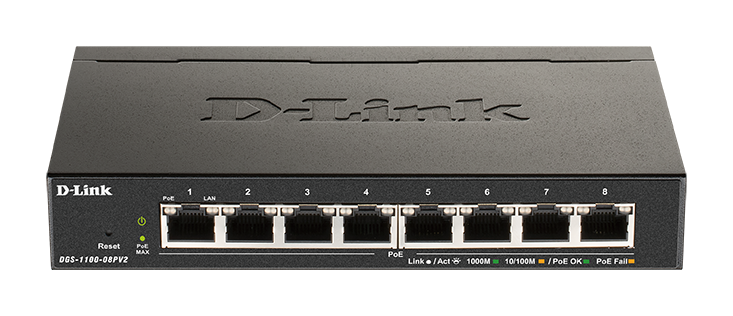

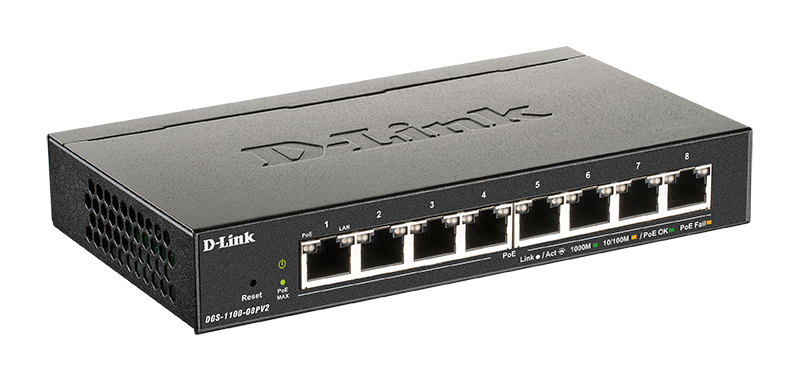

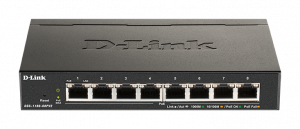

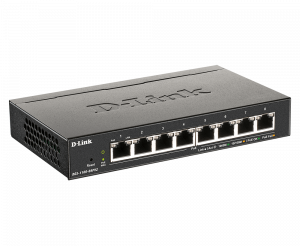

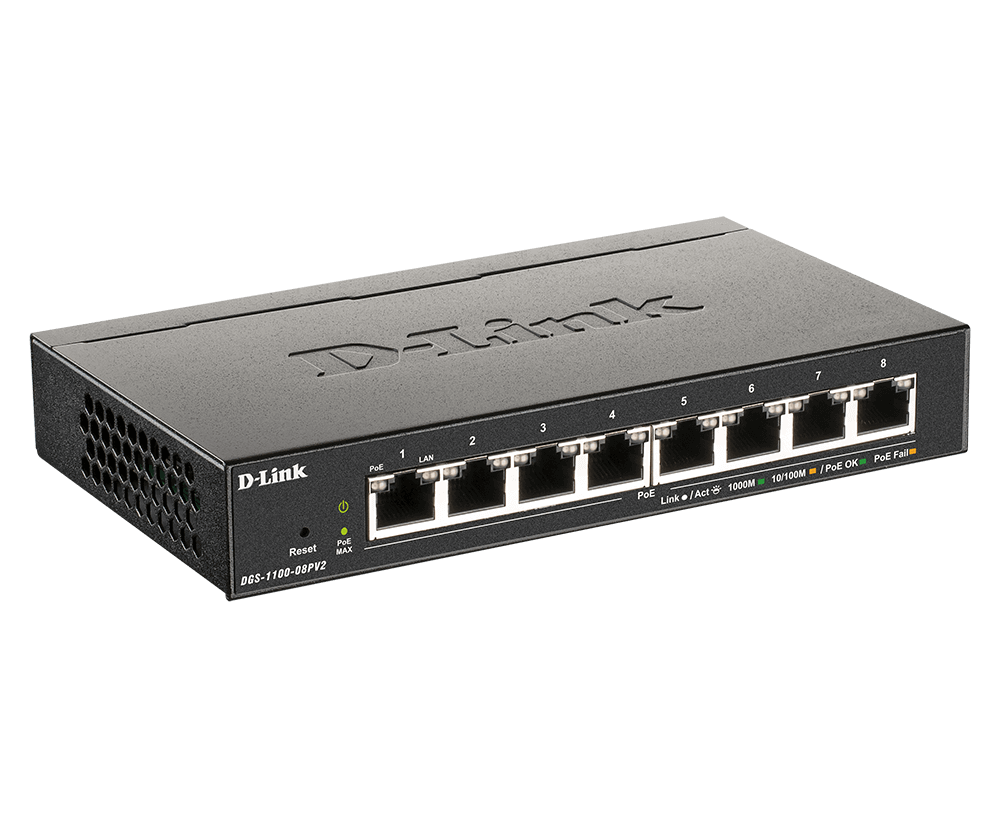

D-Link DGS-1100-08PV2/B network switch. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4096 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE.... Power over Ethernet (PoE)

8 x 10/100/1000BASE-T PoE ports
Supports IEEE 802.3at PoE
64W PoE power budget
Compact design for convenient placement
Fanless design for silent operation
Innovative D-Link Green energy saving features
Complete web interface for comprehensive switch management

Product Properties

Manufacturer
D-Link

Model
DGS-1100-08PV2/B

EAN
790069469046

Bullet points

Point
64W PoE power budget

8 x 10/100/1000BASE-T PoE ports

Compact design for convenient placement

Complete web interface for comprehensive switch management

Fanless design for silent operation

Innovative D-Link Green energy saving features

Supports IEEE 802.3at PoE

Certificates

Certification
FCC Class B, CE Class B, VCCI Class B, BSMI cUL, CE LVD, CB, BSMI

Compliance certificates
CE, RoHS

Data transmission

Forwarding rate
11.9 Mpps

Jumbo frames
9216

Jumbo frames support
Yes

MAC address table
4096 entries

Number of queues
4

Switching capacity
16 Gbit/s

Design

LED indicators
Yes

Product colour
Black

Rack mounting
No

Logistics data

Harmonized System (HS) code
85176990

Management features

Quality of Service (QoS) support
Yes

Switch layer
L2/L3

Switch type
Managed

Web-based management
Yes

Multicast features

Multicast support
Yes

Network

10G support
No

Auto MDI/MDI-X
Yes

Broadcast storm control
Yes

Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T

Ethernet LAN data rates
10,100,1000 Mbit/s

Flow control support
Yes

Full duplex
Yes

Half duplex
Yes

Link aggregation
Yes

Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u

Number of VLANs
4094

Port mirroring
Yes

Virtual LAN features
Port-based VLAN, Tagged VLAN, Voice VLAN

VLAN support
Yes

Operational conditions

Heat dissipation
265.85 BTU/h

Operating relative humidity (H-H)
0 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
0 - 95%

Storage temperature (T-T)
-40 - 70 °C

Performance

Fanless
Yes

Flash memory
2 MB

Mean time between failures (MTBF)
786841 h

Ports & interfaces

Gigabit Ethernet (copper) ports quantity
8

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

Switch Number of Ports
8

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power consumption (max)
77.9 W

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) power per port
30 W

Power over Ethernet plus (PoE+) ports quantity
8

Total Power over Ethernet (PoE) budget
64 W

Security

IGMP snooping
Yes

Loop protection
Yes

Queue scheduling algorithms
SP, Weighted Round Robin (WRR)

Sustainability

Sustainability compliance
Yes

Weight & dimensions

Depth
97.8 mm

Height
28.6 mm

Weight
430 g

Width
171 mm
