Description

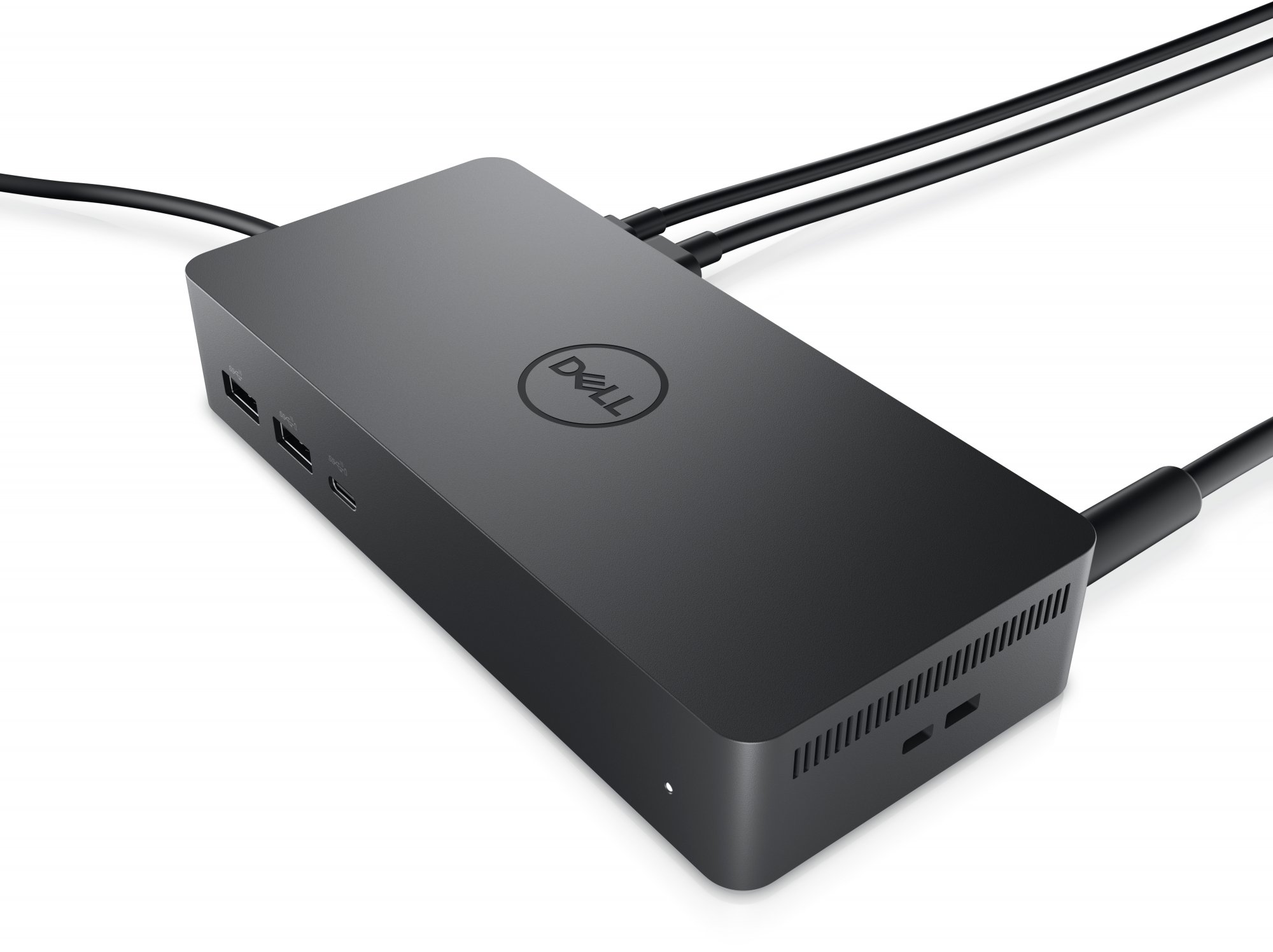

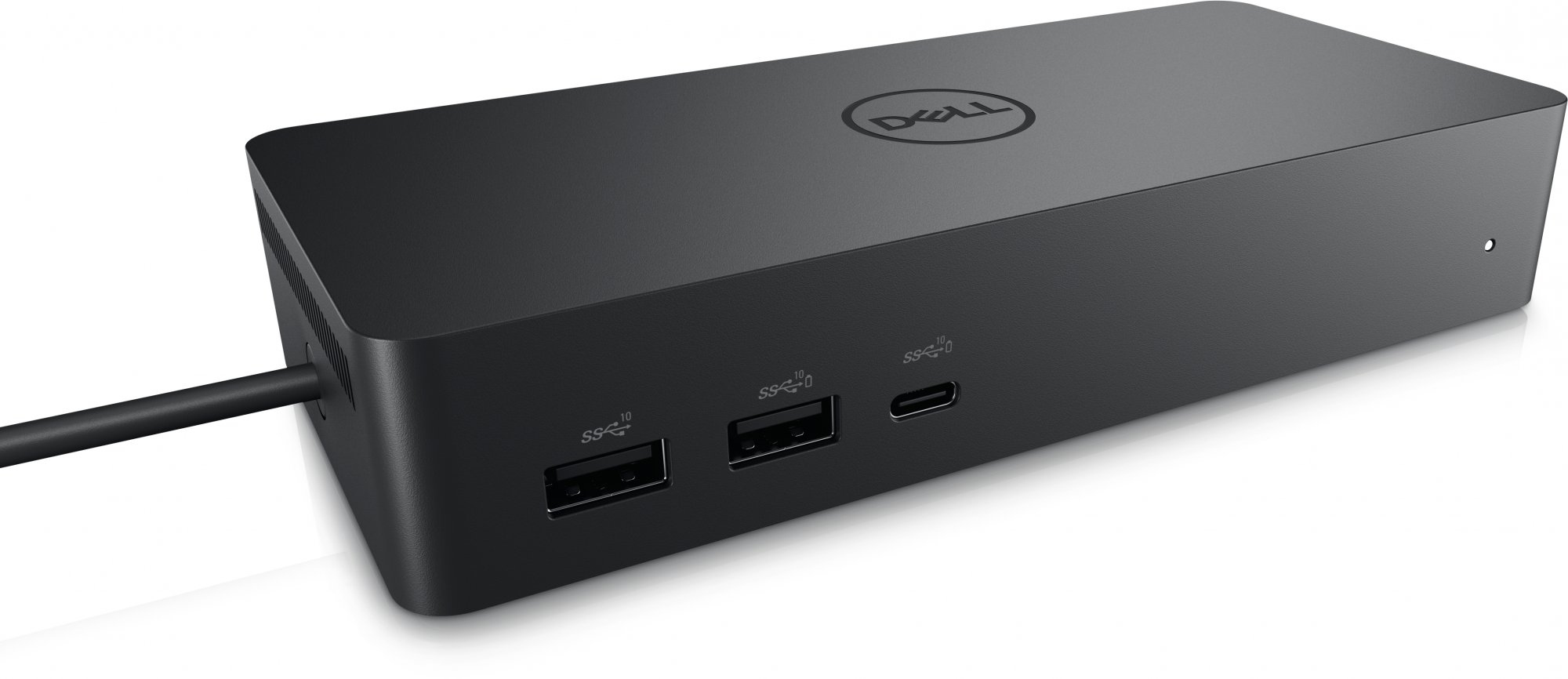

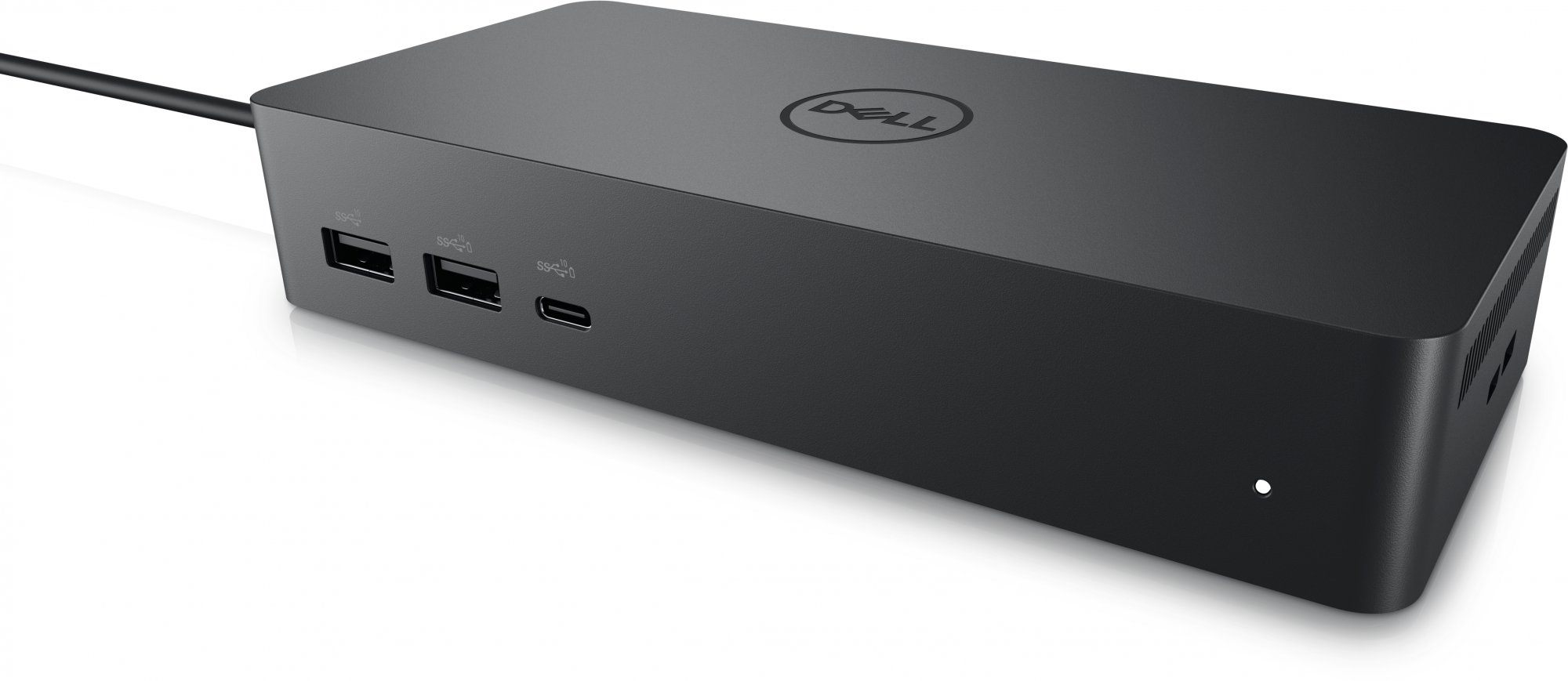

DELL Universal Dock - UD22. Connectivity technology: Docking, Host interface: Thunderbolt, USB Power Delivery up to: 96 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Maximum digital resolution: 5120 x 2880 pixels, Cable lock slot type: Kensington. Power source type: DC, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Windows operating systems supported: Windows 10, Windows 11, Mac operating systems supported: MacOS, Linux operating systems supported: Ubuntu 20.04 LTS

Universal connectivity

Consistent experience
Connect to any USB-C notebook, regardless of the manufacturer, and run any operating system.

Multiple monitor support
Enhance your coworking spaces with consistent display support across different systems.

High power delivery
Achieve a fast-charging experience with up to 96W power delivery for any USB-C notebook.

Next-level productivity

Enhanced display support
Maximize productivity with the highest number of displays supported on a universal dock, enabling connection of up to four 4K monitors via DisplayLink drivers.

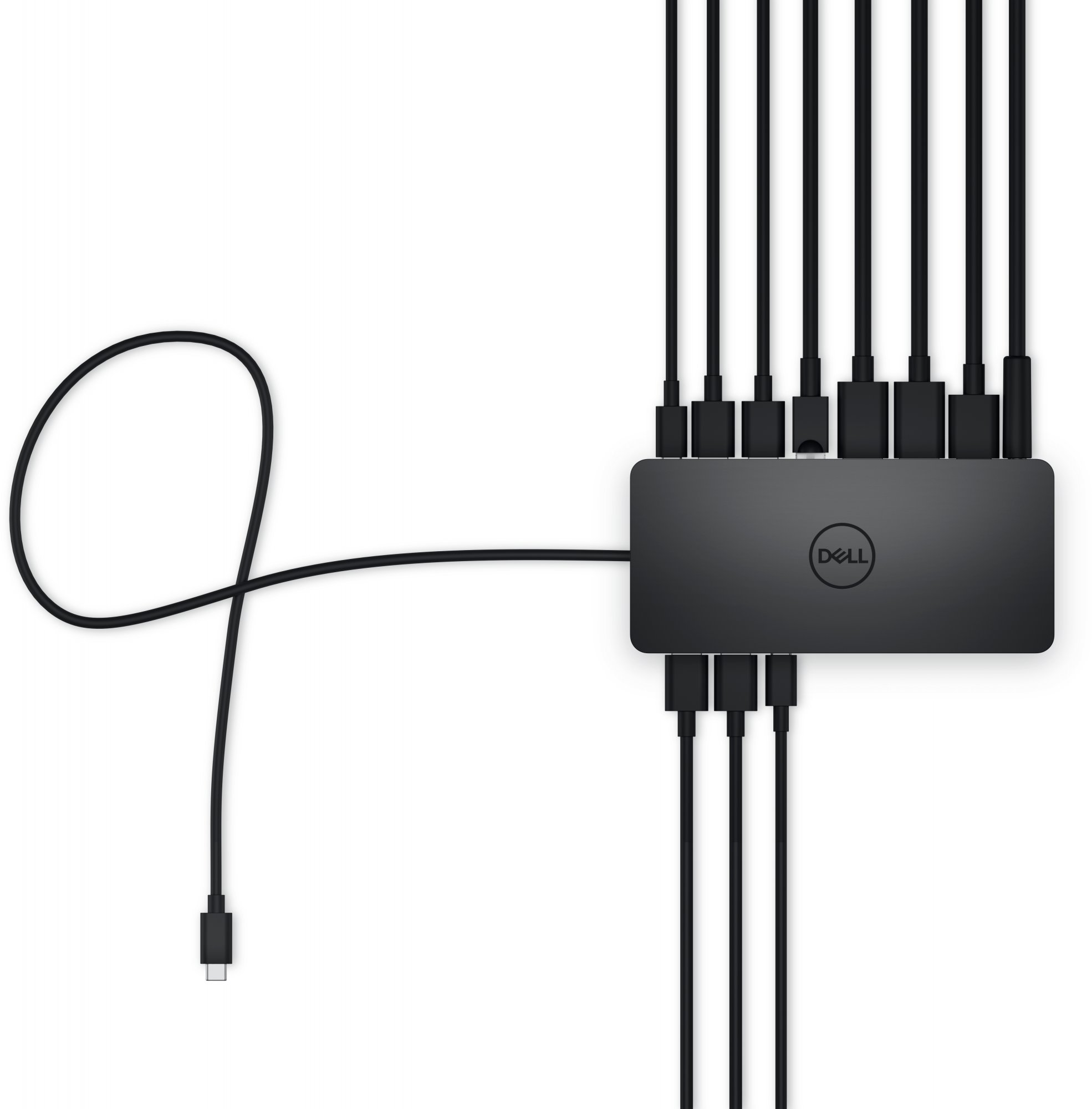

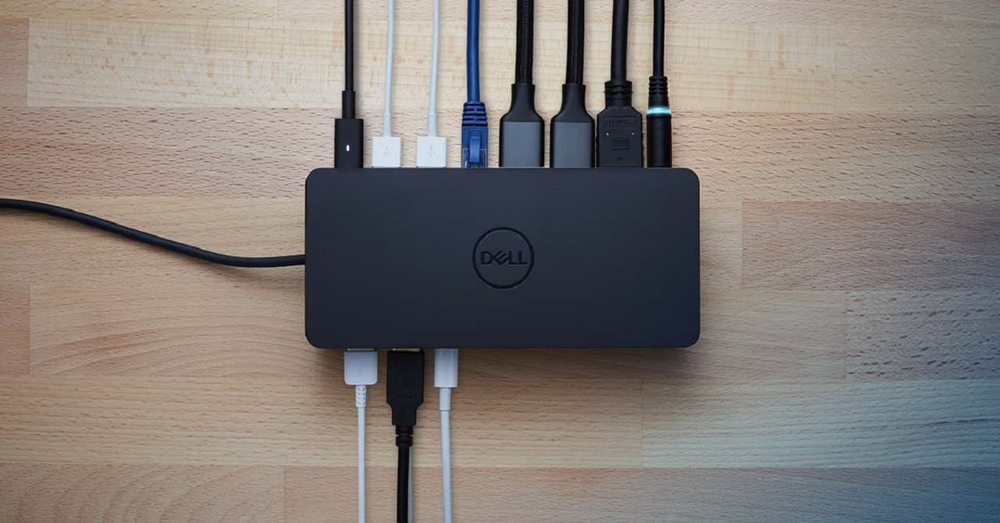

Multiple ports
With the highest number of ports on a universal dock, create a productive work station with increased flexibility.

Seamless experience and supportive management

Faster, easier deployment
Connect your laptop and get started quickly even when the DisplayLink driver is not installed, thanks to the additional support for DP Alt mode.

Hoteling made convenient
Enhance the shared workspace experience further with DisplayLink’s layout provisioning feature that enables preconfigured display layout automatically for the users.

Extended warranty
Dell Docks now have their own service tags, along with a 3 to 5 year warranty option for the best support, management and upgradeability possible.

Product Properties

Manufacturer
Dell

Model
DELL-UD22

EAN
5397184718841

Logistics data

Harmonized System (HS) code
84733020

Network

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
10,100,1000 Mbit/s

Operational conditions

Operating relative humidity (H-H)
10 - 80%

Operating temperature (T-T)
0 - 35 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-20 - 60 °C

Packaging content

AC adapter included
Yes

Cables included
USB Type-C

Quick start guide
Yes

Performance

Cable lock slot
Yes

Cable lock slot type
Kensington

Card reader integrated
No

LED indicators
Yes

Maximum digital resolution
5120 x 2880 pixels

Maximum VESA mount
100 x 100 mm

Product colour
Black

VESA mounting
Yes

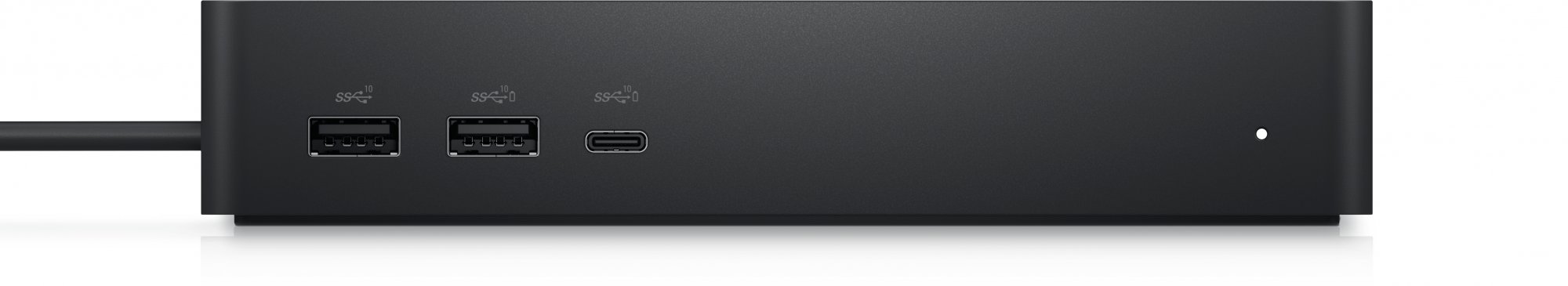

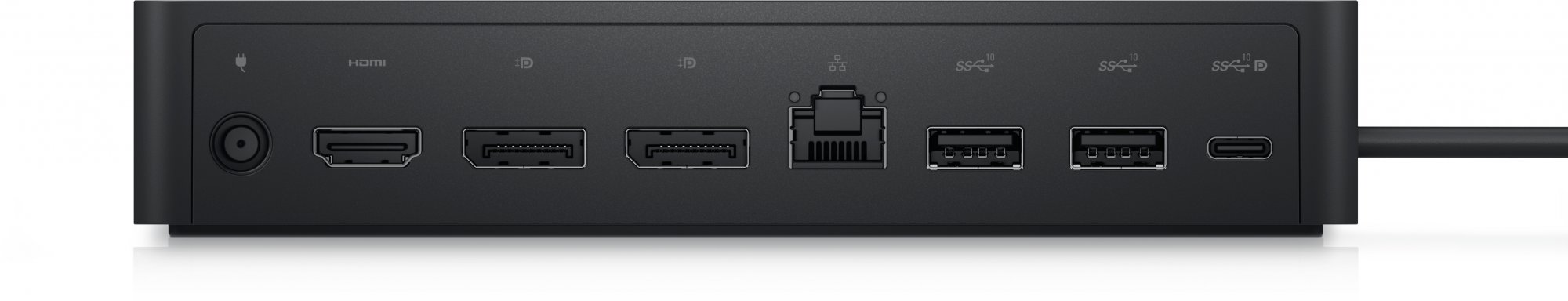

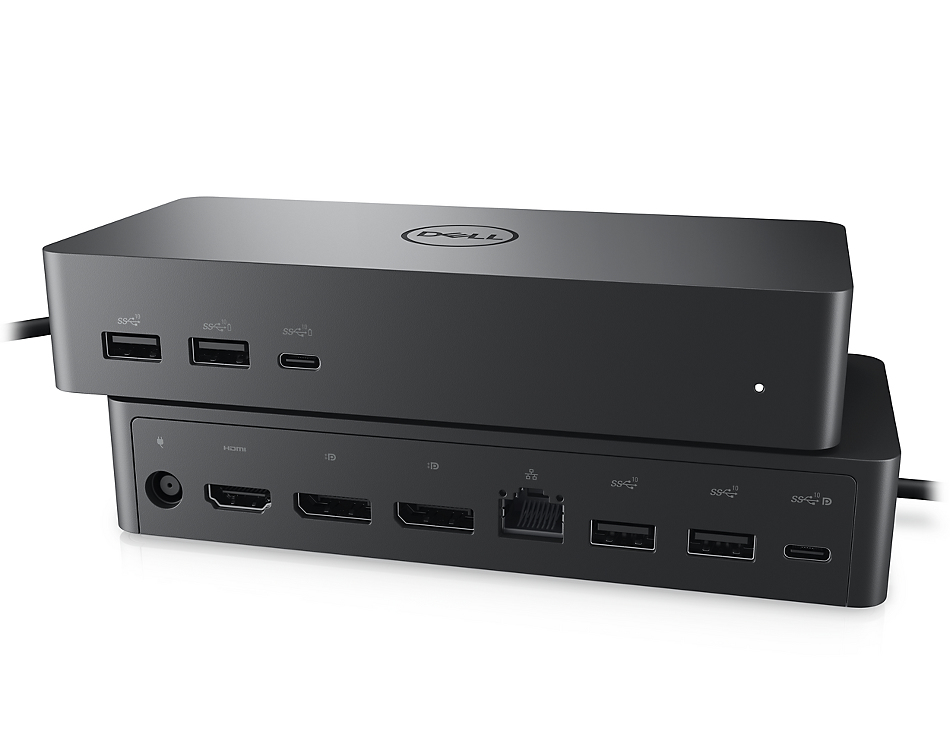

Ports & interfaces

Connectivity technology
Docking

DC-in jack
Yes

DisplayPort version
1.4

DisplayPorts quantity
2

HDMI ports
1

HDMI version
2.0

Host interface
Thunderbolt

Microphone in
No

Number of USB ports with PowerShare support
2

PowerShare
Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2

USB Power Delivery
Yes

USB Power Delivery revision
3.0

USB Power Delivery up to
96 W

USB Type-C DisplayPort Alternate Mode
Yes

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Input current
2.5 A

Output current
6.67 A

Output voltage
19.5 V

Power source type
DC

Power supply
130 W

Software

Linux operating systems supported
Ubuntu 20.04 LTS

Mac operating systems supported
MacOS

Other operating systems supported
ChromeOS

Windows operating systems supported
Windows 10, Windows 11

Weight & dimensions

Depth
166 mm

Height
32 mm

Weight
416 g

Width
76 mm
