Description

DELL WD19DCS-240W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Maximum digital resolution: 5120 x 2880 pixels. Power source type: DC, AC input voltage: 120 - 230 V, AC input frequency: 50 - 60 Hz. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10...

Power your connections

Power your day: Dell ExpressCharge allows you to charge up to 80% in one hour , making it the most efficient way to manage the workday. Adaptable to your workload: Conveniently choose between a single USB-C cable or dual USB-C functionality, a feature compatible with our Precision 7000 workstations. Plus, with magnetically separable USB-C cables, it is easy to get the flexibility you need. Unmatched charging: Triple your power delivery and charge even faster with a dock that delivers up to 240W of power with dual USB-C connectors.

Built for the future

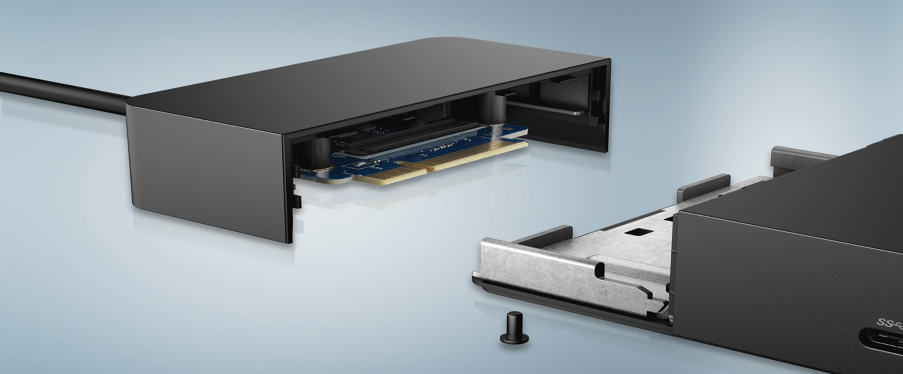

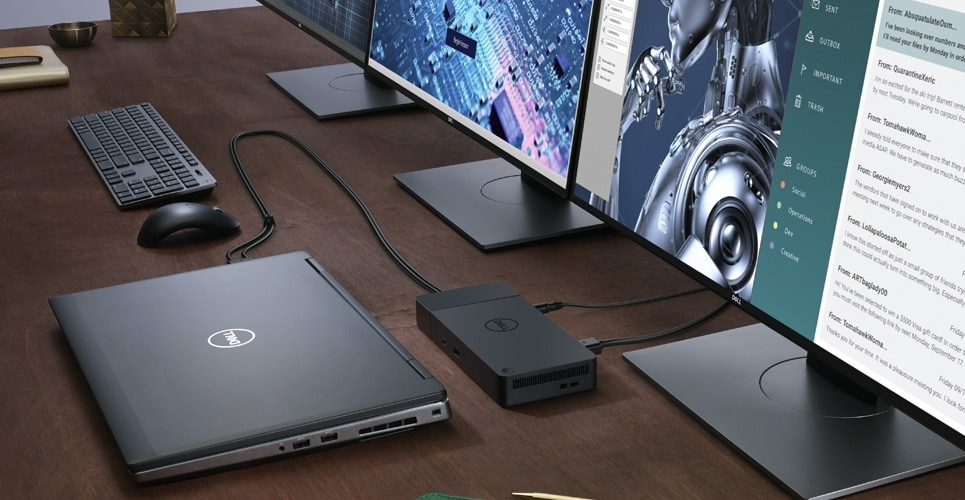

Mix and match: Evolve as your needs change with our most powerful and reliable dock. The future-ready design lets you swap out modules with ease if you need to do field replacements or upgrade your systems. Ultimate connectivity: Dual USB-C connectivity makes it easier than ever to deliver power, data, audio and video as well as connect to system peripherals, no matter what system you use. Plus, with support for up to four displays, including a single 5K and dual 4K monitors, you can connect to everything you need. Clean and clutter-free: Stay productive by mounting your dock behind your monitor or under your desk with the optional, secure VESA Mount, that offers the complete flexibility with the built-in 0.8 meter cable. Information in a flash: With data transfer speeds of up to 10Gbps, you can stay productive when connected to all your devices.

Optimize your workspace

Smooth and seamless: Work without disruptions utilizing a single firmware on our most manageable docks ever. Plus, with Dell Client Command Suite and Microsoft System Center Configuration Manager, you can quickly and easily update your firmware without rebooting your dock. Secure manageability: Keep your information safe with MAC Address pass-thru and remote port-disablement. Plus, with features like PXE Boot, Wake-on-LAN and more, it’s easier than ever to stay productive while managing your dock.

Product Properties

Manufacturer
Dell

Model
DELL-WD19DCS

EAN
5397184514009

Network

Ethernet LAN
Y

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
10,100,1000 Mbit/s

Operational conditions

Operating relative humidity (H-H)
10 - 80%

Operating temperature (T-T)
0 - 35 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-20 - 60 °C

Packaging data

Package depth
315 mm

Package height
62 mm

Package width
300 mm

Quantity per pack
1 pc(s)

Performance

Card reader integrated
N

LED indicators
Y

Maximum digital resolution
5120 x 2880 pixels

On/off switch
Y

Product colour
Black

VESA mounting
Y

Ports & interfaces

Connectivity technology
Wired

DC-in jack
Y

DisplayPort version
1.4

DisplayPorts quantity
2

HDMI ports
1

HDMI version
2.0

Host interface
USB 3.2 Gen 2 (3.1 Gen 2) Type-C

Microphone in
N

PowerShare
Y

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3

Power

AC input frequency
50 - 60 Hz

AC input voltage
120 - 230 V

Power cable length
0.8 m

Power source type
DC

Power supply
240 W

Software

Linux operating systems supported
Y

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64

Technical details

Harmonized System (HS) code
84733020

Weight & dimensions

Depth
90 mm

Height
29 mm

Weight
585 g

Width
205 mm

DELL WD19DCS-240W Wired USB 3.2 Gen 2 (3.1 Gen 2) Type-C Black
