Description

TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2402 Mbit/s. Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

Blazing-Fast AX3000 WiFi 6 Speeds:: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds
Higher Network Efficiency: Deliver data to more devices at the same time with less lag
Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage

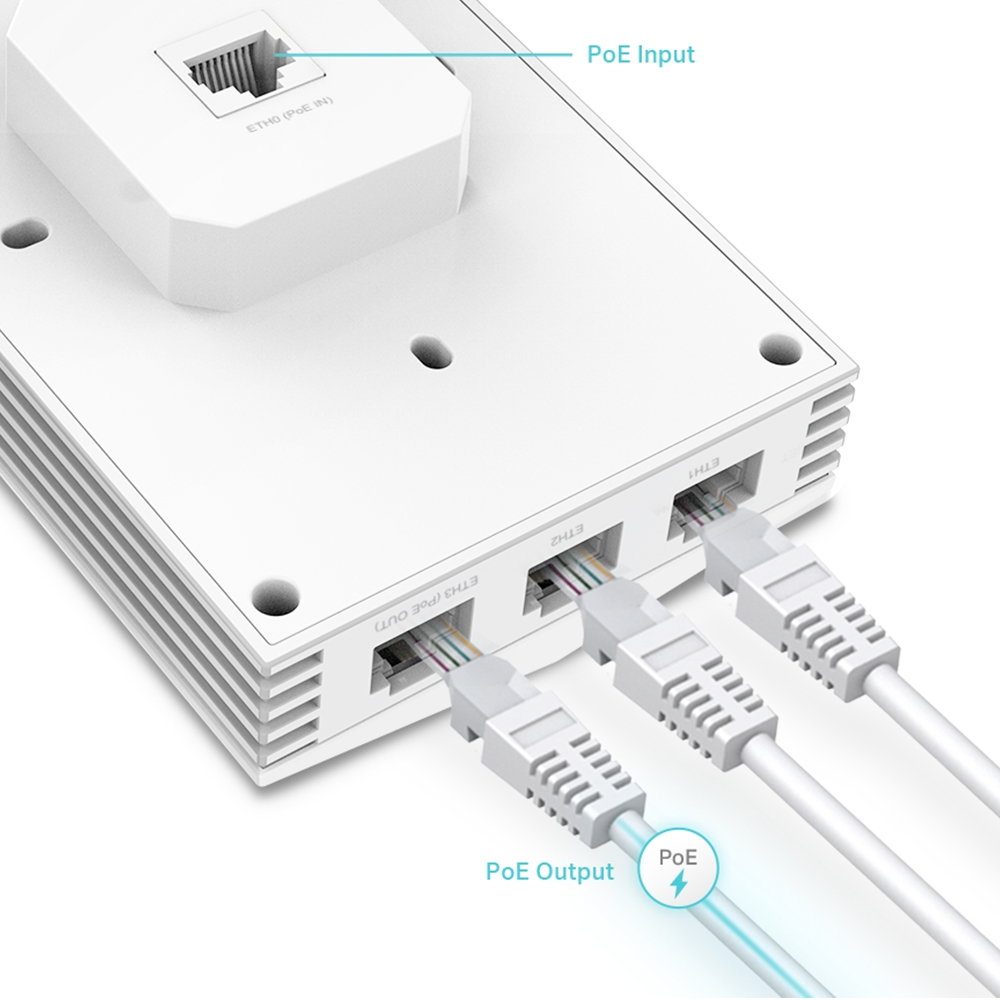

Multiple Gigabit Ports: Connect multiple devices with three downlink gigabit ports, one with PoE pass-through

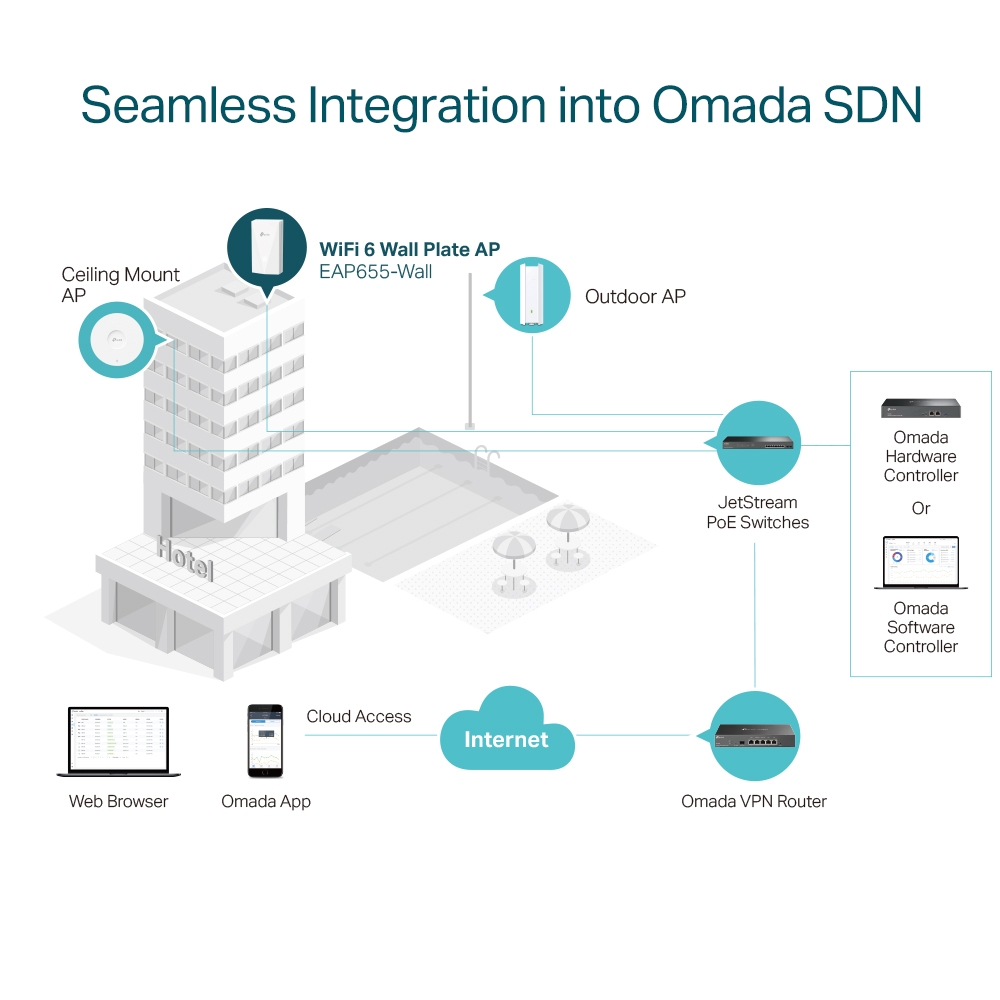

Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management
Secure Guest Network: Implement multiple authentication options (SMS/Facebook Wi-Fi/ Voucher) packed with high-quality wireless security technologies
Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support

Product Properties

Manufacturer
TP-LINK

Model
EAP655-WALL

EAN
4897098682111

Antenna

Antenna gain level (max)
5 dBi

Antenna type
Internal

Antennas quantity
2

Bullet points

Point
Blazing-Fast AX3000 WiFi 6 Speeds

Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management

Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage

Easy Installation and PoE Support

Higher Network Efficiency: Deliver data to more devices at the same time with less lag

Multiple Gigabit Ports

Secure Guest Network

Certificates

Certification
FCC, RoHS

Compliance certificates
RoHS

Design

Cable lock slot
No

LED indicators
Yes

Placement
Wall

Product colour
White

Reset button
Yes

Features

2.4 GHz
Yes

5 GHz
Yes

6 GHz
No

Airtime Fairness (ATF)
Yes

Automatic channel selection
Yes

Band steering
Yes

BeamForming
Yes

Cabling technology
10/100/1000Base-T(X)

Ethernet LAN data rates
10,100,1000 Mbit/s

Frequency band
2.4, 5 GHz

Maximum data transfer rate
2402 Mbit/s

Maximum data transfer rate (2.4 GHz)
574 Mbit/s

Maximum data transfer rate (5 GHz)
2402 Mbit/s

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at

Number of users
100 user(s)

Quality of Service (QoS) support
Yes

Rate limiting
Yes

Transmitting power (CE)
20 - 23 - 26 dBm

Transmitting power (FCC)
21 - 21 dBm

VLAN support
Yes

Wi-Fi Multimedia (WMM)/(WME)
Yes

Wireless isolation
Yes

Management features

Firmware upgradeable
Yes

Syslog
Yes

Web-based management
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

Mounting kit
Yes

Quantity per pack
1 pc(s)

Packaging data

Package depth
184 mm

Package height
56 mm

Package type
Box

Package weight
400 g

Package width
117 mm

Performance

Compatible operating systems
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux

Ports & interfaces

DC-in jack
Yes

Ethernet LAN (RJ-45) ports
4

USB 2.0 ports quantity
0

WAN connection
Ethernet (RJ-45)

Power

Power consumption (typical)
12 W

Power over Ethernet (PoE)
Yes

Security

Access Control List (ACL)
Yes

IP address filtering
Yes

MAC address filtering
Yes

Number of SSID supported
16

Remote Authentication Dial-In User Service (RADIUS)
Yes

Security algorithms
HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise

Service Set Identifier (SSID) features
Multiple SSIDs

Weight & dimensions

Depth
86 mm

Height
42.6 mm

Width
143 mm
