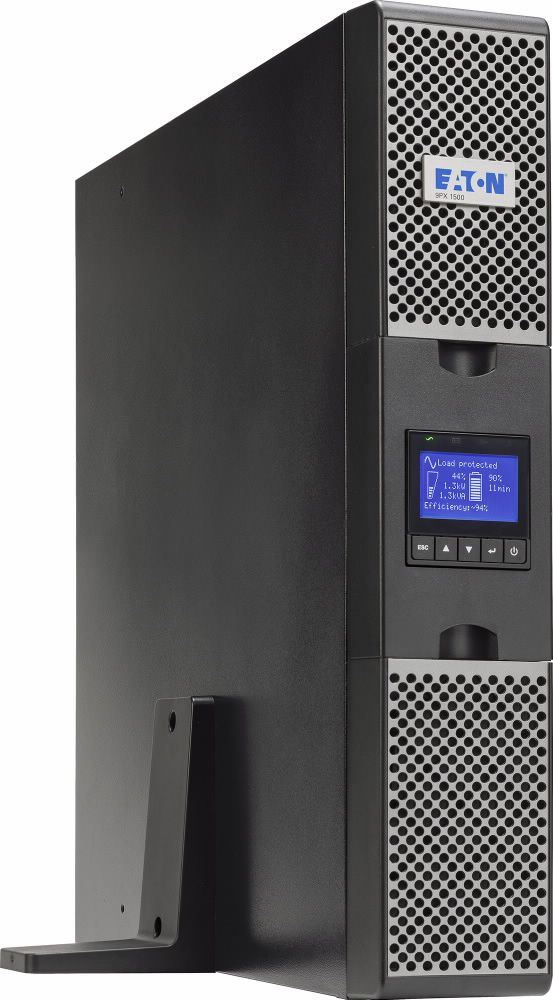

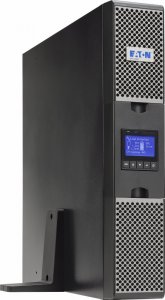

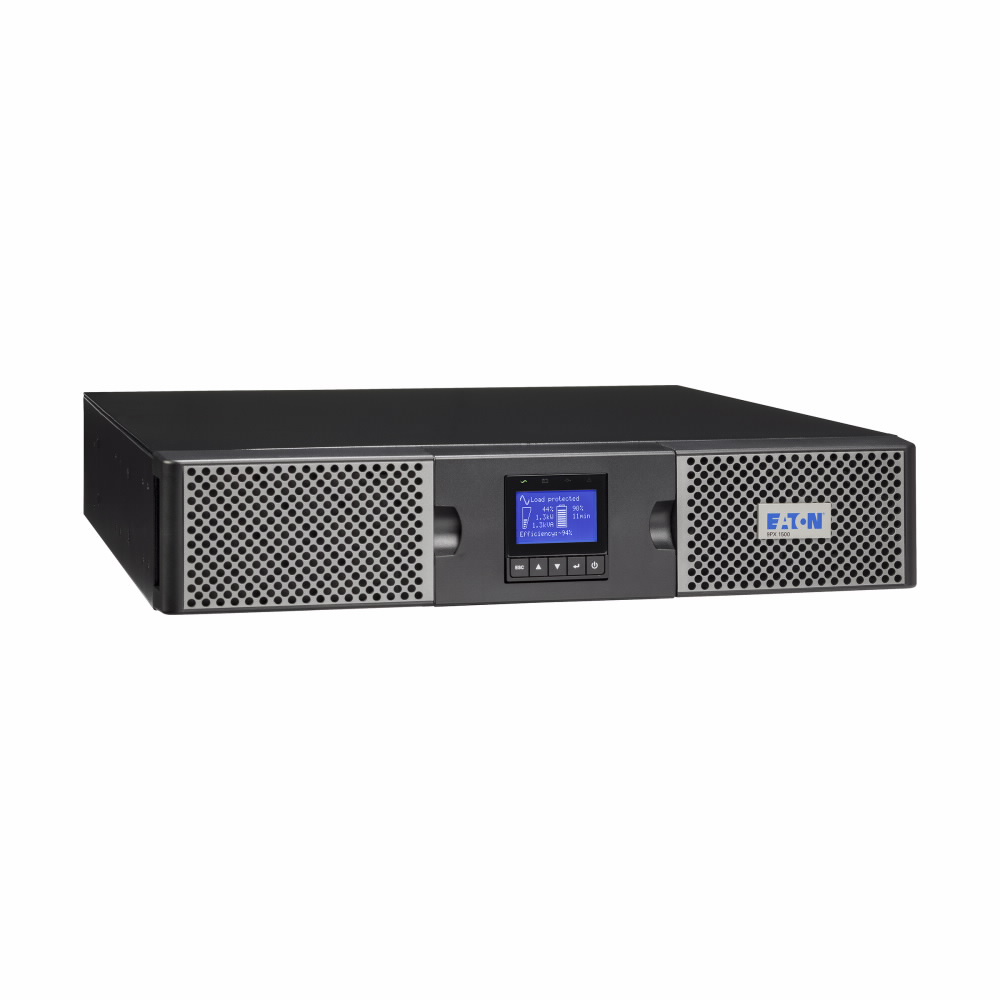

Eaton 9PX1500IRTNBS uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8 AC outlet(s)
Roll over image to zoom inClick to Open expanded view
Eaton 9PX1500IRTNBS uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8 AC outlet(s)
Eaton 9PX1500IRTNBS uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8 AC outlet(s)
Eaton 9PX1500IRTNBS uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8 AC outlet(s)
Eaton 9PX1500IRTNBS uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8 AC outlet(s)
Print
Model: 9PX1500IRTNBS
EAN: 3553340620324

Eaton 9PX1500IRTNBS uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8 AC outlet(s)

Manufacturer:
Eaton
Eaton 9PX1500IRTNBS, Double-conversion (Online), 1.5 kVA, 1500 W, Sine, 100 V, 276 V
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Eaton 9PX1500IRTNBS. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 1500 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 5 min. Form factor: Rackmount/Tower, Product colour: Black, Silver, Display type: LCD. Compliance certificates: CE, Certification: UL 1778 cULus Listed EAC IEC/EN 62040-1 IEC/EN 62040-2

Product Properties

  • Model
  • 9PX1500IRTNBS
  • EAN
  • 3553340620324
  • Battery
  • Automatic battery test
  • Yes
  • Battery technology
  • Sealed Lead Acid (VRLA)
  • Number of batteries supported
  • 4
  • Typical backup time at full load
  • 5 min
  • Certificates
  • Certification
  • UL 1778 cULus Listed EAC IEC/EN 62040-1 IEC/EN 62040-2
  • Compliance certificates
  • CE
  • Design
  • Display type
  • LCD
  • Form factor
  • Rackmount/Tower
  • Product colour
  • Black, Silver
  • Features
  • ECO mode
  • Yes
  • Efficiency
  • 92.5%
  • Efficiency (ECO mode)
  • 97.5%
  • Input frequency
  • 40/70 Hz
  • Input operation voltage (max)
  • 276 V
  • Input operation voltage (min)
  • 100 V
  • Input power factor
  • 0.99
  • Noise level
  • 35 dB
  • Number of input phases
  • 1
  • Number of output phases
  • 1
  • Output frequency
  • 50/60 Hz
  • Output operation voltage (max)
  • 240 V
  • Output operation voltage (min)
  • 200 V
  • Output power
  • 1500 W
  • Output power capacity
  • 1.5 kVA
  • Output power factor
  • 1
  • Output voltage Total Harmonic Distortion (THD)
  • 3%
  • Power factor
  • 1
  • Power protection features
  • Overdischarge
  • UPS topology
  • Double-conversion (Online)
  • Waveform
  • Sine
  • Operational conditions
  • Operating altitude
  • 0 - 3000 m
  • Operating relative humidity (H-H)
  • 0 - 96%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Packaging content
  • Cables included
  • Input power cable, Serial, USB cable
  • Quick installation guide
  • Yes
  • Rack mount kit
  • Yes
  • Ports & interfaces

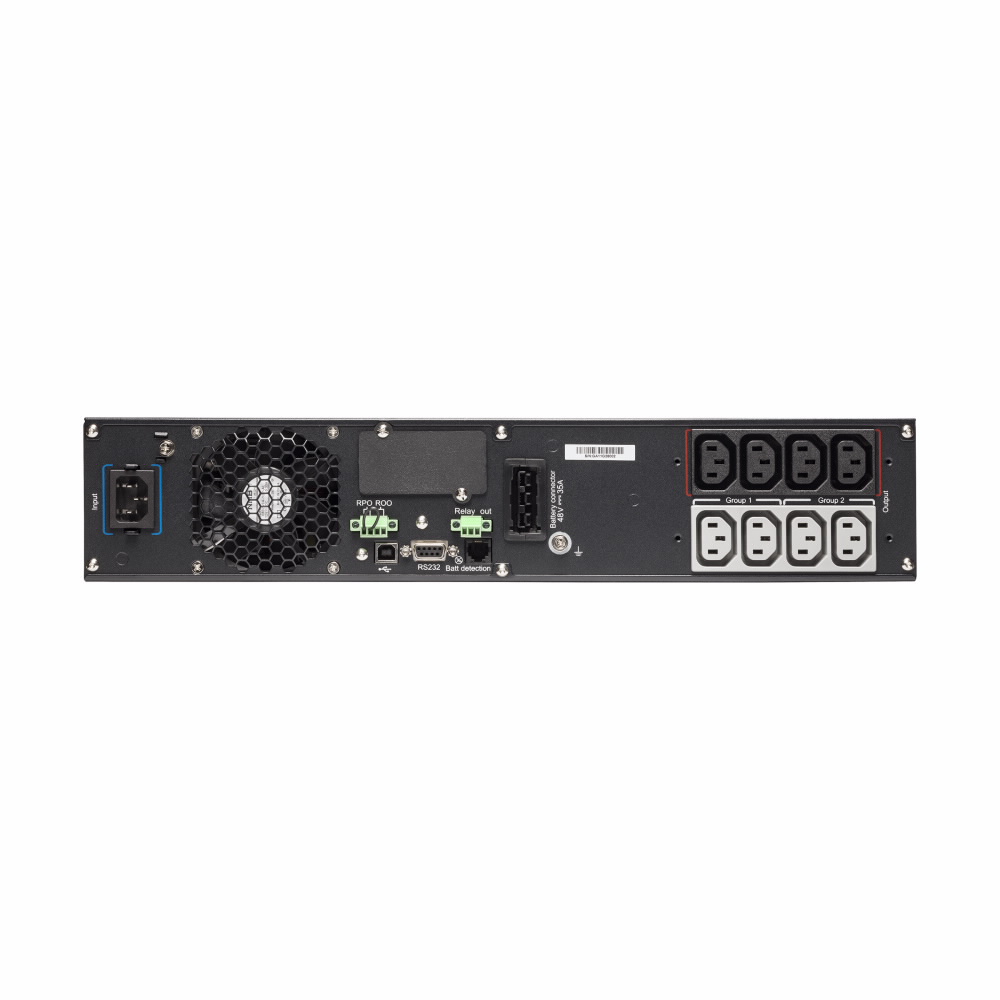

  • AC outlet types
  • C13 coupler
  • AC outlets quantity
  • 8 AC outlet(s)
  • Power plug
  • C14 coupler
  • Serial interface
  • Yes
  • Serial interface type
  • RS-232
  • Serial ports quantity
  • 1
  • USB 2.0 ports quantity
  • 1
  • USB port
  • Yes
  • USB port type
  • USB Type-B
  • Sustainability
  • Sustainability certificates
  • ENERGY STAR
  • Weight & dimensions
  • Depth
  • 580 mm
  • Height
  • 240 mm
  • Weight
  • 19.4 kg
  • Width
  • 550 mm
