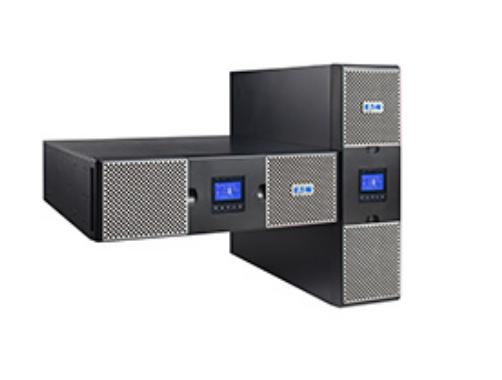

Eaton 9PX3000IRTBPH uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 3000 W 1 AC outlet(s)
Roll over image to zoom inClick to Open expanded view
Print
Model: 9PX3000IRTBPH
EAN: 743172081599

Eaton 9PX3000IRTBPH uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 3000 W 1 AC outlet(s)

Manufacturer:
Eaton
Eaton 9PX3000IRTBPH, Double-conversion (Online), 3 kVA, 3000 W, Pure sine, 176 V, 276 V
Please log in to see your price
Related products

Description

Eaton 9PX3000IRTBPH. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 3000 W. AC outlet types: Terminal, Power plug: Terminal, AC outlets quantity: 1 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 9.5 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 3U. Certification: IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report...

Product Properties

  • Model
  • 9PX3000IRTBPH
  • EAN
  • 743172081599
  • Battery
  • Automatic battery test
  • Yes
  • Battery technology
  • Sealed Lead Acid (VRLA)
  • Hot-swap battery
  • Yes
  • Typical backup time at half load
  • 9.5 min
  • Certificates
  • Certification
  • IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
  • Design
  • Display type
  • LCD
  • Form factor
  • Rackmount/Tower
  • LED indicators
  • Yes
  • Product colour
  • Black
  • Rack capacity
  • 3U
  • Features
  • Efficiency
  • 94%
  • Input frequency
  • 40/70 Hz
  • Input operation voltage (max)
  • 276 V
  • Input operation voltage (min)
  • 176 V
  • Noise level
  • 40 dB
  • Number of input phases
  • 1
  • Output frequency
  • 50/60 Hz
  • Output operation voltage (max)
  • 240 V
  • Output operation voltage (min)
  • 200 V
  • Output power
  • 3000 W
  • Output power capacity
  • 3 kVA
  • Power factor
  • 1
  • UPS topology
  • Double-conversion (Online)
  • Waveform
  • Pure sine
  • Logistics data
  • Harmonized System (HS) code
  • 85078000
  • Operational conditions
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Other features
  • Nominal input voltage
  • 230 V
  • Nominal output voltage
  • 230 V
  • Packaging content
  • Rack mount kit
  • Yes
  • Packaging data
  • Bundled software
  • Intelligent Power Software suite
  • Management card included
  • No
  • Ports & interfaces
  • AC outlet types
  • Terminal
  • AC outlets quantity
  • 1 AC outlet(s)
  • Power plug
  • Terminal
  • RS-232 ports
  • 1
  • USB 2.0 ports quantity
  • 1
  • USB port
  • Yes
  • Safety regulation & standards
  • Safety
  • IEC/EN 62040-1, UL 1778, CSA 22.2
  • Sustainability
  • Sustainability certificates
  • ENERGY STAR
  • Weight & dimensions
  • Depth
  • 485 mm
  • Height
  • 130 mm
  • Weight
  • 27.4 kg
  • Width
  • 440 mm
