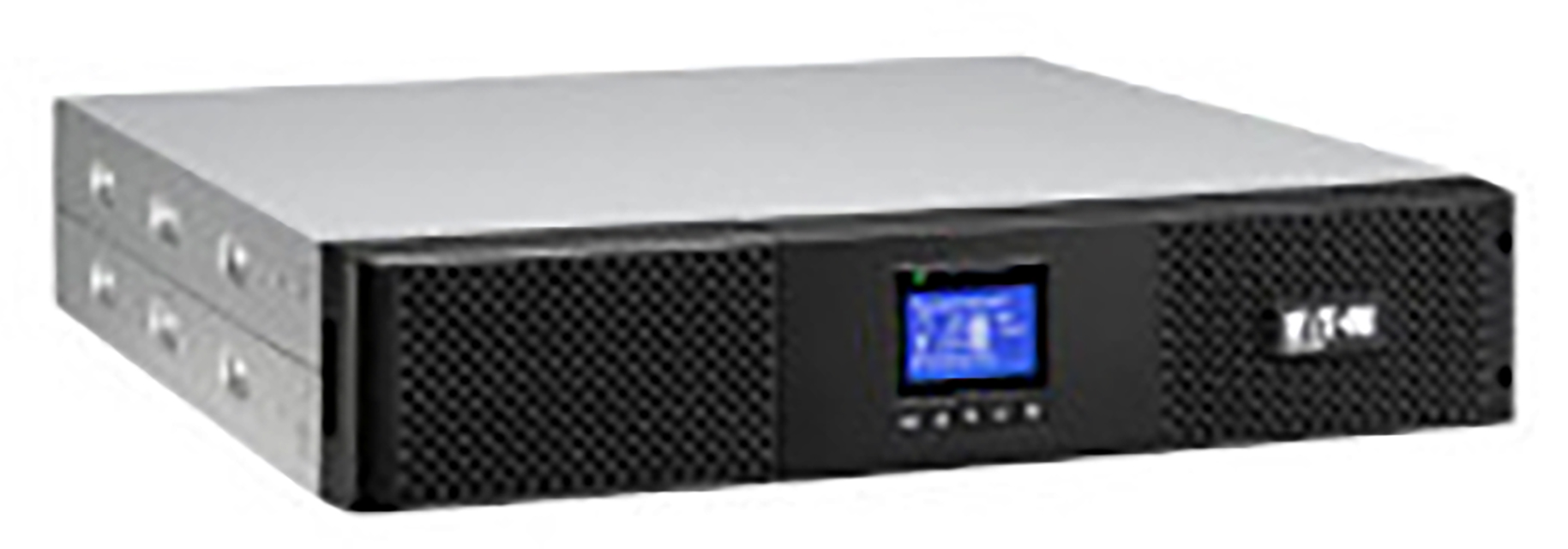

Eaton 9SX Double-conversion (Online) 1.5 kVA 1350 W 7 AC outlet(s)
Roll over image to zoom inClick to Open expanded view
Print
Model: 9SX1500IR
EAN: 743172090966

Eaton 9SX Double-conversion (Online) 1.5 kVA 1350 W 7 AC outlet(s)

Manufacturer:
Eaton
Eaton 9SX, Double-conversion (Online), 1.5 kVA, 1350 W, 190 V, 276 V, 40 - 70 Hz
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Eaton 9SX. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 1350 W. AC outlet types: C13 coupler, C14 coupler, Power plug: C14 coupler, AC outlets quantity: 7 AC outlet(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 438 mm, Depth: 438 mm, Height: 86.5 mm

Product Properties

  • Model
  • 9SX1500IR
  • EAN
  • 743172090966
  • Design
  • Certification
  • IEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC
  • Display type
  • LCD
  • Form factor
  • Rackmount
  • Product colour
  • Black
  • Rack capacity
  • 2U
  • Safety
  • IEC/EN 62040-1, UL 1778, CSA 22.2
  • Features
  • Input frequency
  • 40 - 70 Hz
  • Input operation voltage (max)
  • 276 V
  • Input operation voltage (min)
  • 190 V
  • Maximum current
  • 10 A
  • Noise level
  • 43 dB
  • Output frequency
  • 50/60 Hz
  • Output power
  • 1350 W
  • Output power capacity
  • 1.5 kVA
  • UPS topology
  • Double-conversion (Online)
  • Operational conditions
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Ports & interfaces
  • AC outlet types
  • C13 coupler, C14 coupler
  • AC outlets quantity
  • 7 AC outlet(s)
  • Power plug
  • C14 coupler
  • Serial interface
  • Y
  • Serial interface type
  • RS-232
  • USB port
  • Y
  • Weight & dimensions
  • Depth
  • 438 mm
  • Height
  • 86.5 mm
  • Weight
  • 18.4 kg
  • Width
  • 438 mm
