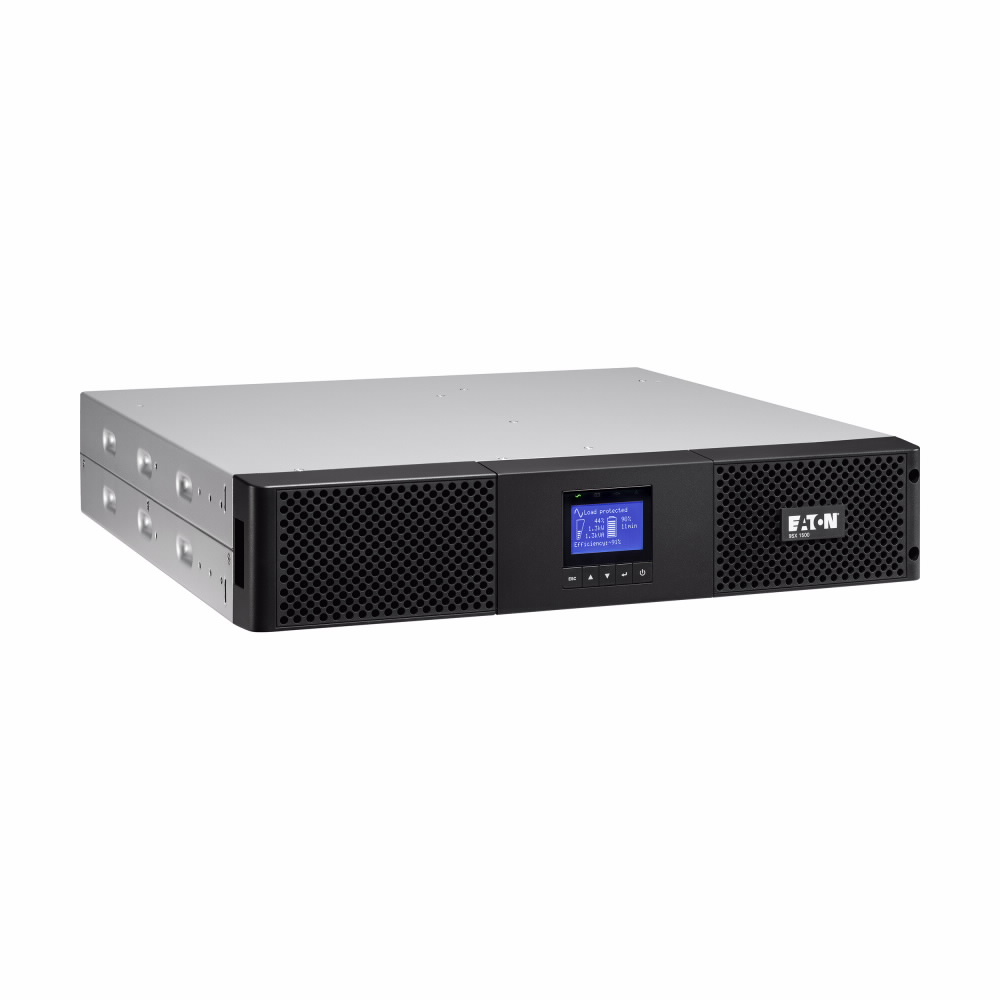

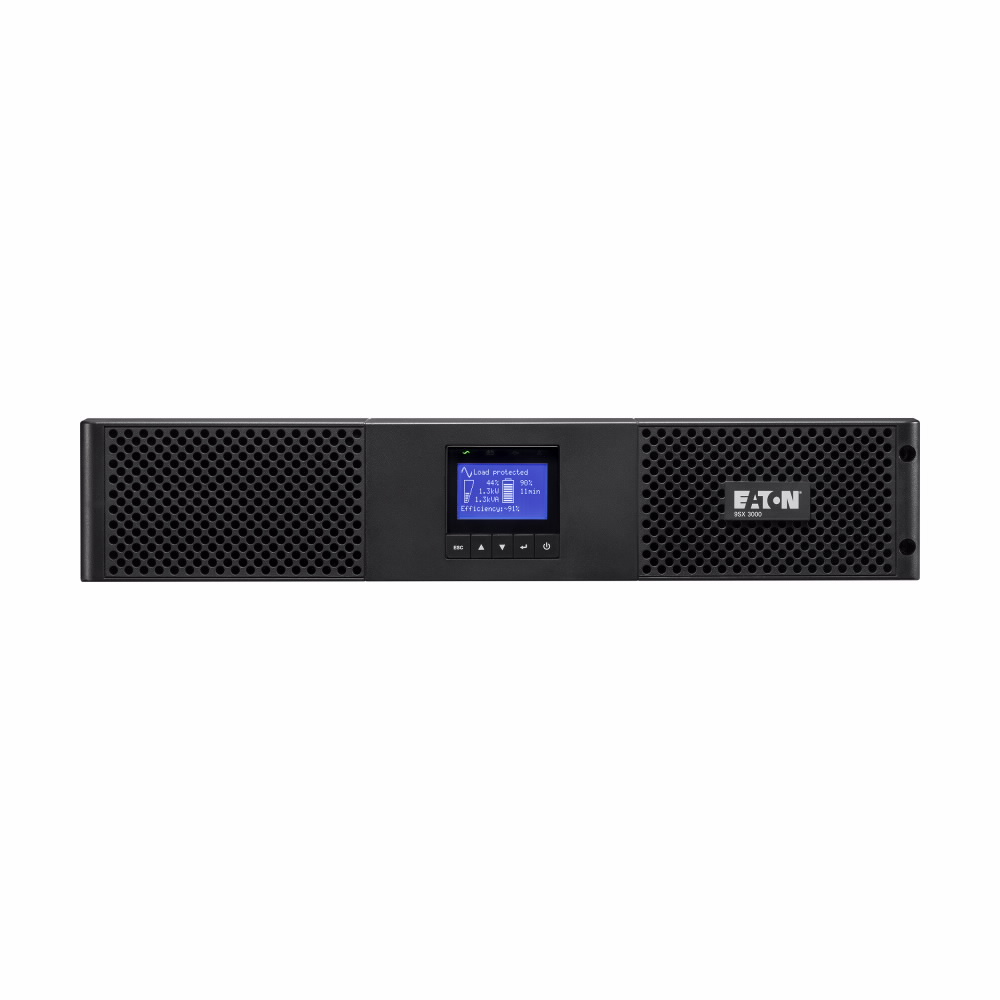

Eaton 9SX1500IRBS uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1350 W 6 AC outlet(s)
Roll over image to zoom inClick to Open expanded view
Eaton 9SX1500IRBS uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1350 W 6 AC outlet(s)
Eaton 9SX1500IRBS uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1350 W 6 AC outlet(s)
Eaton 9SX1500IRBS uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1350 W 6 AC outlet(s)
Eaton 9SX1500IRBS uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1350 W 6 AC outlet(s)
Eaton 9SX1500IRBS uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1350 W 6 AC outlet(s)
Eaton 9SX1500IRBS uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1350 W 6 AC outlet(s)
Print
Model: 9SX1500IRBS
EAN: 3553340620454

Eaton 9SX1500IRBS uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1350 W 6 AC outlet(s)

Manufacturer:
Eaton
Eaton 9SX1500IRBS, Double-conversion (Online), 1.5 kVA, 1350 W, Sine, 120 V, 276 V
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Eaton 9SX1500IRBS. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 1350 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 12 V. Form factor: Rackmount, Product colour: Black, Display type: LCD. Compliance certificates: CE, Certification: TUV cULus CSA 22.2 FCC 15 / B CISPR22 B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC

Product Properties

  • Model
  • 9SX1500IRBS
  • EAN
  • 3553340620454
  • Battery
  • Automatic battery test
  • Yes
  • Battery capacity
  • 9 Ah
  • Battery technology
  • Sealed Lead Acid (VRLA)
  • Battery voltage
  • 12 V
  • Typical backup time at full load
  • 5.5 min
  • Certificates
  • Certification
  • TUV cULus CSA 22.2 FCC 15 / B CISPR22 B IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 EAC
  • Compliance certificates
  • CE
  • Design
  • Display type
  • LCD
  • Form factor

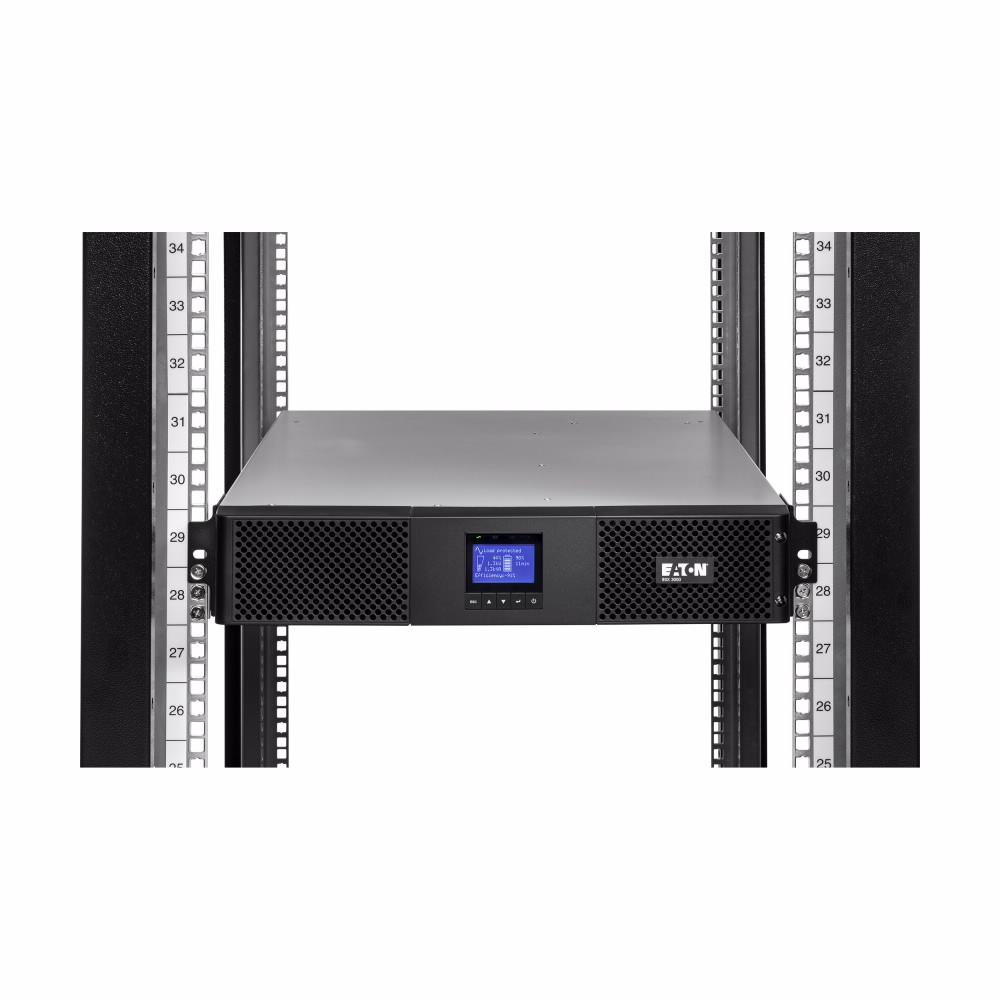

  • Rackmount
  • Product colour
  • Black
  • Features
  • ECO mode
  • Yes
  • Efficiency
  • 91.4%
  • Efficiency (ECO mode)
  • 97.4%
  • Input frequency
  • 40/70 Hz
  • Input operation voltage (max)
  • 276 V
  • Input operation voltage (min)
  • 120 V
  • Input power factor
  • 0.99
  • Noise level
  • 43 dB
  • Number of input phases
  • 1
  • Number of output phases
  • 1
  • Output frequency
  • 50/60 Hz
  • Output operation voltage (max)
  • 240 V
  • Output operation voltage (min)
  • 200 V
  • Output power
  • 1350 W
  • Output power capacity
  • 1.5 kVA
  • Output power factor
  • 0.9
  • Output voltage Total Harmonic Distortion (THD)
  • 3%
  • Power factor
  • 0.9
  • Power protection features
  • Overdischarge
  • UPS topology
  • Double-conversion (Online)
  • Waveform
  • Sine
  • Operational conditions
  • Operating altitude
  • 0 - 3000 m
  • Operating relative humidity (H-H)
  • 0 - 95%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Packaging content
  • Cables included
  • Input power cable, Serial, USB cable
  • Quick installation guide
  • Yes
  • Rack mount kit
  • Yes
  • Ports & interfaces

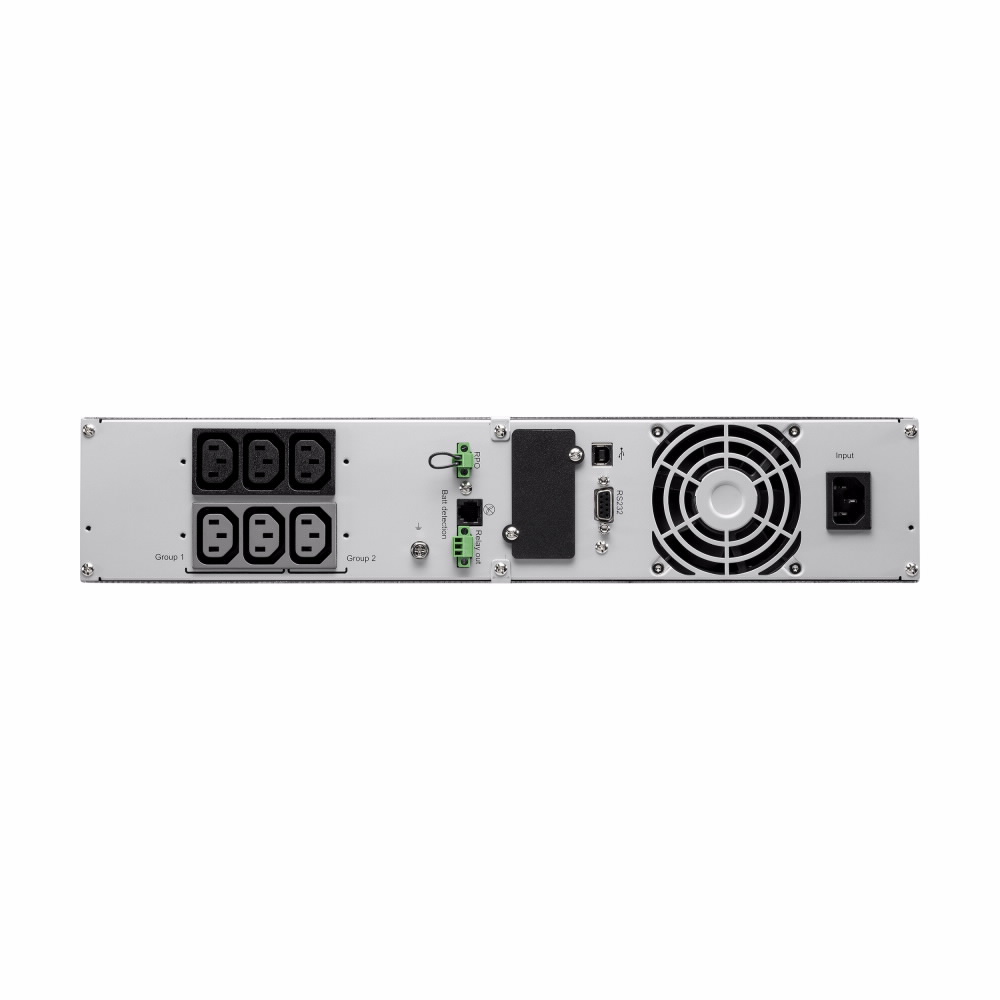

  • AC outlet types
  • C13 coupler
  • AC outlets quantity
  • 6 AC outlet(s)
  • Power plug
  • C14 coupler
  • Serial interface
  • Yes
  • Serial interface type
  • RS-232
  • Serial ports quantity
  • 1
  • USB 2.0 ports quantity
  • 1
  • USB port
  • Yes
  • USB port type
  • USB Type-B
  • Sustainability
  • Sustainability compliance
  • Yes
  • Weight & dimensions
  • Depth
  • 570 mm
  • Height
  • 240 mm
  • Weight
  • 18.8 kg
  • Width
  • 548 mm
