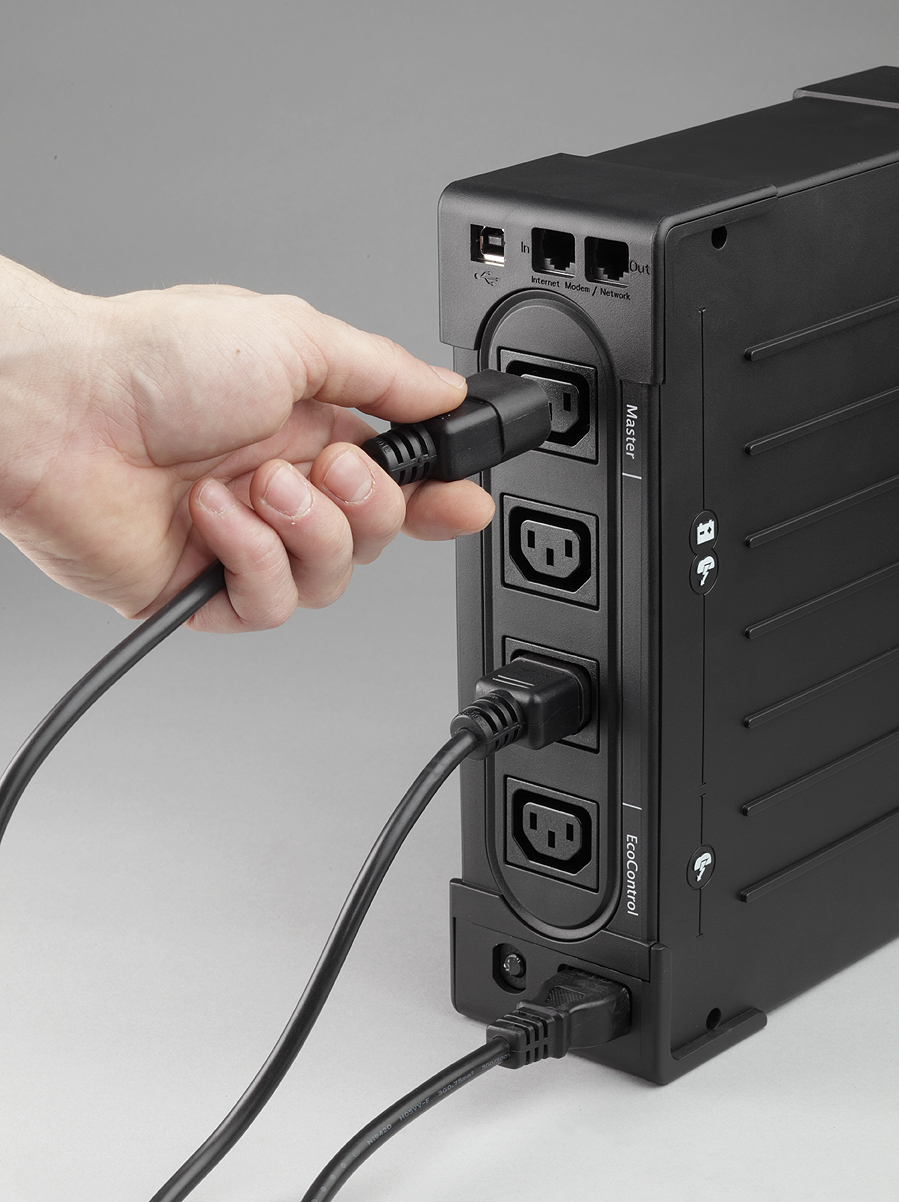

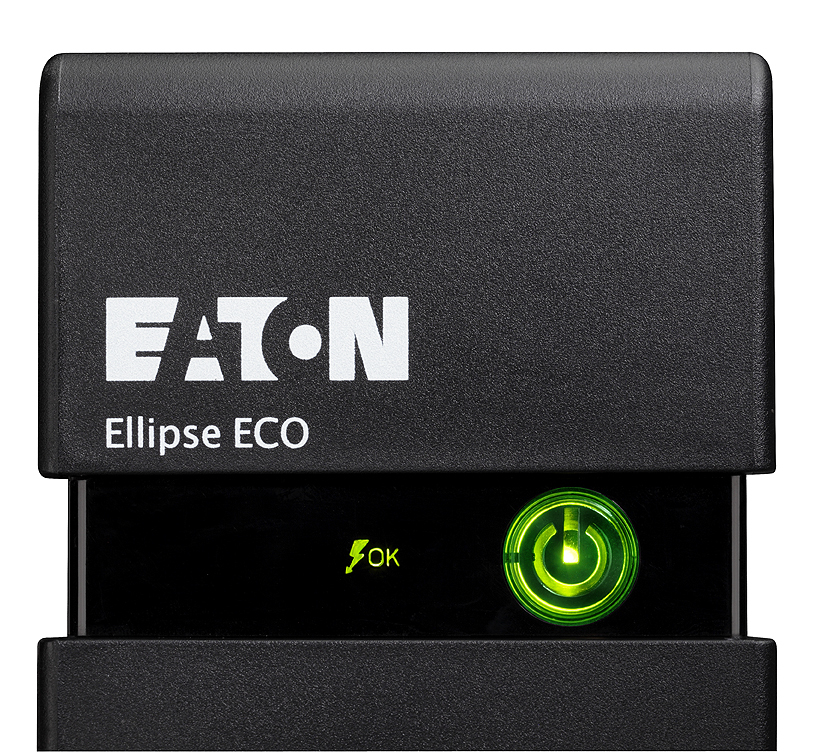

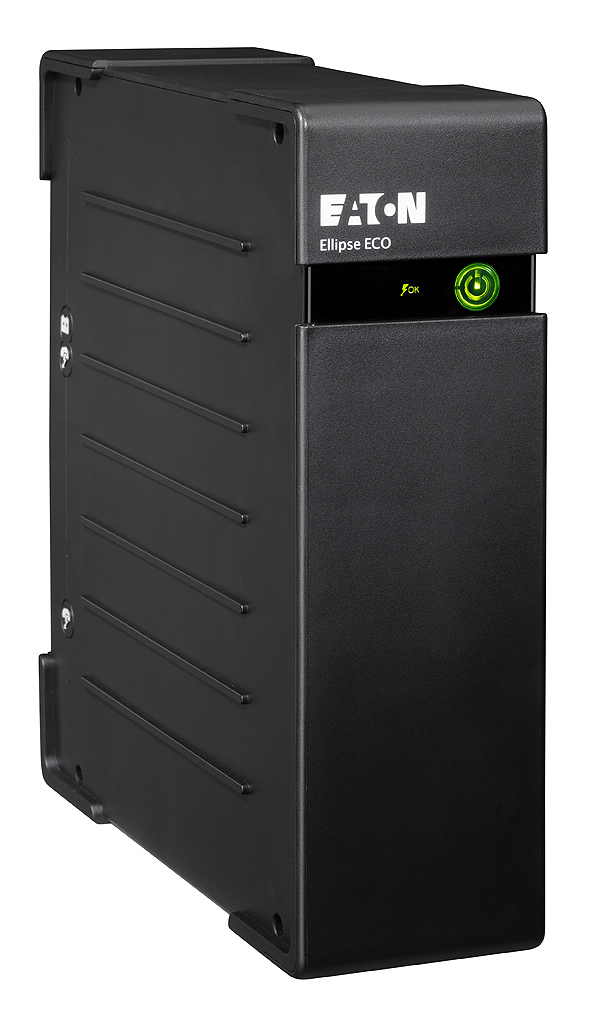

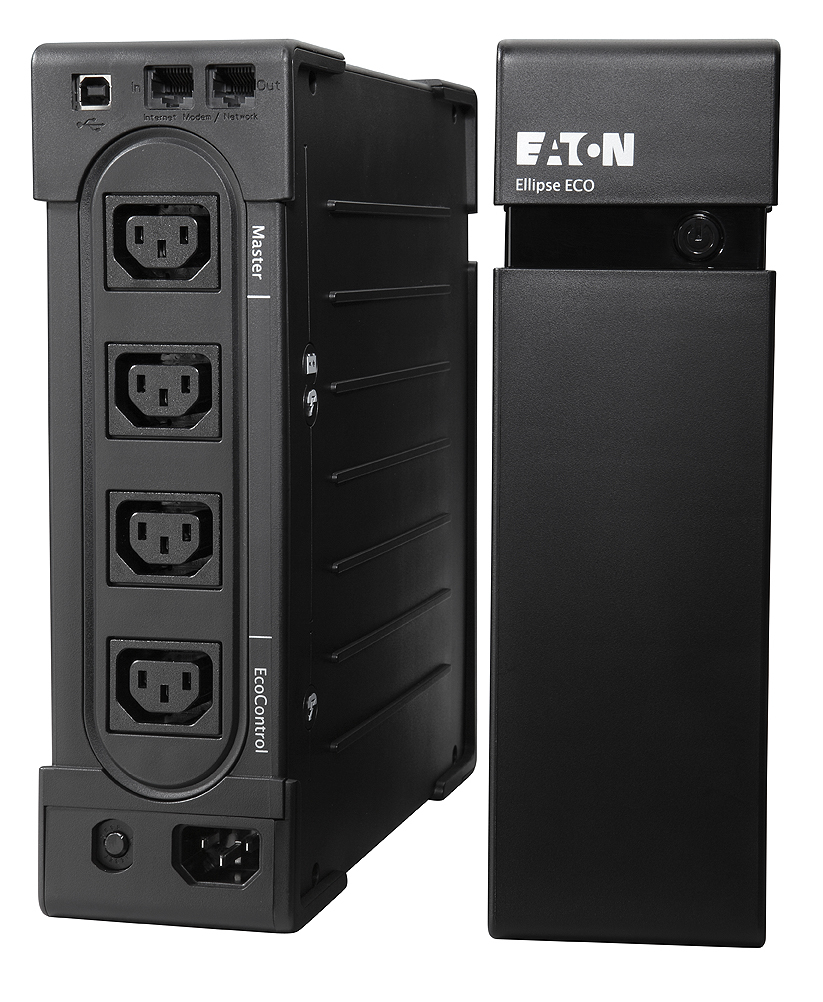

Eaton Ellipse ECO 800 USB IEC uninterruptible power supply (UPS) Standby (Offline) 0.8 kVA 500 W 4 AC outlet(s)
Roll over image to zoom inClick to Open expanded view
Eaton Ellipse ECO 800 USB IEC uninterruptible power supply (UPS) Standby (Offline) 0.8 kVA 500 W 4 AC outlet(s)
Eaton Ellipse ECO 800 USB IEC uninterruptible power supply (UPS) Standby (Offline) 0.8 kVA 500 W 4 AC outlet(s)
Eaton Ellipse ECO 800 USB IEC uninterruptible power supply (UPS) Standby (Offline) 0.8 kVA 500 W 4 AC outlet(s)
Eaton Ellipse ECO 800 USB IEC uninterruptible power supply (UPS) Standby (Offline) 0.8 kVA 500 W 4 AC outlet(s)
Print
Model: EL800USBIEC
EAN: 3553340620836

Eaton Ellipse ECO 800 USB IEC uninterruptible power supply (UPS) Standby (Offline) 0.8 kVA 500 W 4 AC outlet(s)

Manufacturer:
Eaton
Eaton Ellipse ECO 800 USB IEC, Standby (Offline), 0.8 kVA, 500 W, 161 V, 284 V, 50/60 Hz
Please log in to see your price
Related products

Description

Eaton Ellipse ECO 800 USB IEC. UPS topology: Standby (Offline), Output power capacity: 0.8 kVA, Output power: 500 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 11 min. Form factor: Tower, Product colour: Black, Rack capacity: 2U. Safety: IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1

Product Properties

  • Model
  • EL800USBIEC
  • EAN
  • 3553340620836
  • Battery
  • Automatic battery test
  • Yes
  • Battery technology
  • Sealed Lead Acid (VRLA)
  • Cold start
  • Yes
  • Hot-swap battery
  • No
  • Typical backup time at half load
  • 11 min
  • Design
  • Form factor
  • Tower
  • LED indicators
  • Battery replacement
  • Product colour
  • Black
  • Rack capacity
  • 2U
  • Features
  • Audible alarm modes
  • Battery replacement
  • Audible alarm(s)
  • Yes
  • Emergency Power Off (EPO)
  • No
  • Input frequency
  • 50/60 Hz
  • Input operation voltage (max)
  • 284 V
  • Input operation voltage (min)
  • 161 V
  • Output operation voltage (max)
  • 240 V
  • Output operation voltage (min)
  • 220 V
  • Output power
  • 500 W
  • Output power capacity
  • 0.8 kVA
  • Surge protection
  • Yes
  • Surge protection features
  • Fax, Modem, Network, Telephone
  • UPS topology
  • Standby (Offline)
  • Logistics data
  • Harmonized System (HS) code
  • 85078000
  • Other features
  • Compatible operating systems
  • Windows 7/Vista/XP\r\nMac OS X\r\nLinux
  • Input connection type
  • IEC
  • Mac compatibility
  • Yes
  • Nominal input voltage
  • 220 V
  • Nominal output voltage
  • 220-240 V
  • Overload protection
  • Yes
  • Packaging data
  • Bundled software
  • Eaton Intelligent Power
  • Ports & interfaces
  • AC outlet types
  • C13 coupler
  • AC outlets quantity
  • 4 AC outlet(s)
  • Ethernet LAN (RJ-45) ports
  • 1
  • Modem (RJ-11) ports
  • 1
  • Power plug
  • C14 coupler
  • USB 2.0 ports quantity
  • 1
  • Safety regulation & standards
  • Safety
  • IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1
  • Weight & dimensions
  • Depth
  • 235 mm
  • Height
  • 263 mm
  • Weight
  • 4.1 kg
  • Width
  • 81 mm
