Description

Eaton EMIB22. PDU types: Metered, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler. Cable length: 3 m. Monitoring: Voltage, Supported network protocols: HTTP, HTTPS, SSL, FTP, SMTP, DNS, DHCP, LDAP, RADIUS, Management protocols: SNMP, Telnet. Nominal input voltage: 230 V, Maximum current: 16 A, AC input frequency: 50 Hz

Product Properties

Manufacturer
Eaton

Model
EMIB22

EAN
3553340696268

Certificates

Certification
CB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011\nIEC 60950-1, EN 61000-6-2:2005\nEN 61000-6-4:2007+A1:2011\nEN 50581 : 2012, REACH, WEEE\nISO 9001:2008 / ISO 14001:2004

Compliance certificates
RoHS

Design

Cable colour
Black

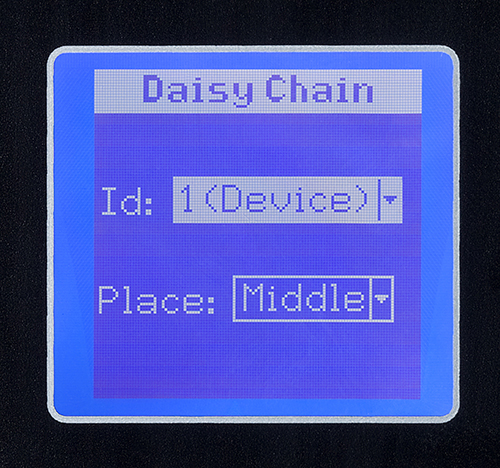

Display
LCD

Form factor
Rackmount

Mounting
Vertical

PDU types
Metered

Product colour
Black

Rack capacity
0U

Rack mounting
Yes

Type
Single-phase

Features

Cable length
3 m

LED indicators
Yes

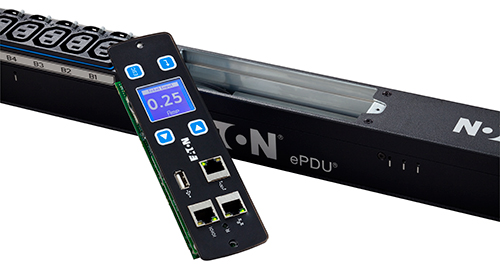

Management features

Firmware upgradeable
Yes

Firmware upgradeable via
Network, USB

Management protocols
SNMP, Telnet

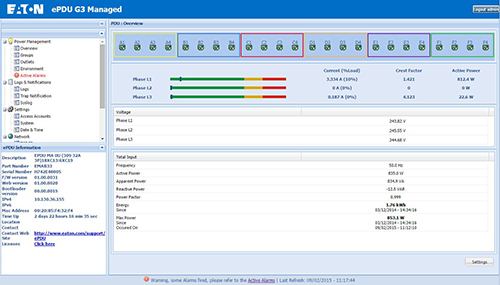

Monitoring
Voltage

Supported network protocols
HTTP, HTTPS, SSL, FTP, SMTP, DNS, DHCP, LDAP, RADIUS

Operational conditions

Operating temperature (T-T)
0 - 60 °C

Packaging content

Cables included
LAN (RJ-45)

Rack mount kit
Yes

Packaging data

Package depth
214 mm

Package height
1200 mm

Package width
200 mm

Ports & interfaces

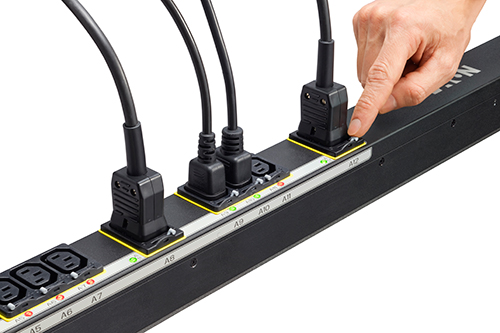

AC outlet types
C13 coupler, C19 coupler

AC outlets quantity
24 AC outlet(s)

Ethernet LAN (RJ-45) ports
1

Output connections
20 x C13 & 4 x C19

Power plug
C20 coupler

Serial ports quantity
1

Power

AC input frequency
50 Hz

Maximum current
16 A

Maximum input current per phase
16 A

Maximum power
3700 W

Nominal input voltage
230 V

Nominal output voltage
230 V

Weight & dimensions

Depth
53 mm

Height
1070 mm

Weight
2.7 kg

Width
52 mm

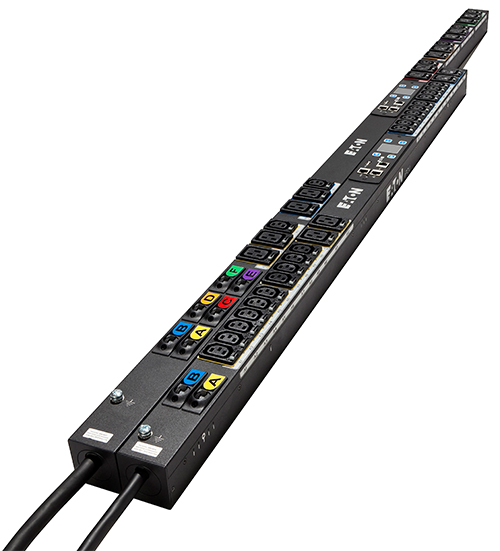

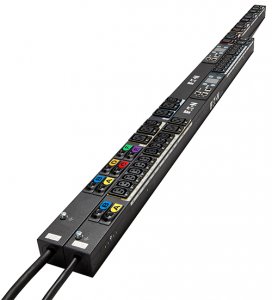

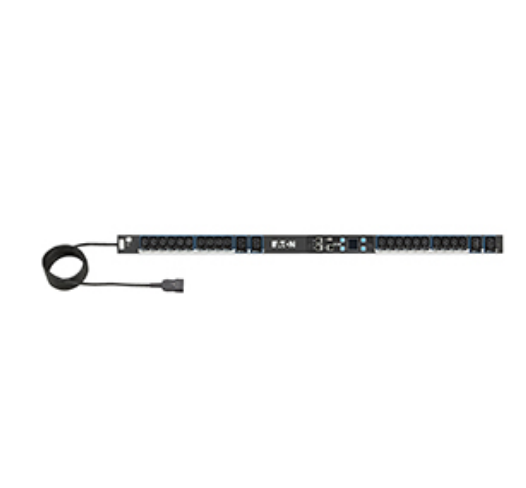

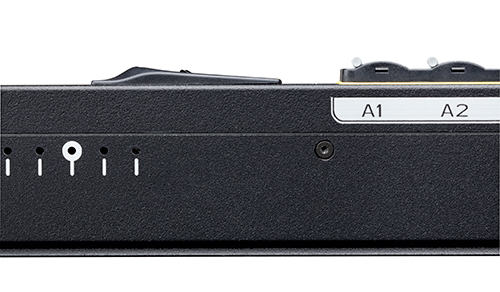

Eaton EMIB22 power distribution unit (PDU) 24 AC outlet(s) 0U Black
