Description

Epson C11CJ11401A0. Maximum print speed: 10 cps, Maximum print speed (draft): 10 cps, Maximum print speed (LQ): 10 cps. Multi-part paper thickness range: 0.12 - 0.53 mm, Single sheet thickness range: 0.065 - 0.19 mm. Buffer size: 128 KB, Sound pressure level (printing): 55 dB, Sound pressure level (quiet mode): 52 dB. Standard interfaces: RS-232, USB, Optional connectivity: Serial (RS-232). Print head: 24-pin, Print head life: 400 million characters, Mean time between failures (MTBF): 35000 h

Affordable: Cost effective alternative to other passbook printers
Fast performance: Prints up to 540 characters per second with 6+1 copies
Reliable: Significantly increased mean time between failure rate of 35,000 hours
Compatible consumables: Same long-lasting ribbons compatible with all models
Design: Improved, modern design

Product Properties

Manufacturer
Epson

Model
C11CJ11401A0

EAN
8715946691497

Bullet points

Point
Affordable: Cost effective alternative to other passbook printers

Compatible consumables: Same long-lasting ribbons compatible with all models

Design: Improved, modern design

Fast performance: Prints up to 540 characters per second with 6+1 copies

Reliable: Significantly increased mean time between failure rate of 35,000 hours

Endurance

Mean time between failures (MTBF)
35000 h

Print head
24-pin

Print head life
400 million characters

Features

Buffer size
128 KB

Sound pressure level (printing)
55 dB

Sound pressure level (quiet mode)
52 dB

Operational conditions

Operating relative humidity (H-H)
10 - 85%

Operating temperature (T-T)
5 - 38 °C

Paper handling

Multi-part paper thickness range
0.12 - 0.53 mm

Single sheet thickness range
0.065 - 0.19 mm

Ports & interfaces

Optional Connectivity
Serial (RS-232)

Standard interfaces
RS-232, USB

Power

AC input frequency
50 - 60 Hz

AC input voltage
220 - 240 V

Power consumption (standby)
0.7 W

Power consumption (typical)
61 W

Printing

Bitmap fonts
Courier, Draft, OCR-B, Orator, Orator-S, Prestige, Roman, Sans Serif, Script, Script C

Built-in barcodes
CODABAR (NW-7), Code-128 Codabar Library, Code-39 Library, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E

Character pitch
10,12,15 cpi

Character sets
ISO 8859-15, Italic, PC437, PC708, PC720, PC850, PC858, PC864, PCAPTEC, PCAR864, Roman 8

Maximum number of copies
6 copies

Maximum print speed
10 cps

Maximum print speed (draft)
10 cps

Maximum print speed (LQ)
10 cps

Maximum print speed (NLQ)
10 cps

Maximum printing width (columns)
94

Normal print speed
10 cps

Number of characters
14

Weight & dimensions

Depth
280 mm

Height
203 mm

Weight
7.8 kg

Width
384 mm

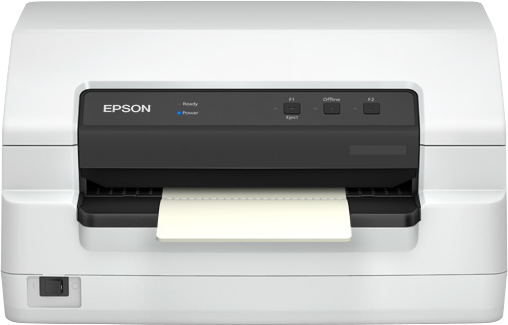

Epson C11CJ11401A0 dot matrix printer 10 cps
