Description

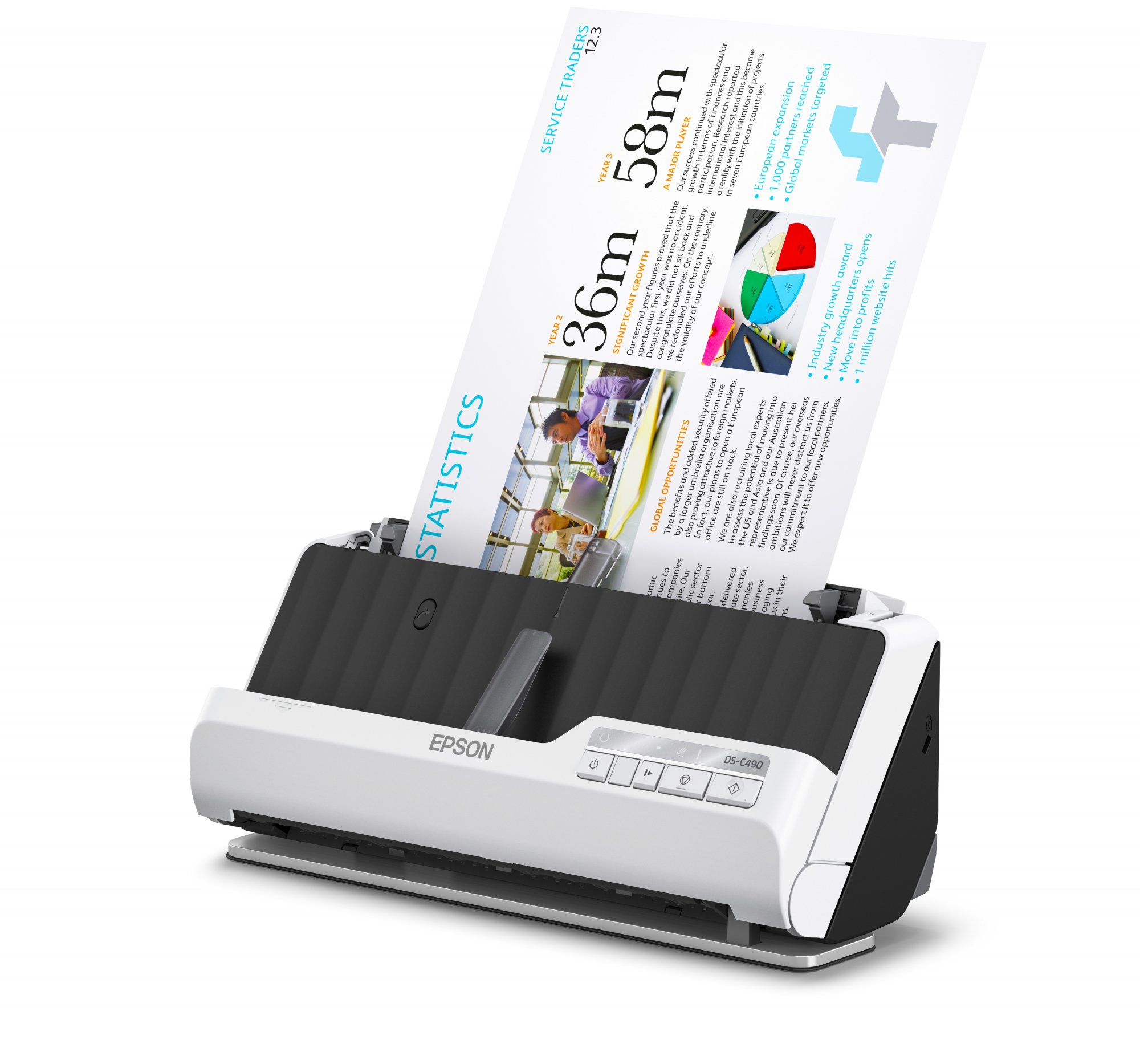

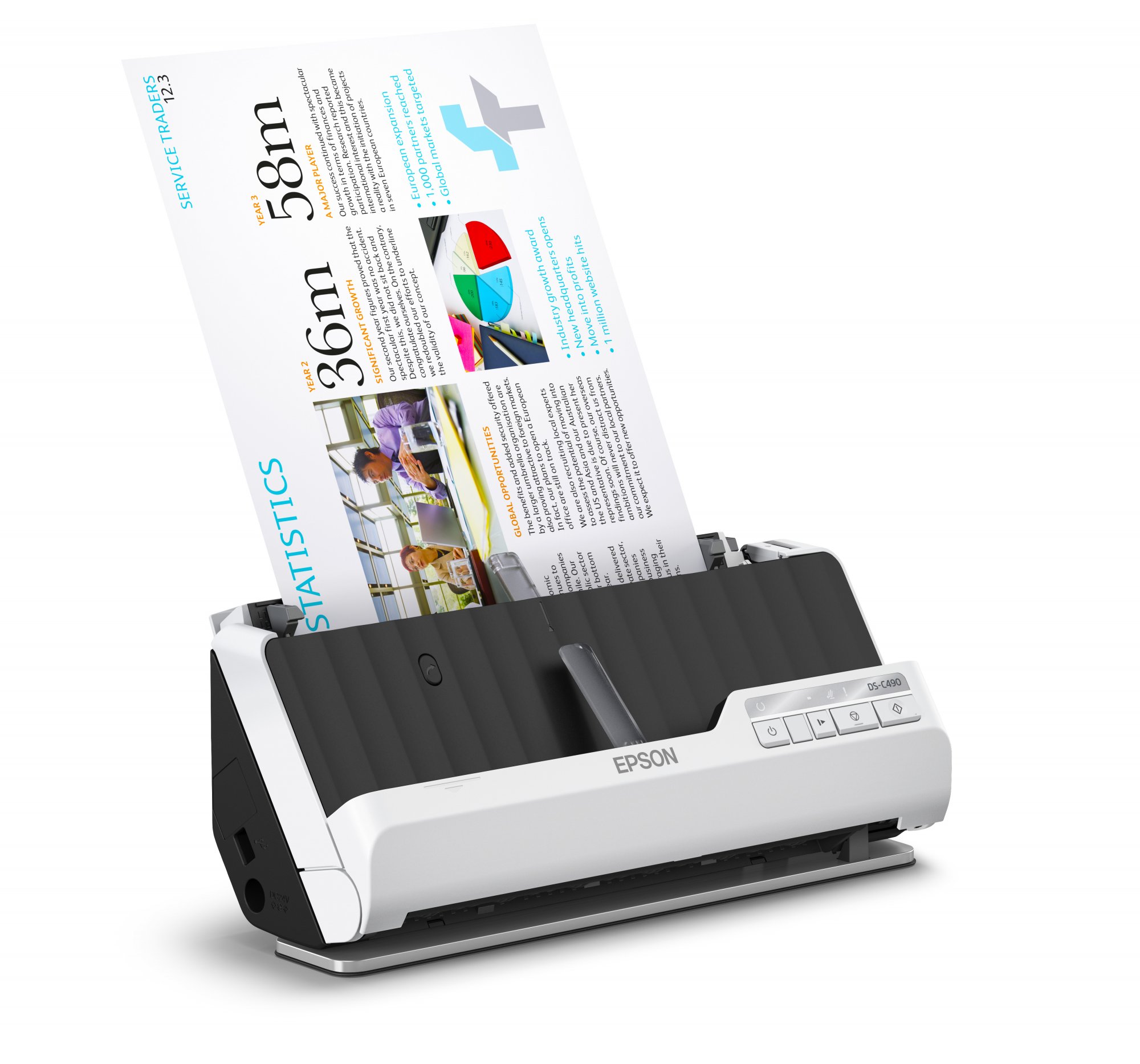

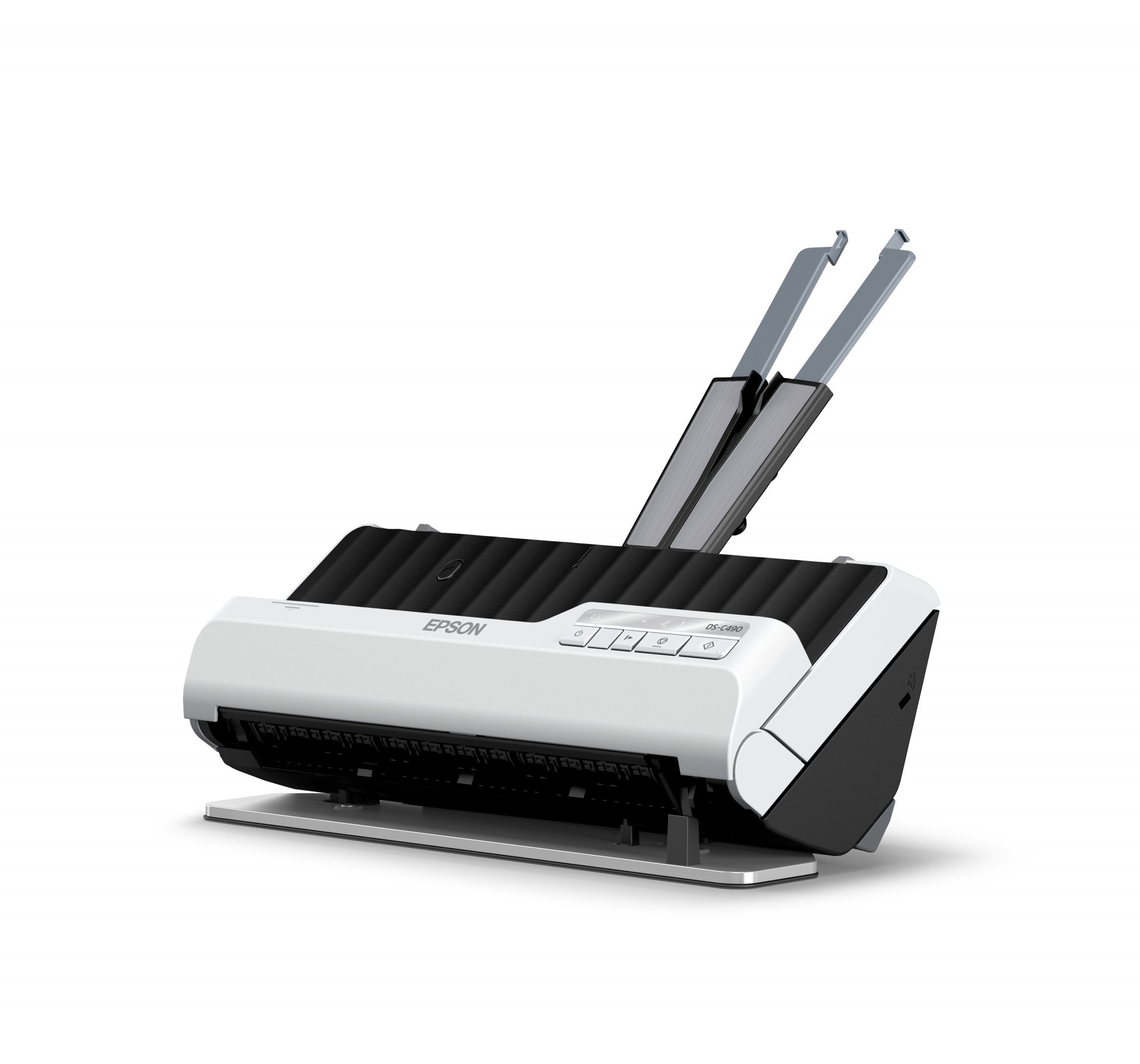

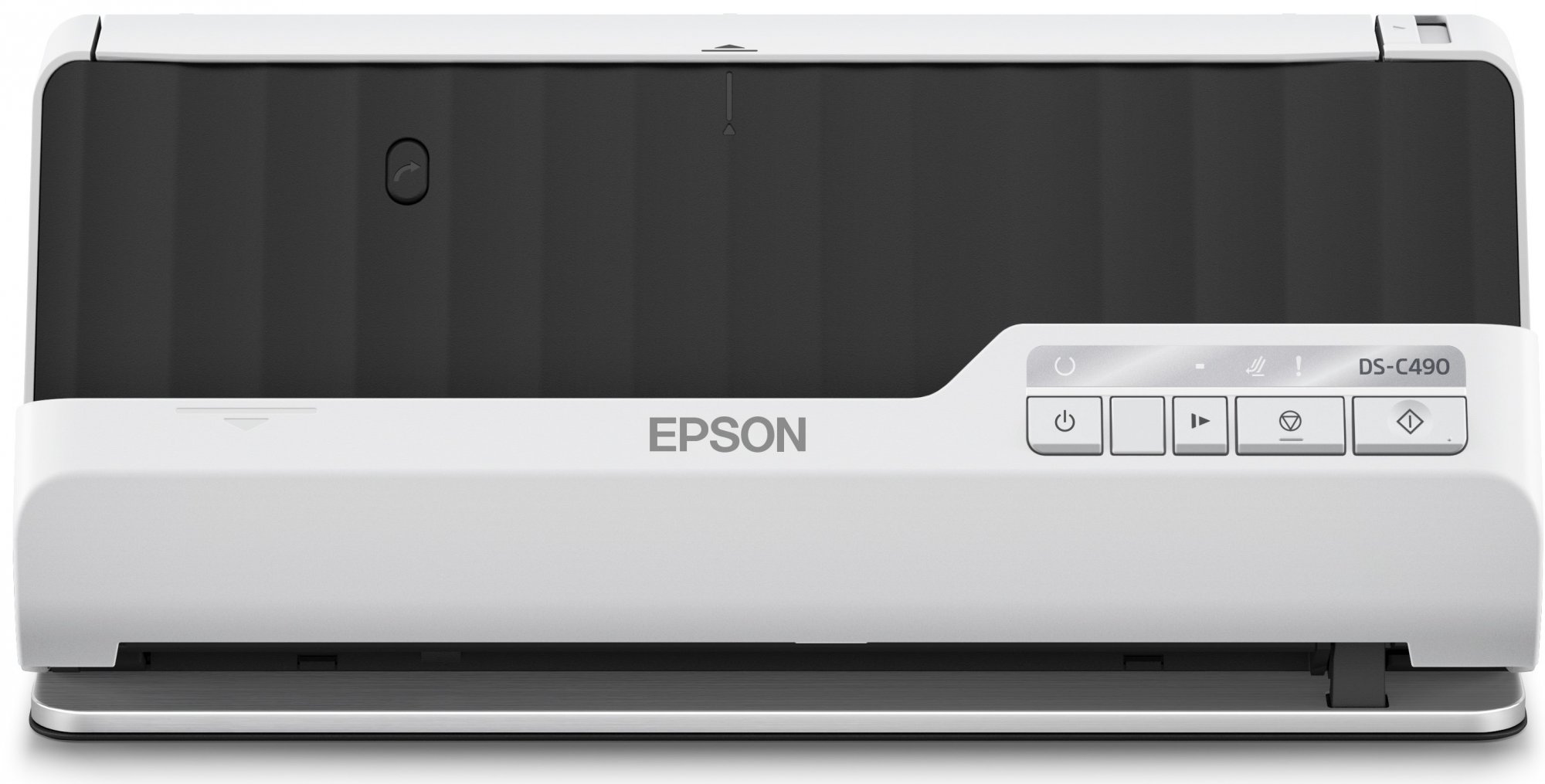

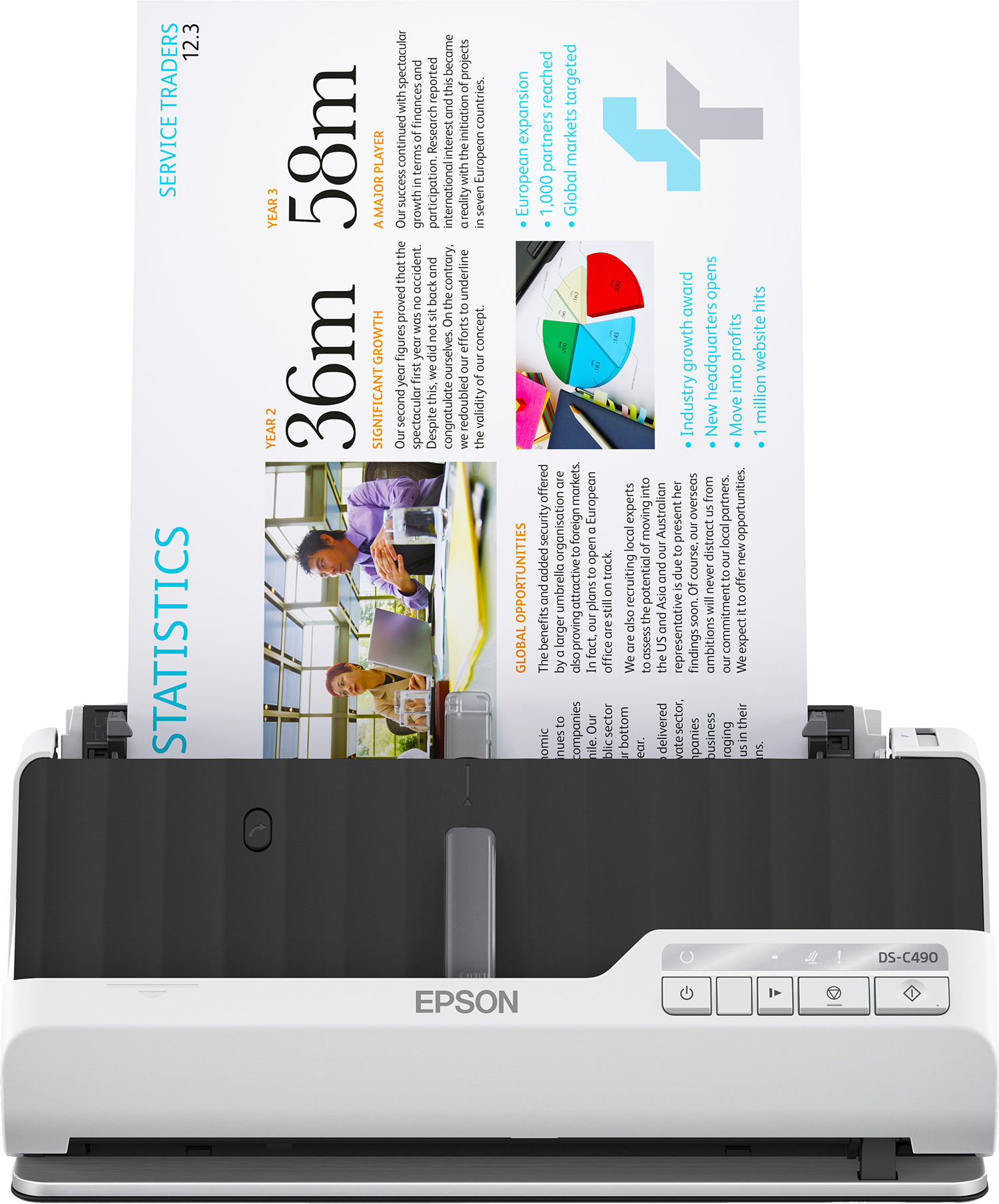

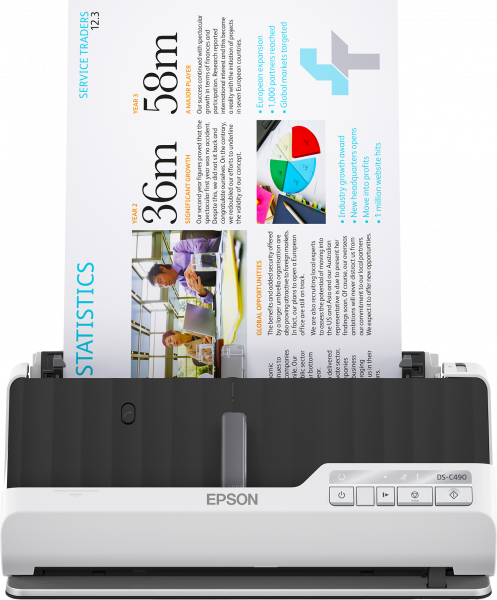

Epson DS-C490. Maximum scan size: 215.9 x 5588 mm, Optical scanning resolution: 600 x 600 DPI, Input colour depth: 30 bit. Scanner type: Sheet-fed scanner, Product colour: Black, Grey, Control type: Buttons. Daily duty cycle (max): 6500 pages, Light source: ReadyScan LED, Scan file formats: BMP, JPEG, PDF, PNG, TIFF. Auto document feeder (ADF) input capacity: 20 sheets. Maximum ISO A-series paper size: A4, ISO A-series sizes (A0...A9): A4, A5, A6, ISO B-series sizes (B0...B9): B5, B6

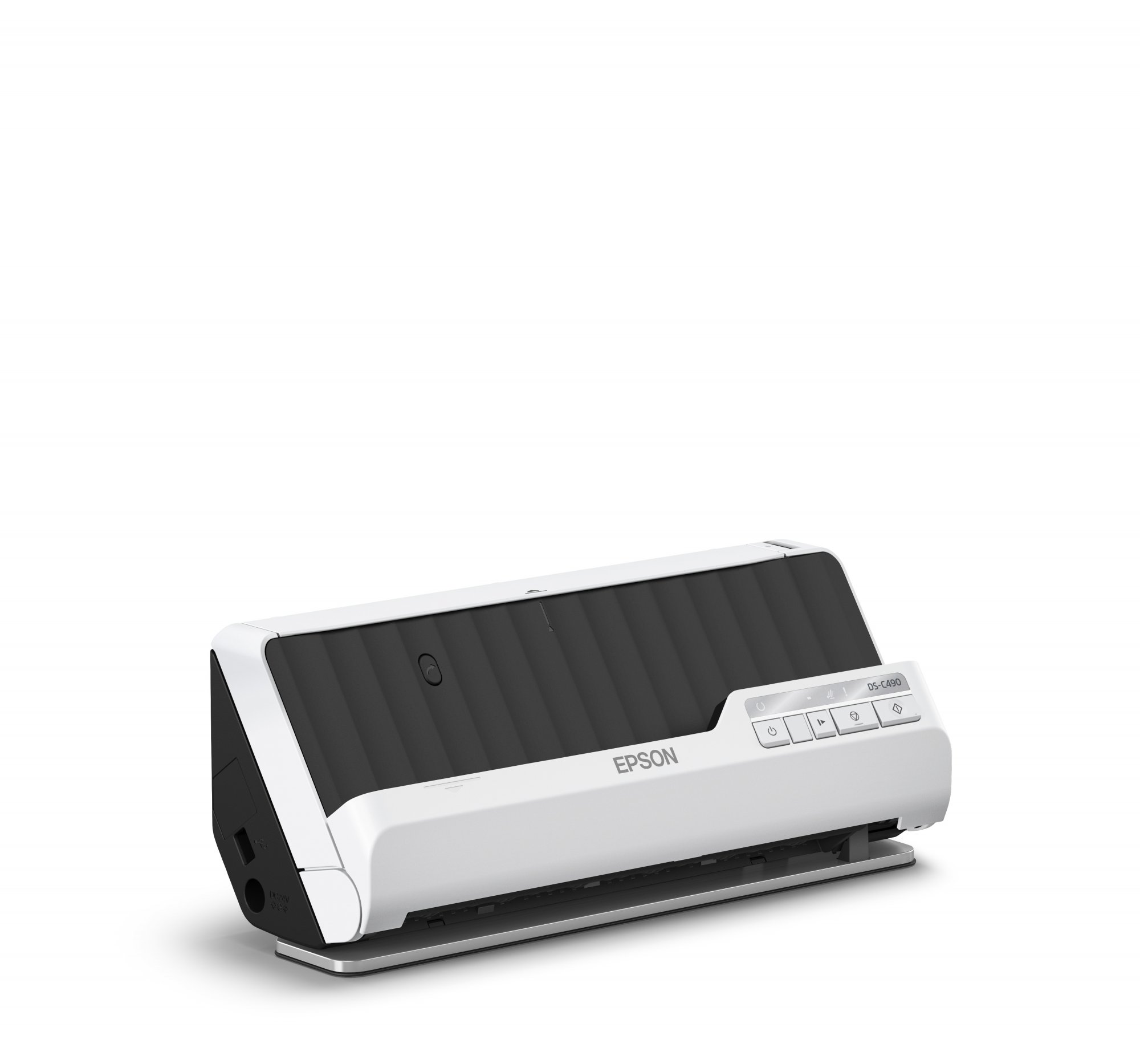

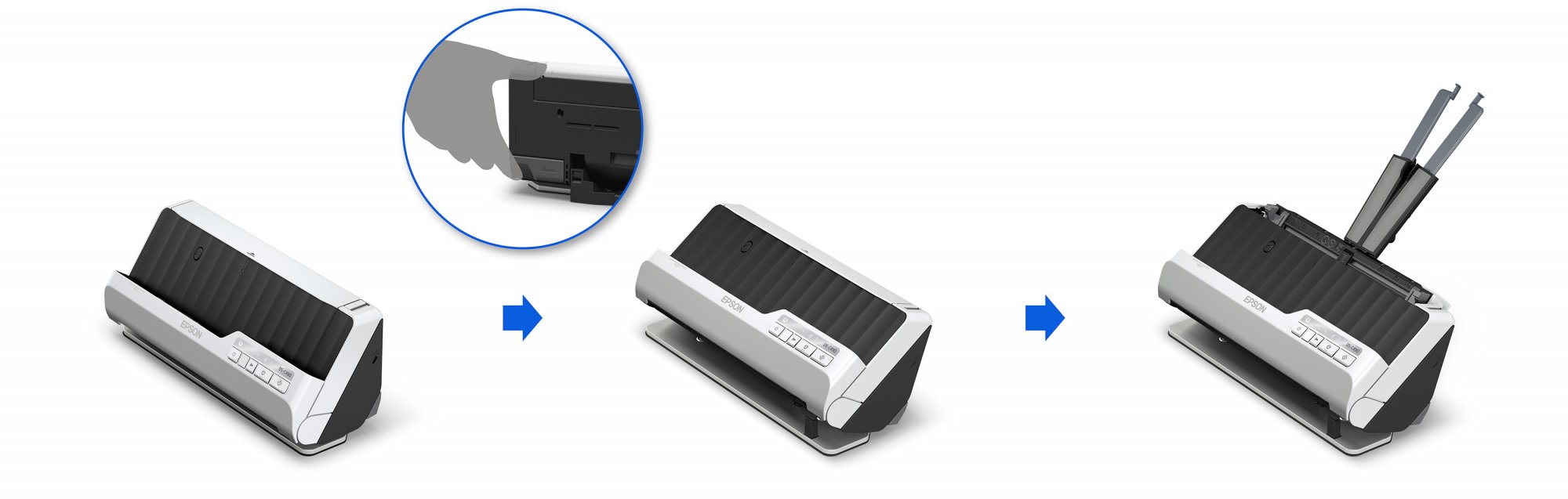

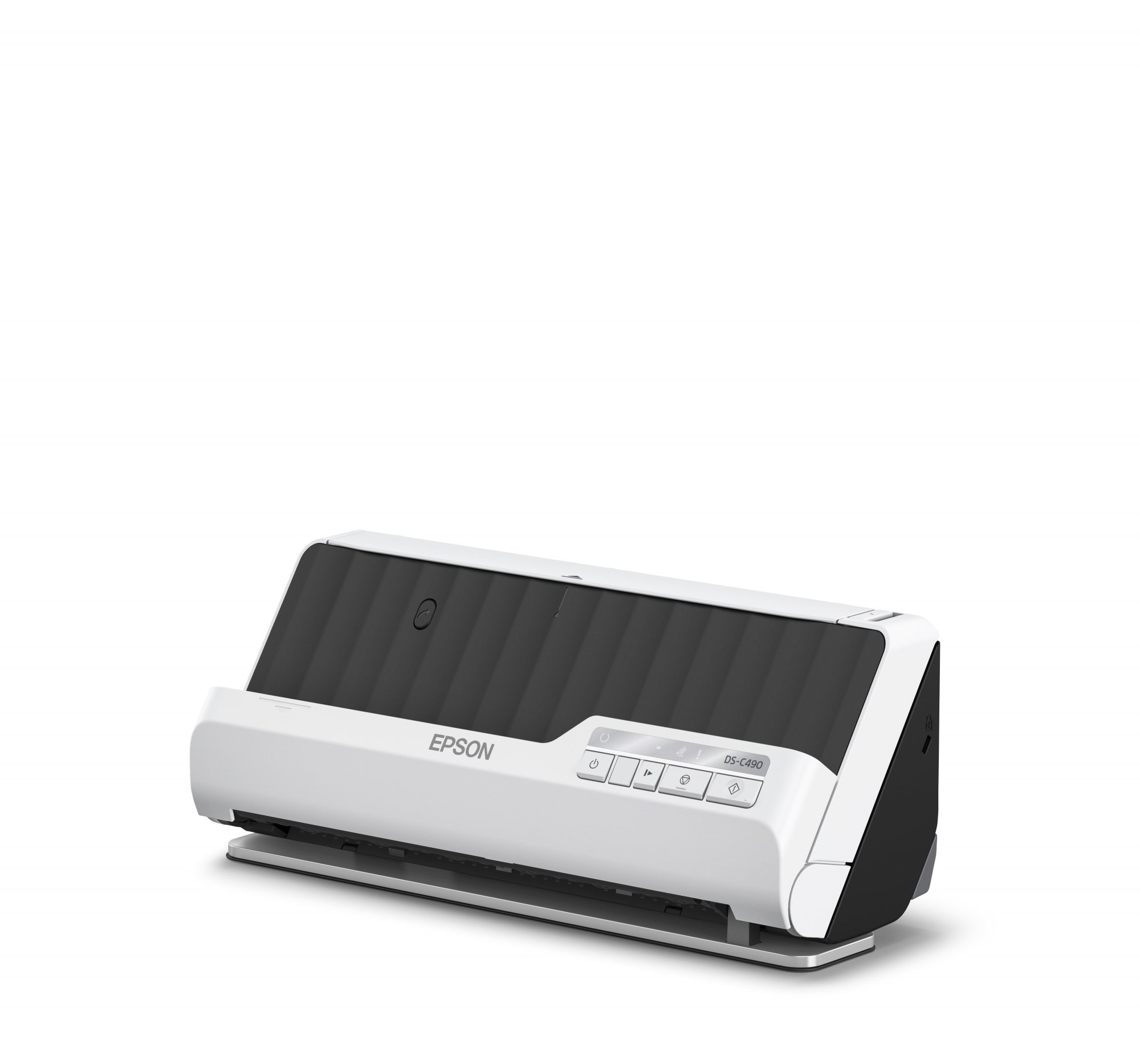

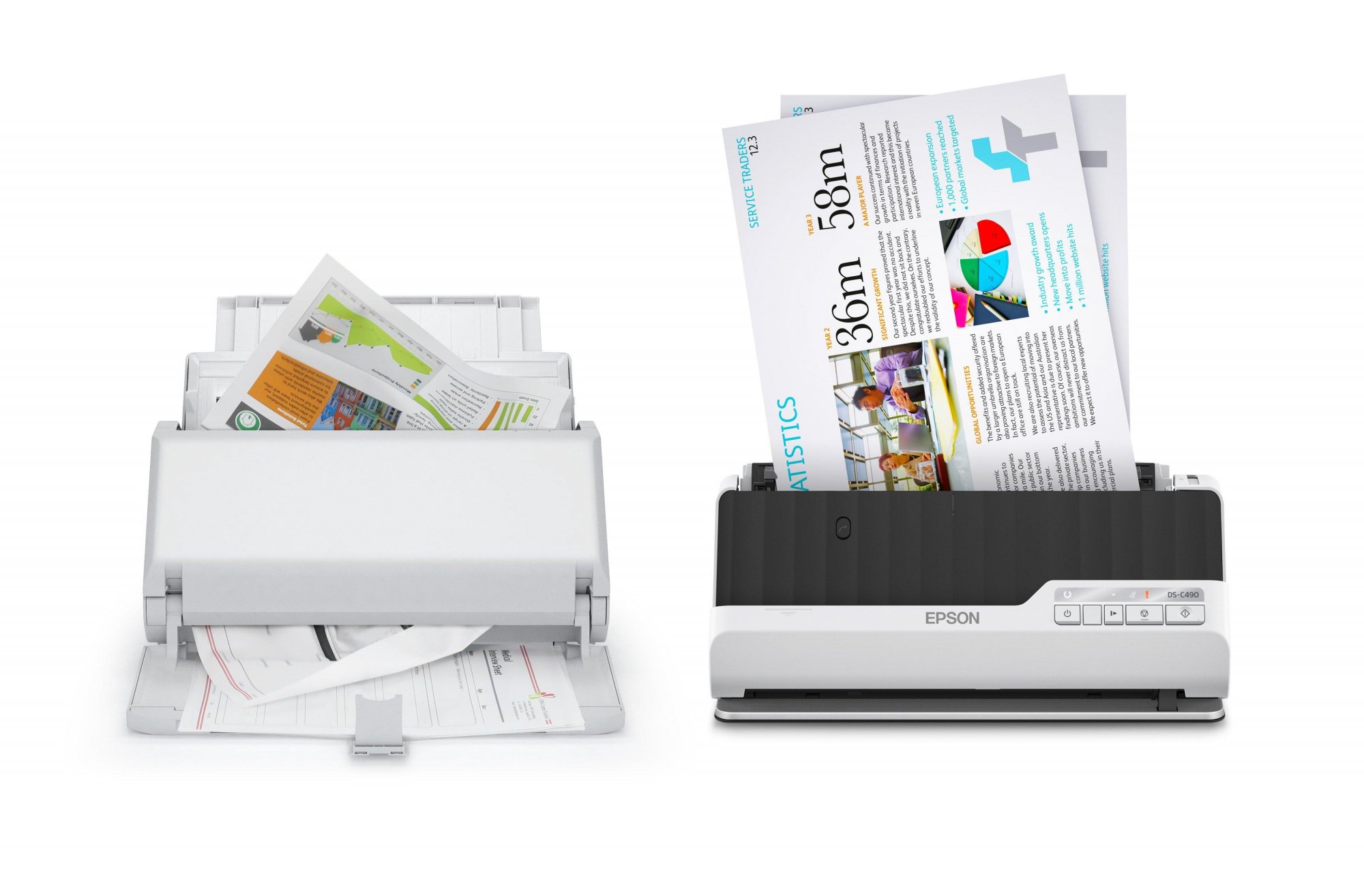

Ultra-compact: Smallest footprint, even while in use

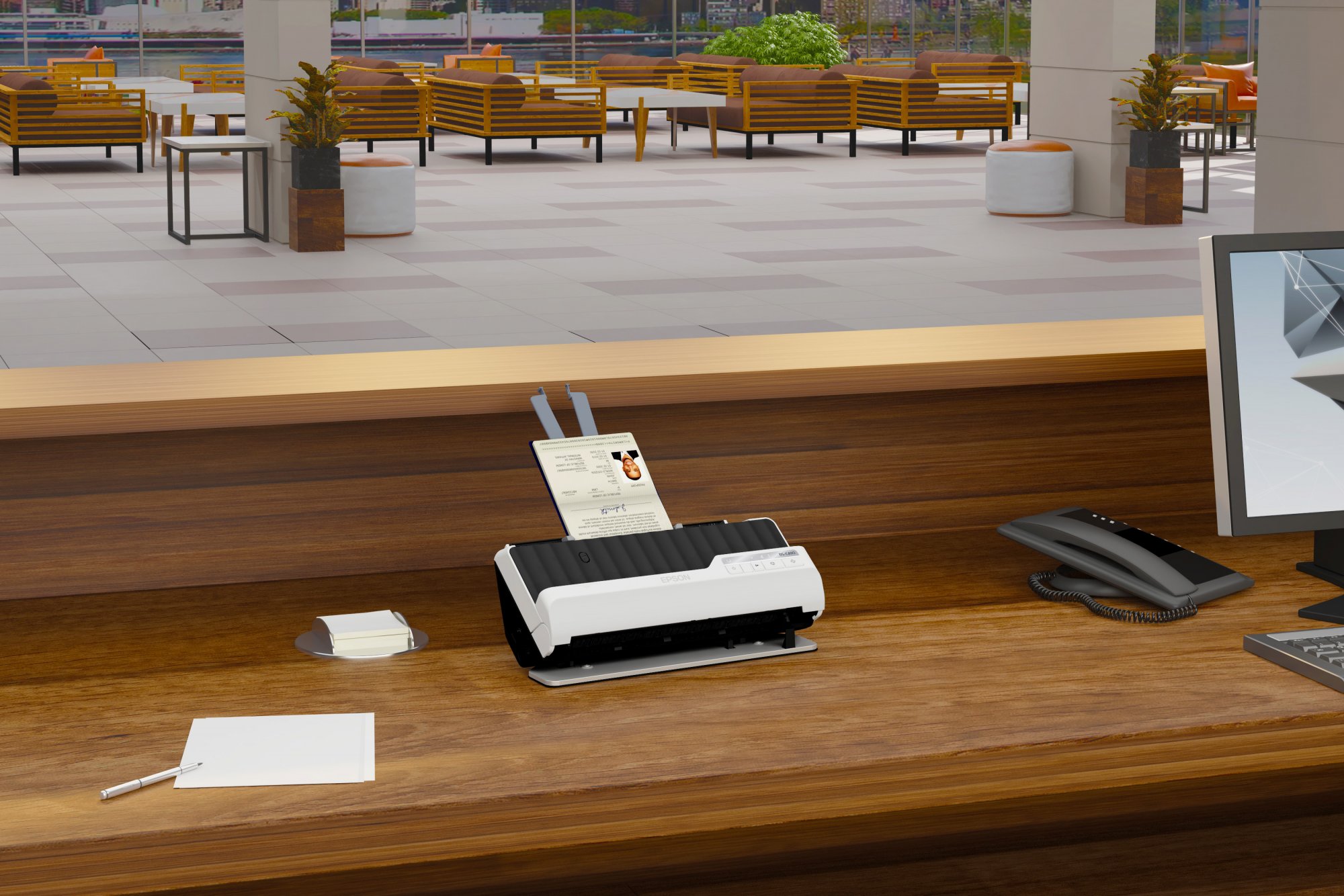

Versatile: Scan passports, receipts, invoices, cards and more

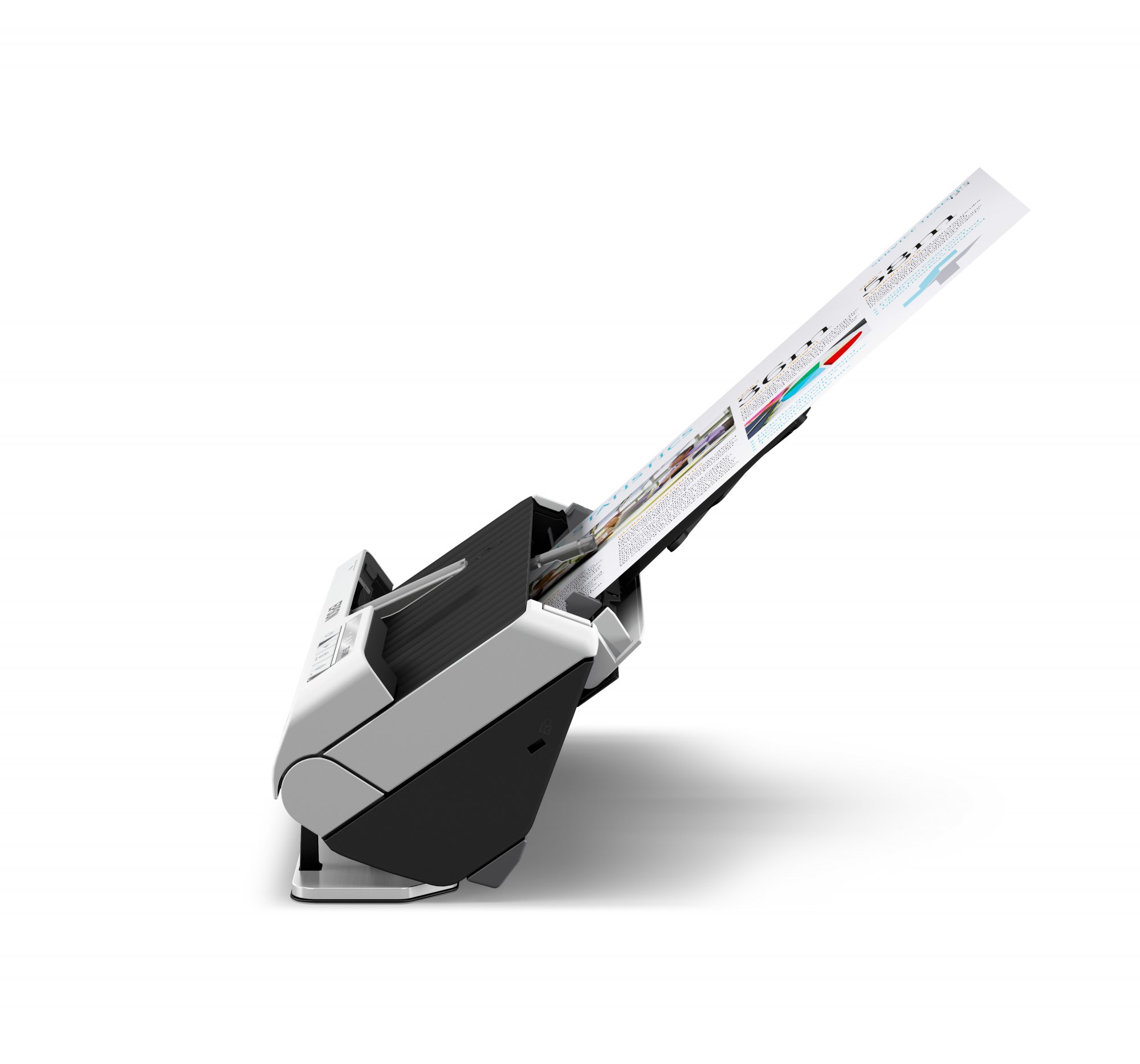

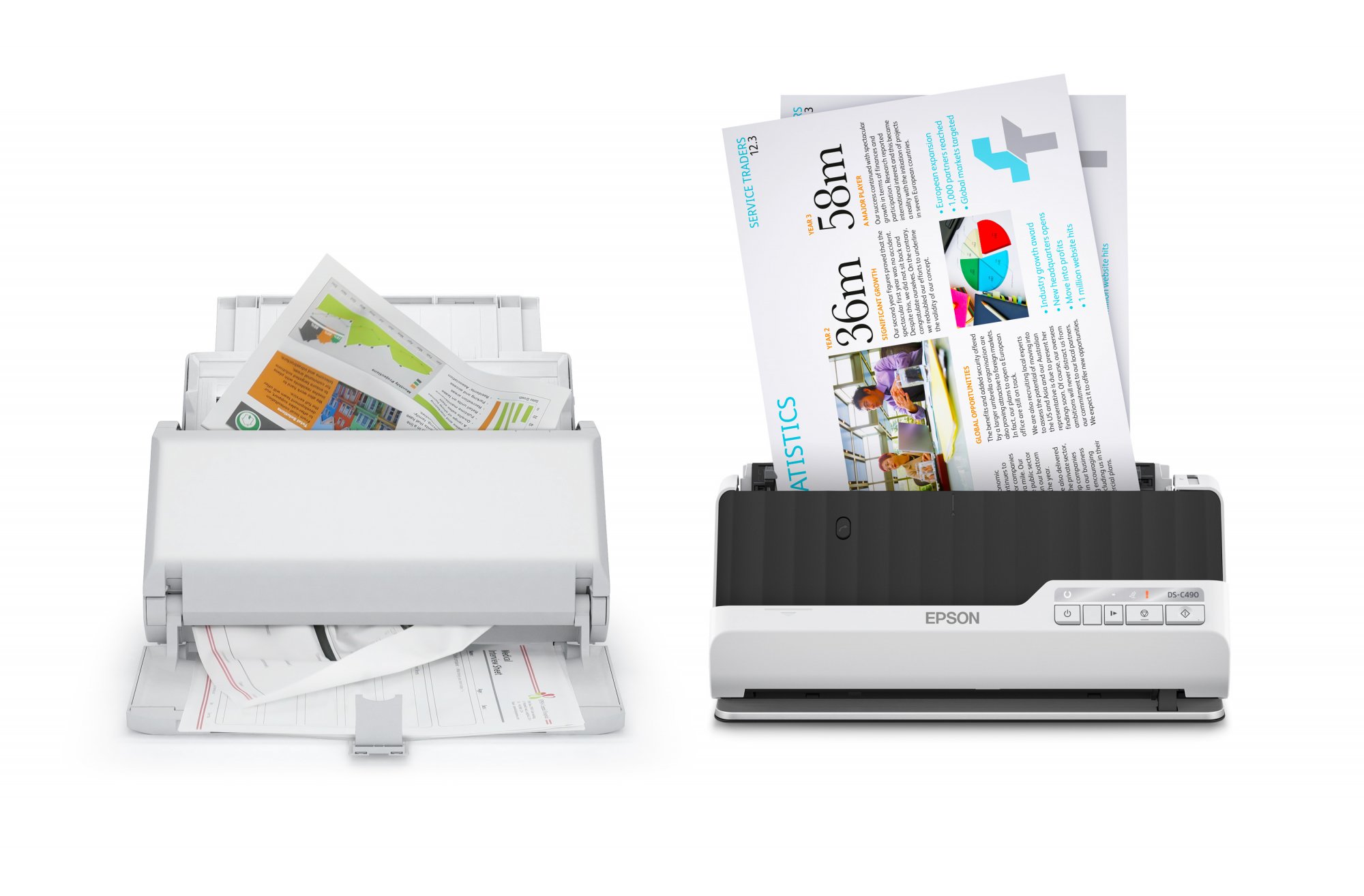

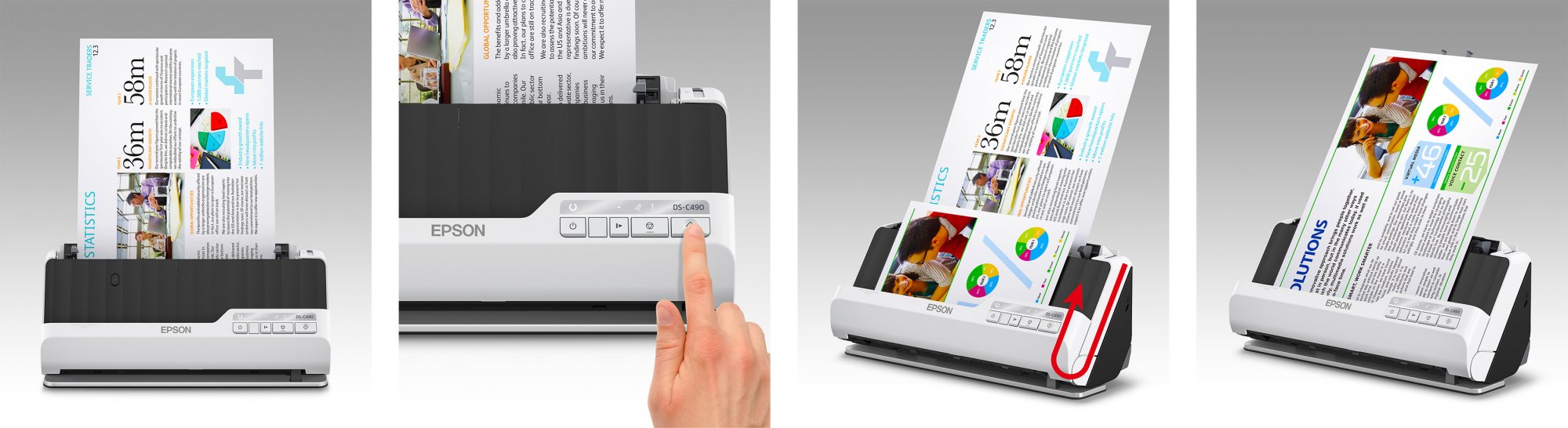

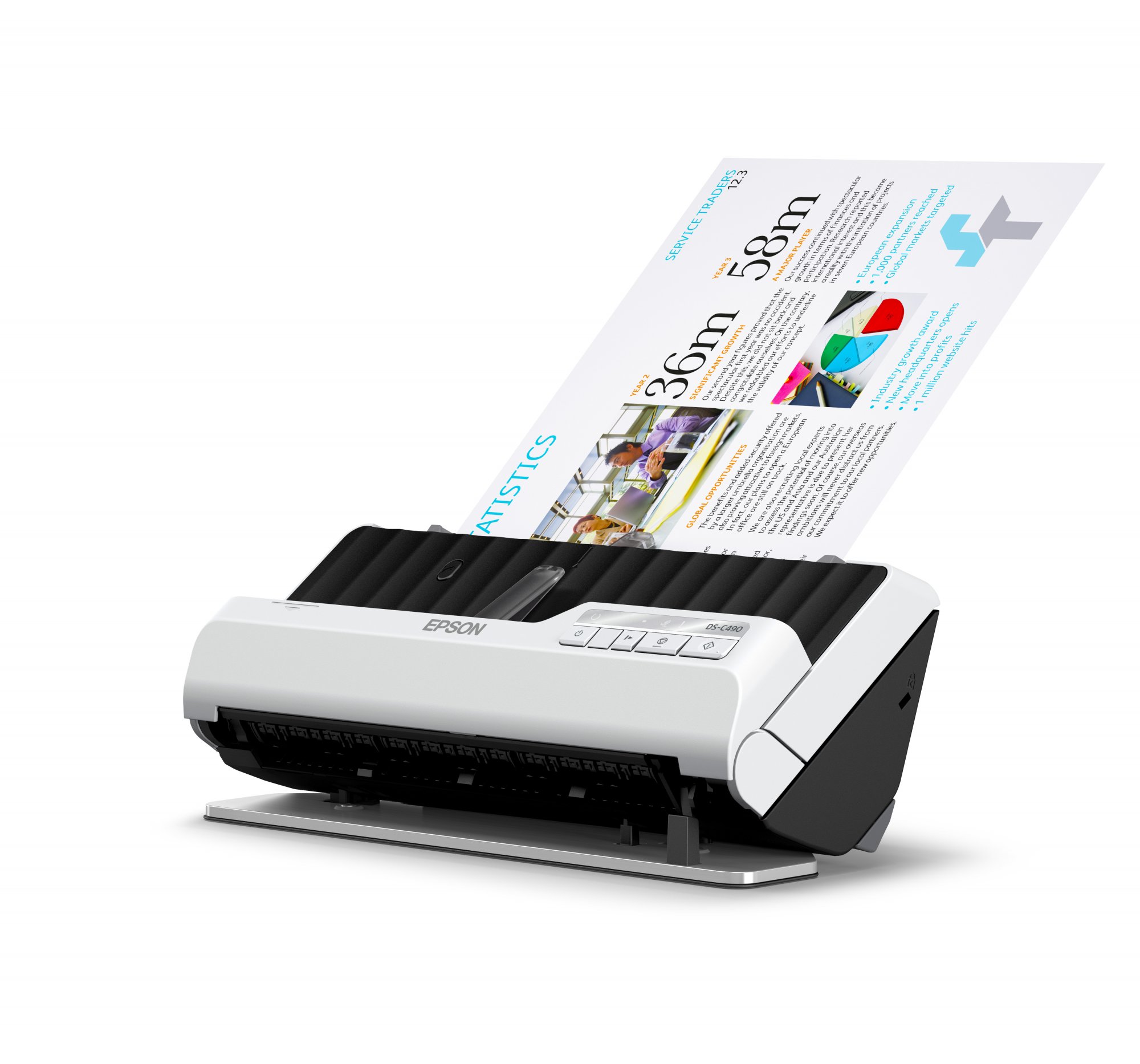

Two-in-one: U-turn pass and straight pass give you two scanners in one
Lower environmental impact: Power consumption of only 3.3W in ready mode and 1.0W in sleep mode
Document Capture Pro: Powerful document capture software included

Product Properties

Manufacturer
Epson

Model
B11B271401BY

EAN
8715946720487

Bullet points

Point
Document Capture Pro: Powerful document capture software included

Lower environmental impact: Power consumption of only 3.3W in ready mode and 1.0W in sleep mode

Two-in-one: U-turn pass and straight pass give you two scanners in one

Ultra-compact: Smallest footprint, even while in use

Versatile: Scan passports, receipts, invoices, cards and more

Design

Built-in display
No

Control type
Buttons

Product colour
Black, Grey

Scanner type
Sheet-fed scanner

Input capacity

Auto document feeder (ADF) input capacity
20 sheets

Operational conditions

Operating relative humidity (H-H)
15 - 80%

Operating temperature (T-T)
5 - 35 °C

Storage relative humidity (H-H)
15 - 85%

Storage temperature (T-T)
-25 - 60 °C

Other features

Compliance certificates
RoHS

Packaging data

Quantity per pack
1 pc(s)

Paper handling

ISO A-series sizes (A0...A9)
A4, A5, A6

ISO B-series sizes (B0...B9)
B5, B6

Maximum ISO A-series paper size
A4

Paper tray media weight
40 - 413 g/m²

Performance

Daily duty cycle (max)
6500 pages

Light source
ReadyScan LED

Scan drivers
ICA, ISIS, SANE, TWAIN, WIA

Scan file formats
BMP, JPEG, PDF, PNG, TIFF

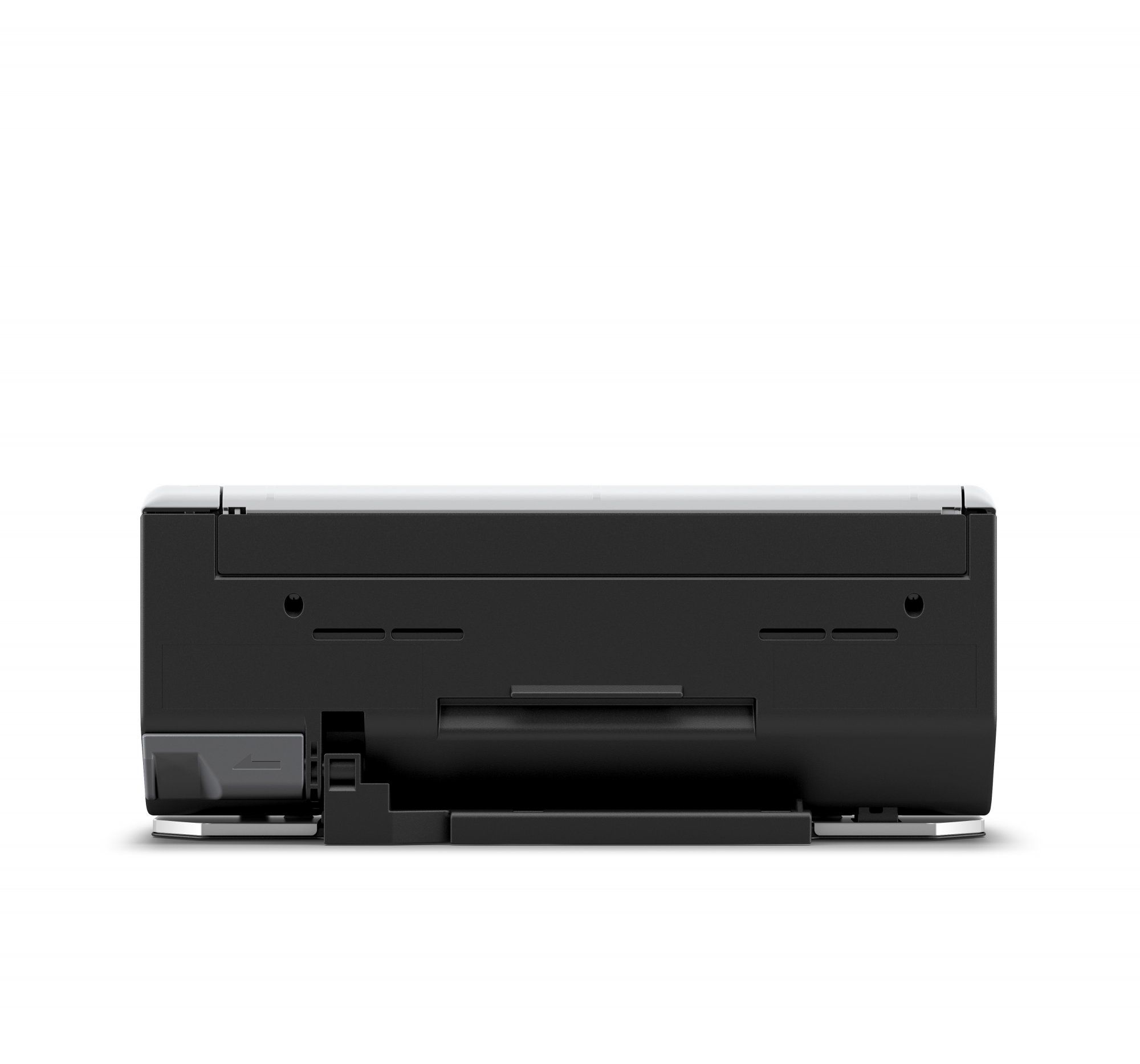

Ports & interfaces

USB port
Yes

USB version
2.0

Power

Input voltage
100 - 240 V

Power consumption (standby)
1 W

Power consumption (typical)
10 W

Power supply type
AC

Scanning

ADF scan speed (b/w, A4)
40 ppm

ADF scan speed (colour, A4)
40 ppm

Duplex ADF scan speed (b/w, A4)
80 ipm

Duplex ADF scan speed (colour, A4)
80 ipm

Duplex scanning
Yes

Input colour depth
30 bit

Input greyscale depth
10 bit

Maximum scan size
215.9 x 5588 mm

Optical scanning resolution
600 x 600 DPI

Output colour depth
24 bit

Output greyscale depth
8 bit

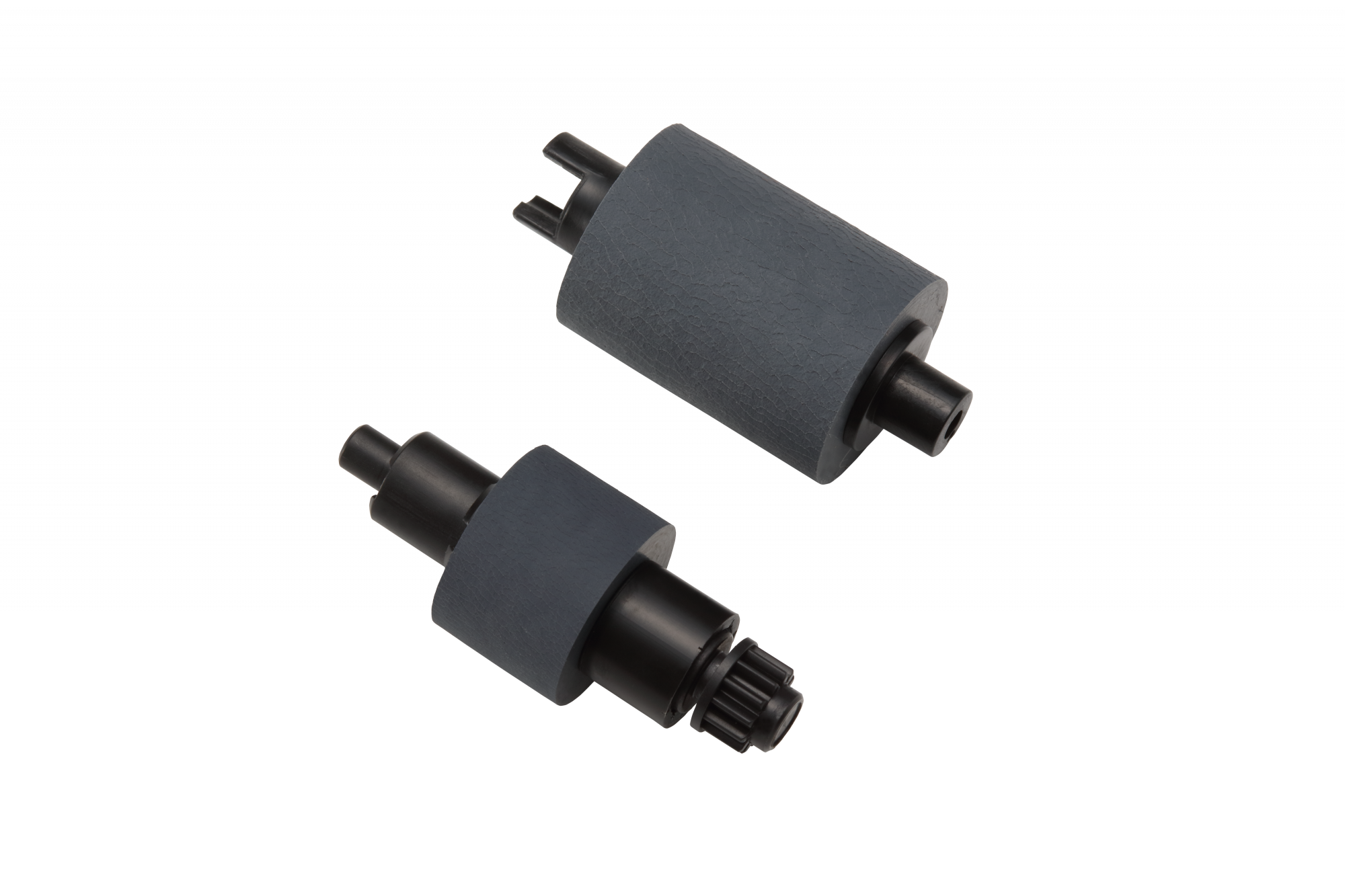

Roller lifetime
50000 pages

Sustainability

Sustainability certificates
ENERGY STAR

System requirements

Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.9 Mavericks, Yes

Windows operating systems supported
Windows 10, Windows 10 x64, Windows 11, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Yes

Server operating systems supported
Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2012 x64, Windows Server 2016

Weight & dimensions

Depth
104 mm

Height
125 mm

Weight
1.9 kg

Width
296 mm
