Description

Epson EB-1470Ui. Projector brightness: 4000 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Fixed focal length: 4.2 mm, Zoom ratio: 1.35:1. Video processing: 10 bit, Video colour modes: Blackboard, Cinema, Dynamic, Presentation, sRGB. Serial interface type: RS-232C

Up to 100-inch superb laser display: Full HD WUXGA resolution with Epson's 3LCD technology
All-in-one meeting solution: Combines multiple office resources in one interactive collaboration device
Increase integration and collaboration: Share content from a range of devices simultaneously
Sliding Split Screen: Two displays in one - project images from different sources simultaneously
Remote whiteboard sharing mode: Create, collaborate, and share meetings notes with participants

Product Properties

Manufacturer
Epson

Model
V11H876041

Bullet points

Point
All-in-one meeting solution

Increase integration and collaboration: Share content from a range of devices simultaneously

Remote whiteboard sharing mode: Create, collaborate, and share meetings notes with participants

Sliding Split Screen: Two displays in one - project images from different sources simultaneously

Up to 100-inch superb laser display: Full HD WUXGA resolution with Epson's 3LCD technology

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Placement
Wall

Product colour
White

Product type
Ultra short throw projector

Display

Built-in display
No

Features

Country of origin
China

Noise level
38 dB

Noise level (economic mode)
27 dB

Password protection
Yes

Lens system

Fixed focal length
4.2 mm

Focus
Manual

Throw ratio
0.27 - 0.37:1

Zoom ratio
1.35:1

Light source

Light source type
Laser

Service life of light source
20000 h

Service life of light source (economic mode)
30000 h

Logistics data

Pallet gross height
105 cm

Pallet gross length
120 cm

Pallet gross width
80 cm

Pallet height (UK)
105 cm

Pallet length (UK)
120 cm

Pallet width (UK)
100 cm

Products per pallet
12 pc(s)

Products per pallet (UK)
12 pc(s)

Products per pallet layer
2 pc(s)

Products per pallet layer (UK)
2 pc(s)

Quantity per pack
1 pc(s)

Multimedia

Built-in speaker(s)
Yes

RMS rated power
16 W

Network

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Miracast
Yes

Wi-Fi
Yes

Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)

Other features

RS-232C
Yes

Packaging content

Batteries included
Yes

Bundled software
Easy Interactive Tools, Epson Projector Management Software, EasyMP Multi PC Projection

Cables included
AC, USB

Manual
Yes

Mounting brackets included
Yes

Quick start guide
Yes

Remote control included
Yes

Warranty card
Yes

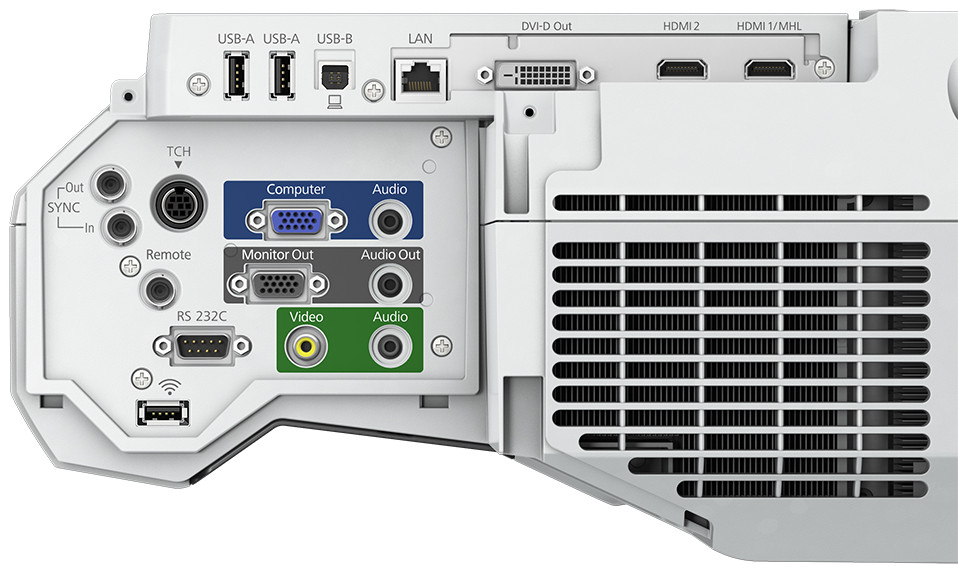

Ports & interfaces

DVI port
Yes

HDMI ports
2

Microphone in
Yes

Mobile High-Definition Link (MHL)
Yes

S-Video inputs quantity
1

Serial interface type
RS-232C

USB 2.0 ports quantity
2

USB 2.0 Type-B ports quantity
1

VGA (D-Sub) ports quantity
2

Power

AC input frequency
50 - 60 Hz

AC input voltage
220 - 240 V

Power consumption (economy mode)
332 W

Power consumption (standby)
2 W

Power consumption (typical)
448 W

Power source
AC

Projector

Contrast ratio (dynamic)
2500000:1

Keystone correction, horizontal
-3 - 3°

Keystone correction, vertical
-3 - 3°

Native aspect ratio
16:10

Number of colours
1.073 billion colours

Projection distance
0.4 - 0.6 m

Projection technology
3LCD

Projector brightness
4000 ANSI lumens

Projector brightness (economic mode)
2800 ANSI lumens

Projector native resolution
WUXGA (1920x1200)

Screen size compatibility
1778 - 2540 mm (70 - 100")

Supported aspect ratios
16:10

Software

Linux operating systems supported
Yes

Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Storage

Card reader integrated
No

Video

Full HD
Yes

Video colour modes
Blackboard, Cinema, Dynamic, Presentation, sRGB

Video processing
10 bit

Weight & dimensions

Depth
437 mm

Height
172 mm

Package depth
790 mm

Package height
335 mm

Package weight
30.7 kg

Package width
575 mm

Weight
11.4 kg

Width
494 mm

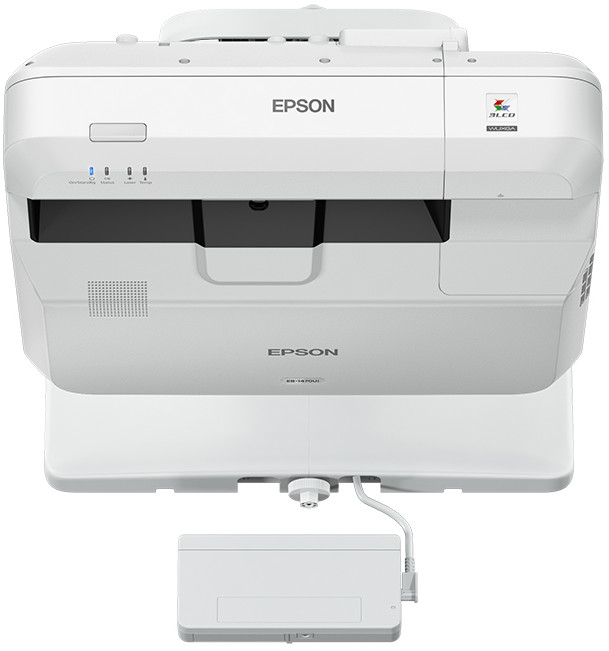

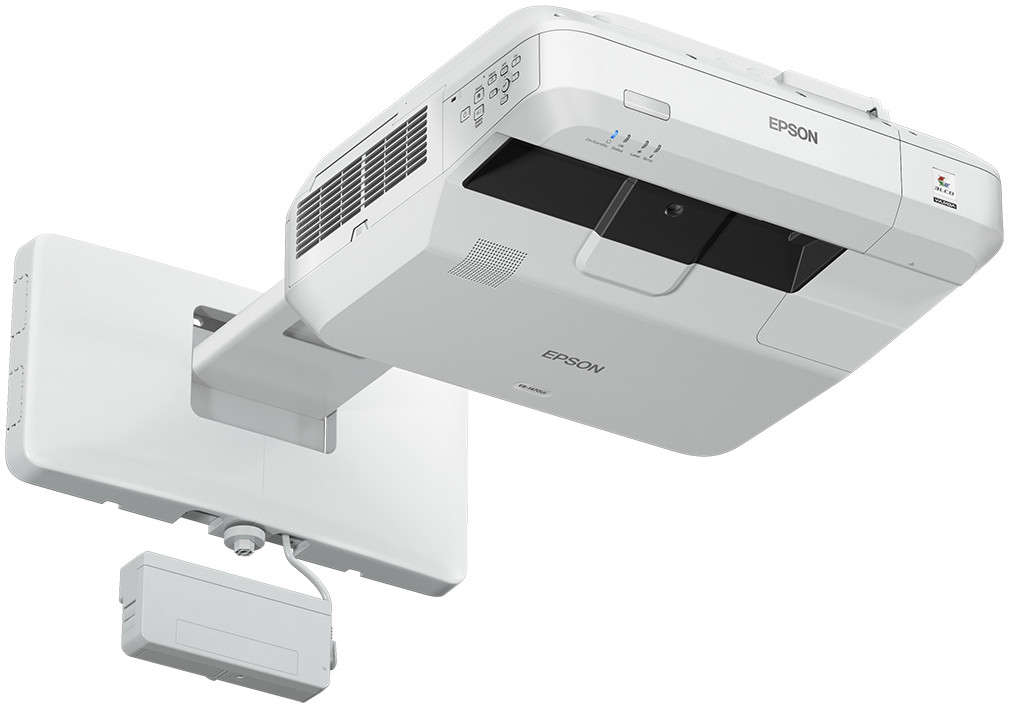

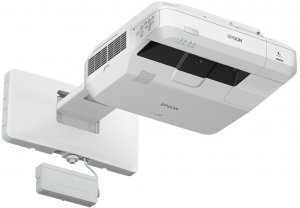

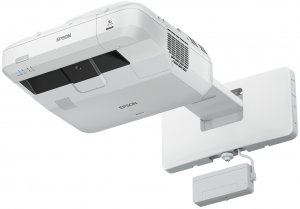

Epson EB-1470Ui Ultra short throw projector 4000 ANSI lumens 3LCD WUXGA (1920x1200) White
