Description

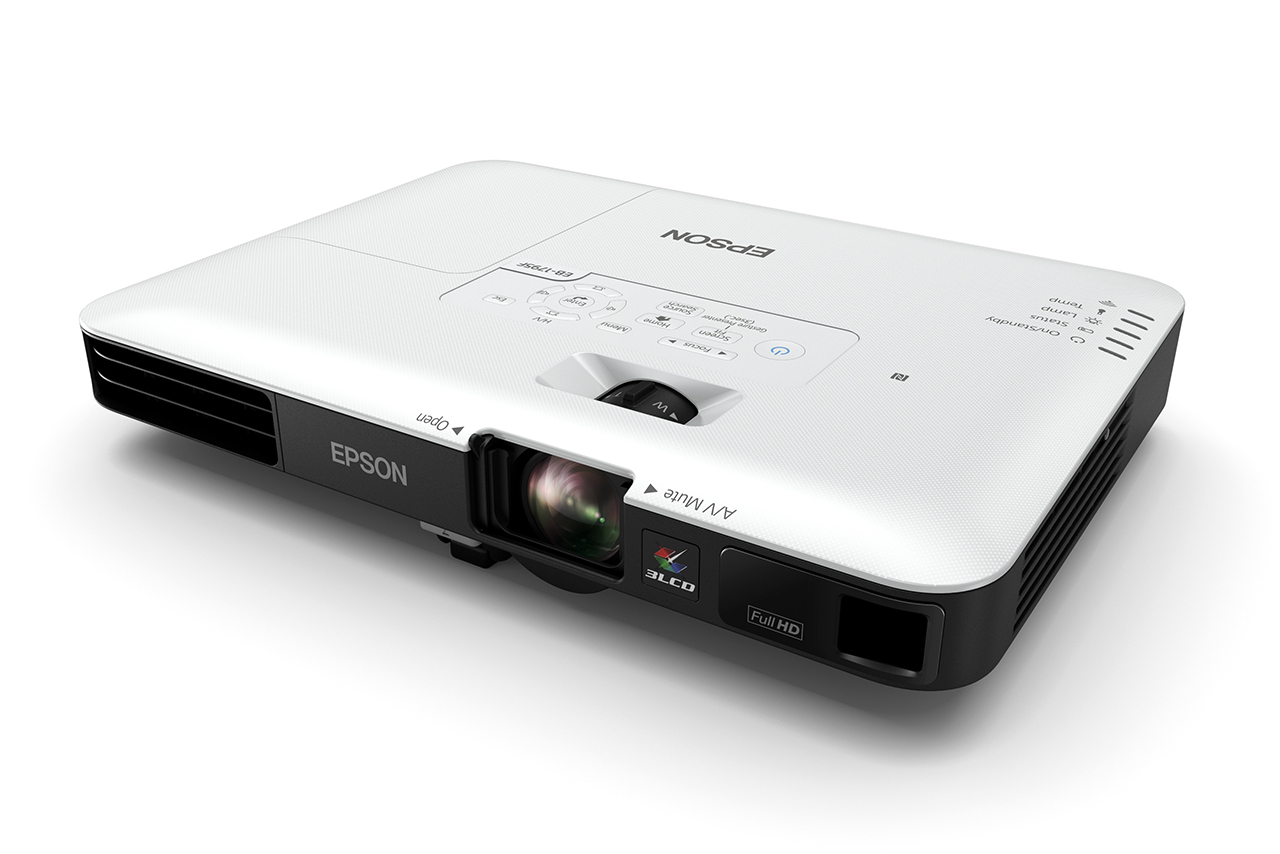

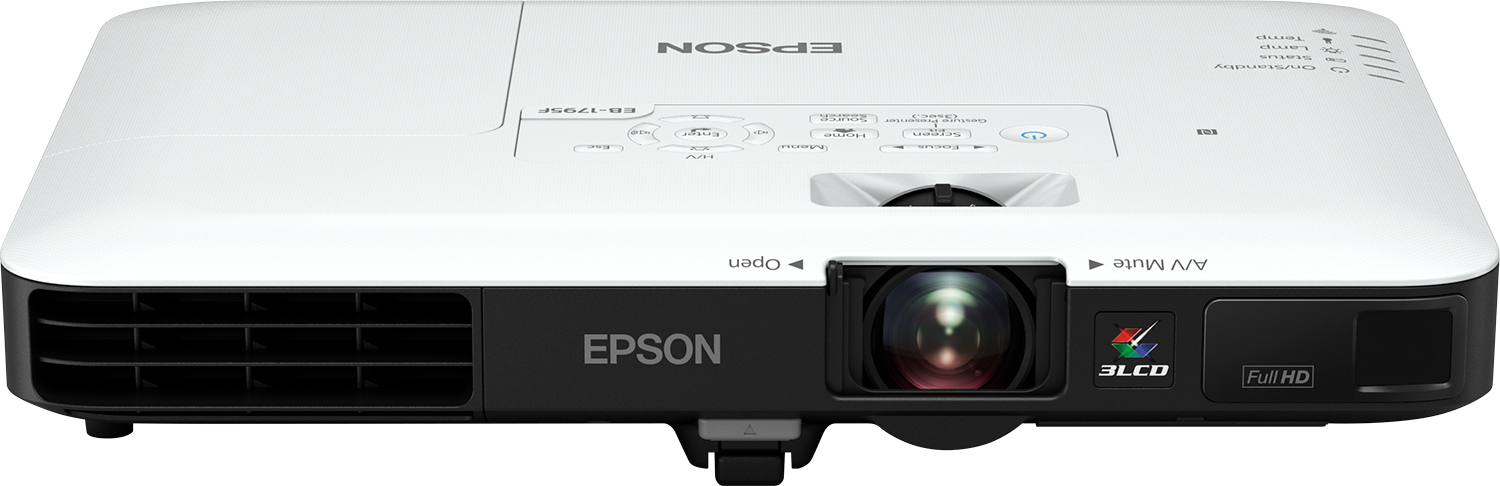

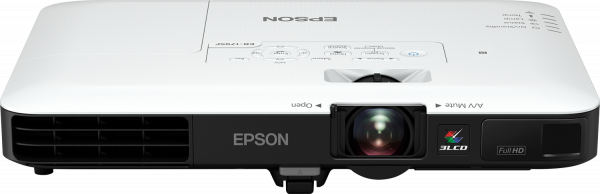

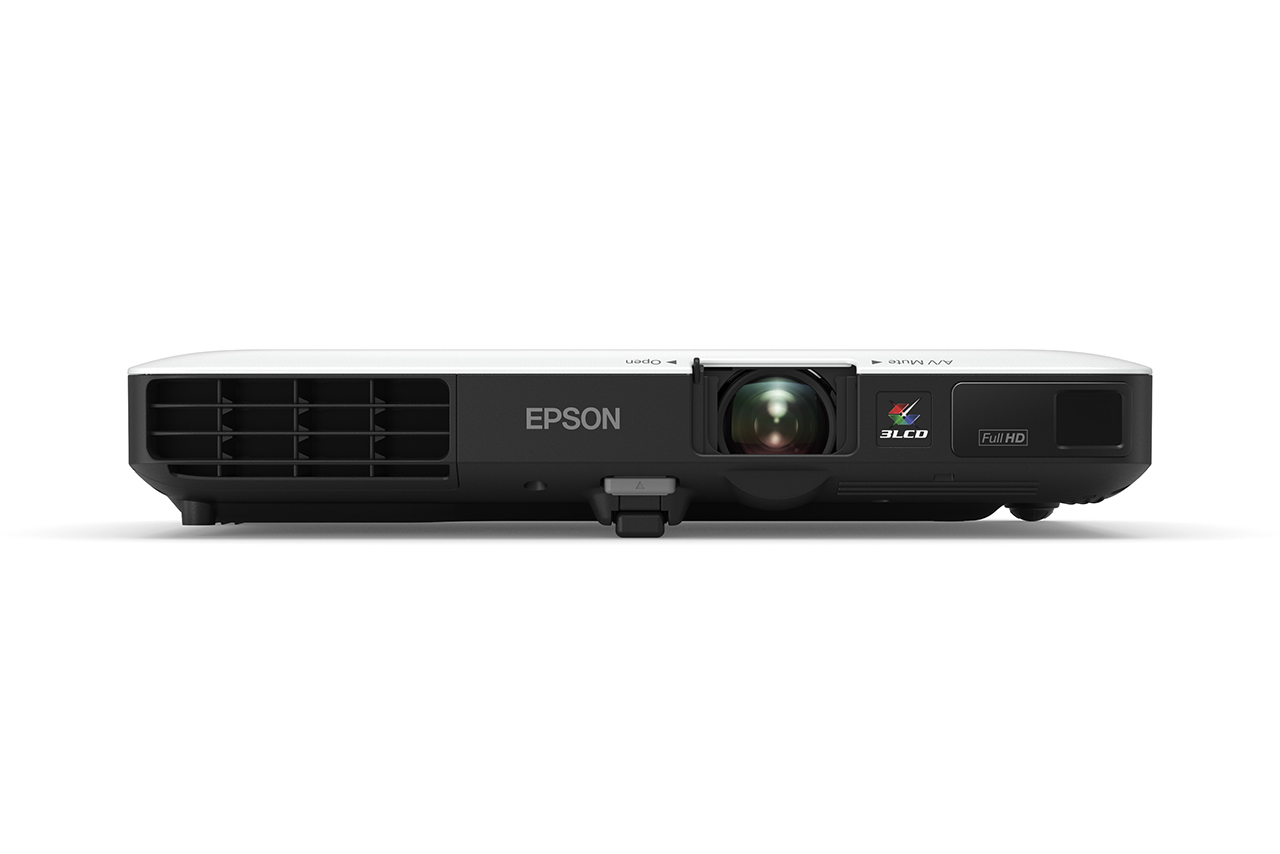

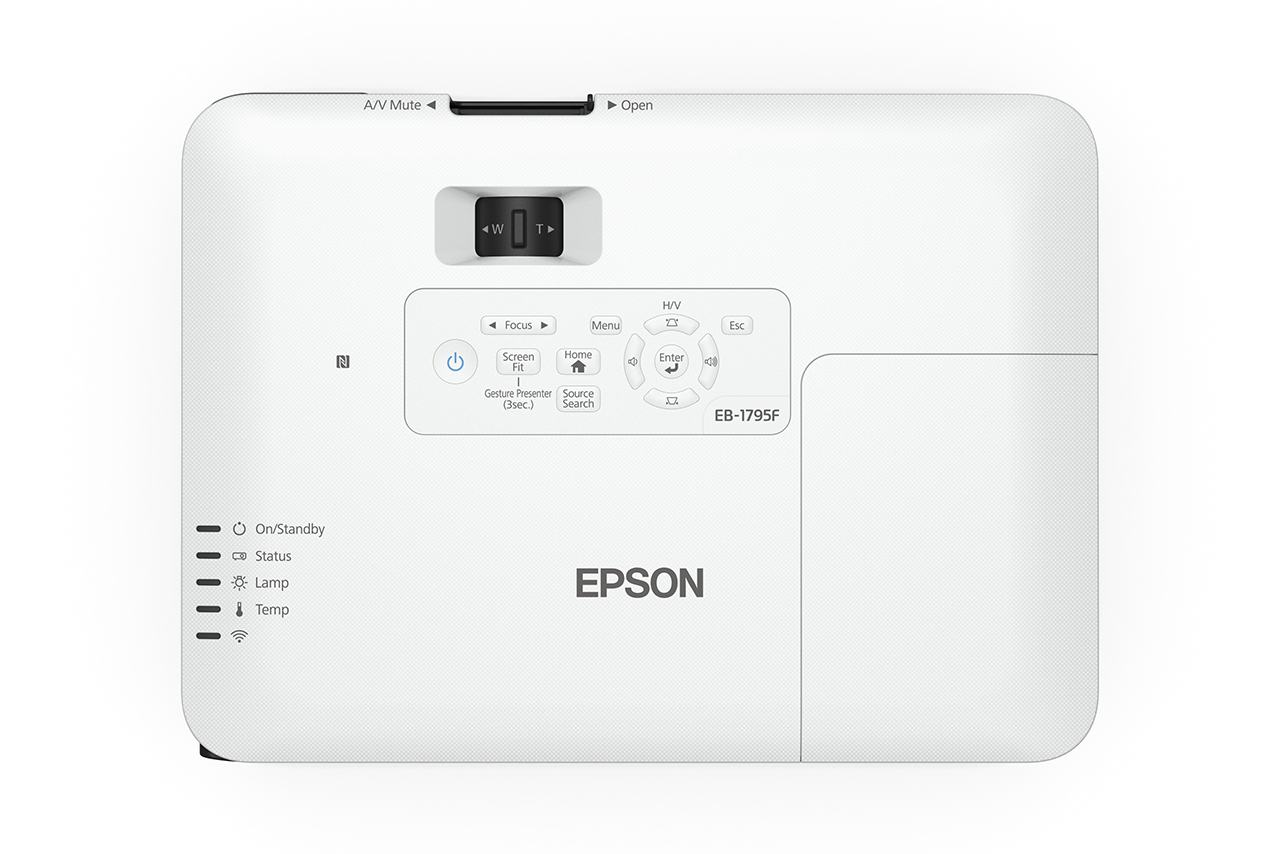

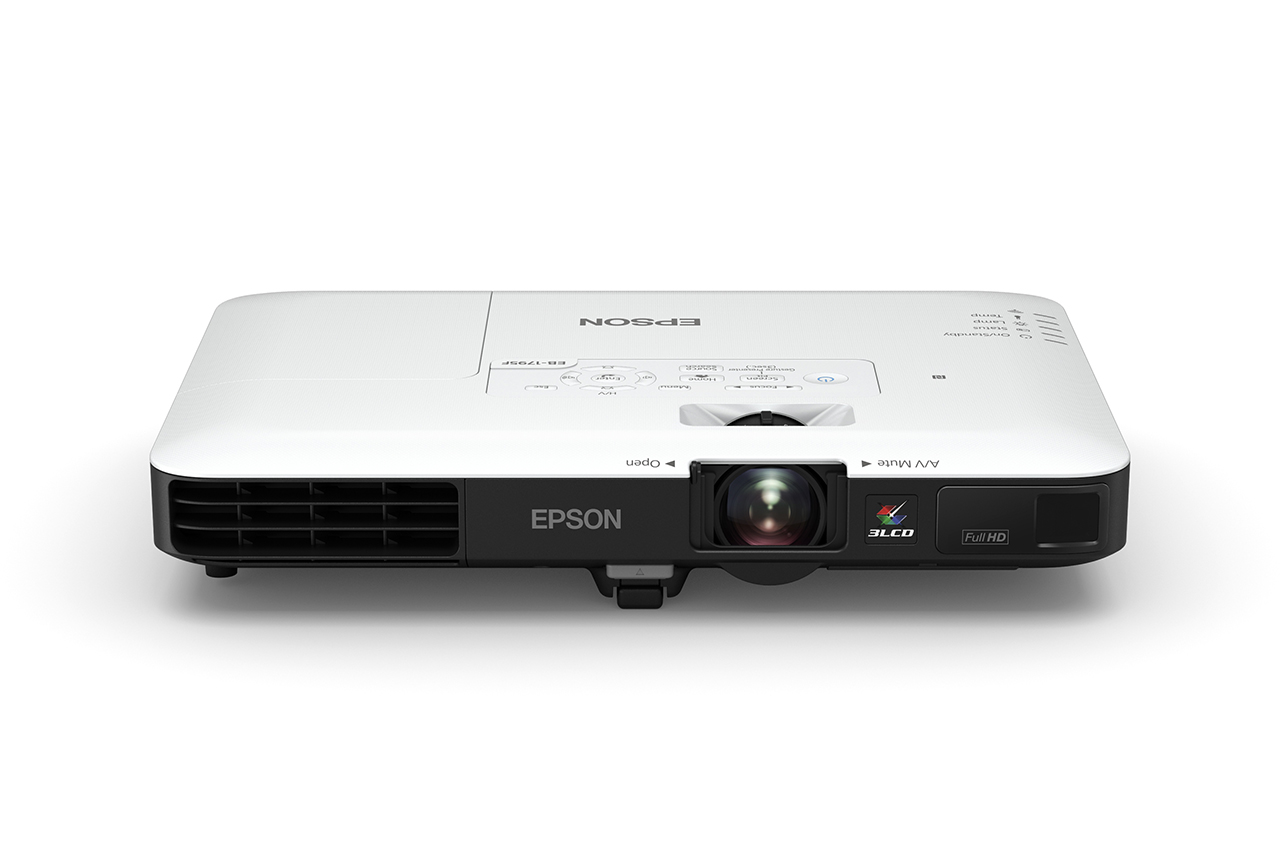

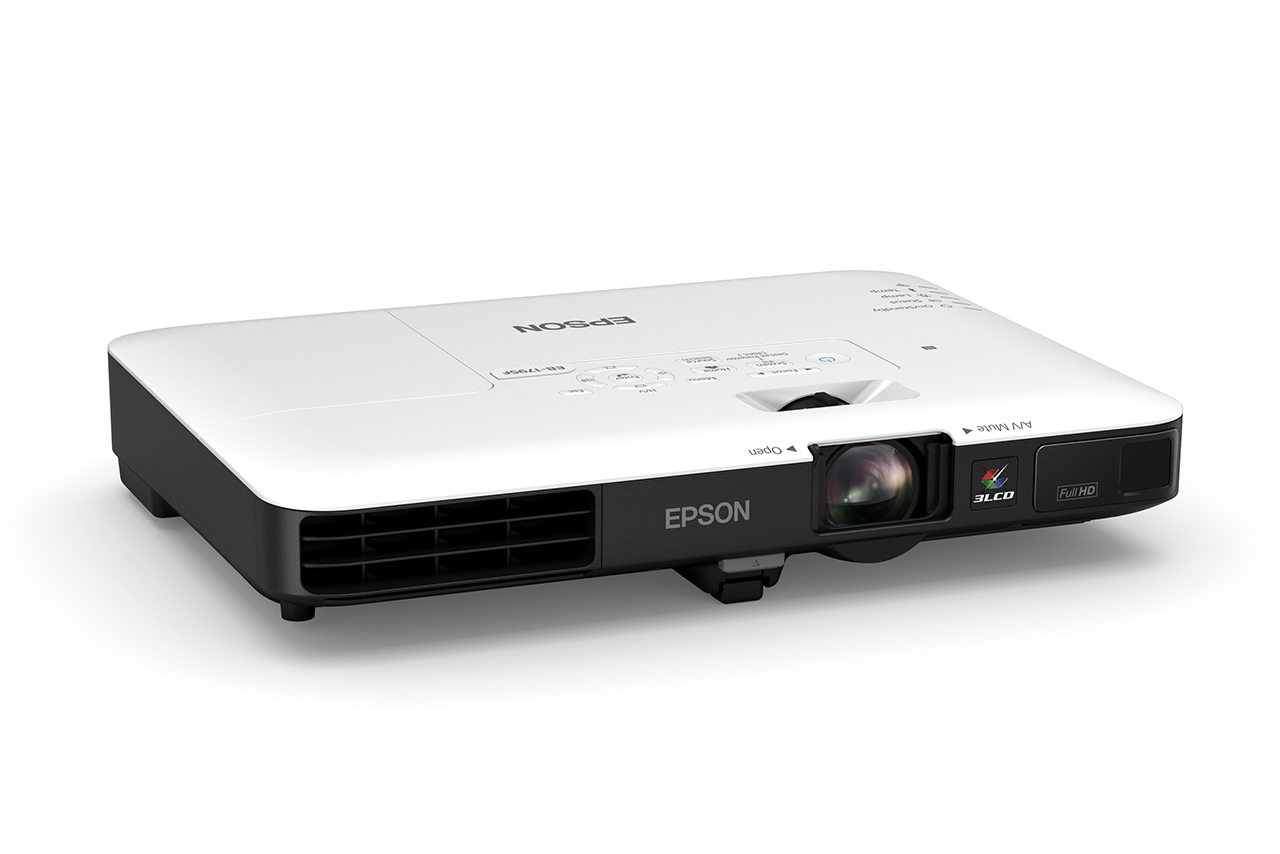

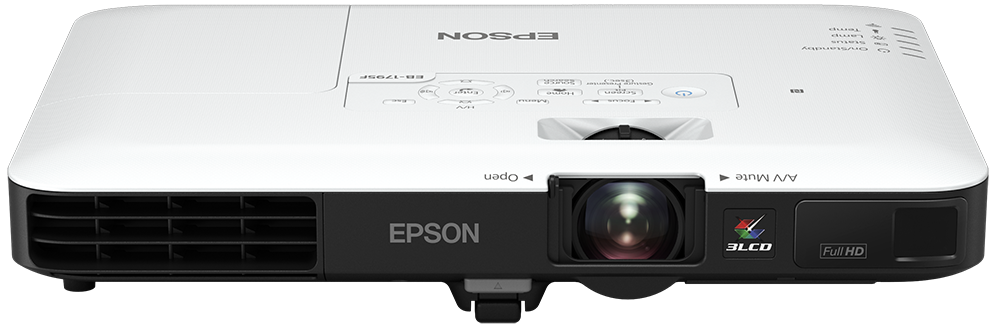

Epson EB-1795F. Projector brightness: 3200 ANSI lumens, Projection technology: 3LCD, Projector native resolution: 1080p (1920x1080). Light source type: Lamp, Service life of light source: 4000 h, Service life of light source (economic mode): 7000 h. Focus: Motorized, Focal length range: 13.52 - 16.22 mm, Aperture range (F-F): 1.58 - 1.7. Supported graphics resolutions: 1920 x 1080 (HD 1080), Supported video modes: 1080p, Video processing: 10 bit. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Exceptional image quality: Equally high white and colour light output of 3,200 lumens
Gesture Presenter: Advance through a presentation directly with your hands
Horizontal and Vertical Keystone correction: Slides and images can be aligned and distortion corrected
Wireless connectivity: NFC makes it easy to connect tp the projector wirelessly
Lightweight & ultra-slim form factor: Fits in the same bag as a laptop computer

Legal Statement

Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Product Properties

Manufacturer
Epson

Model
V11H796041

EAN
8715946629940

Bullet points

Point
Exceptional image quality: Equally high white and colour light output of 3,200 lumens

Gesture Presenter: Advance through a presentation directly with your hands

Horizontal and Vertical Keystone correction

Lightweight & ultra-slim form factor: Fits in the same bag as a laptop computer

Wireless connectivity: NFC makes it easy to connect tp the projector wirelessly

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Placement

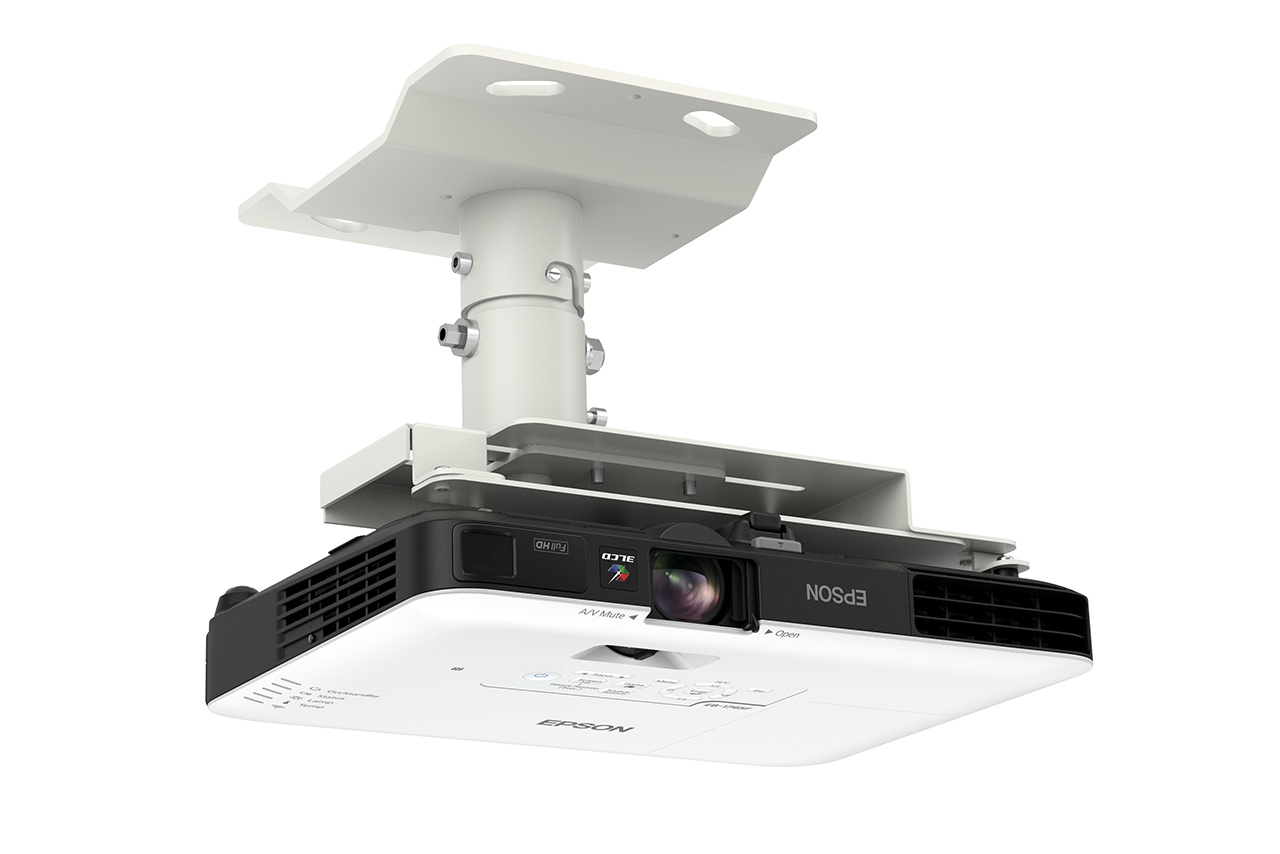

Desktop, Ceiling

Product colour
Black, White

Product type
Standard throw projector

Features

Air filter
Yes

Country of origin
Philippines

HDCP
Yes

Noise level
39 dB

Noise level (economic mode)
30 dB

Password protection
Yes

Lens system

Aperture range (F-F)
1.58 - 1.7

Focal length range
13.52 - 16.22 mm

Focus
Motorized

Throw ratio
1.02 - 1.23:1

Zoom capability
Yes

Zoom ratio
1.2:1

Zoom type
Manual

Light source

Lamp power
214 W

Lamps quantity
1 lamp(s)

Light source type
Lamp

Service life of light source
4000 h

Service life of light source (economic mode)
7000 h

Logistics data

Harmonized System (HS) code
85286200

Pallet gross height
15 cm

Pallet gross length
120 cm

Pallet gross width
80 cm

Pallet height (UK)
15 cm

Pallet length (UK)
120 cm

Pallet width (UK)
100 cm

Products per pallet
70 pc(s)

Products per pallet (UK)
84 pc(s)

Products per pallet layer
5 pc(s)

Products per pallet layer (UK)
6 pc(s)

Quantity per pack
1 pc(s)

Multimedia

Built-in speaker(s)
Yes

Number of built-in speakers
1

RMS rated power
1 W

Network

Ethernet LAN
No

Ethernet LAN (RJ-45) ports
0

Wi-Fi
Yes

Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
5 - 40 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-10 - 60 °C

Other features

Box contents
Carrying Case, HDMI Cable 1.8m, Power cable, Remote control incl. batteries, Software (CD), USB cable

Control panel
0.59 inch with C2 Fine

Interface
USB 2.0-A, USB 2.0, VGA in, HDMI in, Composite in, Jack plug in, Miracast, MHL, Near Field Communication (NFC), Wireless LAN IEEE 802.11b/g/n, Wireless LAN b/g/g 25GHz

Option type
Air filter, Ceiling mount, Document camera, Setting plate, WP System - ELPWP20, Wireless transmitter - ELPWT01

RS-232 ports
0

Security features
Kensington lock, Wireless LAN security, Password protection

Packaging content

Batteries included
Yes

Bundled software
EasyMP Multi PC Projection

Cables included
AC, VGA

Carrying case
Yes

Remote control included
Yes

Ports & interfaces

Audio (L/R) in
0

Component video (YPbPr/YCbCr) in
0

Composite video in
1

DVI port
No

HDMI ports
1

Mobile High-Definition Link (MHL)
Yes

PC in (D-Sub)
Yes

S-Video inputs quantity
0

USB 2.0 ports quantity
2

VGA (D-Sub) ports quantity
1

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power consumption (economy mode)
208 W

Power consumption (standby)
0.34 W

Power consumption (typical)
295 W

Power source
AC

Projector

Contrast ratio (dynamic)
10000:1

Contrast ratio (typical)
10000:1

Keystone correction, horizontal
±20°

Keystone correction, vertical
±30°

Matrix size
1.5 cm (0.59")

Native aspect ratio
16:9

Number of colours
1.07 billion colours

Projection distance (tele)
0.8 - 8.2 m

Projection distance (wide)
0.7 - 6.8 m

Projection technology
3LCD

Projector brightness
3200 ANSI lumens

Projector brightness (economic mode)
1900 ANSI lumens

Projector native resolution
1080p (1920x1080)

Screen size compatibility
762 - 7620 mm (30 - 300")

Vertical scan range
100 - 120 Hz

Storage

Card reader integrated
No

Technical details

Mobile app support
Yes

Other features
AV Mute Slide, Built-in speaker, Document Camera Compatible, Fit to Screen, Gesture Presenter, Home Screen, Instant on/off, JPEG Viewer, Long lamp life, MHL audio/video interface, PC Free, Projection App for Chromebook, Quick Corner, Screen Mirroring, Split-Screen-Function, Wireless LAN capable, iProjection App

Standard interfaces
HDMI, NFC, USB, VGA, Wireless LAN

USB display function
3 in 1: Image / Mouse / Sound

Video

Full HD
Yes

Supported graphics resolutions
1920 x 1080 (HD 1080)

Supported video modes
1080p

Video colour modes
Blackboard, Cinema, DICOM simulation mode, Dynamic, Presentation, sRGB

Video processing
10 bit

Weight & dimensions

Depth
213 mm

Height
44 mm

Package depth
420 mm

Package height
145 mm

Package weight
3.73 kg

Package width
370 mm

Weight
1.8 kg

Width
292 mm
