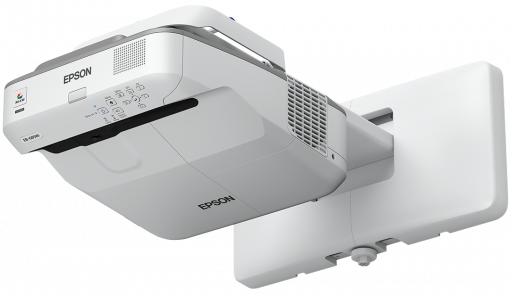

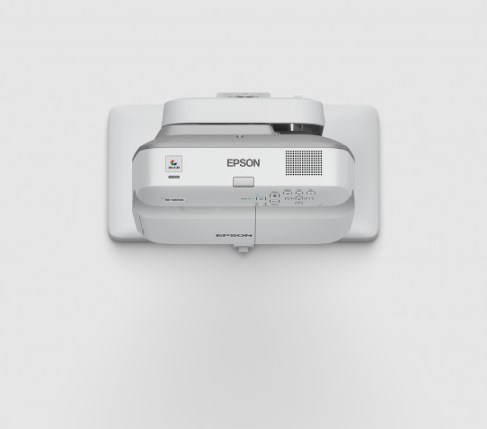

Epson EB-685W data projector Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) Grey, White
Roll over image to zoom inClick to Open expanded view
Epson EB-685W data projector Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) Grey, White
Epson EB-685W data projector Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) Grey, White
Epson EB-685W data projector Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) Grey, White
Print
Model: V11H744041
EAN: 8715946605227

Epson EB-685W data projector Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) Grey, White

Manufacturer:
Epson
Epson EB-685W, 3500 ANSI lumens, 3LCD, WXGA (1280x800), 300:1, 16:10, 1524 - 2540 mm (60 - 100")
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Epson EB-685W. Projector brightness: 3500 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WXGA (1280x800). Light source type: Lamp, Service life of light source: 5000 h, Service life of light source (economic mode): 10000 h. Focus: Manual, Focal length range: 0 - 3.76 mm, Zoom ratio: 1.35:1. Video processing: 10 bit, Colour modes (2D): Cinema, Dynamic, Video colour modes: Blackboard, Cinema, Dynamic, Presentation, sRGB. Serial interface type: RS-232, USB connector type: USB Type-A, USB Type-B

Product Properties

  • Model
  • V11H744041
  • EAN
  • 8715946605227
  • Design
  • Cable lock slot
  • Y
  • Cable lock slot type
  • Kensington
  • Placement
  • Wall
  • Product colour
  • Grey, White
  • Product type
  • Ultra short throw projector
  • Display
  • Built-in display
  • N
  • Features
  • 2D/3D frequency image
  • 100 - 120 Hz
  • Air filter
  • Y
  • Country of origin
  • Philippines
  • Noise level
  • 35 dB
  • Noise level (economic mode)
  • 28 dB
  • On Screen Display (OSD)
  • Y
  • Password protection
  • Y
  • Lens system
  • Digital zoom
  • 1.35x
  • Focal length range
  • 0 - 3.76 mm
  • Focus
  • Manual
  • Zoom capability
  • Y
  • Zoom ratio
  • 1.35:1
  • Light source
  • Lamp power
  • 250 W
  • Light source type
  • Lamp
  • Service life of light source
  • 5000 h
  • Service life of light source (economic mode)
  • 10000 h
  • Logistics data
  • Pallet gross height
  • 141 cm
  • Pallet gross length
  • 120 cm
  • Pallet gross width
  • 80 cm
  • Pallet height (UK)
  • 141 cm
  • Pallet length (UK)
  • 120 cm
  • Pallet width (UK)
  • 100 cm
  • Products per pallet
  • 12 pc(s)
  • Products per pallet (UK)
  • 12 pc(s)
  • Products per pallet layer
  • 2 pc(s)
  • Products per pallet layer (UK)
  • 2 pc(s)
  • Quantity per pack
  • 1 pc(s)
  • Multimedia
  • Built-in speaker(s)
  • Y
  • Number of built-in speakers
  • 1
  • RMS rated power
  • 16 W
  • Network
  • Ethernet LAN
  • Y
  • Ethernet LAN (RJ-45) ports
  • 1
  • Ethernet LAN data rates
  • 10,100 Mbit/s
  • Operational conditions
  • Operating relative humidity (H-H)
  • 20 - 80%
  • Operating temperature (T-T)
  • 5 - 35 °C
  • Storage relative humidity (H-H)
  • 10 - 90%
  • Storage temperature (T-T)
  • -10 - 60 °C
  • Other features
  • RS-232 ports
  • 1
  • Packaging content
  • Batteries included
  • Y
  • Bundled software
  • EasyMP Monitor, EasyMP Multi PC Projection
  • Cables included
  • USB
  • Manual
  • Y
  • Remote control included
  • Y
  • Remote control type
  • IR

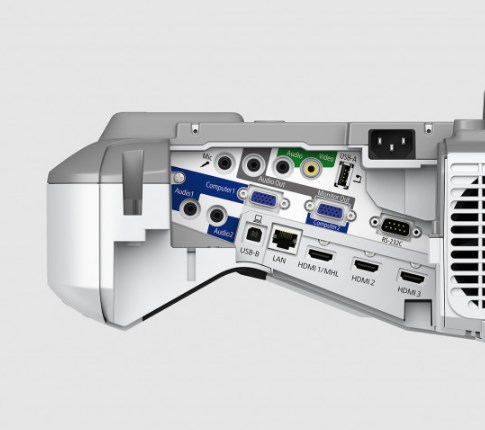

  • Ports & interfaces
  • AC (power) in
  • Y
  • Audio (L/R) in
  • 1
  • Composite video in
  • 1
  • DVI port
  • N
  • HDMI ports
  • 3
  • Headphone outputs
  • 1
  • Microphone in
  • Y
  • Mobile High-Definition Link (MHL)
  • Y
  • Serial interface type
  • RS-232
  • USB 2.0 ports quantity
  • 2
  • USB connector type
  • USB Type-A, USB Type-B
  • VGA (D-Sub) ports quantity
  • 3
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 220 - 240 V
  • Power consumption (PowerSave)
  • 310 W
  • Power consumption (standby)
  • 0.39 W
  • Power consumption (typical)
  • 354 W
  • Power source
  • AC
  • Projector
  • Contrast ratio (dynamic)
  • 14000:1
  • Contrast ratio (typical)
  • 300:1
  • Keystone correction, horizontal
  • ±3°
  • Keystone correction, vertical
  • ±3°
  • Matrix size
  • 1.5 cm (0.59")
  • Native aspect ratio
  • 16:10
  • Number of colours
  • 1.073 billion colours
  • Projection distance
  • 0.4 - 0.6 m
  • Projection distance (tele)
  • 0 - 0.6 m
  • Projection distance (wide)
  • 0 - 0.4 m
  • Projection technology
  • 3LCD
  • Projector brightness
  • 3500 ANSI lumens
  • Projector brightness (economic mode)
  • 2900 ANSI lumens
  • Projector native resolution
  • WXGA (1280x800)
  • Screen size compatibility
  • 1524 - 2540 mm (60 - 100")
  • Supported aspect ratios
  • 16:10
  • Software
  • Mac compatibility
  • Y
  • Mac operating systems supported
  • Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
  • Windows operating systems supported
  • Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
  • Storage
  • Card reader integrated
  • N
  • Video
  • 3D
  • N
  • Colour modes (2D)
  • Cinema, Dynamic
  • Full HD
  • N
  • HD-Ready
  • Y
  • Video colour modes
  • Blackboard, Cinema, Dynamic, Presentation, sRGB
  • Video processing
  • 10 bit
  • Weight & dimensions
  • Depth
  • 400 mm
  • Height
  • 149 mm
  • Package depth
  • 730 mm
  • Package height
  • 335 mm
  • Package weight
  • 18.5 kg
  • Package width
  • 490 mm
  • Weight
  • 5.7 kg
  • Width
  • 367 mm
