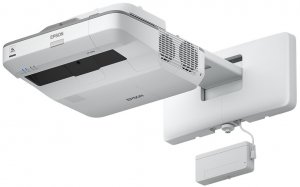

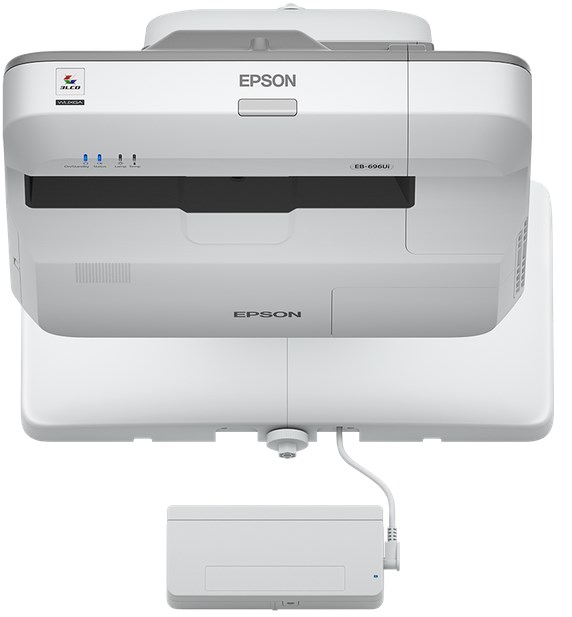

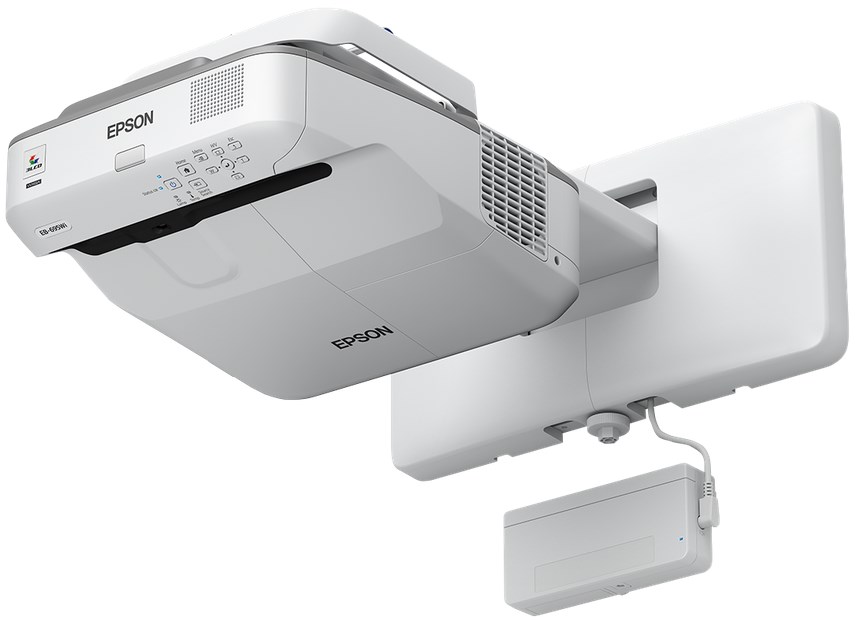

Epson EB-696Ui Ultra short throw projector 3800 ANSI lumens 3LCD WUXGA (1920x1200) Grey, White
Roll over image to zoom inClick to Open expanded view
Epson EB-696Ui Ultra short throw projector 3800 ANSI lumens 3LCD WUXGA (1920x1200) Grey, White
Epson EB-696Ui Ultra short throw projector 3800 ANSI lumens 3LCD WUXGA (1920x1200) Grey, White
Epson EB-696Ui Ultra short throw projector 3800 ANSI lumens 3LCD WUXGA (1920x1200) Grey, White
Print
Model: V11H728041

Epson EB-696Ui Ultra short throw projector 3800 ANSI lumens 3LCD WUXGA (1920x1200) Grey, White

Manufacturer:
Epson
Epson EB-696Ui, 3800 ANSI lumens, 3LCD, WUXGA (1920x1200), 300:1, 16:10, 1778 - 2540 mm (70 - 100")
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Epson EB-696Ui. Projector brightness: 3800 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Lamp, Service life of light source: 5000 h, Service life of light source (economic mode): 10000 h. Focus: Manual, Zoom ratio: 1.35:1, Digital zoom: 1.35x. Supported graphics resolutions: 1920 x 1200 (WUXGA), Video processing: 10 bit. Serial interface type: RS-232C

Product Properties

  • Model
  • V11H728041
  • Design
  • Cable lock slot
  • Yes
  • Cable lock slot type
  • Kensington
  • LED indicators
  • Yes
  • Placement
  • Wall
  • Product colour
  • Grey, White
  • Product type
  • Ultra short throw projector
  • Display
  • Built-in display
  • No
  • Features
  • Country of origin
  • Philippines
  • Noise level
  • 37 dB
  • Noise level (economic mode)
  • 30 dB
  • Lens system
  • Digital zoom
  • 1.35x
  • Focus
  • Manual
  • Throw ratio
  • 0.27 - 0.37:1
  • Zoom ratio
  • 1.35:1
  • Light source
  • Lamp power
  • 267 W
  • Light source type
  • Lamp
  • Service life of light source
  • 5000 h
  • Service life of light source (economic mode)
  • 10000 h
  • Logistics data
  • Pallet gross height
  • 15 cm
  • Pallet gross length
  • 120 cm
  • Pallet gross width
  • 80 cm
  • Pallet height (UK)
  • 15 cm
  • Pallet length (UK)
  • 120 cm
  • Pallet width (UK)
  • 100 cm
  • Products per pallet
  • 12 pc(s)
  • Products per pallet (UK)
  • 12 pc(s)
  • Products per pallet layer
  • 2 pc(s)
  • Products per pallet layer (UK)
  • 2 pc(s)
  • Quantity per pack
  • 1 pc(s)
  • Multimedia
  • Built-in speaker(s)
  • Yes
  • RMS rated power
  • 16 W
  • Network
  • Ethernet LAN
  • Yes
  • Ethernet LAN (RJ-45) ports
  • 1
  • Operational conditions
  • Operating relative humidity (H-H)
  • 20 - 80%
  • Operating temperature (T-T)
  • 5 - 35 °C
  • Storage relative humidity (H-H)
  • 10 - 90%
  • Storage temperature (T-T)
  • -10 - 60 °C
  • Other features
  • RS-232 ports
  • 1
  • RS-232C
  • Yes
  • Packaging content
  • Manual
  • Yes
  • Remote control included
  • No
  • Ports & interfaces
  • AC (power) in
  • Yes
  • Audio (L/R) in
  • 1
  • Component video (YPbPr/YCbCr) in
  • 0
  • Composite video in
  • 1
  • DVI port
  • No
  • HDMI ports
  • 3
  • Headphone outputs
  • 1
  • Microphone in
  • Yes
  • S-Video inputs quantity
  • 1
  • Serial interface type
  • RS-232C
  • USB 2.0 ports quantity
  • 3
  • VGA (D-Sub) ports quantity
  • 3
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 220 - 240 V
  • Power consumption (standby)
  • 0.5 W
  • Power consumption (typical)
  • 400 W
  • Power source
  • AC
  • Projector
  • Colour light output
  • 3800 ANSI lumens
  • Contrast ratio (dynamic)
  • 16000:1
  • Contrast ratio (typical)
  • 300:1
  • Keystone correction, horizontal
  • ±3°
  • Keystone correction, vertical
  • ±3°
  • Matrix size
  • 1.7 cm (0.67")
  • Native aspect ratio
  • 16:10
  • Number of colours
  • 1.073 billion colours
  • Projection distance (tele)
  • 0 - 0.6 m
  • Projection distance (wide)
  • 0 - 0.4 m
  • Projection technology
  • 3LCD
  • Projector brightness
  • 3800 ANSI lumens
  • Projector brightness (economic mode)
  • 2700 ANSI lumens
  • Projector native resolution
  • WUXGA (1920x1200)
  • Screen size compatibility
  • 1778 - 2540 mm (70 - 100")
  • Supported aspect ratios
  • 16:10
  • Vertical synchronization (max)
  • 0.24 kHz
  • Vertical synchronization (min)
  • 0.192 kHz
  • White light output
  • 3800 ANSI lumens
  • Software
  • Linux operating systems supported
  • Yes
  • Mac compatibility
  • Yes
  • Mac operating systems supported
  • Mac OS X 10.10 Yosemite, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
  • Windows operating systems supported
  • Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
  • Storage
  • Card reader integrated
  • No
  • Video
  • 3D
  • No
  • Full HD
  • Yes
  • Supported graphics resolutions
  • 1920 x 1200 (WUXGA)
  • Video processing
  • 10 bit
  • Weight & dimensions
  • Depth
  • 447 mm
  • Height
  • 130 mm
  • Package depth
  • 785 mm
  • Package height
  • 335 mm
  • Package weight
  • 25 kg
  • Package width
  • 580 mm
  • Weight
  • 8.3 kg
  • Width
  • 474 mm
