Description

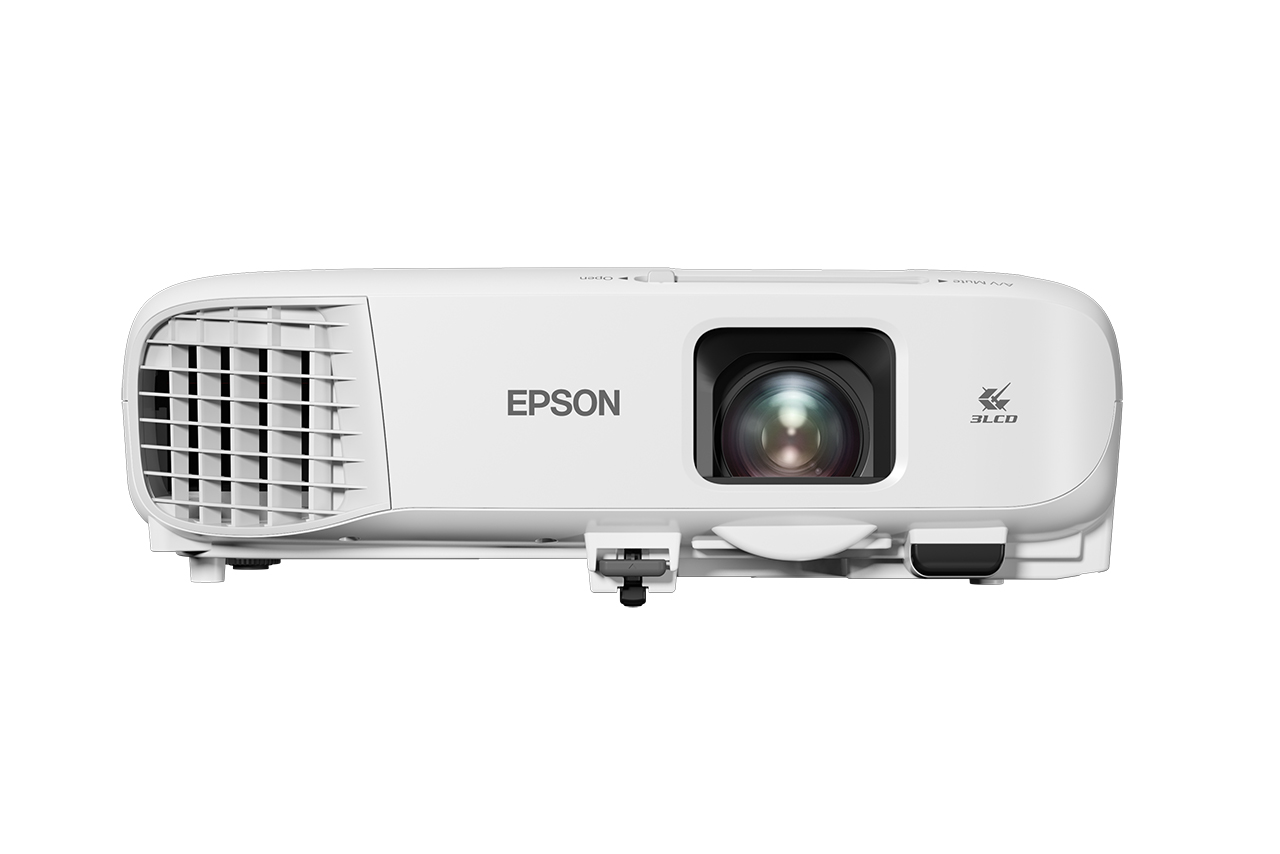

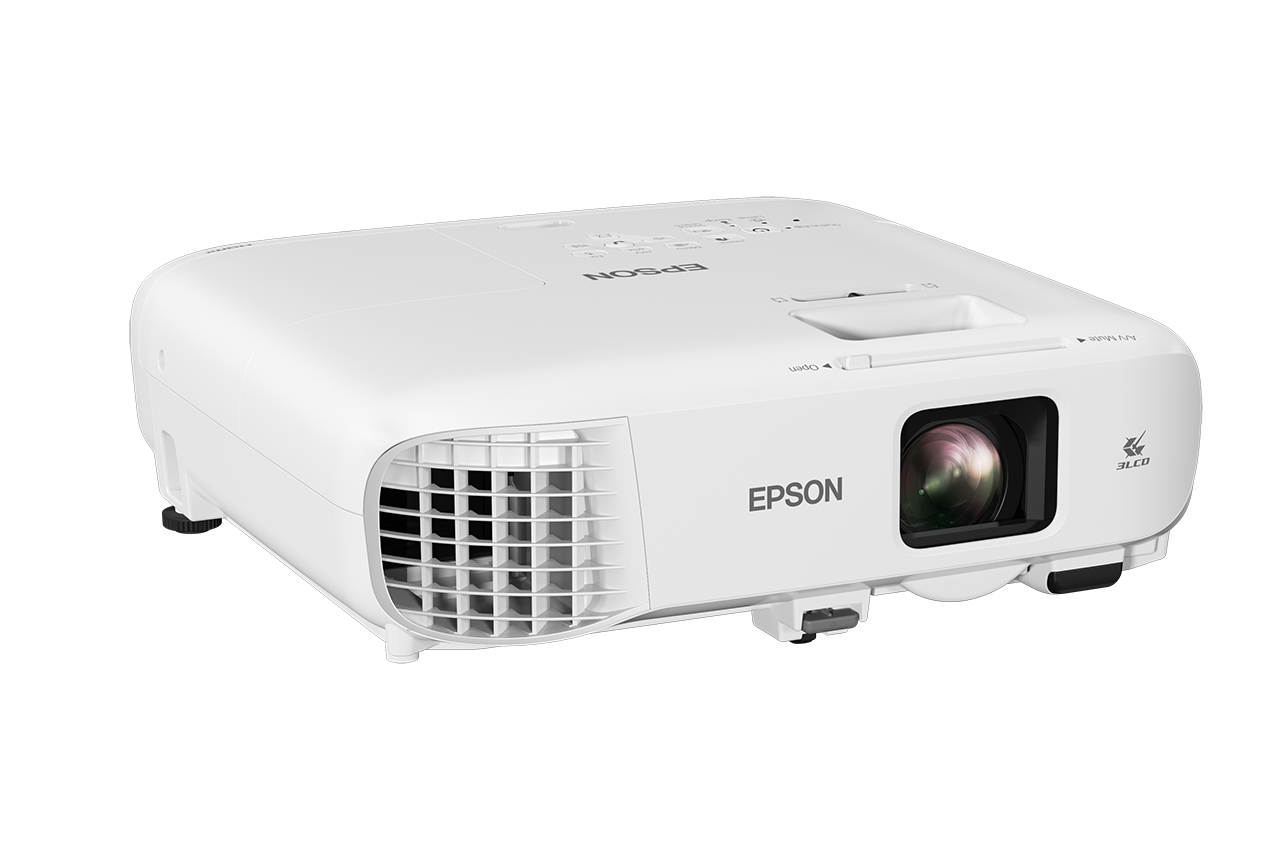

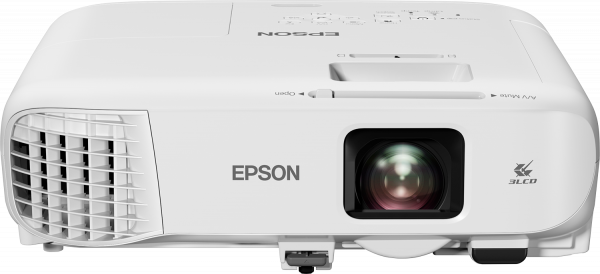

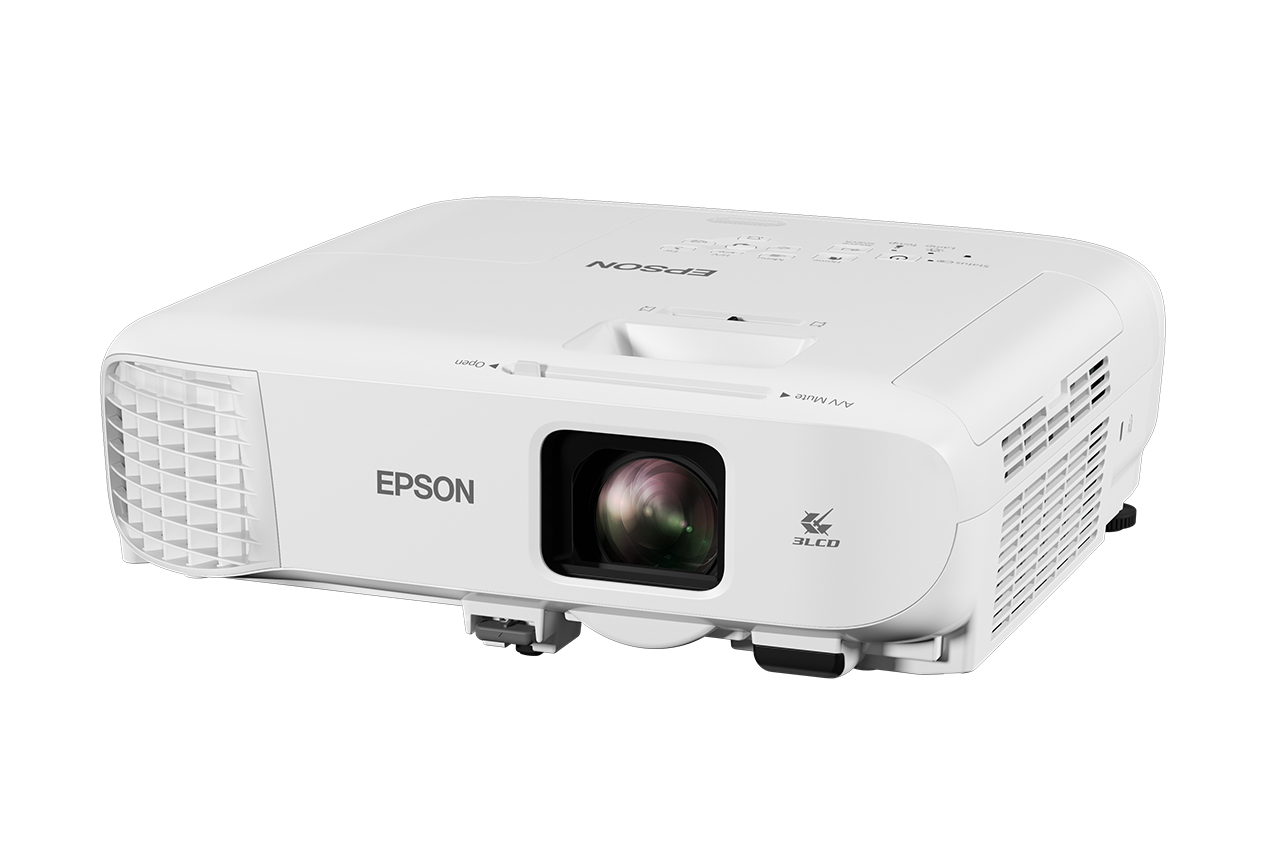

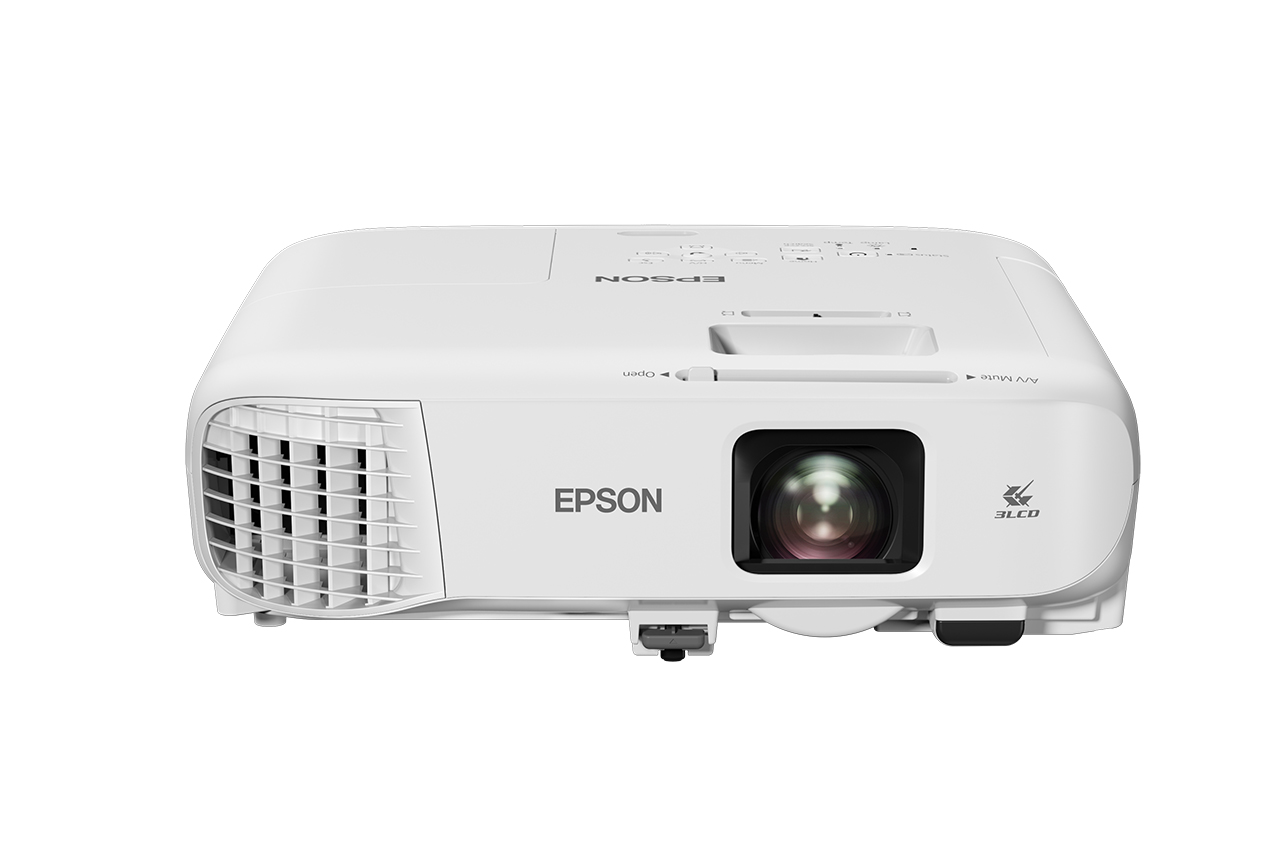

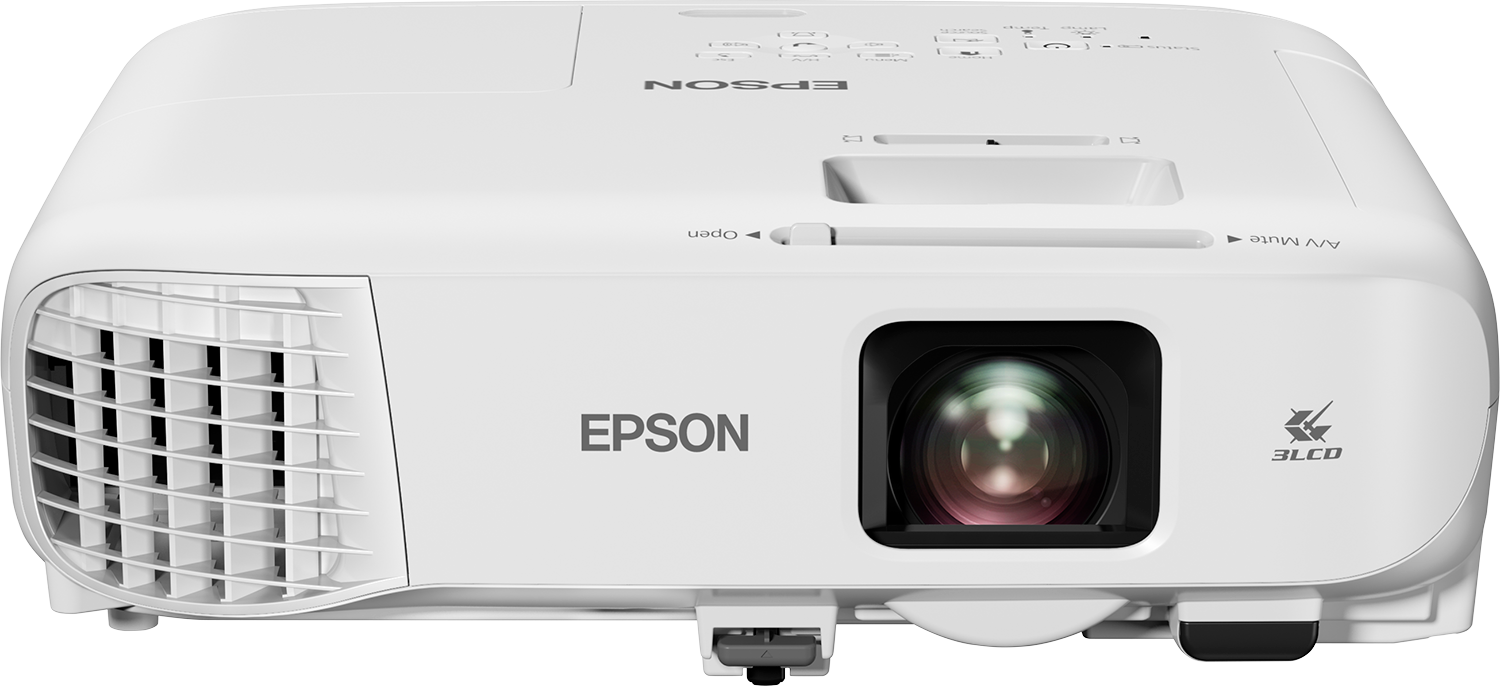

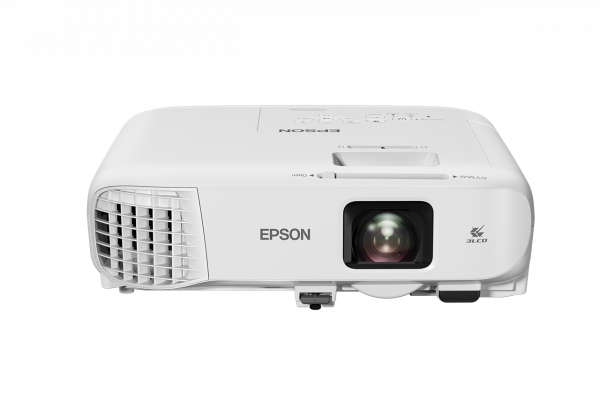

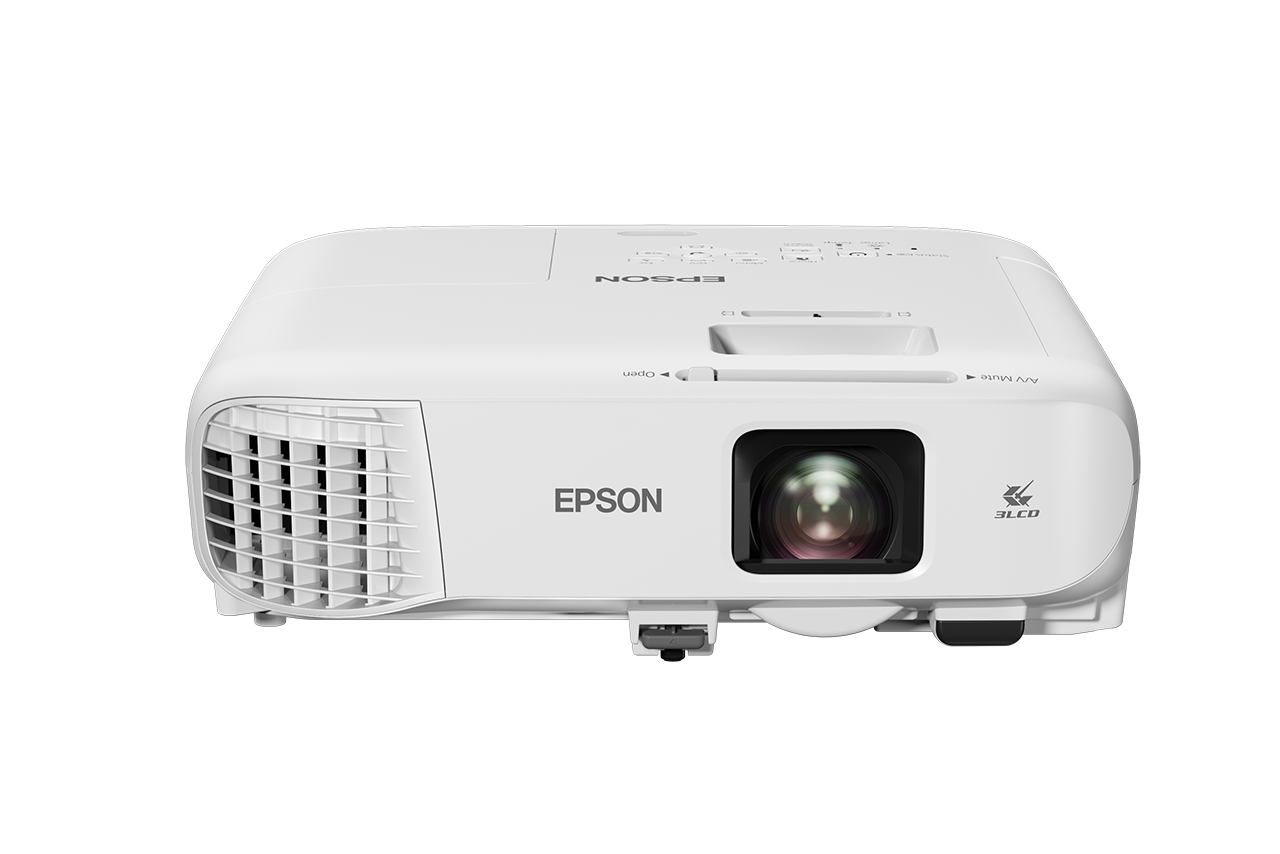

Epson EB-992F. Projector brightness: 4000 ANSI lumens, Projection technology: 3LCD, Projector native resolution: 1080p (1920x1080). Light source type: Lamp, Service life of light source: 6500 h, Service life of light source (economic mode): 17000 h. Focus: Manual, Focal length range: 18.2 - 29.2 mm, Aperture range (F-F): 1.51 - 1.99. Video processing: 10 bit, Video colour modes: Blackboard, Cinema, Dynamic, Presentation, sRGB. Serial interface type: RS-232C, HDMI connector type: Full-size

Full HD bright and vivid wireless display: 3LCD technology and equally high White and Colour Light Output
Minimal maintenance: Years of uninterrupted use before maintenance is required
Steam and share connectivity: Built-in wireless connectivity and Screen Mirroring
Smart cost savings: Lamp life up to 17,000 hours in Eco mode
Collaborative features: iProjection App{s1, split-screen function, moderator function

Legal Statement

Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Product Properties

Manufacturer
Epson

Model
V11H988040

EAN
8715946680781

Bullet points

Point
Collaborative features: iProjection App{s1, split-screen function, moderator function

Full HD bright and vivid wireless display

Minimal maintenance: Years of uninterrupted use before maintenance is required

Smart cost savings: Lamp life up to 17,000 hours in Eco mode

Steam and share connectivity: Built-in wireless connectivity and Screen Mirroring

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Placement
Ceiling, Desktop

Product colour
White

Product type
Standard throw projector

Features

Country of origin
Philippines

Noise level
37 dB

Noise level (economic mode)
28 dB

Password protection
Yes

Lens system

Aperture range (F-F)
1.51 - 1.99

Focal length range
18.2 - 29.2 mm

Focus
Manual

Throw ratio
1.32 - 2.14:1

Zoom capability
Yes

Zoom ratio
1.6:1

Zoom type
Manual

Light source

Lamp power
230 W

Lamp type
UHE

Light source type
Lamp

Service life of light source
6500 h

Service life of light source (economic mode)
17000 h

Logistics data

Harmonized System (HS) code
85286200

Pallet gross weight
0 g

Pallet weight (UK)
0 g

Products per pallet
72 pc(s)

Products per pallet (UK)
72 pc(s)

Quantity per pack
1 pc(s)

Multimedia

Built-in speaker(s)
Yes

RMS rated power
16 W

Network

Ethernet LAN
Yes

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
5 - 40 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-10 - 60 °C

Other features

Box contents
HDMI Cable, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User Manual (CD-ROM), Warranty document

Control panel
0.61 inch with C2 Fine

Interface

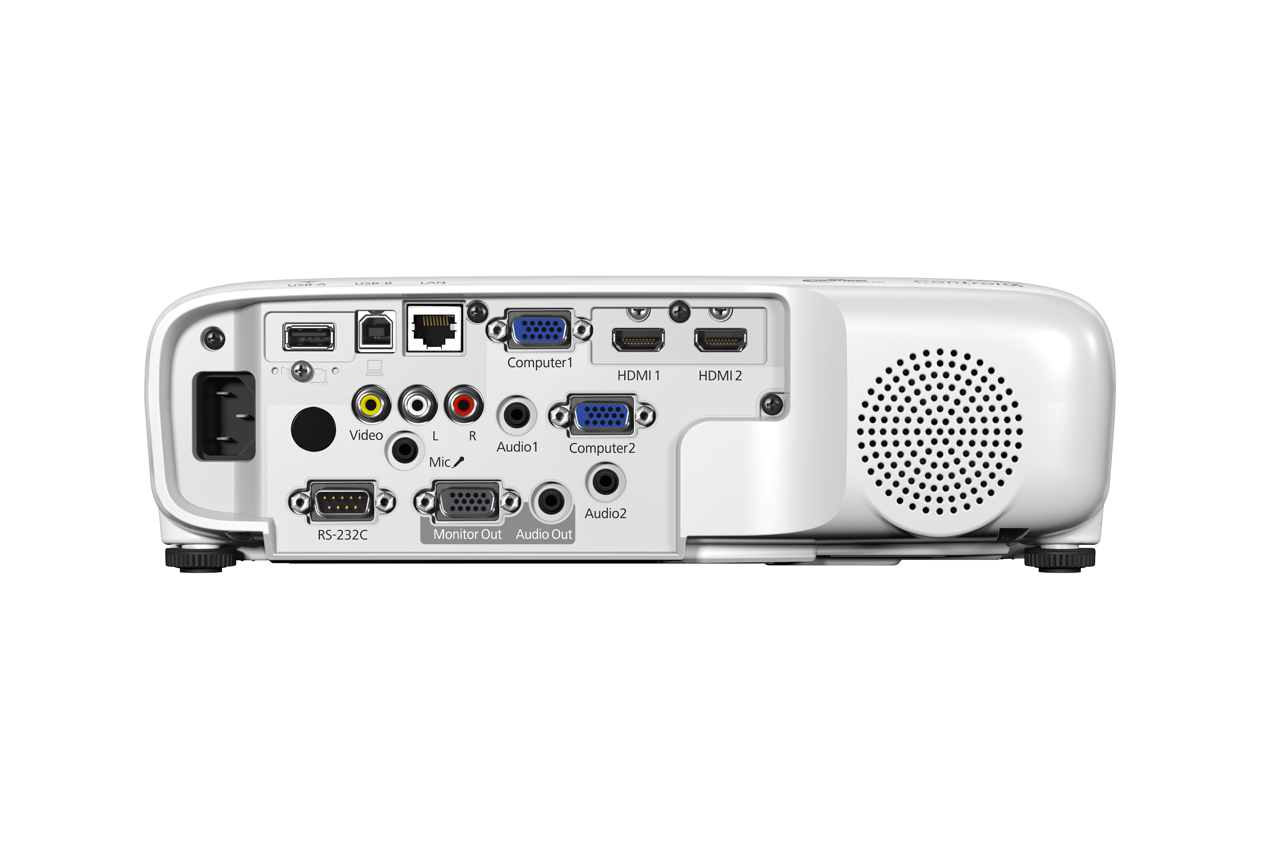

USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), VGA in (2x), VGA out, HDMI in (2x), Composite in, Jack plug out, Jack plug in (2x), Cinch audio in, Microphone input, Miracast, Wireless LAN IEEE 802.11a/b/g/n/ac

Option type
Air filter, Ceiling mount, Document camera, External Speaker, Safety wire set, Soft carry case, Suspension adapter, WP System - ELPWP20, Wireless LAN unit, Wireless transmitter - ELPWT01

Security features
Kensington lock, Control panel lock, Security cable hole, Wireless LAN security, Password protection

Supported network protocols
PJLink

Packaging content

Batteries included
Yes

Bundled software
EasyMP Multi PC Projection, Epson Projector Management

Cables included
AC, HDMI

Manual
Yes

Remote control included
Yes

Warranty card
Yes

WLAN adapter included
Yes

Ports & interfaces

Audio (L/R) in
1

DVI port
No

HDMI connector type
Full-size

HDMI ports
2

Microphone in
Yes

Serial interface type
RS-232C

USB 2.0 ports quantity
1

USB 2.0 Type-B ports quantity
1

VGA (D-Sub) ports quantity
2

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power consumption (economy mode)
225 W

Power consumption (typical)
327 W

Power source
AC

Projector

Colour light output
4000 ANSI lumens

Contrast ratio (dynamic)
16000:1

Contrast ratio (typical)
16000:1

Keystone correction, horizontal
±30°

Keystone correction, vertical
±30°

Matrix size
1.55 cm (0.61")

Native aspect ratio
16:9

Number of colours
1.07 billion colours

Projection distance
1.76 - 2.86 m

Projection technology
3LCD

Projector brightness
4000 ANSI lumens

Projector brightness (economic mode)
2400 ANSI lumens

Projector native resolution
1080p (1920x1080)

Screen size compatibility
762 - 7620 mm (30 - 300")

Vertical scan range
100 - 120 Hz

White light output
4000 ANSI lumens

Software

Software support
via: AMX, Crestron (Network), Control4, Extron

Technical details

Mobile app support
Yes

Other features
AV Mute Slide, Automatic keystone correction, Built-in speaker, CEC compatible, Direct Power on/off, Document Camera Compatible, Easy OSD pre-setting, Horizontal and vertical keystone correction, Network projection, OSD copy function, PC Free, Quick Corner, Split-Screen-Function, Wireless LAN capable, iProjecton set-up by scanning a code

USB display function
2 in 1: Image/ Sound

Video

Full HD
Yes

Video colour modes
Blackboard, Cinema, Dynamic, Presentation, sRGB

Video processing
10 bit

Weight & dimensions

Depth
282 mm

Height
90 mm

Package depth
390 mm

Package height
170 mm

Package weight
4.59 kg

Package width
385 mm

Weight
3.1 kg

Width
309 mm
