Description

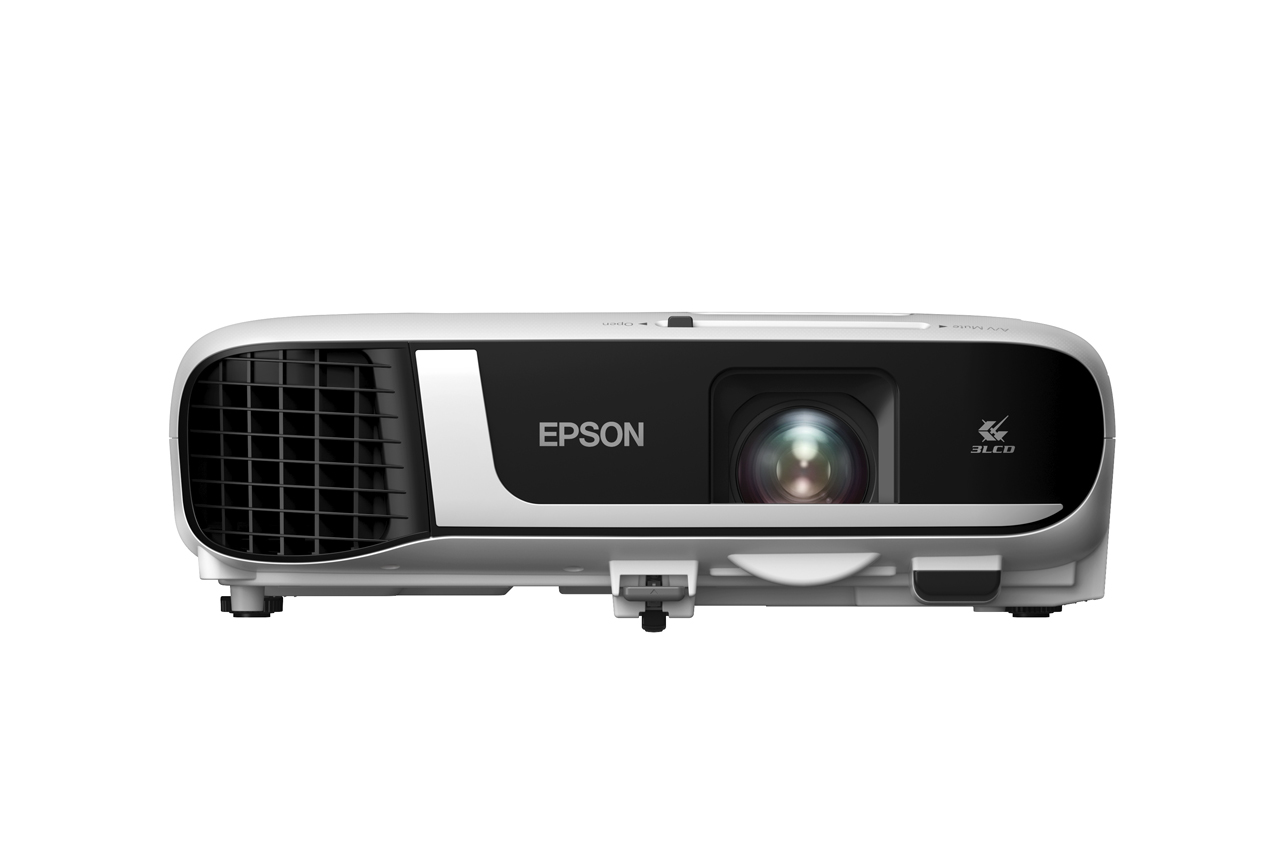

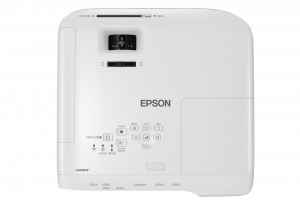

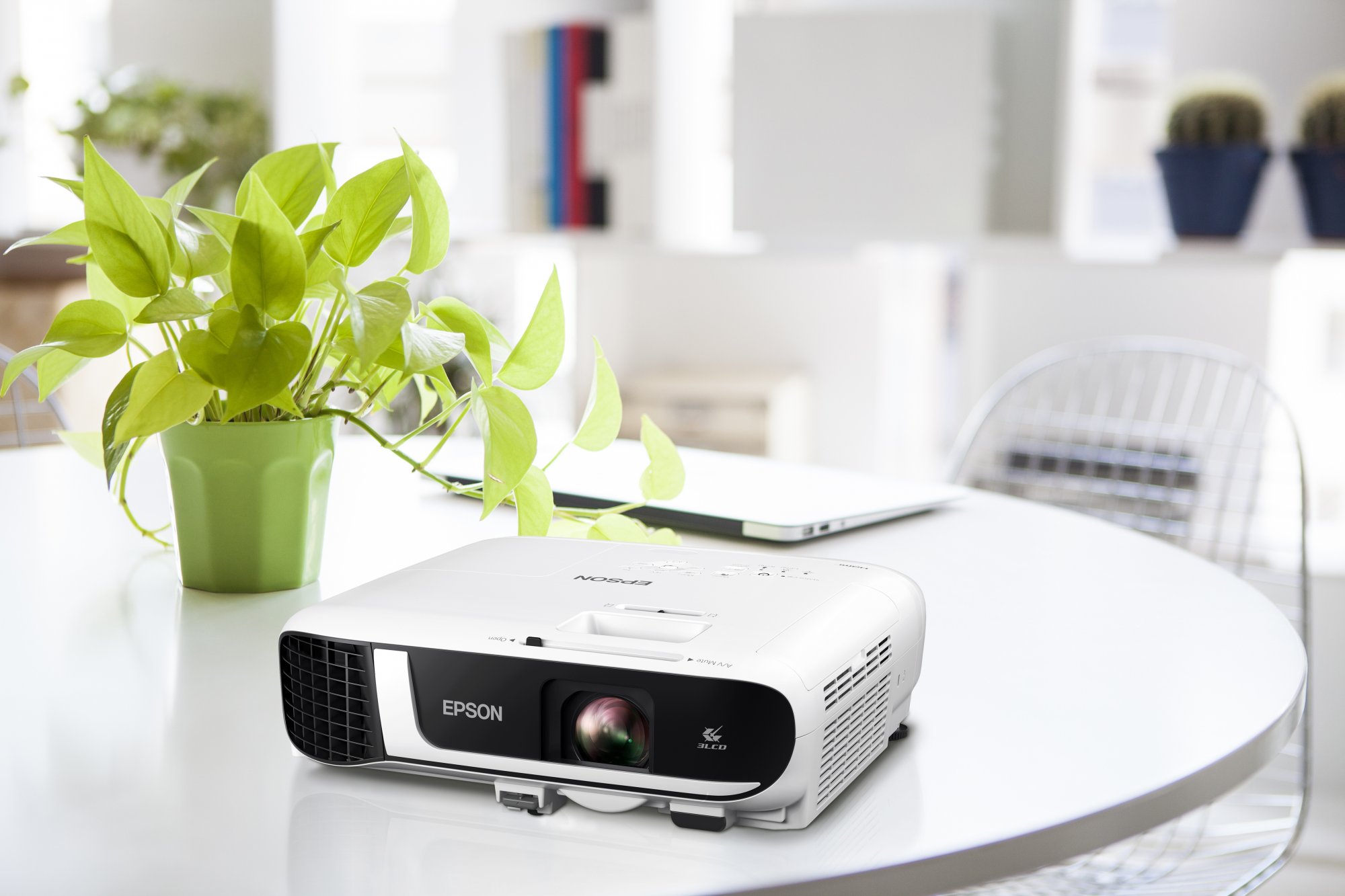

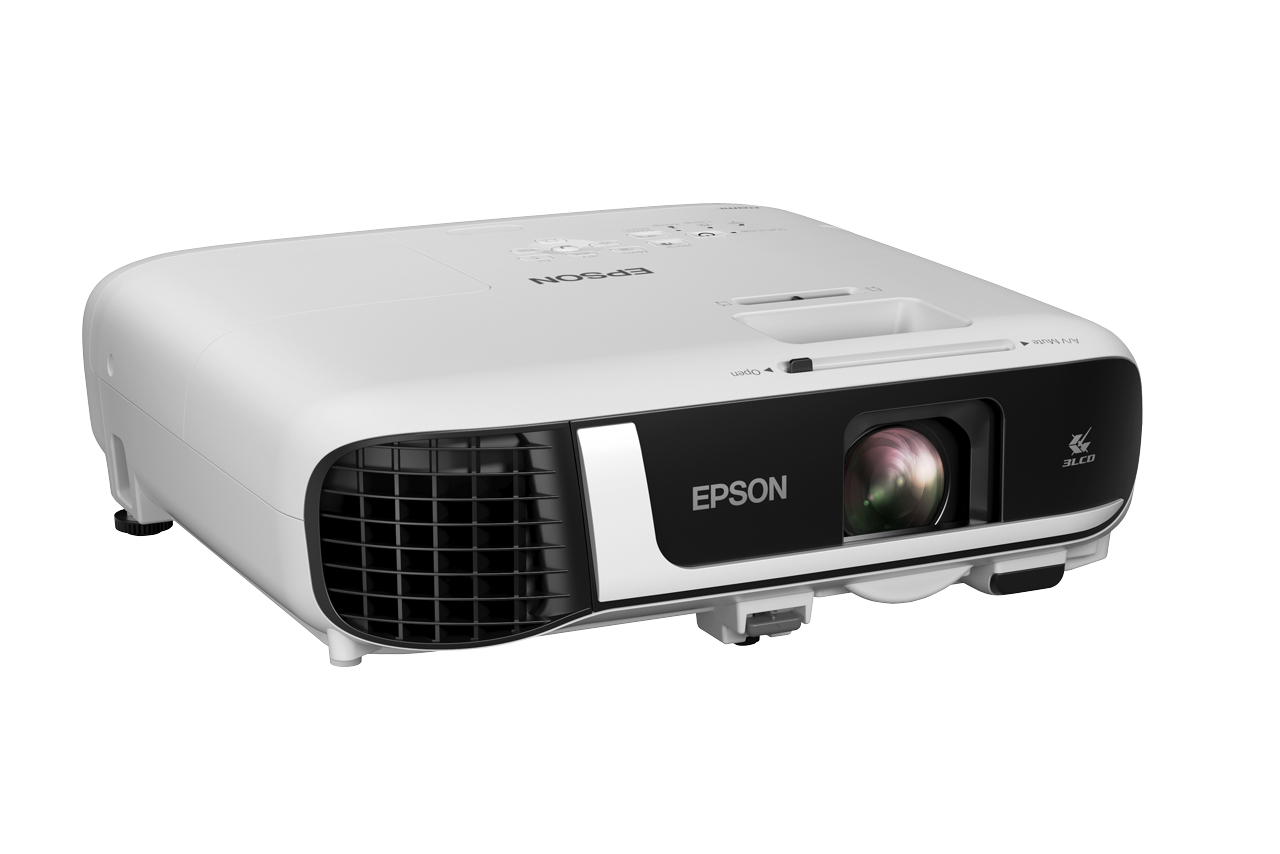

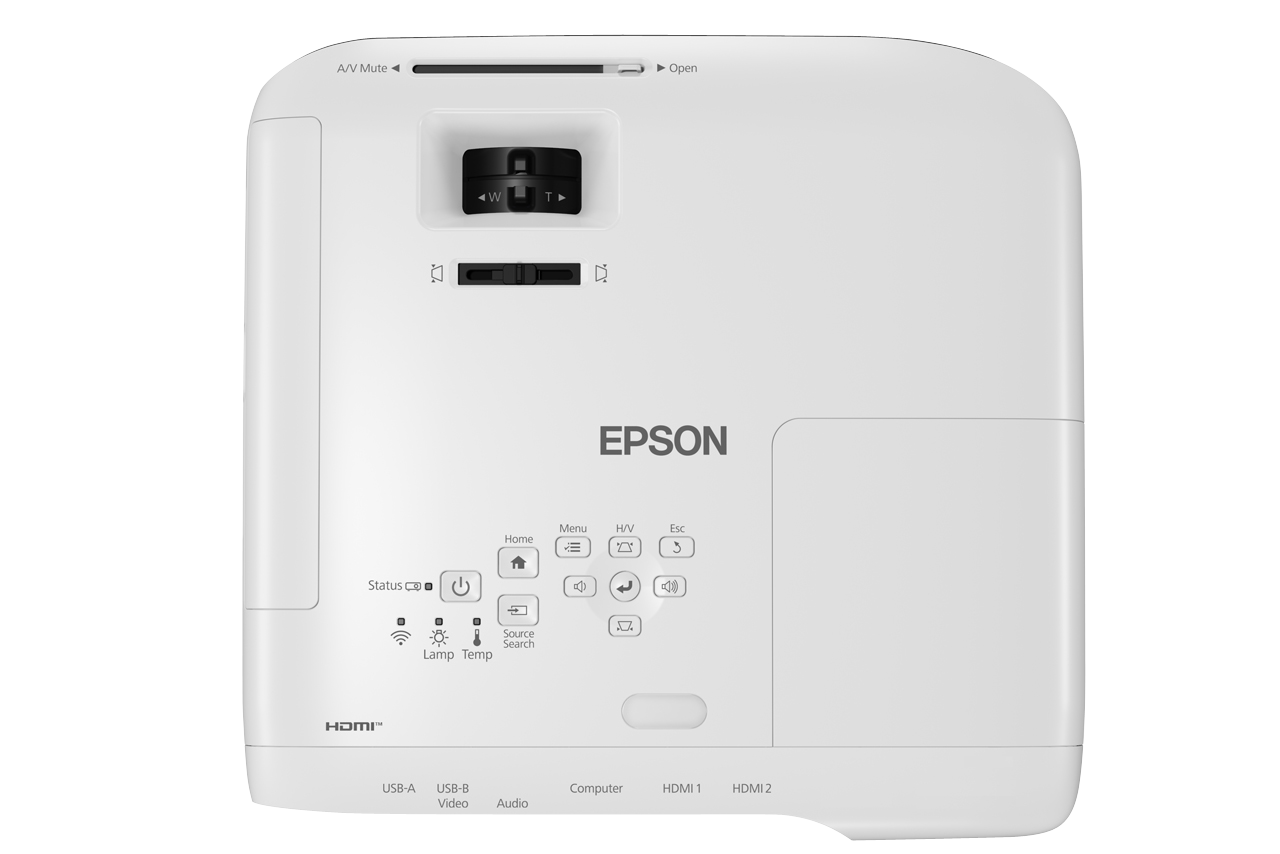

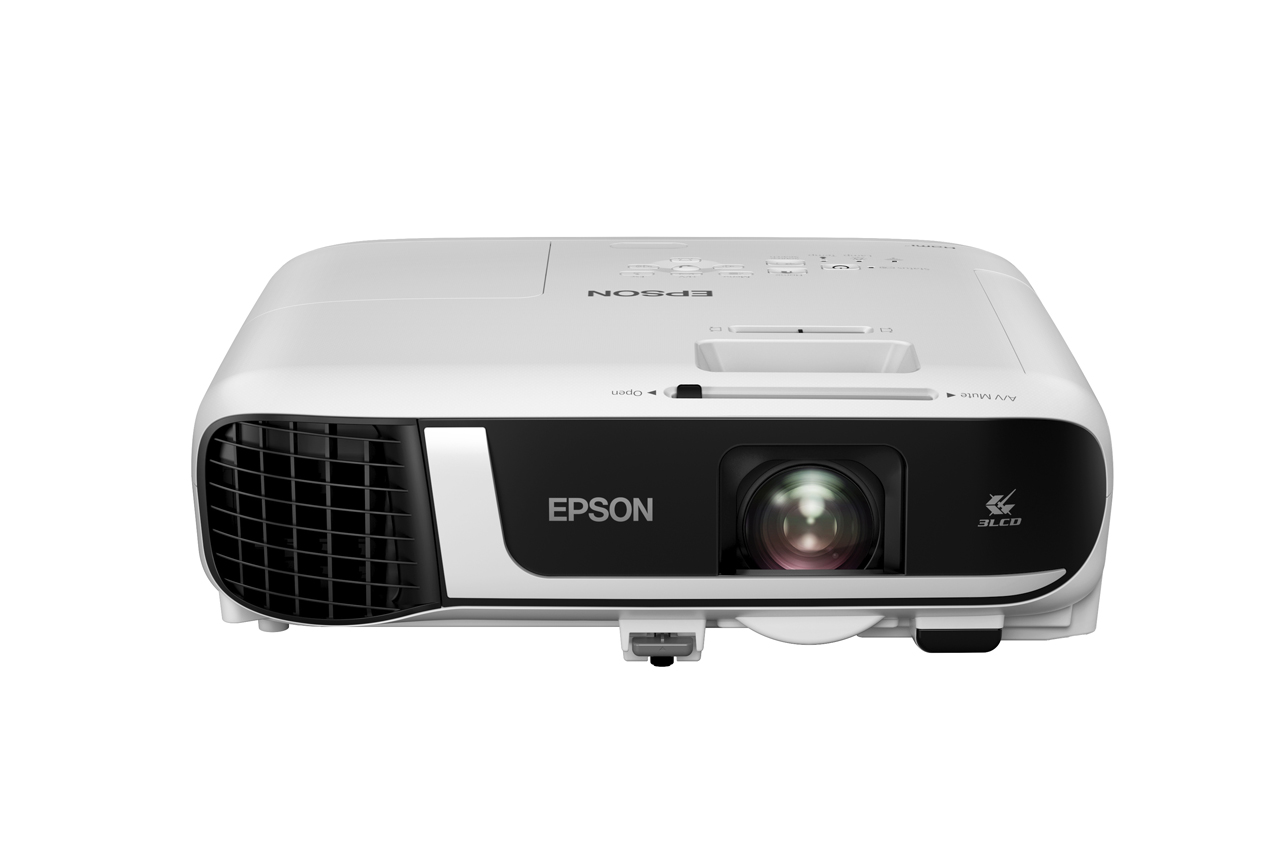

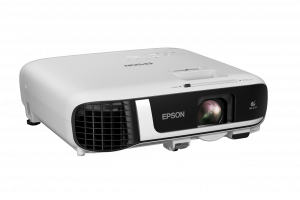

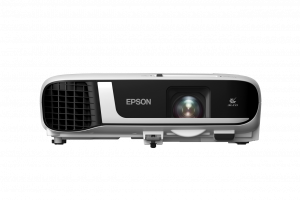

Epson EB-FH52. Projector brightness: 4000 ANSI lumens, Projection technology: 3LCD, Projector native resolution: 1080p (1920x1080). Light source type: Lamp, Service life of light source: 5500 h, Service life of light source (economic mode): 12000 h. Focus: Manual, Focal length range: 18.2 - 29.2 mm, Aperture range (F-F): 1.51 - 1.99. Video processing: 10 bit, Video colour modes: Blackboard, Cinema, Dynamic, Presentation, sRGB. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Wireless Full HD bright images, supports lightning fast 240Hz refresh rate: 3LCD technology and equally high white and colour light output
Contrast ratio of 16,000:1: Deep, rich blacks and dense shadow areas
Steam and share connectivity: Built-in wireless connectivity and Screen Mirroring
Smart cost savings: Lamp life up to 12,000 hours in Eco mode
Versatile and flexible control: Project from different sources with HDMI input and mobile connectivity

Product Properties

Manufacturer
Epson

Model
V11H978040

EAN
8715946680712

Bullet points

Point
Contrast ratio of 16,000:1: Deep, rich blacks and dense shadow areas

Smart cost savings: Lamp life up to 12,000 hours in Eco mode

Steam and share connectivity: Built-in wireless connectivity and Screen Mirroring

Versatile and flexible control

Wireless Full HD bright images, supports lightning fast 240Hz refresh rate

Design

Cable lock slot
Y

Cable lock slot type
Kensington

Market positioning
Presentation

Placement
Ceiling, Desktop

Product colour
White

Product type
Standard throw projector

Features

Country of origin
Philippines

Noise level
37 dB

Noise level (economic mode)
28 dB

Noise level (standby)
28 dB

Password protection
Y

Lens system

Aperture range (F-F)
1.51 - 1.99

Focal length range
18.2 - 29.2 mm

Focus
Manual

Throw ratio
1.32 - 2.14:1

Zoom ratio
1.6:1

Zoom type
Manual

Light source

Lamp power
230 W

Lamp type
UHE

Light source type
Lamp

Service life of light source
5500 h

Service life of light source (economic mode)
12000 h

Logistics data

Harmonized System (HS) code
85286200

Products per pallet
72 pc(s)

Products per pallet (UK)
72 pc(s)

Quantity per pack
1 pc(s)

Multimedia

Built-in speaker(s)
Y

RMS rated power
16 W

Network

Wi-Fi
Y

Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
5 - 40 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-10 - 60 °C

Packaging content

Bundled software
Epson Projektor Management

Cables included
AC, HDMI

Carrying case
Y

Quick start guide
Y

Warranty card
Y

WLAN adapter included
Y

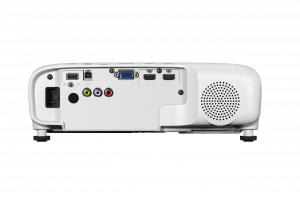

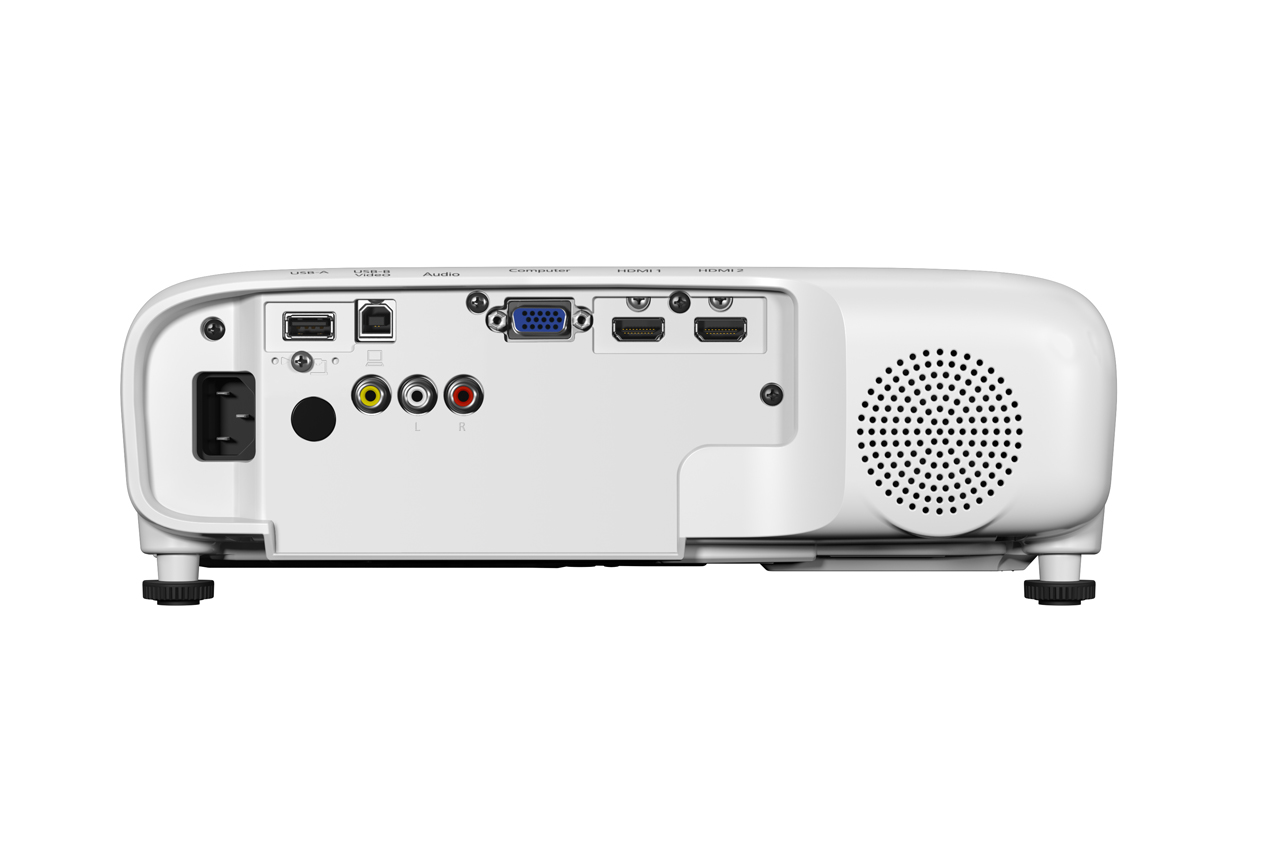

Ports & interfaces

Audio (L/R) in
1

Composite video in
1

DVI port
N

HDMI ports
1

USB 2.0 ports quantity
1

USB 2.0 Type-B ports quantity
1

VGA (D-Sub) ports quantity
1

Power

AC input frequency
50 - 60 Hz

AC input voltage
100-240 V

Power consumption (economy mode)
225 W

Power consumption (standby)
0.3 W

Power consumption (typical)
327 W

Power source
AC

Projector

Contrast ratio (typical)
16000:1

Keystone correction, horizontal
-30 - 30°

Keystone correction, vertical
-30 - 30°

Matrix size
1.55 cm (0.61")

Native aspect ratio
16:9

Number of colours
1.07 billion colours

Projection distance
1.76 - 2.86 m

Projection technology
3LCD

Projector brightness
4000 ANSI lumens

Projector brightness (economic mode)
2400 ANSI lumens

Projector native resolution
1080p (1920x1080)

Screen size compatibility
762 - 7620 mm (30 - 300")

Vertical scan range
192 - 240 Hz

Software

Software support
via: AMX, Crestron (Network)

Technical details

USB display function
3 in 1: Image / Mouse / Sound

Video

Full HD
Y

Video colour modes
Blackboard, Cinema, Dynamic, Presentation, sRGB

Video processing
10 bit

Weight & dimensions

Depth
282 mm

Height
90 mm

Package depth
390 mm

Package height
170 mm

Package weight
4.81 kg

Package width
385 mm

Weight
3.1 kg

Width
309 mm

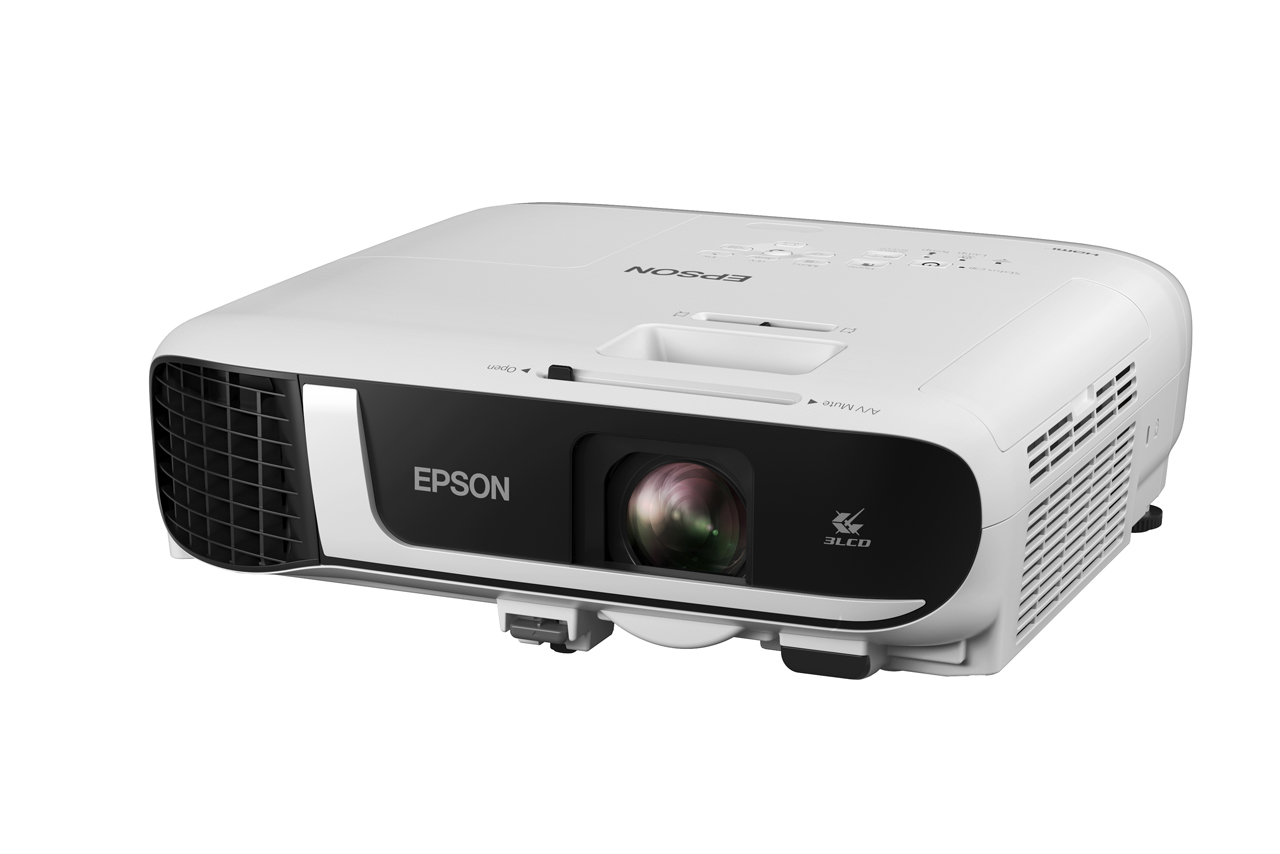

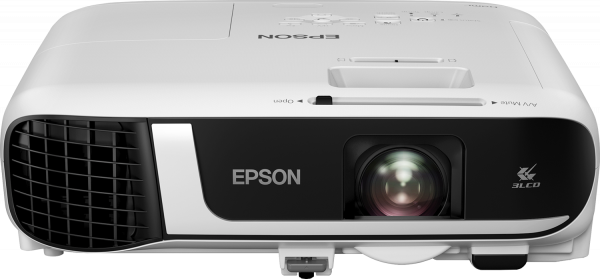

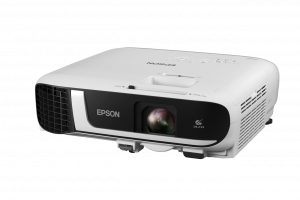

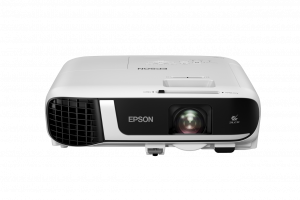

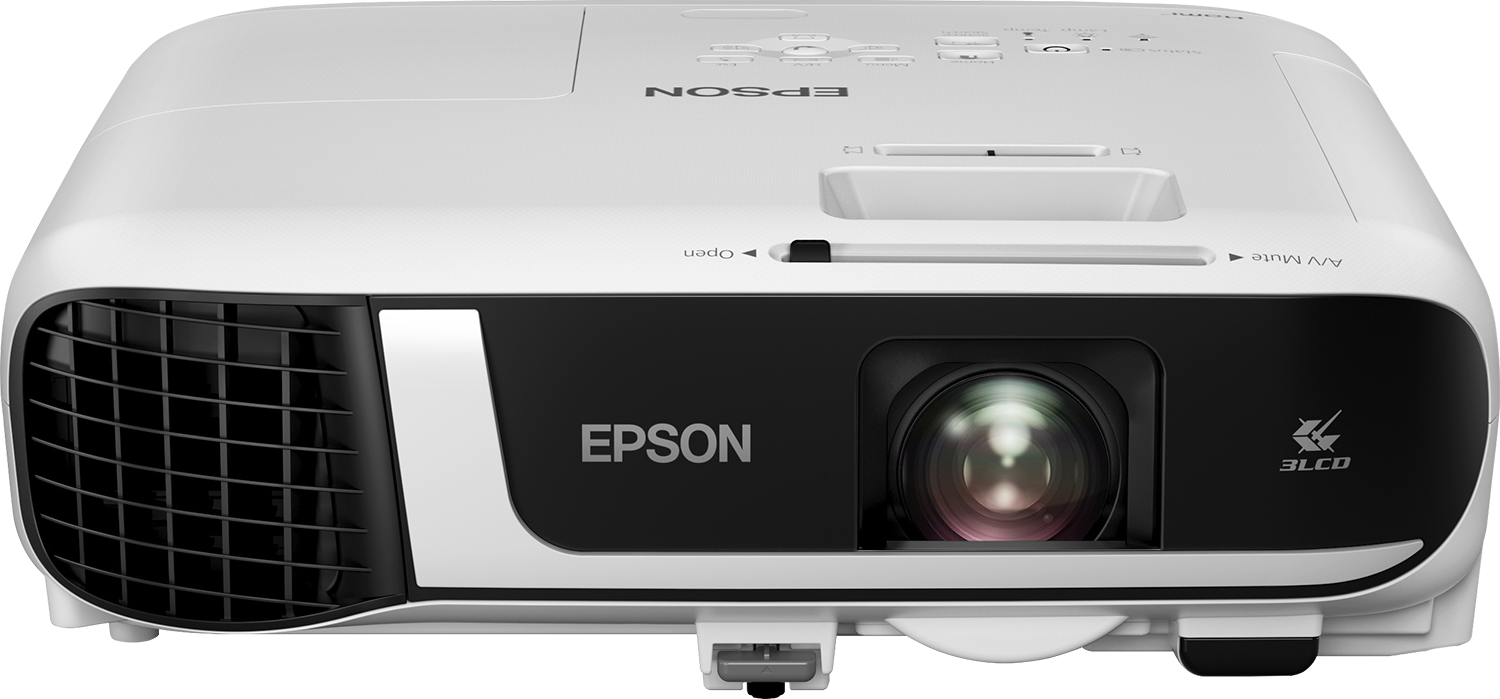

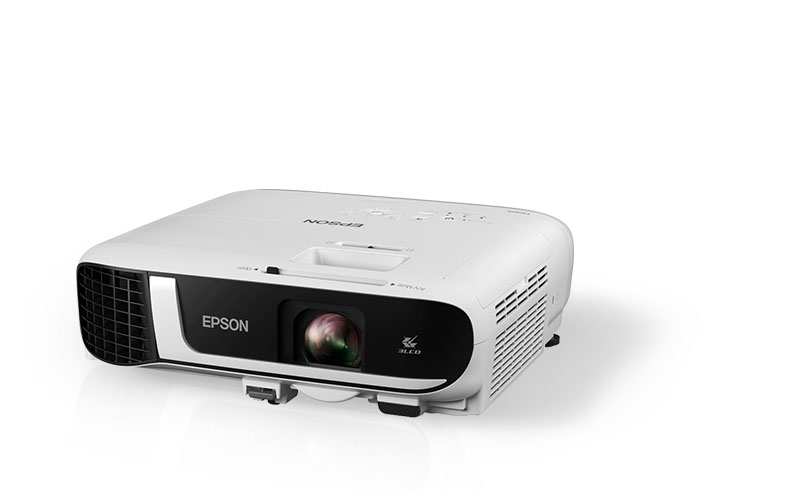

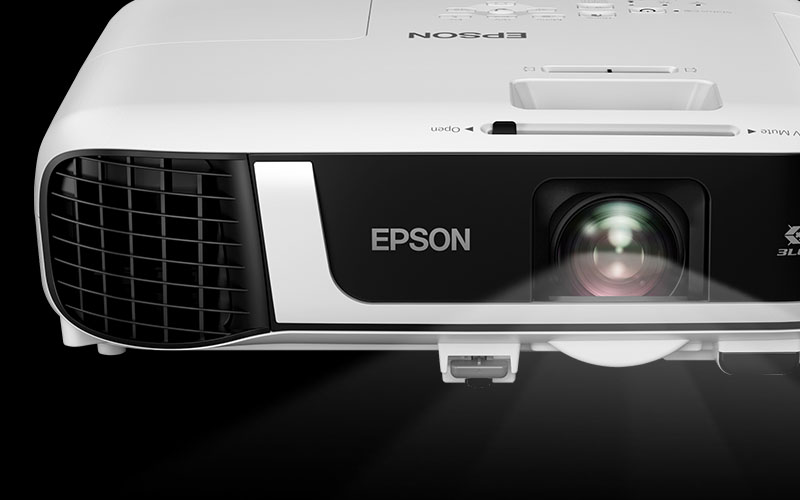

Epson EB-FH52 data projector Standard throw projector 4000 ANSI lumens 3LCD 1080p (1920x1080) White
