Description

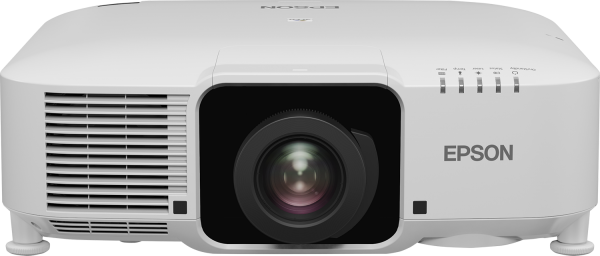

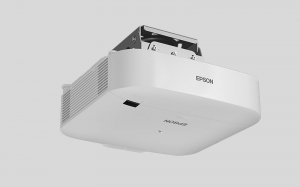

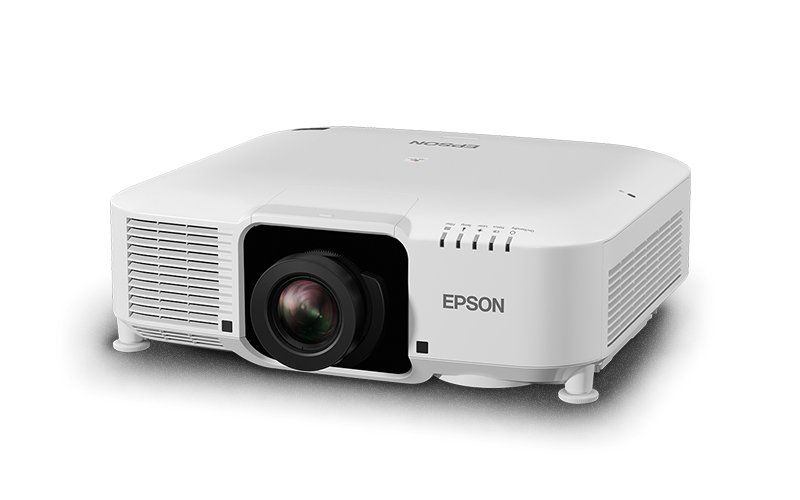

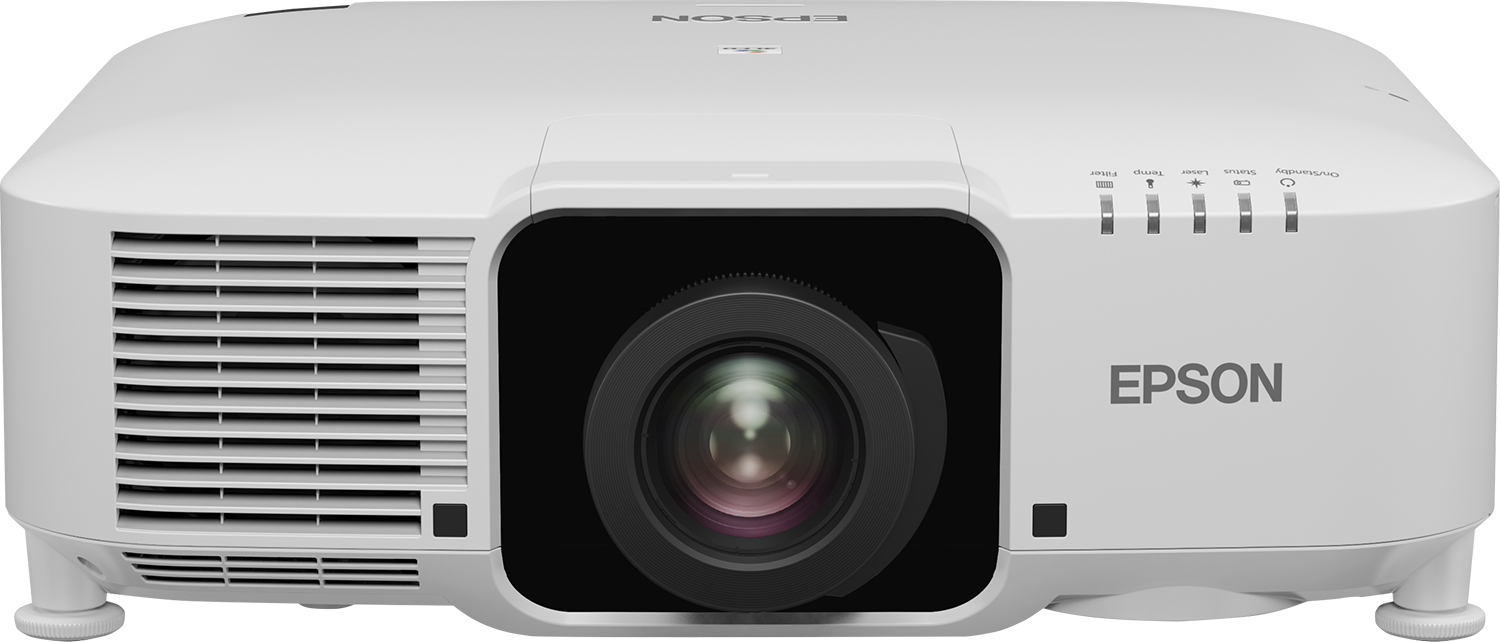

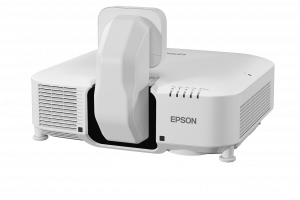

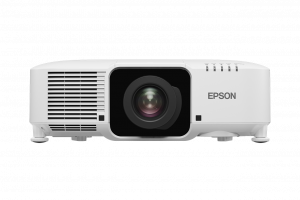

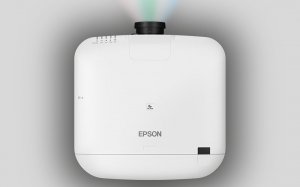

Epson EB-L1050U. Projector brightness: 5500 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Auto, Focal length range: varies by lens, Zoom type: Auto. Supported graphics resolutions: 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), Supported video modes: 1080p, Video colour modes: Cinema, Dynamic, Natural, Presentation, DICOM simulation mode, Multi-projection, BT.709. Serial interface type: RS-232C, HDMI connector type: Full-size

Fit and forget: Fit almost anywhere. 360 degree angle projection freedom

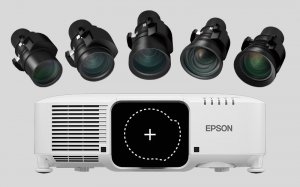

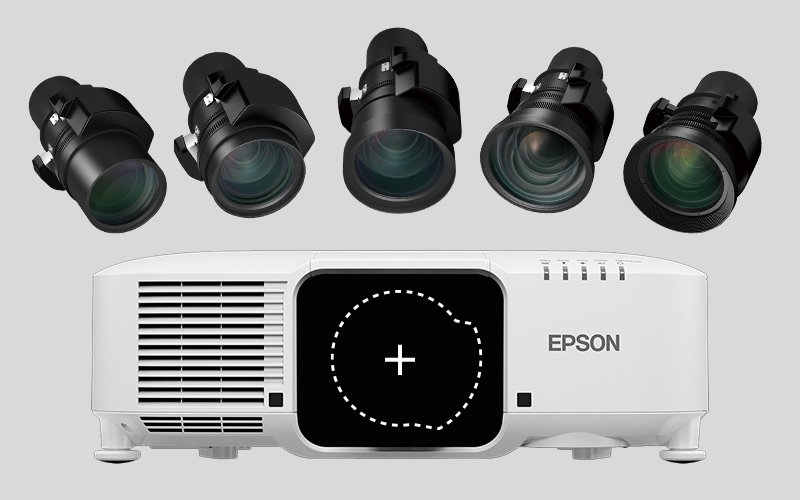

Lens support: Supports a wide selection of Epson interchangeable lenses
Enhanced design: Clean, simple, compact and discreet design. White version
Image quality: 5,500 lumens, 4K enhancement, CLO, 3LCD, 2000:1 native contrast
Support: Five year / 20,000 hour warranty

Product Properties

Manufacturer
Epson

Model
V11H942940

Bullet points

Point
Enhanced design: Clean, simple, compact and discreet design. White version

Fit and forget: Fit almost anywhere. 360 degree angle projection freedom

Image quality: 5,500 lumens, 4K enhancement, CLO, 3LCD, 2000:1 native contrast

Lens support: Supports a wide selection of Epson interchangeable lenses

Support: Five year / 20,000 hour warranty

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Market positioning
Business

Placement

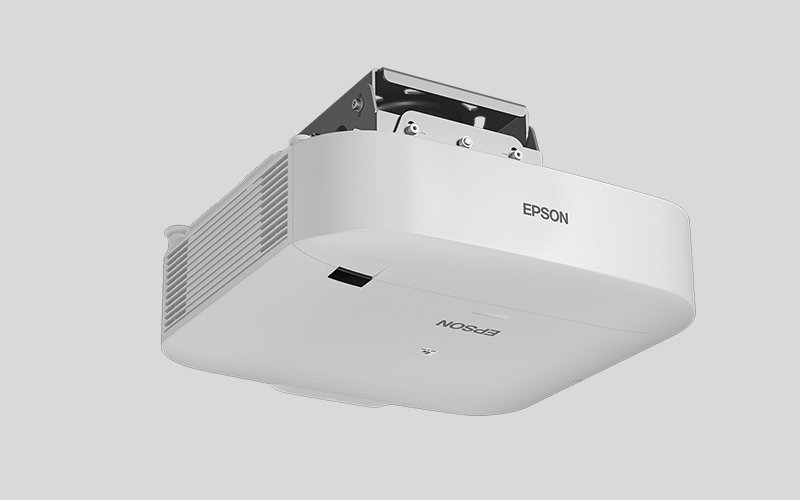

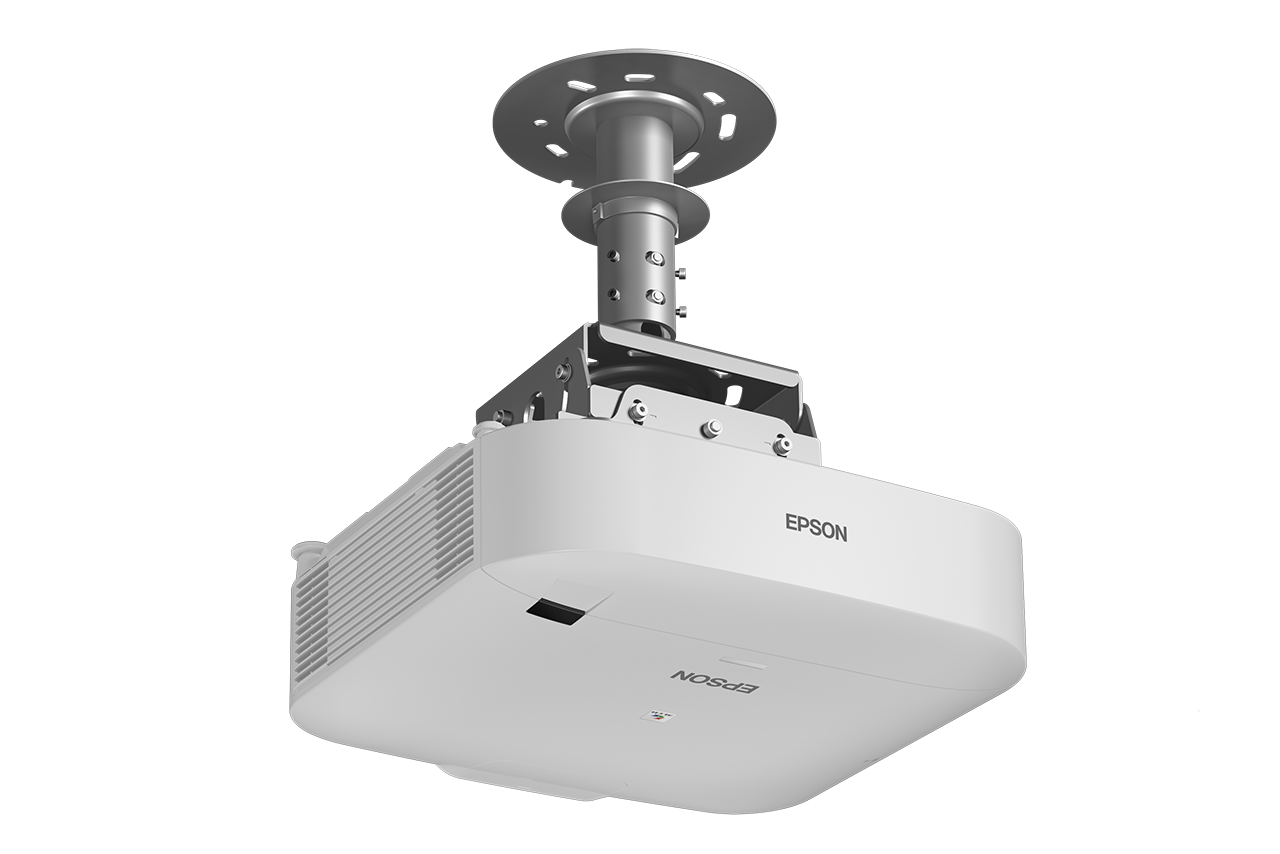

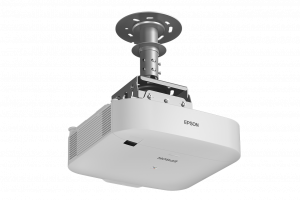

Ceiling, Desktop

Product colour
White

Product type
Large venue projector

Features

Air filter
Yes

Compatible operating systems
Windows

Country of origin
China

HDCP
Yes

Noise level
34 dB

Noise level (economic mode)
30 dB

On Screen Display (OSD)
Yes

Password protection
Yes

Lens system

Focal length range
varies by lens

Focus
Auto

Interchangeable lens
Yes

Throw ratio
0.35 - 10.11:1

Zoom capability
Yes

Zoom ratio
1.6:1

Zoom type
Auto

Light source

Light source type
Laser

Service life of light source
20000 h

Service life of light source (economic mode)
30000 h

Logistics data

Pallet gross weight
0 g

Pallet weight (UK)
0 g

Products per pallet
14 pc(s)

Products per pallet (UK)
14 pc(s)

Quantity per pack
1 pc(s)

Multimedia

Built-in speaker(s)
No

Network

Ethernet LAN
No

Smart TV
No

Wi-Fi
Yes

Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-10 - 60 °C

Packaging content

AC adapter included
Yes

Cables included
AC

Manual
Yes

Quick start guide
Yes

WLAN adapter included
Yes

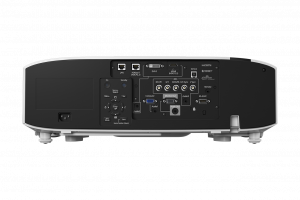

Ports & interfaces

Audio (L/R) in
3

Audio (L/R) out
1

BNC input ports
1

Component video (YPbPr/YCbCr) in
0

Composite video in
0

DC-in jack
Yes

DVI port
Yes

HDBaseT port
Yes

HDMI connector type
Full-size

HDMI ports
1

S-Video inputs quantity
0

Serial interface type
RS-232C

USB 2.0 ports quantity
1

USB 2.0 Type-B ports quantity
1

VGA (D-Sub) ports quantity
2

Power

AC input frequency
50 - 60 Hz

AC input voltage
100-240 V

Power consumption (economy mode)
252 W

Power consumption (standby)
0.5 W

Power consumption (typical)
345 W

Power source
AC

Projector

Contrast ratio (dynamic)
2500000:1

Contrast ratio (typical)
2000:1

Heat dissipation
1173 BTU/h

Keystone correction, horizontal
-30 - 30°

Keystone correction, vertical
-45 - 45°

Matrix size
1.93 cm (0.76")

Native aspect ratio
16:10

Number of colours
1.07 billion colours

Projection distance (tele)
2.5 - 50.4 m

Projection distance (wide)
1.5 - 31.6 m

Projection technology
3LCD

Projector brightness
5500 ANSI lumens

Projector brightness (economic mode)
3850 ANSI lumens

Projector brightness (portrait mode)
5500 ANSI lumens

Projector native resolution
WUXGA (1920x1200)

Screen size compatibility
1270 - 25400 mm (50 - 1000")

Supported aspect ratios
16:10, 16:9

Software

Software support
via: AMX, Crestron (Network), Extron

Technical details

Sustainability certificates
TCO

Video

Adjustable colour temperature
Yes

Full HD
Yes

Supported graphics resolutions
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)

Supported video modes
1080p

Video colour modes
Cinema, Dynamic, Natural, Presentation, DICOM simulation mode, Multi-projection, BT.709

Weight & dimensions

Depth
484 mm

Height
189 mm

Package depth
765 mm

Package height
275 mm

Package weight
20.6 kg

Package width
572 mm

Weight
16.9 kg

Width
545 mm
