Description

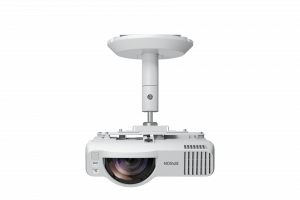

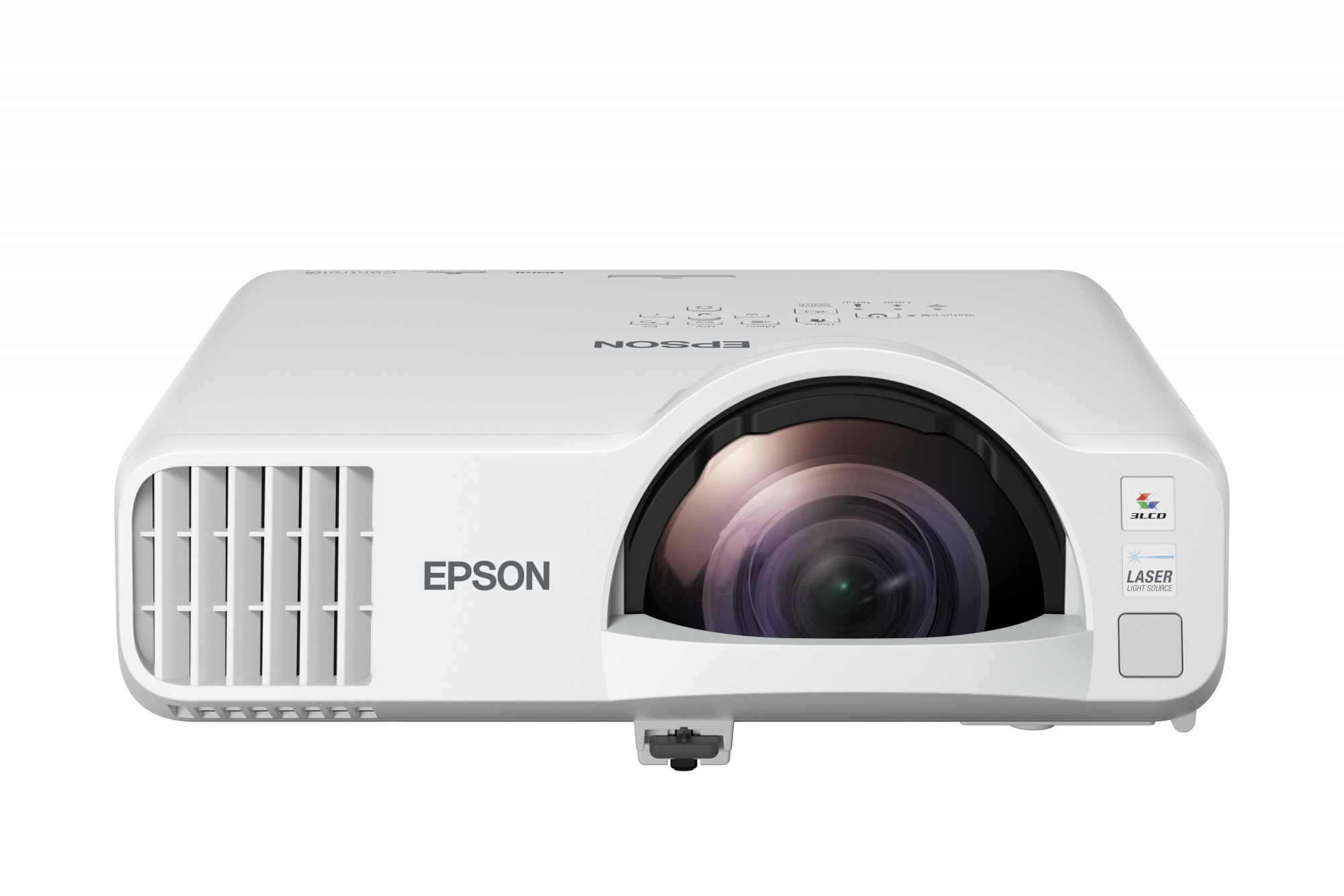

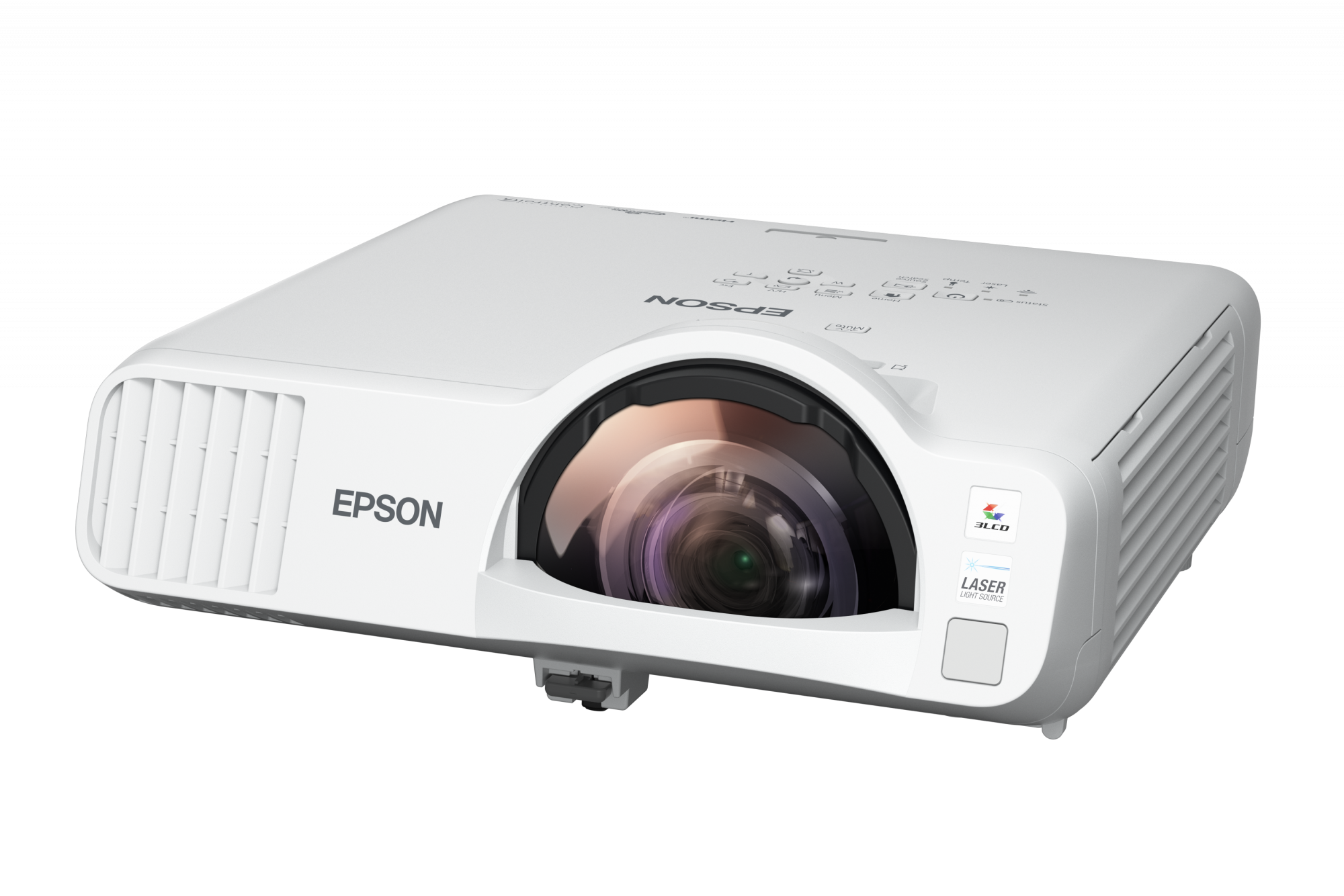

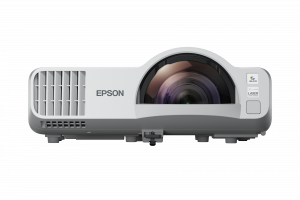

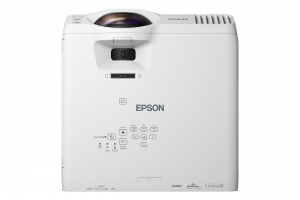

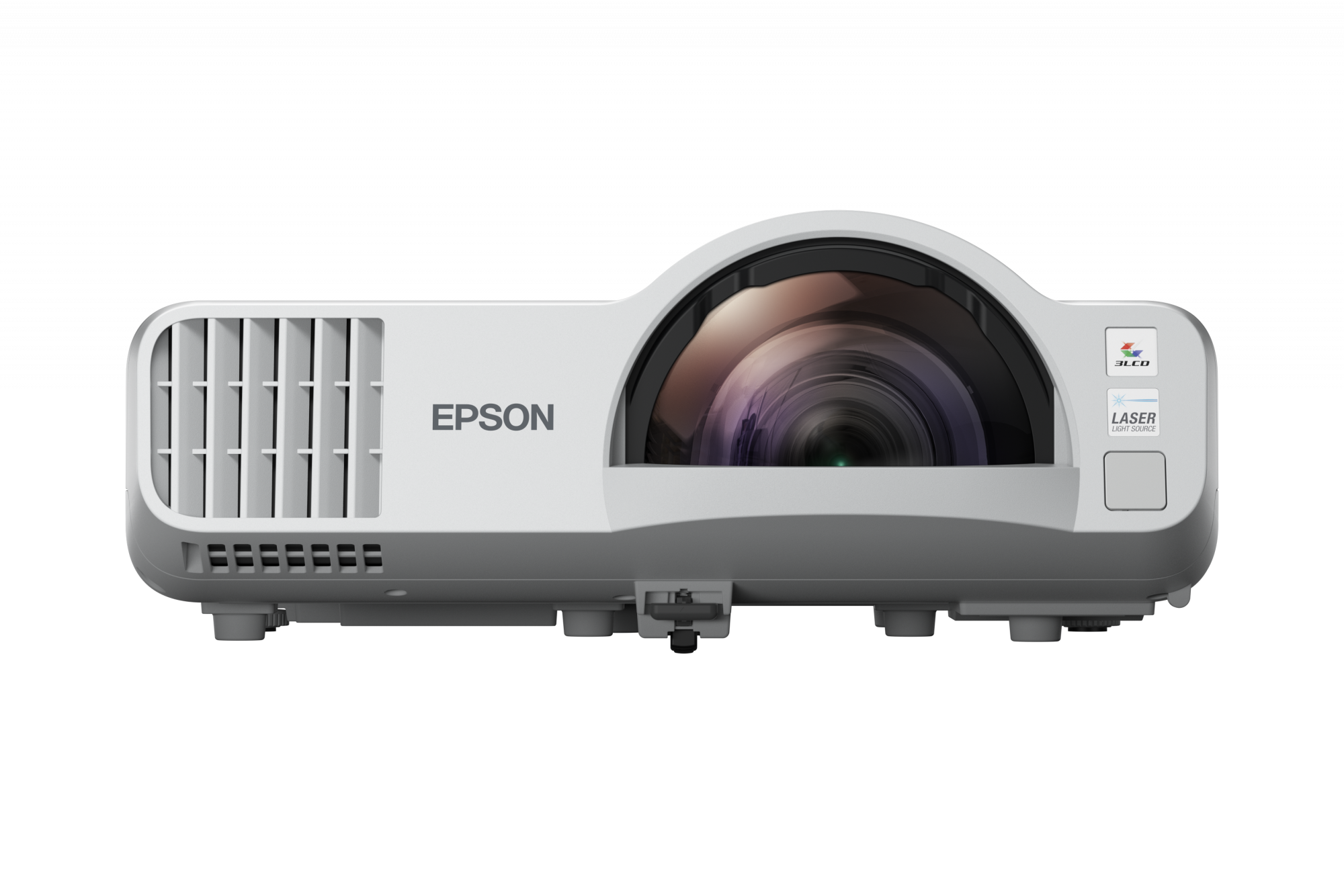

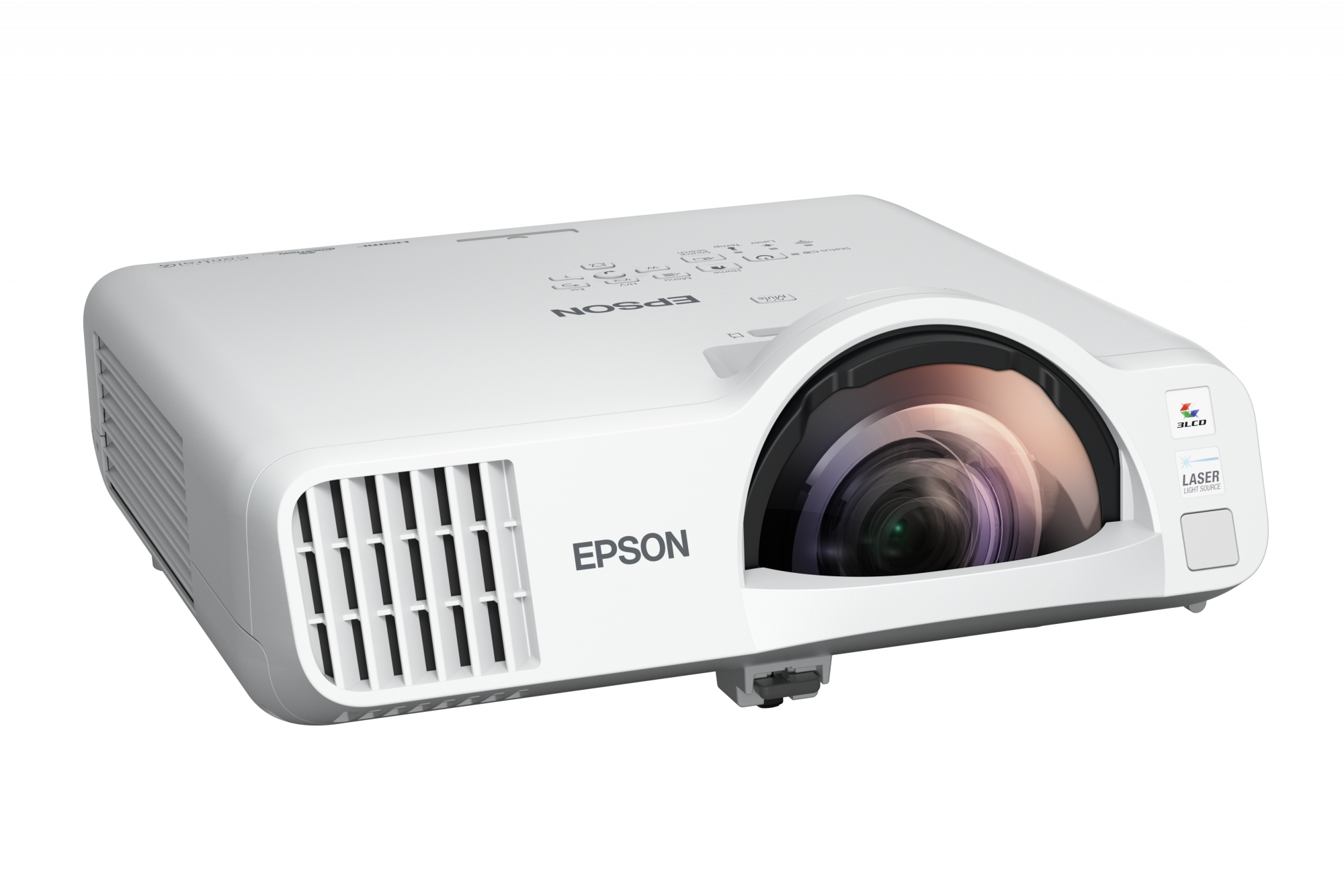

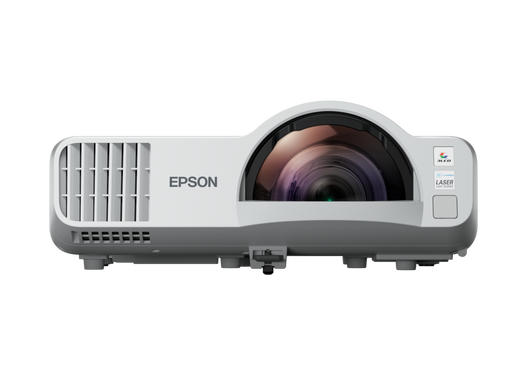

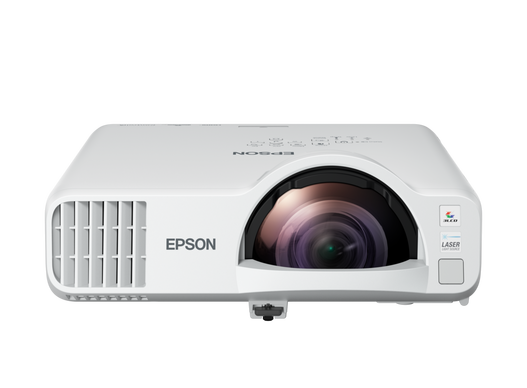

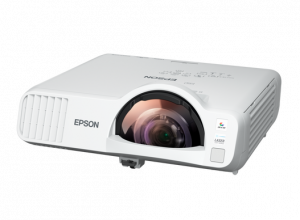

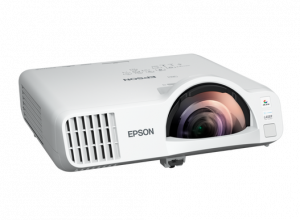

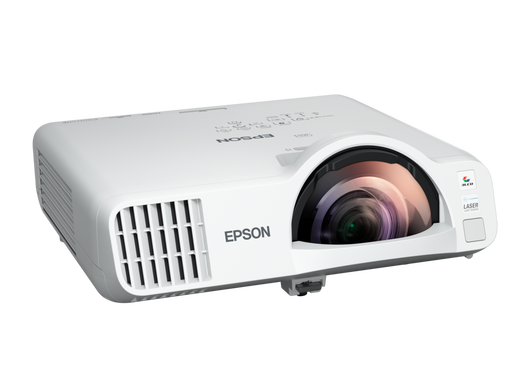

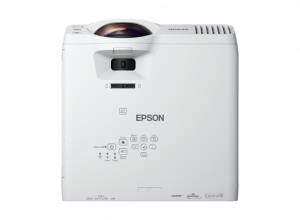

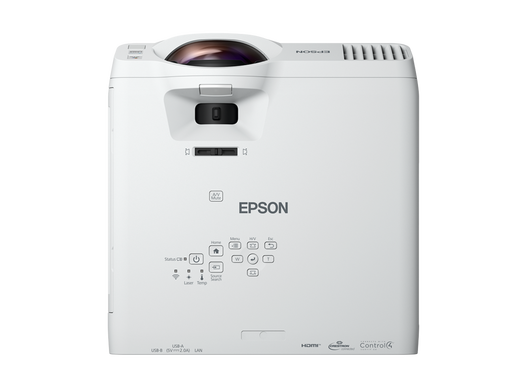

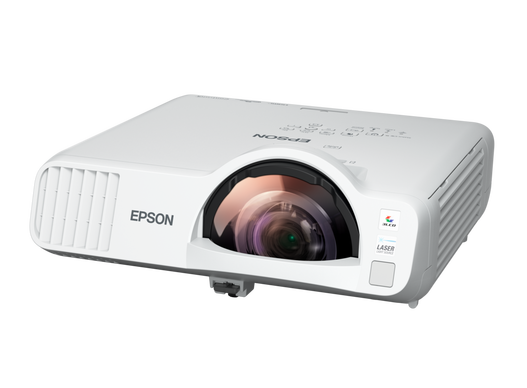

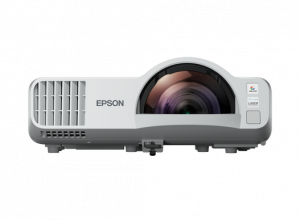

Epson EB-L210SW. Projector brightness: 4000 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WXGA (1280x800). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Auto/Manual, Focal length range: 9.5 mm, Fixed focal length: 9.5 mm. Video processing: 10 bit, Video colour modes: Blackboard, Cinema, Dynamic, Presentation, sRGB. Serial interface type: RS-232C

Scalable, portable HD display: 53-120" ST display for unrestricted viewing without reflections
Bright and energy efficient laser: 4,000lm CLO with 3LCD technology for brighter colours at only 201W
Effortless connectivity options: Auto-on, wired / wireless display with USB 2A output for smart sticks
Simple to use and built to last: Virtually maintenance free with 5-year, 12,000hr warranty
Document camera compatibility: Create and record a live, totally immersive lesson or presentation

Legal Statement

Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Product Properties

Manufacturer
Epson

Model
V11HA76080

EAN
8715946715209

Bullet points

Point
Bright and energy efficient laser

Document camera compatibility: Create and record a live, totally immersive lesson or presentation

Effortless connectivity options

Scalable, portable HD display: 53-120" ST display for unrestricted viewing without reflections

Simple to use and built to last: Virtually maintenance free with 5-year, 12,000hr warranty

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Market positioning
Portable

Product colour
White

Product type
Short throw projector

Display

Built-in display
No

Features

Country of origin
Philippines

Interactive
No

Noise level
37 dB

Noise level (economic mode)
27 dB

On Screen Display (OSD)
Yes

Password protection
Yes

Screen mirroring
Yes

Lens system

Fixed focal length
9.5 mm

Focal length range
9.5 mm

Focus
Auto/Manual

Throw ratio
0.48 - 0.65:1

Zoom capability
Yes

Zoom ratio
1.35:1

Light source

Light source type
Laser

Service life of light source
20000 h

Service life of light source (economic mode)
30000 h

Logistics data

Pallet gross height
2.03 m

Pallet gross length
120 cm

Pallet gross width
80 cm

Pallet height (UK)
2.03 m

Pallet length (UK)
120 cm

Products per pallet
16 pc(s)

Products per pallet (UK)
32 pc(s)

Products per pallet layer
2 pc(s)

Products per pallet layer (UK)
4 pc(s)

Quantity per pack
1 pc(s)

Multimedia

Built-in speaker(s)
Yes

RMS rated power
16 W

Network

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
10,100,1000 Mbit/s

Miracast
Yes

Web browser
Yes

Wi-Fi
Yes

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-10 - 60 °C

Other features

Box contents
HDMI Cable 1.8m, Power cable, Quick Start Guide, Remote control incl. batteries, Warranty Documents

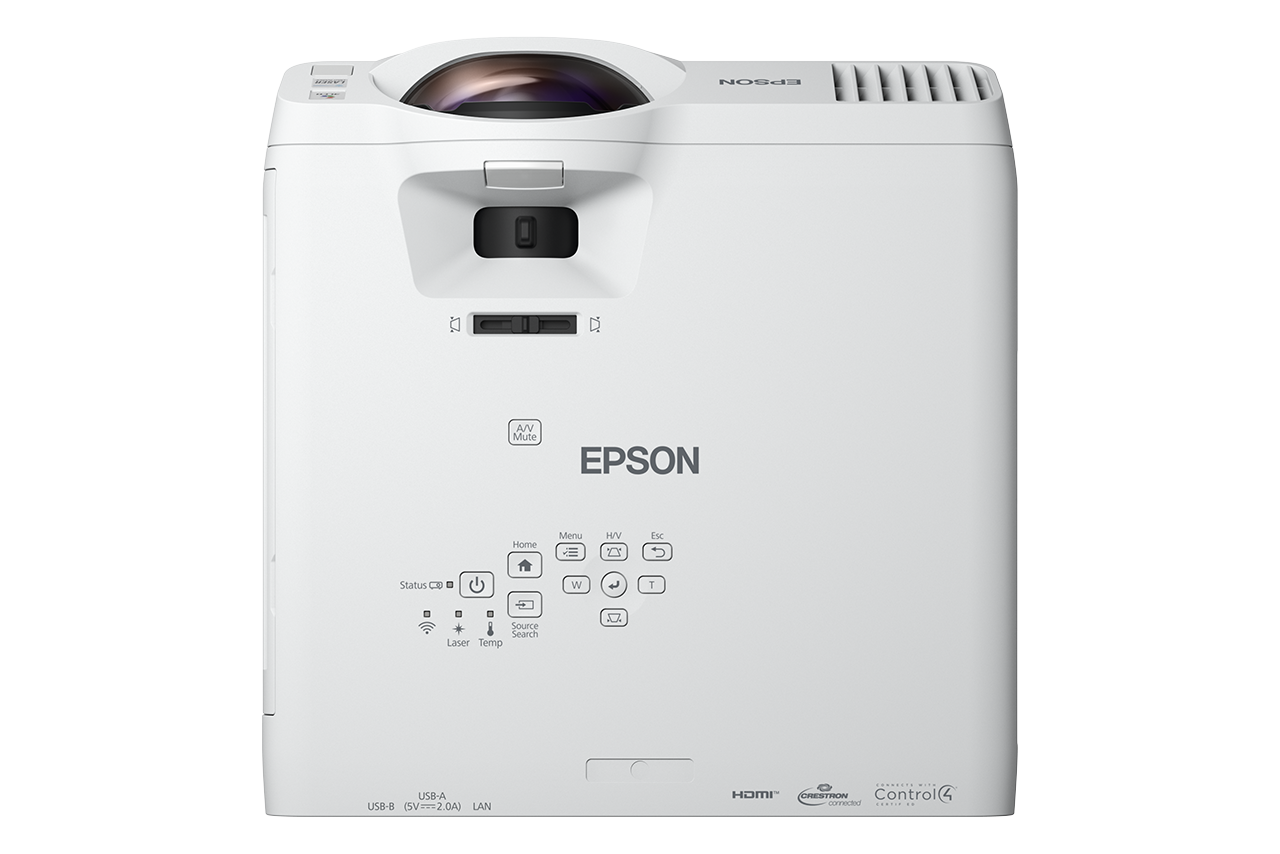

Control panel
0.59 inch with C2 Fine

Interface

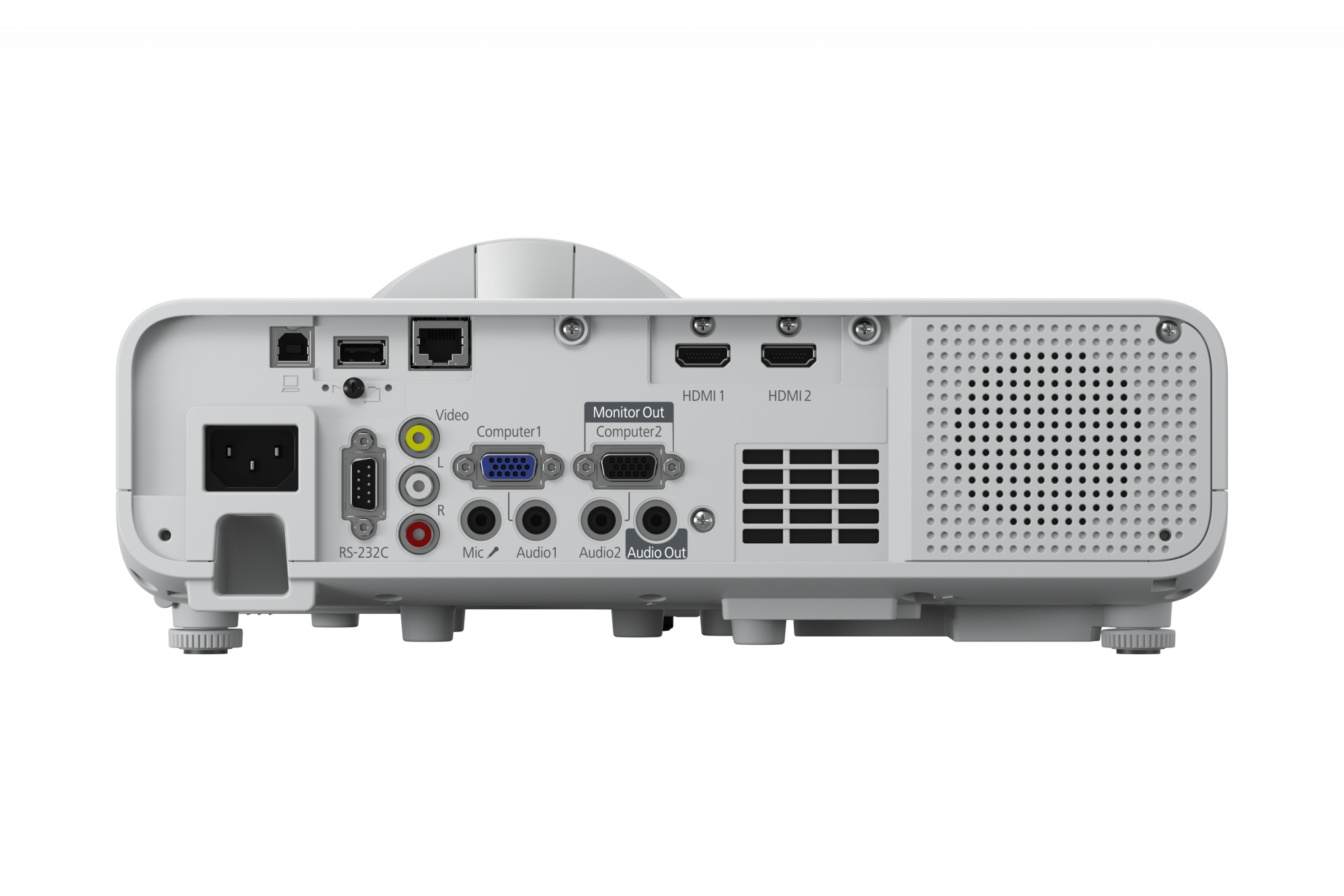

USB 2.0, USB 2.0 Type B (Service Only), RS-232C, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wi-Fi Direct, VGA in (2x), VGA out, HDMI in (2x), Miracast, Jack plug out, Jack plug in (2x), Microphone input

Mounting

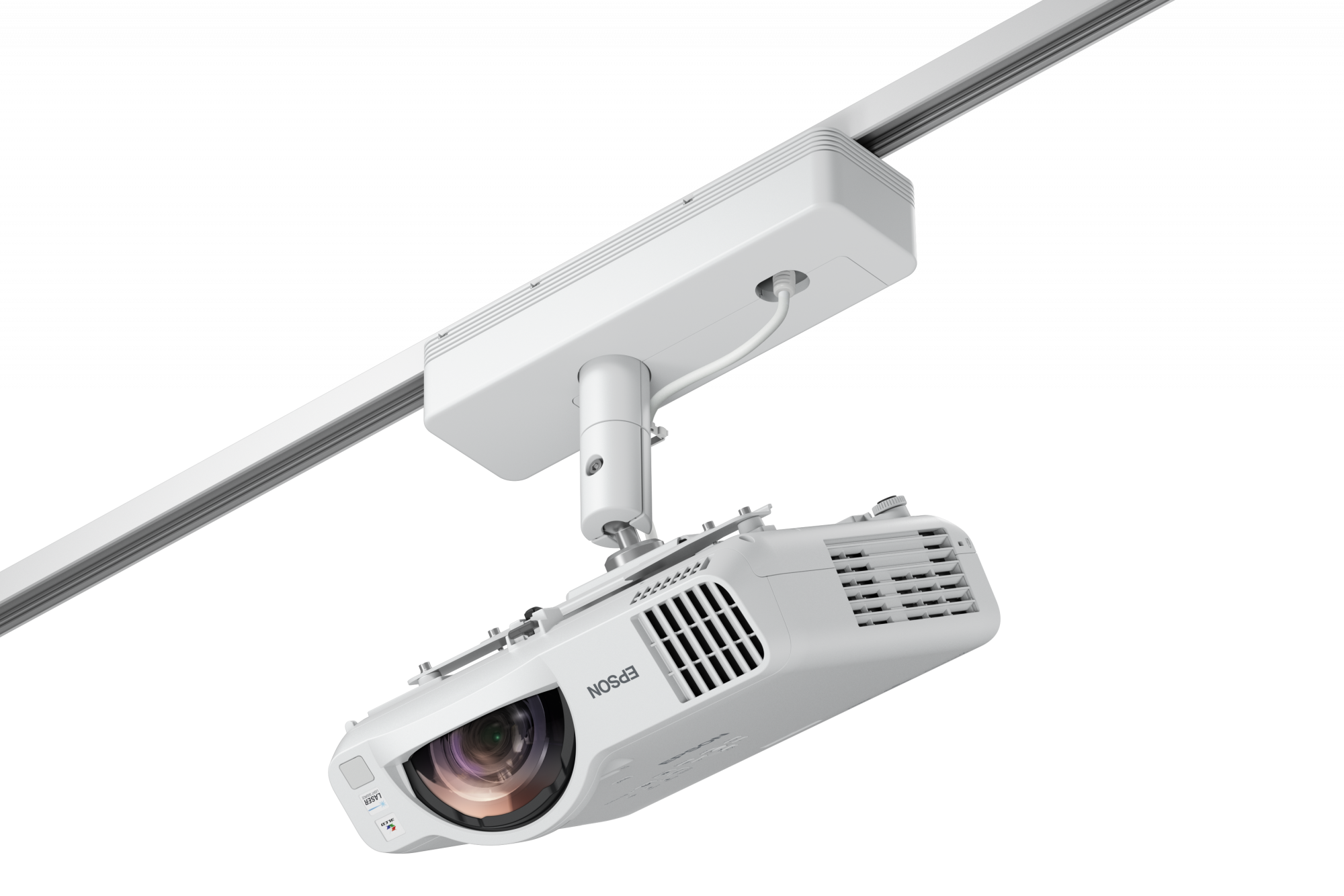

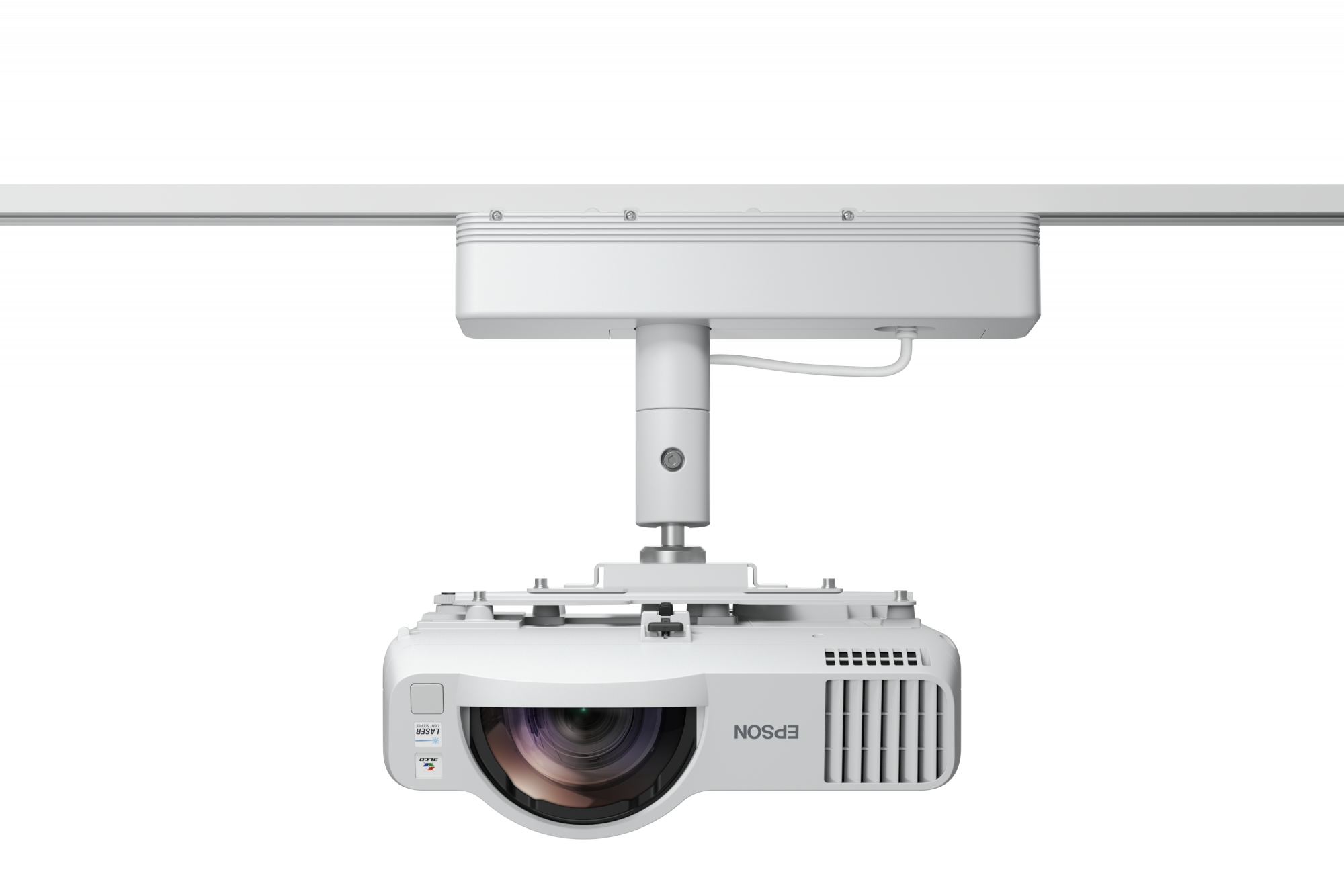

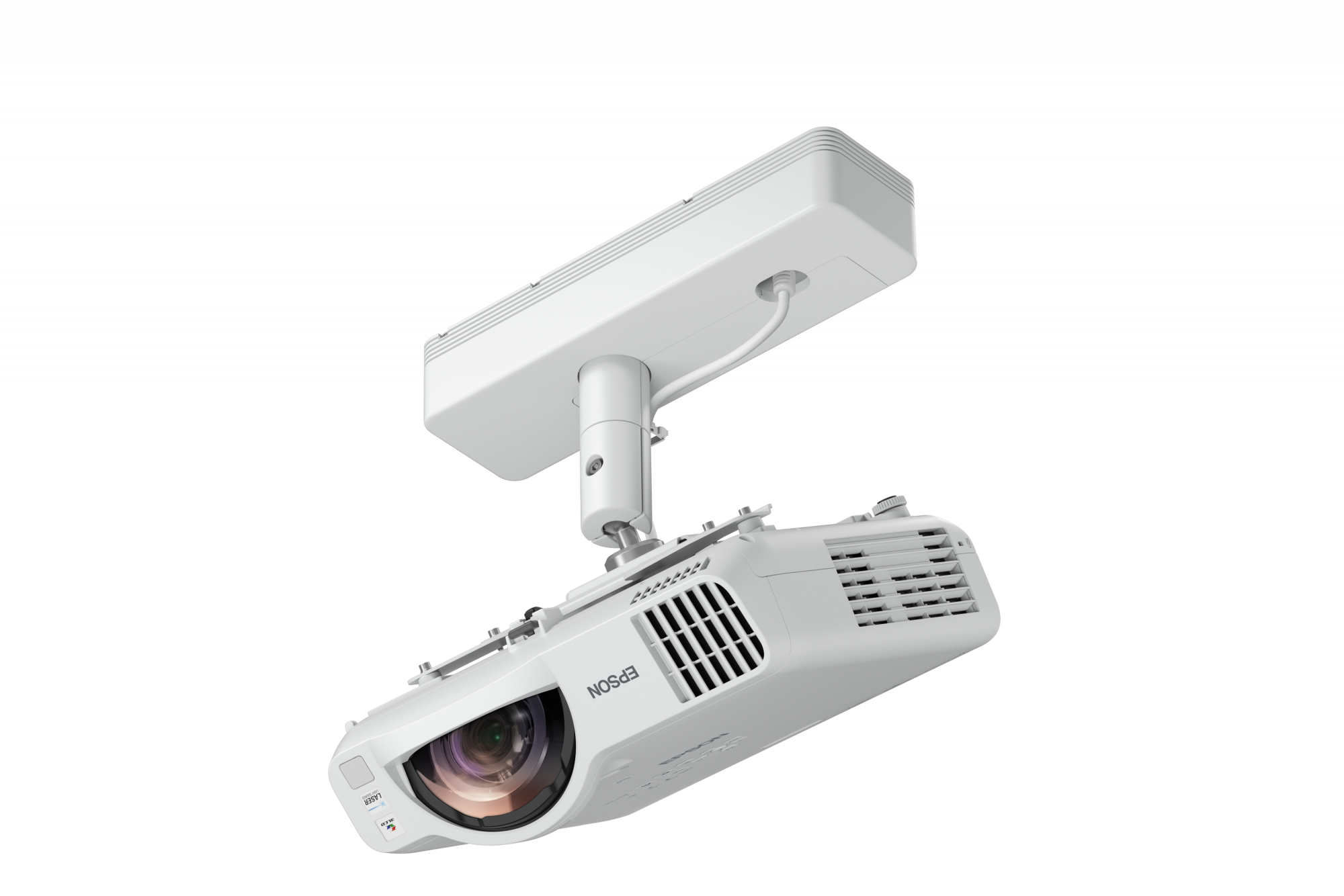

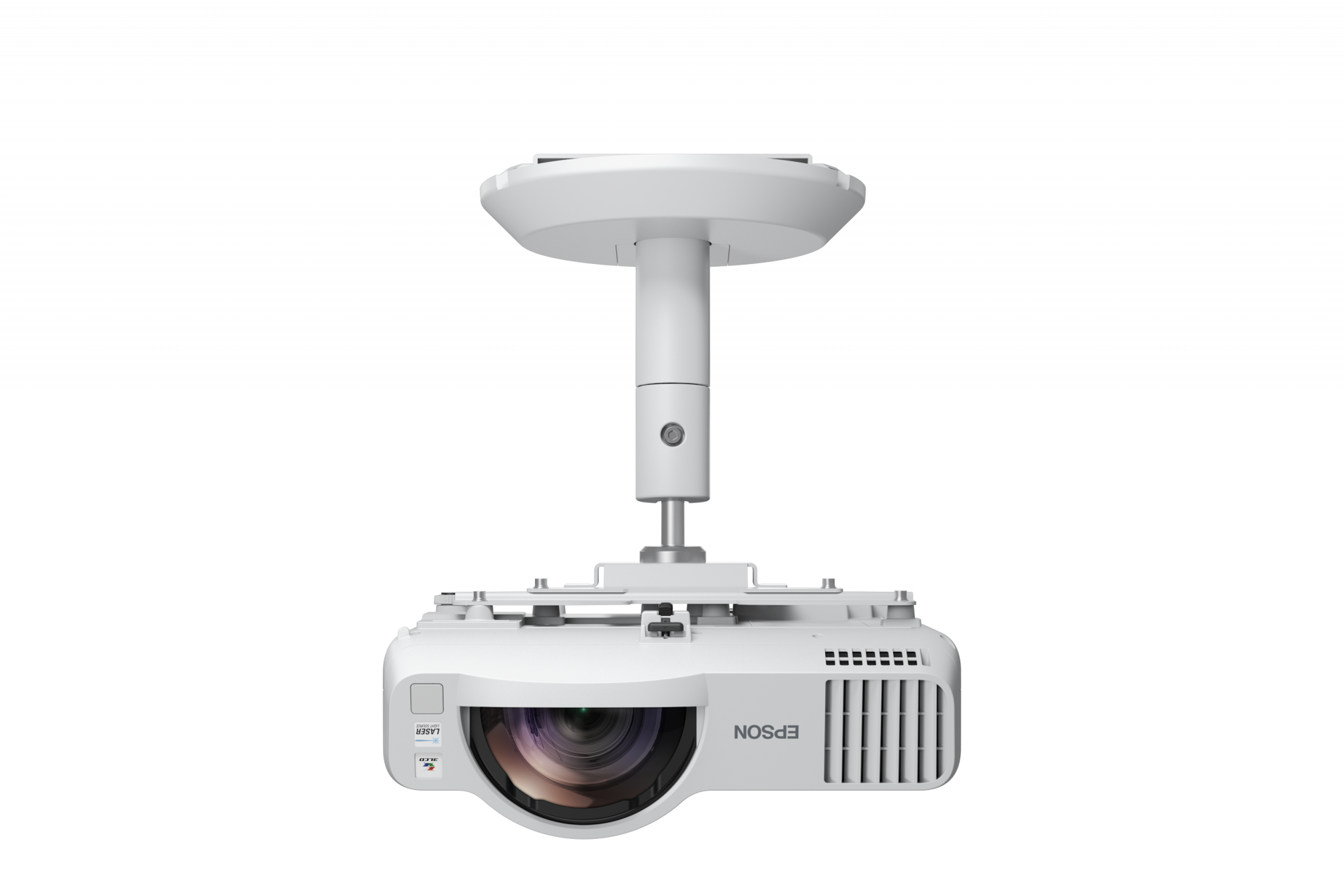

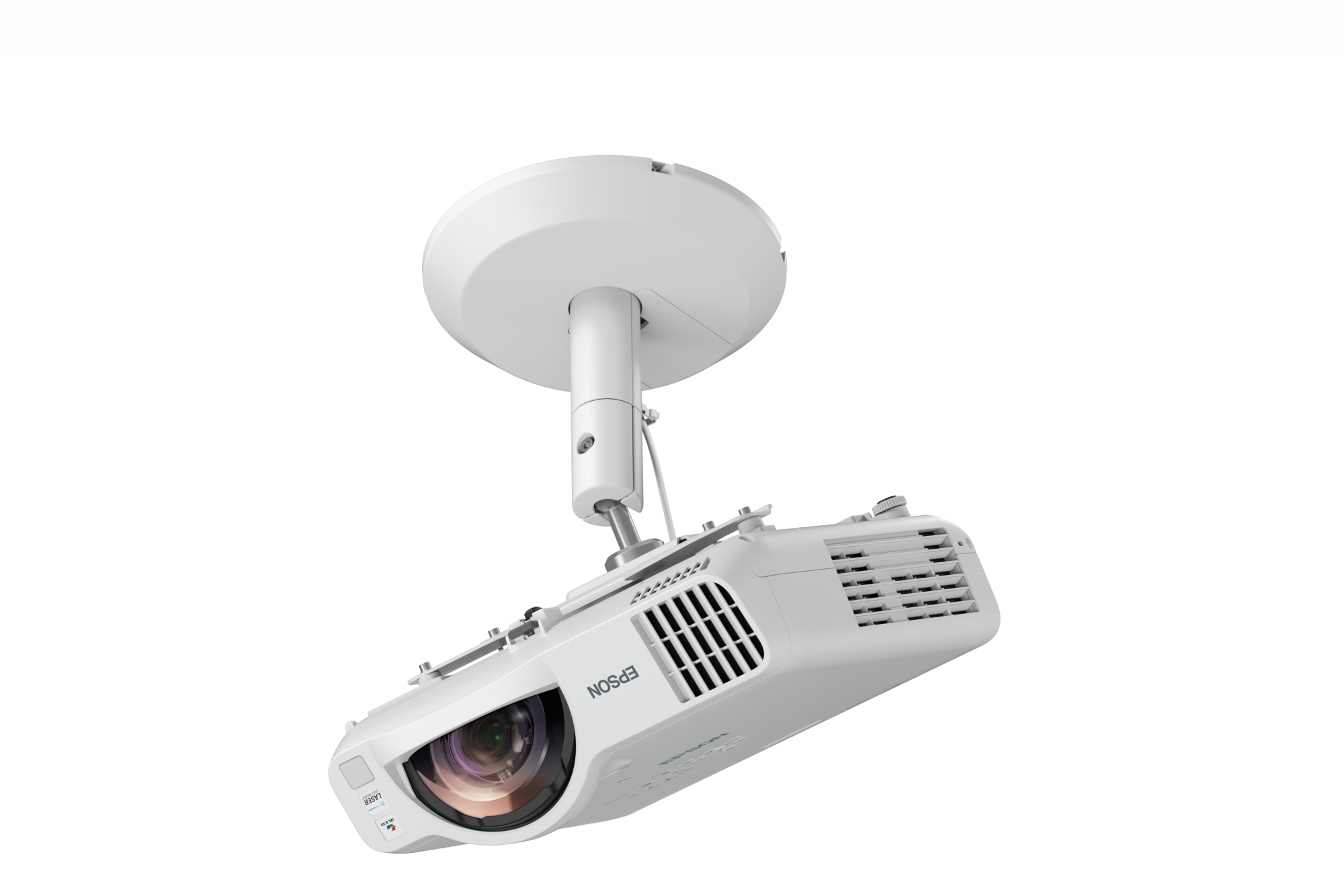

Ceiling Mounted, Table Mounted, Wall Mounted

Option type
Ceiling mount, Connection and control box, External Speaker, Visualiser camera, Wall mount

RS-232C
Yes

Security features
Kensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection

Supported network protocols
HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink

Packaging content

Bundled software
EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management

Cables included
AC, HDMI

Remote control included
Yes

Ports & interfaces

AC (power) in
Yes

Audio (L/R) in
2

Audio (L/R) out
1

Audio Return Channel (ARC)
Yes

Component video (YPbPr/YCbCr) in
0

Composite video in
0

Consumer Electronics Control (CEC) support
Yes

DVI port
No

HDMI ports
2

Microphone in
Yes

Serial interface type
RS-232C

USB 2.0 ports quantity
1

USB 2.0 Type-B ports quantity
1

VGA (D-Sub) ports quantity
2

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Auto power off
Yes

Power consumption (economy mode)
191 W

Power consumption (max)
260 W

Power consumption (standby)
0.5 W

Power consumption (typical)
201 W

Power source
AC

Projector

Contrast ratio (dynamic)
5000000:1

Contrast ratio (typical)
2500000:1

Heat dissipation
884 BTU/h

Keystone correction, horizontal
±15°

Keystone correction, vertical
±15°

Native aspect ratio
16:10

Number of colours
1.07 billion colours

Projection technology
3LCD

Projector brightness
4000 ANSI lumens

Projector brightness (economic mode)
2800 ANSI lumens

Projector native resolution
WXGA (1280x800)

Screen size compatibility
1346.2 - 7620 mm (53 - 300")

Supported aspect ratios
16:10

Vertical scan range
100 - 120 Hz

Supplier features

Recommended gender
Any gender

Technical details

Mobile app support
Yes

Other features
Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Digital zoom, Direct Power on/off, Document Camera Compatible, Easy OSD pre-setting, Email notification, Home Screen, Horizontal and vertical keystone correction, Instant on/off, Long light source life, Mail notification function, Microphone input, Network administration, Network projection, OSD copy function, Quick Corner, Screen Mirroring, Set-up wizard, Split-Screen-Function, Web Control, Web Remote, Wireless LAN capable, iProjection App

Video

Video colour modes
Blackboard, Cinema, Dynamic, Presentation, sRGB

Video processing
10 bit

Weight & dimensions

Depth
337 mm

Height
90 mm

Package depth
535 mm

Package height
235 mm

Package weight
7.11 kg

Package width
420 mm

Weight
4.6 kg

Width
325 mm
