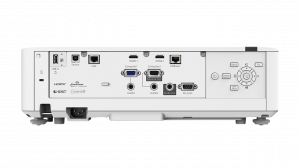

Epson EB-L520U
Roll over image to zoom inClick to Open expanded view
Model: V11HA30040
EAN: 8715946695563

Epson EB-L520U

Manufacturer:
Epson
Epson EB-L520U, 5200 ANSI lumens, 3LCD, WUXGA (1920x1200), 2500000:1, 16:10, 1270 - 12700 mm (50 - 500")
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products
Projection Accessories

Description

Epson EB-L520U. Projector brightness: 5200 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 20 - 31.8 mm, Aperture range (F-F): 1.5 - 1.7. Video processing: 10 bit, Video colour modes: Cinema, DICOM simulation mode, Dynamic, Presentation, sRGB. Serial interface type: RS-232C
  • High brightness, scalable size: Provides 5,200 lumens high-brightness display at up to 500"
  • Premium display features: Full HD, supports 4K input, edge-blending and geometric correction
  • Unrestricted viewing: Free from pixilation, glare, fingerprints and a central bevel
  • Social distancing support: Scalable display meets the needs of every audience configuration
  • Plug, click and collaborate: Collaborate using Epson’s wireless presentation system - ELPWP10
Legal Statement
Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Product Properties

  • Model
  • V11HA30040
  • EAN
  • 8715946695563
  • Bullet points
  • Point
  • High brightness, scalable size: Provides 5,200 lumens high-brightness display at up to 500"
    Plug, click and collaborate: Collaborate using Epson’s wireless presentation system - ELPWP10
    Premium display features: Full HD, supports 4K input, edge-blending and geometric correction
    Social distancing support: Scalable display meets the needs of every audience configuration
    Unrestricted viewing: Free from pixilation, glare, fingerprints and a central bevel
  • Design
  • Cable lock slot
  • Yes
  • Cable lock slot type
  • Kensington
  • Market positioning
  • Presentation
  • Placement
  • Ceiling, Desktop, Floor, Wall
  • Product colour
  • White
  • Product type
  • Standard throw projector
  • Display
  • Built-in display
  • No
  • Features
  • Country of origin
  • Philippines
  • Noise level
  • 31 dB
  • Noise level (economic mode)
  • 23 dB
  • Lens system
  • Aperture range (F-F)
  • 1.5 - 1.7
  • Focal length range
  • 20 - 31.8 mm
  • Focus
  • Manual
  • Throw ratio
  • 1.35 - 2.20:1
  • Zoom capability
  • Yes
  • Zoom ratio
  • 1.6:1
  • Zoom type
  • Manual
  • Light source
  • Light source type
  • Laser
  • Service life of light source
  • 20000 h
  • Service life of light source (economic mode)
  • 30000 h
  • Logistics data
  • Harmonized System (HS) code
  • 85286200
  • Pallet gross weight
  • 0 g
  • Pallet weight (UK)
  • 0 g
  • Products per pallet
  • 14 pc(s)
  • Products per pallet (UK)
  • 14 pc(s)
  • Quantity per pack
  • 1 pc(s)
  • Multimedia
  • Built-in speaker(s)
  • Yes
  • Number of built-in speakers
  • 1
  • RMS rated power
  • 10 W
  • Network
  • Ethernet LAN
  • Yes
  • Wi-Fi
  • Yes
  • Wi-Fi standards
  • 802.11a, Wi-Fi 4 (802.11n)
  • Operational conditions
  • Operating relative humidity (H-H)
  • 20 - 80%
  • Storage relative humidity (H-H)
  • 10 - 90%
  • Storage temperature (T-T)
  • -10 - 60 °C
  • Other features
  • Box contents
  • HDMI Cable, Main unit, Power cable, Remote control incl. batteries, User guide, Warranty Documents
  • Control panel
  • 0.67 inch with C2 Fine

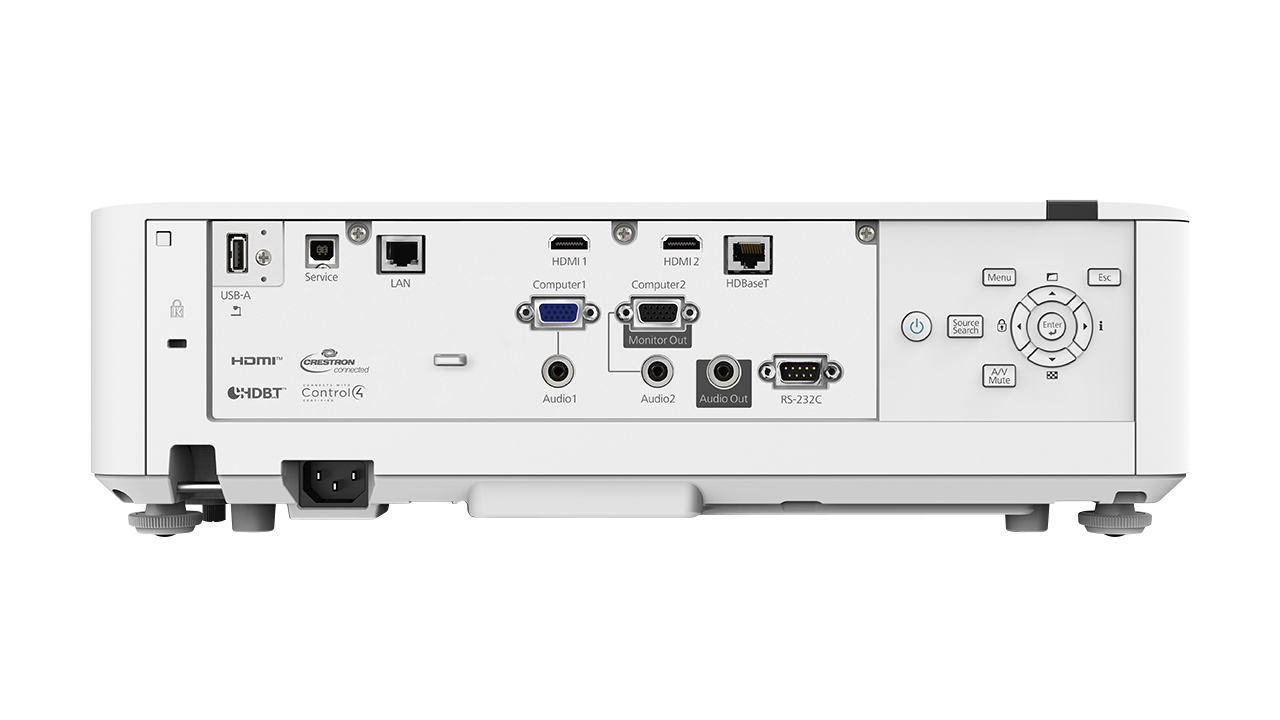

  • Interface
  • RS-232C, VGA in (2x), VGA out, HDMI in (2x), HDBaseT, Miracast (optional), Jack plug out, Jack plug in (2x), USB 2.0-A, USB 2.0, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac (optional)
  • Option type
  • Air filter, Ceiling mount, Document camera, External Speaker, HDBaseT Transmitter, Safety wire set, Suspension adapter, WP System - ELPWP10, Wireless LAN unit, Wireless transmitter - ELPWT01
  • Security features
  • Kensington lock, Padlock, Security cable hole, Wireless LAN unit lock
  • Packaging content
  • Batteries included
  • Yes
  • Bundled software
  • EasyMP Multi PC Projection
  • Cables included
  • AC, HDMI
  • Remote control included
  • Yes
  • Warranty card
  • Yes
  • Ports & interfaces
  • Audio (L/R) in
  • 1
  • DVI port
  • No
  • HDMI ports
  • 2
  • Serial interface type
  • RS-232C
  • USB 2.0 ports quantity
  • 2
  • USB 2.0 Type-B ports quantity
  • 1
  • VGA (D-Sub) ports quantity
  • 3
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 100 - 240 V
  • Power consumption (economy mode)
  • 223 W
  • Power consumption (standby)
  • 0.3 W
  • Power consumption (typical)
  • 293 W
  • Power source
  • AC
  • Projector
  • Contrast ratio (dynamic)
  • 5000000:1
  • Contrast ratio (typical)
  • 2500000:1
  • Keystone correction, horizontal
  • ±30°
  • Keystone correction, vertical
  • ±30°
  • Matrix size
  • 1.7 cm (0.67")
  • Native aspect ratio
  • 16:10
  • Number of colours
  • 1.07 billion colours
  • Projection technology
  • 3LCD
  • Projector brightness
  • 5200 ANSI lumens
  • Projector brightness (economic mode)
  • 3640 ANSI lumens
  • Projector native resolution
  • WUXGA (1920x1200)
  • Screen size compatibility
  • 1270 - 12700 mm (50 - 500")
  • Vertical scan range
  • 192 - 240 Hz
  • Software
  • Software support
  • via: AMX, Crestron (Network), Control4, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
  • Storage
  • Card reader integrated
  • No
  • Technical details
  • Mobile app support
  • Yes
  • Other features
  • 21:9 aspect ratio support, A/V mute, Arc Correction, Built-in speaker, CEC compatible, Easy OSD pre-setting, Edge Blending, Long light source life, PC Free, Quick Corner, Screen share, Source function, Ultra-wide display (16:6), iProjection App
  • Sustainability certificates
  • TCO
  • USB display function
  • 3 in 1: Image / Mouse / Sound
  • Video
  • 3D
  • No
  • Analog signal format system
  • Not supported
  • Full HD
  • Yes
  • Video colour modes
  • Cinema, DICOM simulation mode, Dynamic, Presentation, sRGB
  • Video processing
  • 10 bit
  • Weight & dimensions
  • Depth
  • 122 mm
  • Height
  • 122 mm
  • Package depth
  • 530 mm
  • Package height
  • 210 mm
  • Package weight
  • 10.4 kg
  • Package width
  • 495 mm
  • Weight
  • 7.7 kg
  • Width
  • 440 mm
