Description

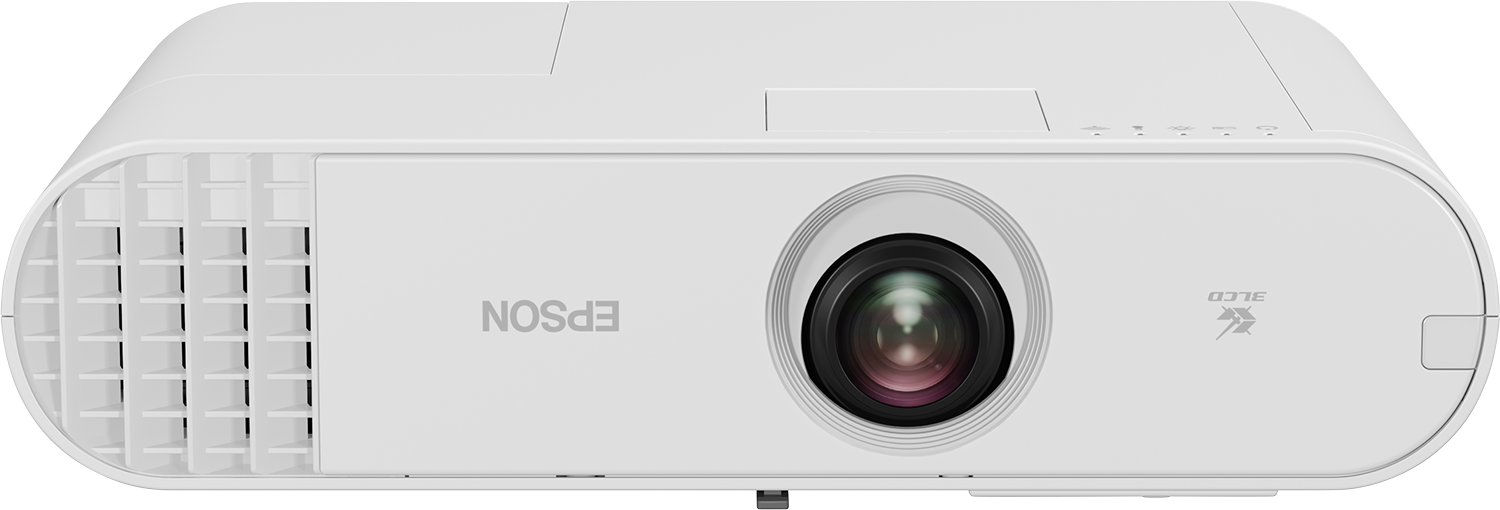

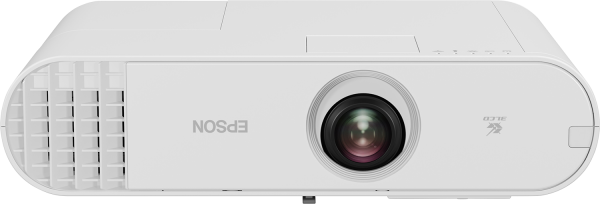

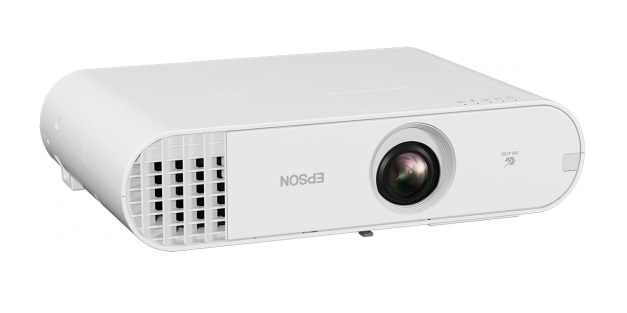

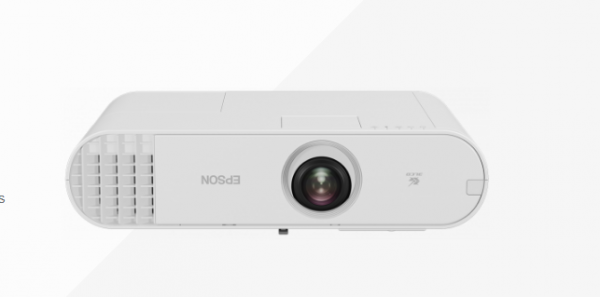

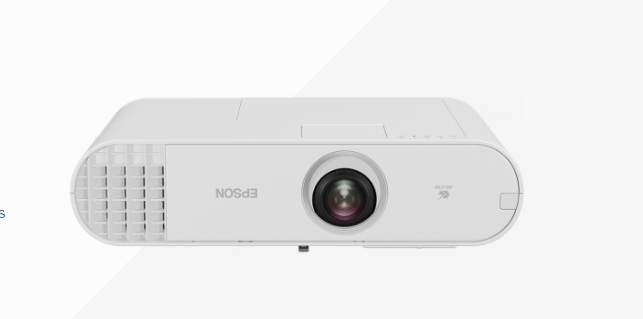

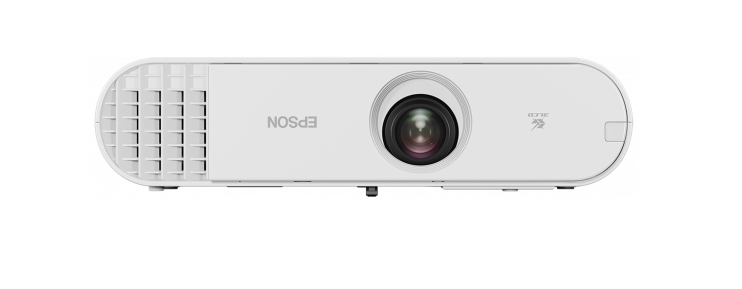

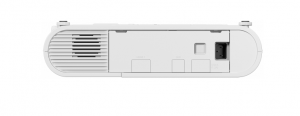

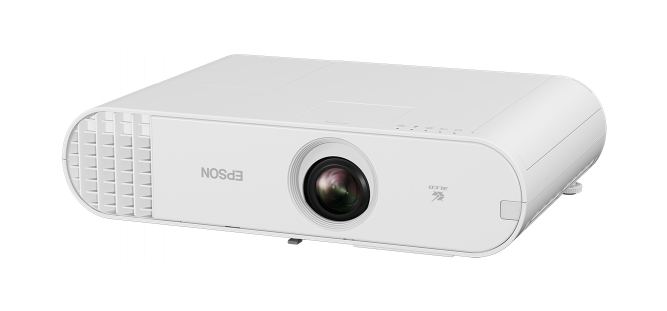

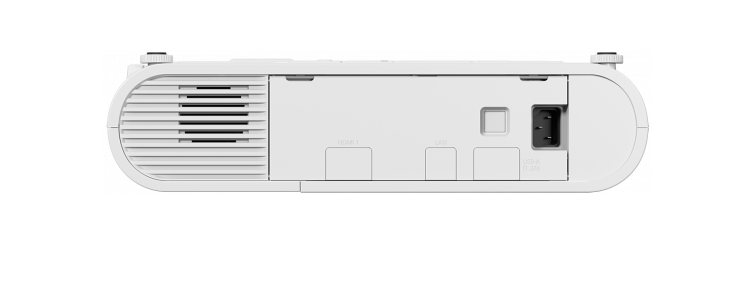

Epson EB-U50. Projector brightness: 3700 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Lamp, Service life of light source: 10000 h, Service life of light source (economic mode): 17000 h. Focal length range: 20.42 - 24.5 mm, Aperture range (F-F): 1.5 - 1.71, Zoom type: Manual. Video colour modes: Blackboard, Cinema, Dynamic, Multi-projection, Presentation, sRGB. Serial interface type: RS-232C

Low TCO: Impressive lamp and filter life
Unobtrusive design: Discreet design suits most environments
Flexible: Designed to support many installation options
High-quality images: Bright and vivid imagery, thanks to 3LCD technology
Ease of use: Simple to install and easy to use

Legal Statement

Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Product Properties

Manufacturer
Epson

Model
V11H952041

EAN
8715946670782

Bullet points

Point
Ease of use: Simple to install and easy to use

Flexible: Designed to support many installation options

High-quality images: Bright and vivid imagery, thanks to 3LCD technology

Low TCO: Impressive lamp and filter life

Unobtrusive design: Discreet design suits most environments

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Market positioning
Portable

Product colour
White

Product type
Standard throw projector

Features

Noise level
37 dB

Noise level (economic mode)
28 dB

Password protection
Yes

Lens system

Aperture range (F-F)
1.5 - 1.71

Focal length range
20.42 - 24.5 mm

Throw ratio
1.38 - 1.68:1

Zoom ratio
1.2:1

Zoom type
Manual

Light source

Lamp power
200 W

Lamp type
UHE

Light source type
Lamp

Service life of light source
10000 h

Service life of light source (economic mode)
17000 h

Logistics data

Harmonized System (HS) code
85286200

Products per pallet
52 pc(s)

Products per pallet (UK)
78 pc(s)

Quantity per pack
1 pc(s)

Multimedia

Built-in speaker(s)
Yes

RMS rated power
5 W

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
5 - 40 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-10 - 60 °C

Other features

Box contents
Power cable, Quick Start Guide, Remote control incl. batteries, User manual (CD)

Control panel
0.67 inch

Interface

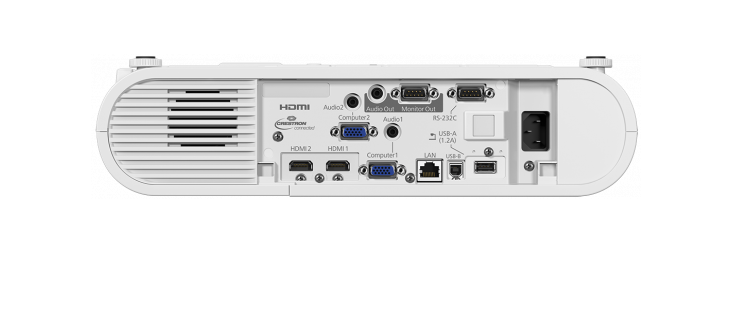

USB 2.0-A, USB 2.0 Type B (Service Only), RS-232C, WLAN, VGA in (2x), VGA out, HDMI in (2x), Jack plug out, Jack plug in (2x)

Option type
Air filter ELPAF38, Document camera, External Speaker, Floor stand, Lighting track mount

Security features
Kensington lock, Security cable hole, Wireless LAN unit lock, Password protection

Packaging content

Bundled software
EasyMP Monitor, Epson Projector Content Manager

Ports & interfaces

Audio (L/R) in
2

Audio (L/R) out
1

HDMI ports
2

Serial interface type
RS-232C

USB 2.0 ports quantity
2

USB 2.0 Type-B ports quantity
1

VGA (D-Sub) ports quantity
2

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power consumption (economy mode)
218 W

Power consumption (standby)
0.3 W

Power consumption (typical)
285 W

Power source
AC

Projector

Contrast ratio (dynamic)
16000:1

Contrast ratio (typical)
420:1

Keystone correction, horizontal
±30°

Keystone correction, vertical
±30°

Native aspect ratio
16:10

Number of colours
1.07 billion colours

Projection distance
1.1 - 11 m

Projection distance (tele)
1.1 - 11 m

Projection distance (wide)
0.9 - 9 m

Projection technology
3LCD

Projector brightness
3700 ANSI lumens

Projector brightness (economic mode)
2400 ANSI lumens

Projector native resolution
WUXGA (1920x1200)

Screen size compatibility
762 - 7620 mm (30 - 300")

Technical details

Mobile app support
Yes

Other features
Built-in speaker, Document Camera Compatible, Horizontal and vertical keystone correction, Long lamp life, iProjection App

USB display function
2 in 1: Image/ Sound

Video

Full HD
Yes

Video colour modes
Blackboard, Cinema, Dynamic, Multi-projection, Presentation, sRGB

Weight & dimensions

Depth
87 mm

Height
248 mm

Package depth
455 mm

Package height
155 mm

Package weight
4.27 kg

Package width
362 mm

Weight
3.1 kg

Width
364 mm
