Description

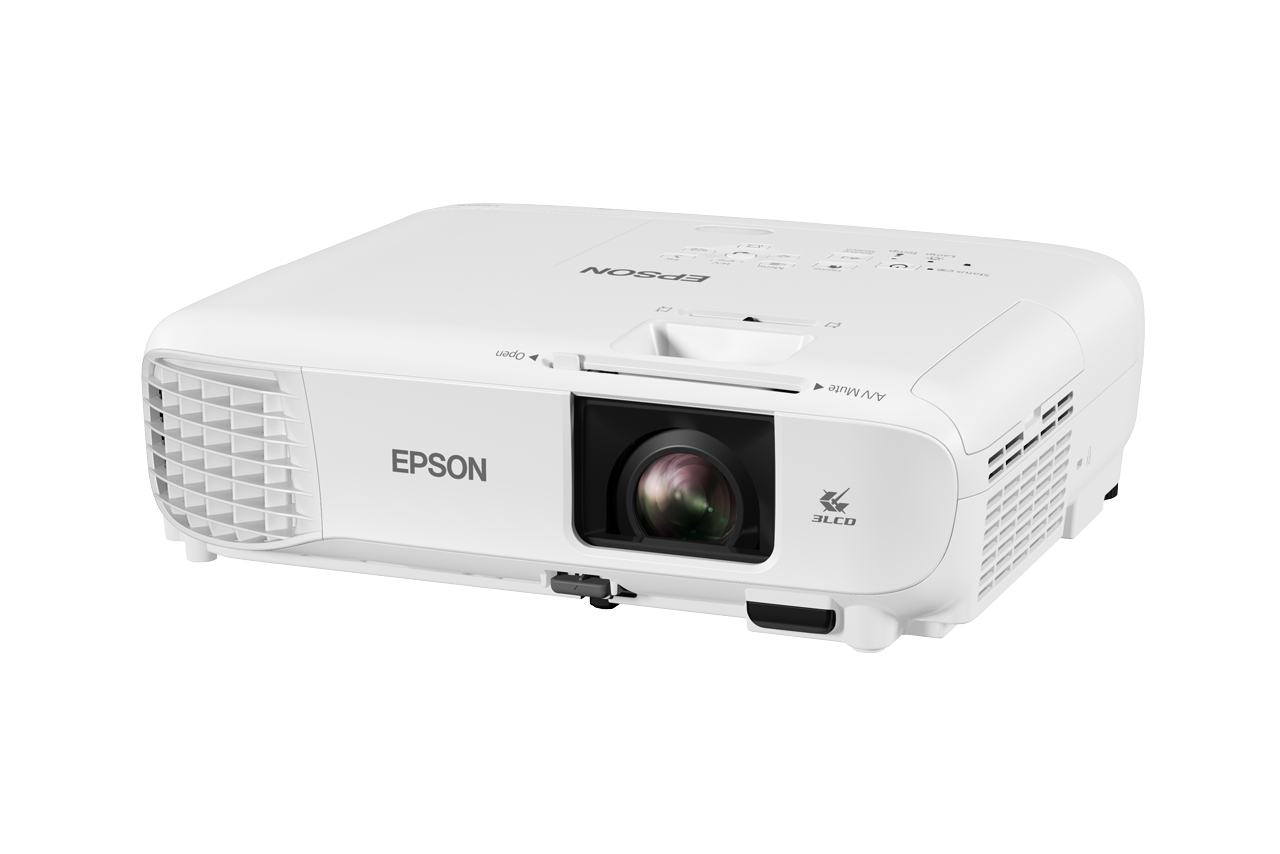

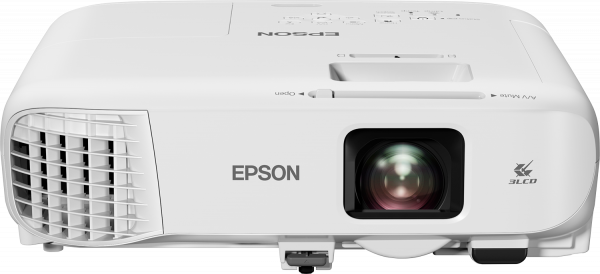

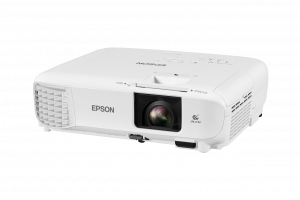

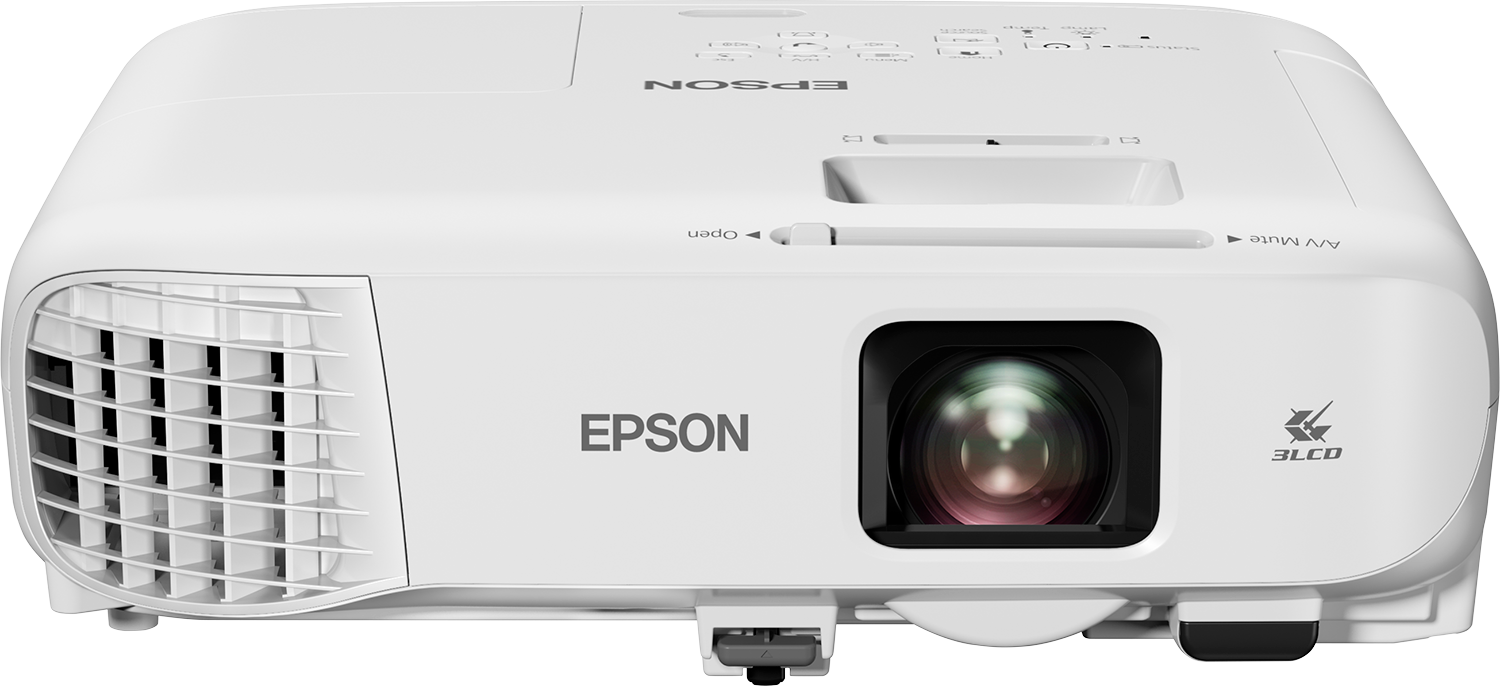

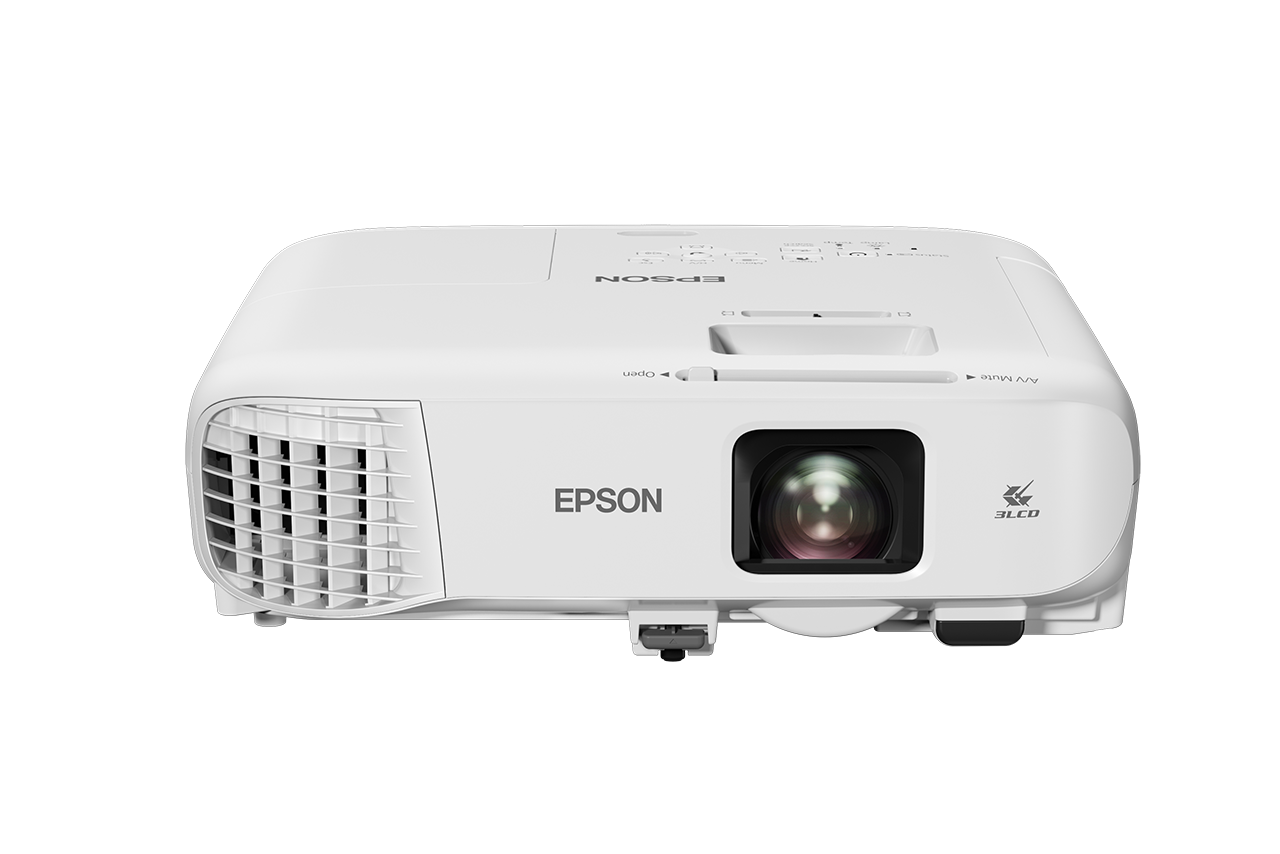

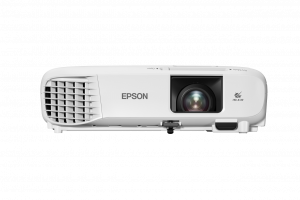

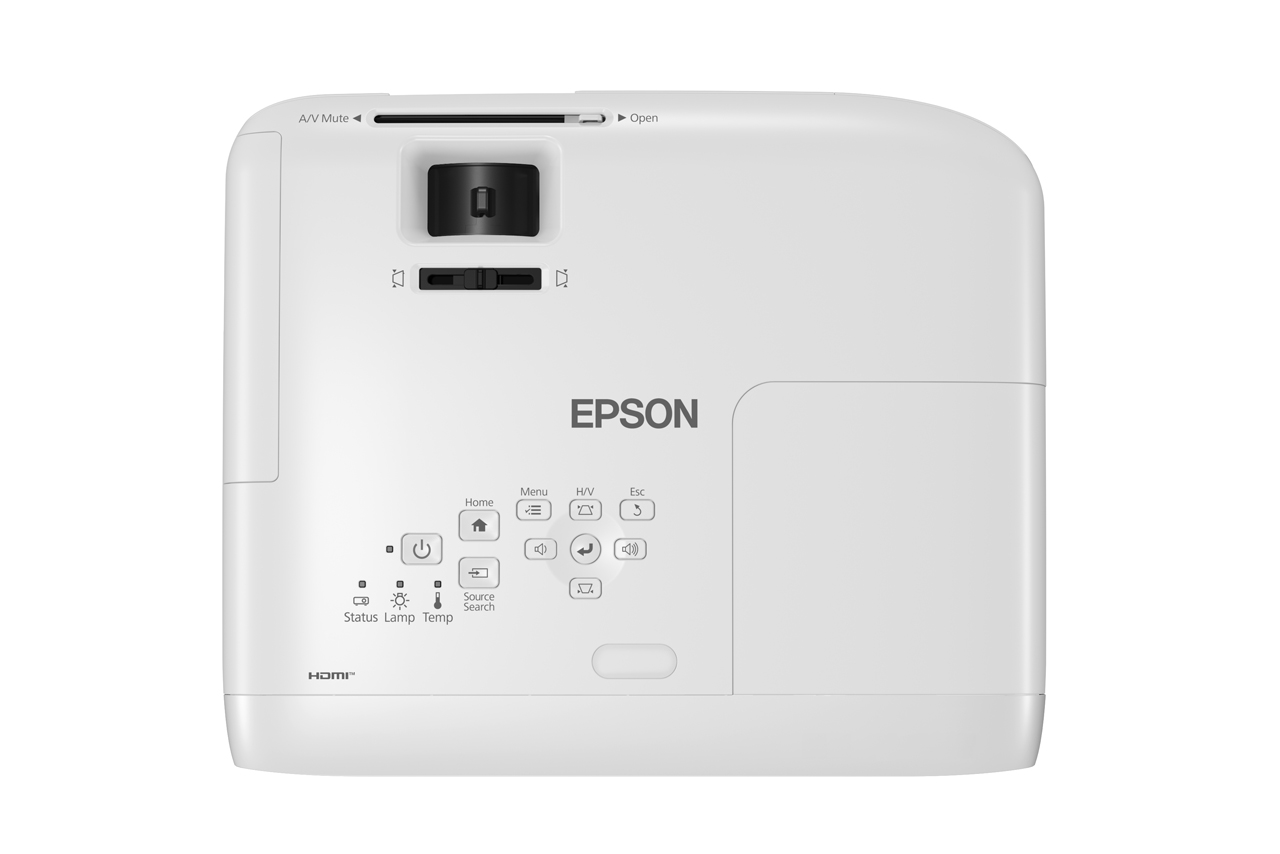

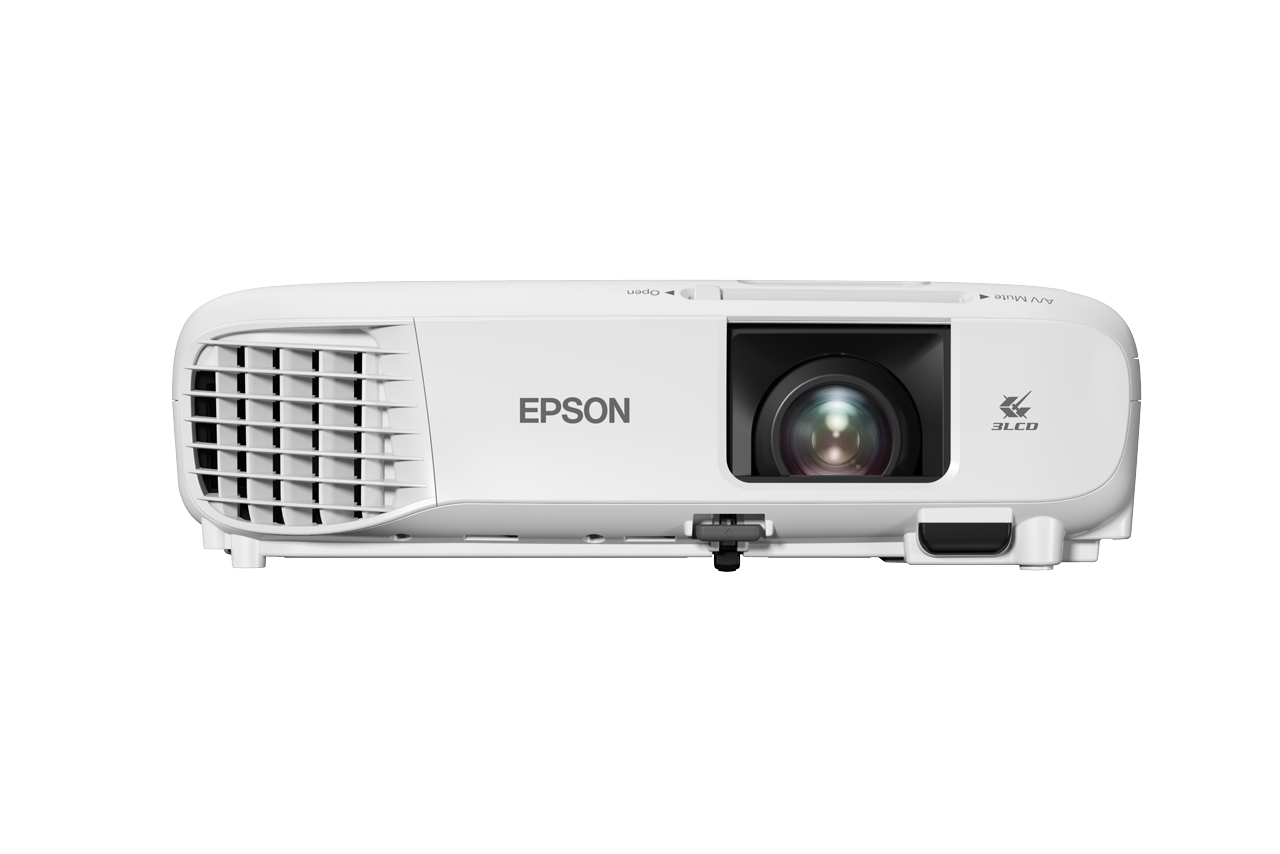

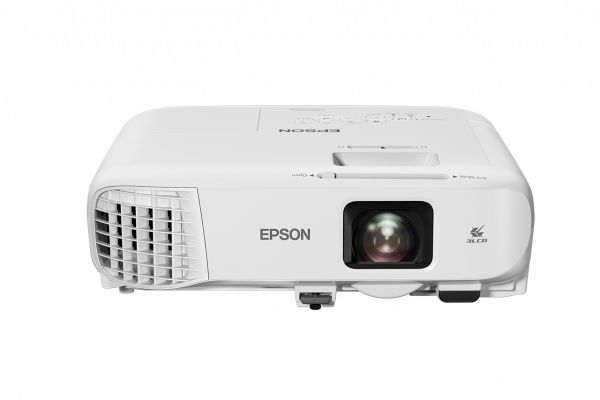

Epson EB-X49. Projector brightness: 3600 ANSI lumens, Projection technology: 3LCD, Projector native resolution: XGA (1024x768). Light source type: Lamp, Service life of light source: 6000 h, Service life of light source (economic mode): 12000 h. Focus: Manual, Focal length range: 16.9 - 20.28 mm, Aperture range (F-F): 1.49 - 1.72. Video processing: 10 bit, Video colour modes: Blackboard, Dynamic, Presentation, sRGB, Theatre. Serial interface type: RS-232C, HDMI connector type: Full-size

High-quality bright images: 3LCD technology and equally high White and Colour Light Output
Portable: Small and light enough to be carried and used across several rooms
Wide connectivity options: Network-enabled and wireless capable
Low total cost of ownership: Lamp life up to 12,000 hours in Eco mode
Versatile and flexible control: Project from many sources with HDMI and optional wireless connectivity

Legal Statement

Complies with The UK Product Security and Telecommunications Infrastructure (Product Security) requirements. Epson will provide security updates for 7 years from purchase

Product Properties

Manufacturer
Epson

Model
V11H982040

EAN
8715946680750

Bullet points

Point
High-quality bright images: 3LCD technology and equally high white and colour light output

Low total cost of ownership: Lamp life up to 12,000 hours in Eco mode

Portable: Small and light enough to be carried and used across several rooms

Versatile and flexible control

Wide connectivity options: Network-enabled and wireless capable

Design

Cable lock slot
Yes

Cable lock slot type
Kensington

Market positioning
Portable

Placement
Ceiling, Desktop

Product colour
White

Display

Built-in display
No

Features

Country of origin
Philippines

Noise level
37 dB

Noise level (economic mode)
28 dB

On Screen Display (OSD)
Yes

Preset modes
Blackboard, Dynamic, Presentation, Theatre, sRGB

Lens system

Aperture range (F-F)
1.49 - 1.72

Focal length range
16.9 - 20.28 mm

Focus
Manual

Throw ratio
1.48 - 1.77:1

Zoom capability
Yes

Zoom ratio
1.2:1

Zoom type
Manual

Light source

Lamp power
210 W

Lamp type
UHE

Light source type
Lamp

Service life of light source
6000 h

Service life of light source (economic mode)
12000 h

Logistics data

Harmonized System (HS) code
85286200

Pallet gross weight
0 g

Pallet weight (UK)
0 g

Products per pallet
78 pc(s)

Products per pallet (UK)
78 pc(s)

Quantity per pack
1 pc(s)

Multimedia

Built-in speaker(s)
Yes

Number of built-in speakers
1

RMS rated power
5 W

Network

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Smart TV
No

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
5 - 35 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-10 - 60 °C

Other features

Box contents
HDMI Cable, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User Manual (CD-ROM), Warranty document

Control panel
0.55 inch with C2 Fine

Interface

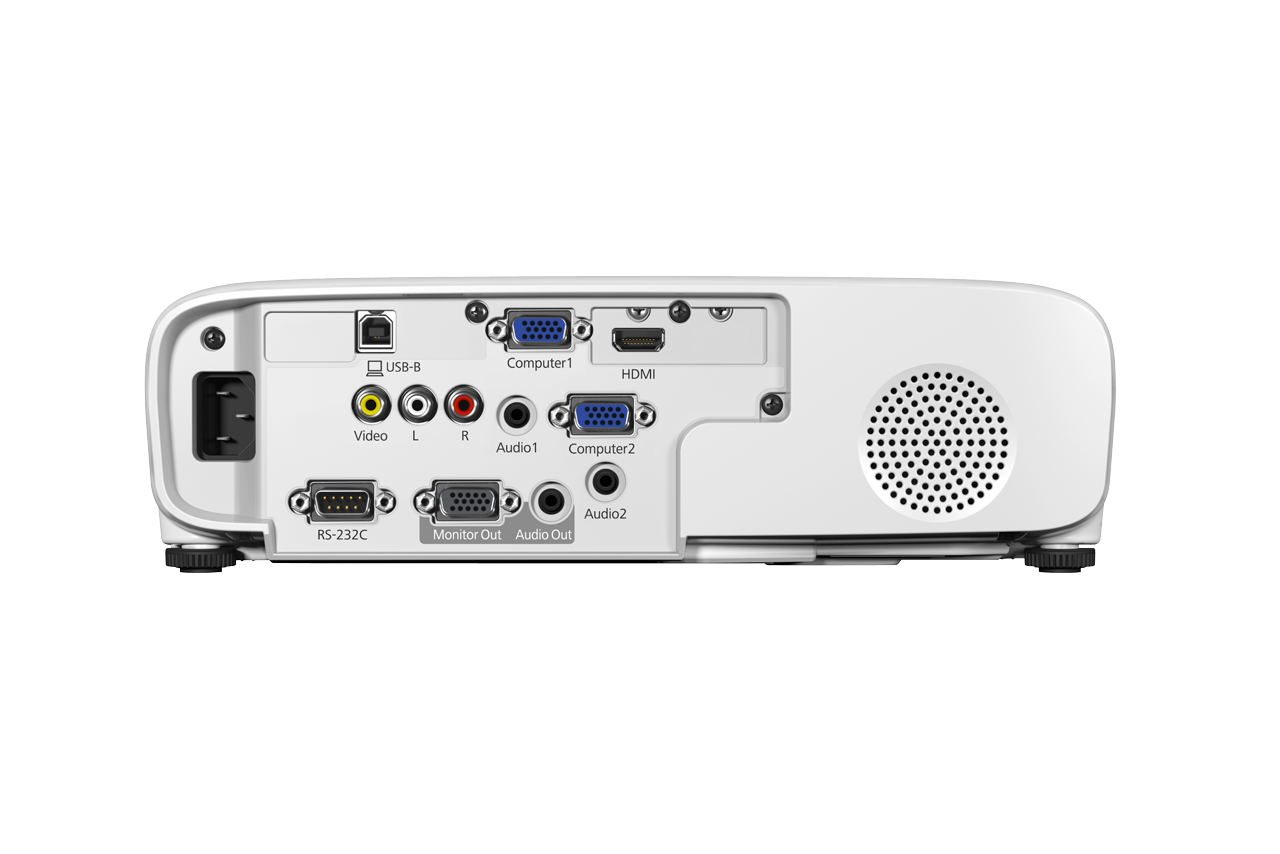

USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), VGA in (2x), VGA out, HDMI in, Composite in, Jack plug out, Jack plug in (2x), Cinch audio out, USB 2.0-A, Wireless LAN IEEE 802.11a/b/g/n/ac (optional)

Option type
Air filter, Ceiling mount, Document camera, External Speaker, Safety wire set, Soft carry case, Suspension adapter, WP System - ELPWP20, Wireless LAN unit, Wireless transmitter - ELPWT01

Security features
Kensington lock, Security cable hole, Wireless LAN unit lock

Supported network protocols
PJLink

Packaging content

Batteries included
Yes

Bundled software
EasyMP Multi PC Projection, Epson Projector Management

Cables included
AC, HDMI

Quick start guide
Yes

Remote control included
Yes

WLAN adapter included
Yes

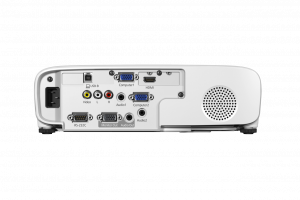

Ports & interfaces

AC (power) in
Yes

Audio (L/R) in
0

Component video (YPbPr/YCbCr) in
0

Composite video in
1

DVI port
No

HDMI connector type
Full-size

HDMI ports
1

PC Audio in
Yes

PC Audio out
Yes

PC in (D-Sub)
Yes

S-Video inputs quantity
0

Serial interface type
RS-232C

USB 2.0 ports quantity
0

USB 2.0 Type-B ports quantity
1

VGA (D-Sub) ports quantity
3

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power consumption (economy mode)
225 W

Power consumption (typical)
327 W

Power source
AC

Projector

Contrast ratio (typical)
16000:1

Keystone correction, horizontal
±30°

Keystone correction, vertical
±30°

Matrix size
1.4 cm (0.55")

Native aspect ratio
4:3

Number of colours
1.07 billion colours

Projection technology
3LCD

Projector brightness
3600 ANSI lumens

Projector brightness (economic mode)
2400 ANSI lumens

Projector native resolution
XGA (1024x768)

Screen size compatibility
762 - 7620 mm (30 - 300")

Supported aspect ratios
4:3

Vertical scan range
100 - 120 Hz

Software

Software support
via: AMX, Crestron (Network), Control4, Extron

Storage

Card reader integrated
No

Technical details

Mobile app support
Yes

Other features
AV Mute Slide, Automatic keystone correction, Built-in speaker, CEC compatible, Digital zoom, Direct Power on/off, Document Camera Compatible, Easy OSD pre-setting, Horizontal and vertical keystone correction, Network projection, OSD copy function, PC Free, Quick Corner, Split-Screen-Function, iProjection App, iProjection set-up by NFC, iProjecton set-up by scanning a code

USB display function
2 in 1: Image/ Sound

Video

Full HD
No

Video colour modes
Blackboard, Dynamic, Presentation, sRGB, Theatre

Video processing
10 bit

Weight & dimensions

Depth
249 mm

Height
87 mm

Package depth
380 mm

Package height
160 mm

Package weight
4.12 kg

Package width
355 mm

Weight
2.7 kg

Width
302 mm
